Nut, Union (spx1500g)

$11.99

IN STOCK

Part # 5111-25

By Hayward Pool Products

  5 Average

Details

Top

Part # 5111-25

Manufacturer Code SPX1500G

Dimensions 3" L x 3" W x 1.125" D

Alternate Part #'s SP1500G, SPX1500G, 89-150-1010, HAYSPX1500G

Product Description

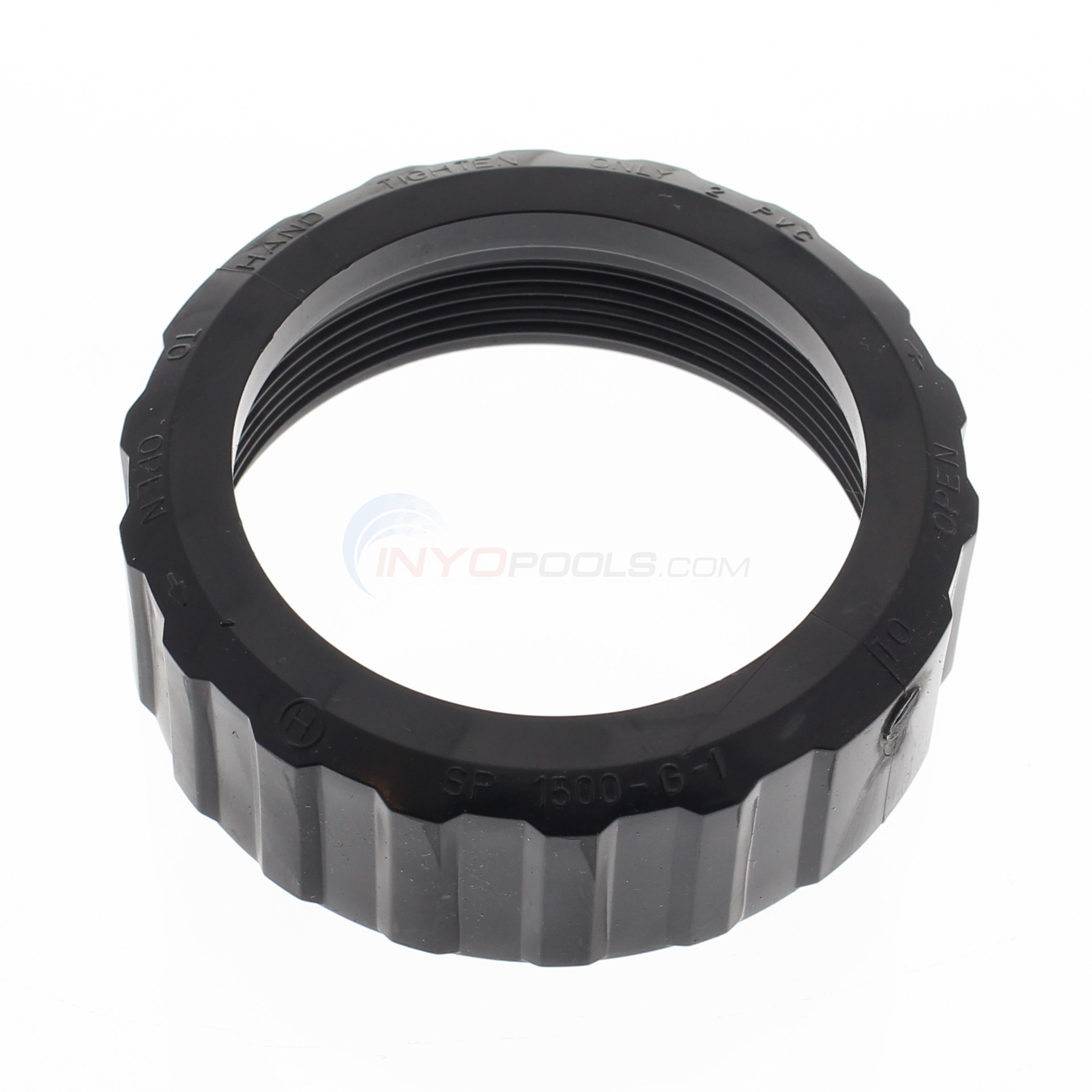

THIS IS A FEMALE THREADED UNION NUT.

USED IN THE HAYWARD UNION WHICH FITS A VARIETY OF ITEMS SUCH AS PUMPS, CHLORINE FEEDERS, AND SKIMMERS.

THIS HAS UNIQUIE HAYWARD FINE V-THREADS.

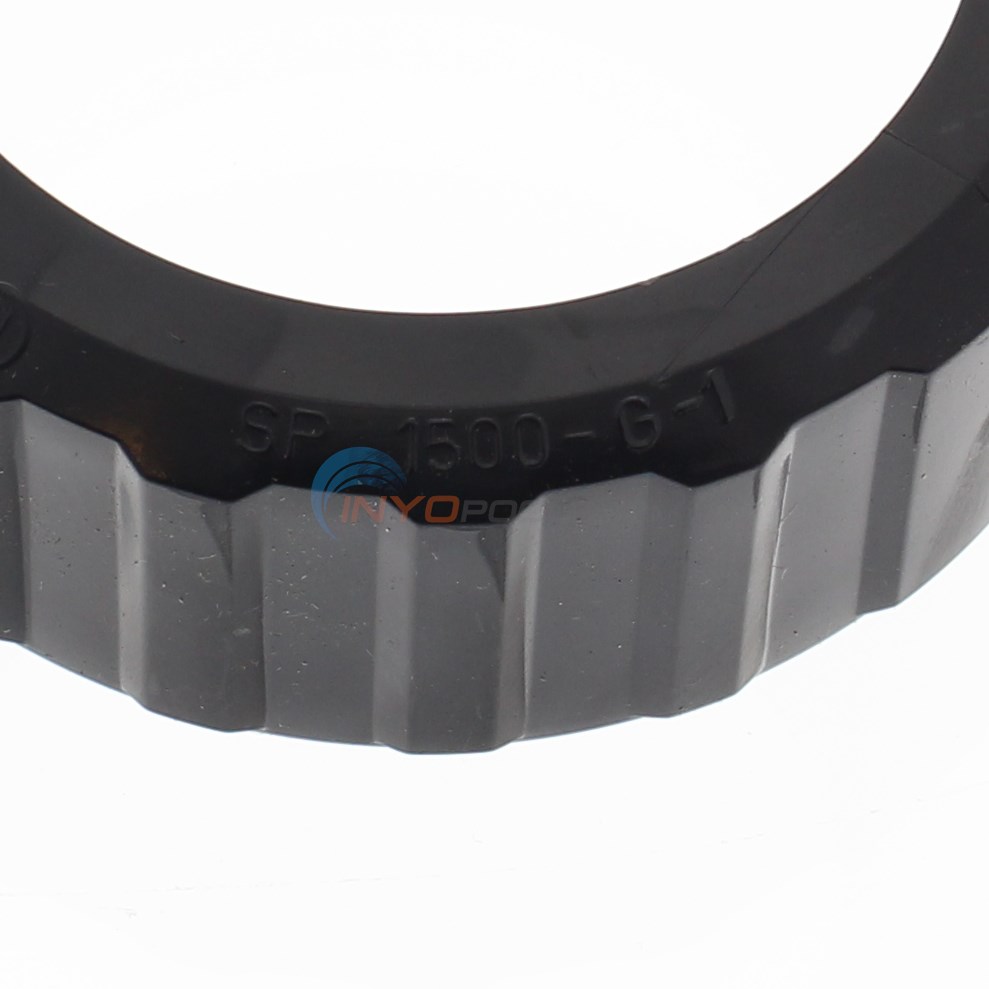

SP 1500-G-1 IS MOLDED ON THE FLANGE SIDE

DIMENSIONS:

OUTSIDE DIAMETER: 3 3/8"

INSIDE DIAMETER: 2 3/4" (THREAD SIDE)

INSIDE DIAMETER: 2 7/16" (FLANGE SIDE)

FRONT TO BACK: 1 1/8"

Top

?     Asked on 10/9/2020by GEORGE preston FORD

does it fit hayward rs 1500 pump
 Reply

A  Answered on 12/16/2020 by InyoPools Product Specialist Michelle B.

Hello,Thank you for contacting Inyopool products!Unfortunately, this will not fit your RS pump. This part number goes on the Hayward Powerflo pump series.
 Reply


?     Asked on 10/8/2018by Marco

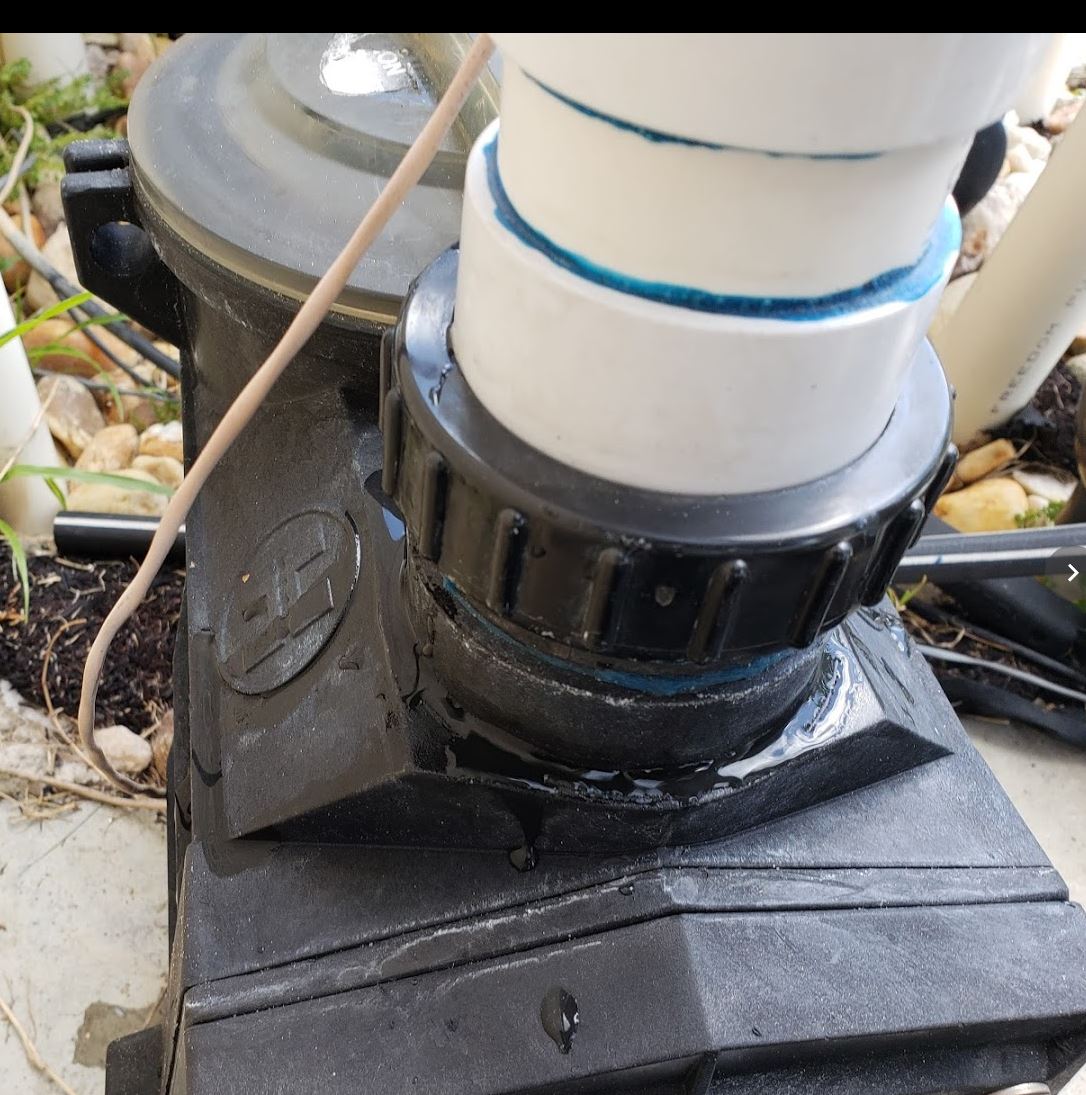

Is this the correct nut for Hayward Super Pump II? I attached an image.

 Reply

A  Answered on 10/9/2018 by InyoPools Product Specialist Joe S.

Yes that is commonly used fitting for that pump. Hi-Temp Union, 2" MPT x 2" Socket Tailpiece - 21063-200
 Reply
