By Val-Pak Products
Part # 4890-066
Manufacturer Code V34-022
Dimensions 17.5" L x 5" W x 3" D
Alternate Part #'s 004908, 39960328, V34022, 27-612-1002

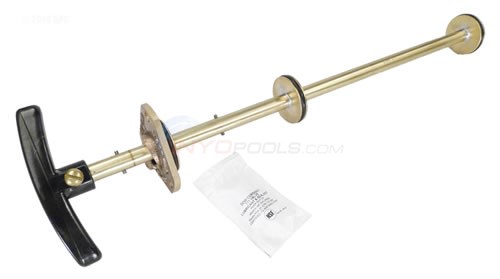

INYO # 4890-066 ANTHONY # 39960328 ANTHONY # 004908 (OLDER ANTHONY NUMBER) GENERAL DESCRIPTION: THIS IS THE COMPLETE MAIN SHAFT WITH SPACERS, TOP PLATE, AND HANDLE USED IN THE ANTHONY 2" PUSH PULL VALVE THE HANDLE IS A T-STYLE, BLACK PLASTIC, HELD ON WITH A SINGLE SET SCREW GENERAL INFO MATERIAL: SHAFT: BRASS SPACERS: BRASS TOP CAP: BRASS (INCLUDED WITH THIS ASSEMBLY) HANDLE: BLACK PLASTIC (INCLUDED WITH THIS ASSEMBLY) DIMENSIONS: LENGTH: 17-1/4" (INCLUDING HANDLE) LENGTH: 16-1/2" (A) (WITHOUT HANDLE) SHAFT DIAMETER: 1/2" (B) SPACERS: TOTAL # 2 SPACERS INCLUDED 3RD SPACER IS INCLUDED,AS PART OF THE TOP PLATE DIAMETER: 2-1/8" THICKNESS: 1/4" FROM OUTSIDE TO OUTSIDE GROOVE: 1/8" SPACING: (MEASURED ON CENTERLINE FROM FIRST SPACER WITH THE FIRST SPACER AT ZERO) 1ST 0 2ND 9" 3RD 14-3/8" SPACER O-RINGS: (3) INCLUDED THESE ARE STRETCHED ON TO THE SPACERS SO THE DIMENSIONS SHOWN ARE FOR THE ORIGINAL O-RINGS BEFORE THEY ARE STRETCHED OUTSIDE DIAMETER: 1-7/8" INSIDE DIAMETER: 1-5/8" HOLES IN SHAFT: (MEASURED ON CENTERLINE FROM THE HANDLE END OF THE SHAFT) HOLE: 3/32" AT 1-1/2" FROM END HOLE: 3/32" AT 4-5/8" FROM END ASSEMBLY INCLUDES: SHAFT WITH 2 SPACERS TOP CAP WITH SPACER O-RING FOR EACH SPACER (3 TOTAL) SHAFT O-RING SPRING PINS (2 TOTAL) HANDLE HANDLE SET SCREW MARKINGS: THERE MAY BE MARKINGS ON THE HANDLE OR TOP CAP, SEE BELOW
*******************************************************************************
TOP PLATE INFO INCLUDED? INCLUDED INYO # 4890-065 ANTHONY # 39960326 ANTHONY # 017753 (OLDER ANTHONY NUMBER) GENERAL DESCRIPTION: THIS IS THE TOP PLATE USED IN THE ANTHONY 2" PUSH PULL VALVE MATERIAL: BRASS SHAPE: TRIANGLE WITH ROUNDED POINTS THERE IS A 5/16" AT EACH POINT THE HOLE CENTERLINE IS ABOUT 5/16" FROM THE EDGE THIS TOP PLATE ALSO INCLUDES THE TOP SPACER CAST AS PART OF THE PLATE DIMENSIONS: WIDTH(CENTER TO POINT): 3" (A) TOTAL HEIGHT: 11/16" (B) CENTER HOLE DIAMETER: 1/2" INCLUDES: TOP PLATE WITH SPACER ONLY MARKINGS: "OPEN" AND "LOCK" WITH ARROWS CAST ON TOP
*******************************************************************************
HANDLE INFO INCLUDED? INCLUDED INYO # 4890-048 ANTHONY # 21300913 ANTHONY # 017604 (OLDER ANTHONY NUMBER) GENERAL DESCRIPTION: THIS IS THE HANDLE USED IN THE ANTHONY 1-1/2" AND 2" PUSH PULL VALVE MATERIAL: ORIGINAL WAS CHROME PLATED BRASS THIS HANDLE IS BLACK PLASTIC SHAPE: T STYLE, WITH SET SCREW HOLE IN THE SIDE DIMENSIONS: LENGTH: 4-1/2" (A) WIDTH: 1" HEIGHT: 1-3/8" (B) INCLUDES: HANDLE ONLY MARKINGS: "ANTHONY" OR "VAL PAK" MOLDED ON THE TOP
*******************************************************************************
The plunger part of my backwash valve needs a new o-ring. Can I just purchase an o-ring? Also if that is not available, can I just purchase the plunger part without buying a whole new backwash valve.
Reply
when you replace o rings on the plunger and water still leaks out of the back wash
Reply
Monroe, It could be as simple as lubricating the o-rings or the pistons on the plunger are bad. Look over everything and go from there.
Reply
How do I remove plunger assembly on the Anthony 2" push-pull
valve -
Reply
You would unscrew the bolts from the top and pull out the plunger. The top might be on pretty tight from the suction so you might have to pull hard.
Reply
Are both the v34-016 and the v34-022 compatible with the va series filter?
Reply
Hi, Joe. Yes, both items are compatible with the VA Series filter depending on the size valve you have. The V34-016 is used with the 1-1/2" port valve and the V34-022 is used with the 2" port valve.
Reply
My Anthony plunger for the back wash will turn with pressure, but will not lift up to allow backwash.
Reply
Hi. The o-rings in the valve may be the issue if the stem assembly is in good condition.
Reply
Less than 1 hr
None
1 0
located new plunger through your company, ordered, waited for delivery
removed existing plunger
applied lube/sealant to o rings already installed on new plunger
re-installed new plunger into diversion portion of plumbing.
fired up unit to check for leaks
