By Raypak



Part # 6234-99

Manufacturer Code 006736F

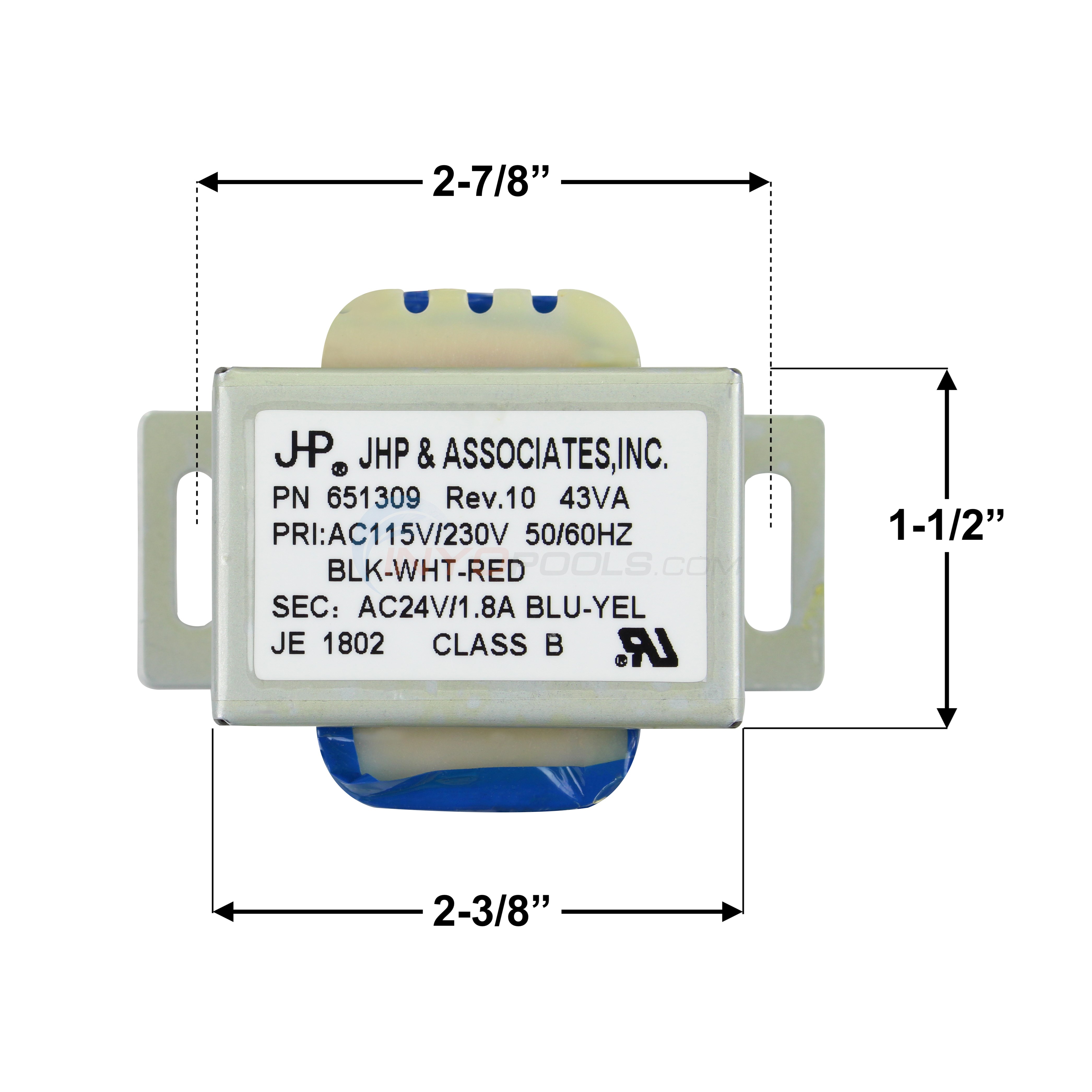

Dimensions 5" L x 4" W x 4" D

Alternate Part #'s 005345F, 006736F, 52552, 52883, 6230-29, 6234-99, 840891000693, RAY-151-1229, 47-197-1768, RAY006736F

Product Description

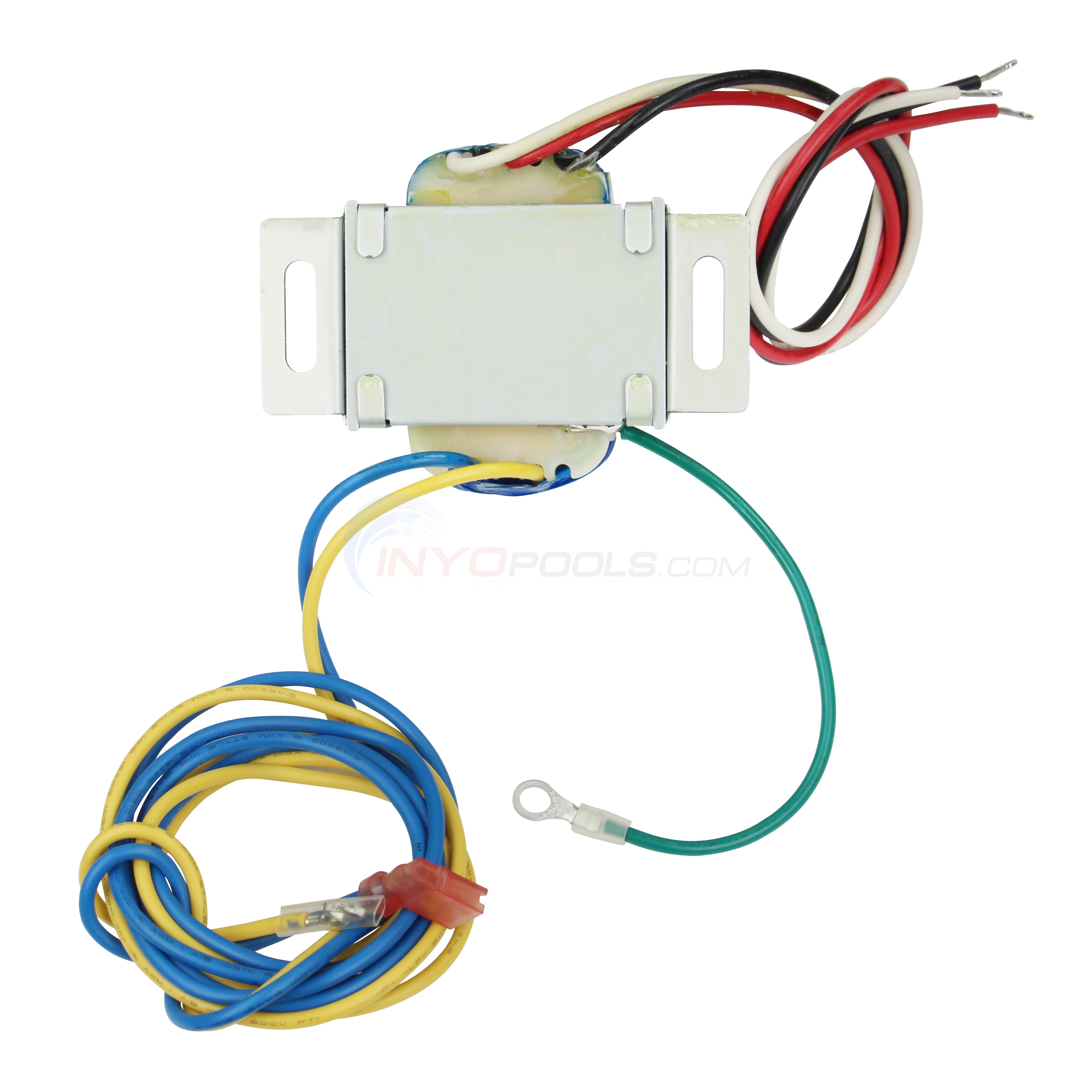

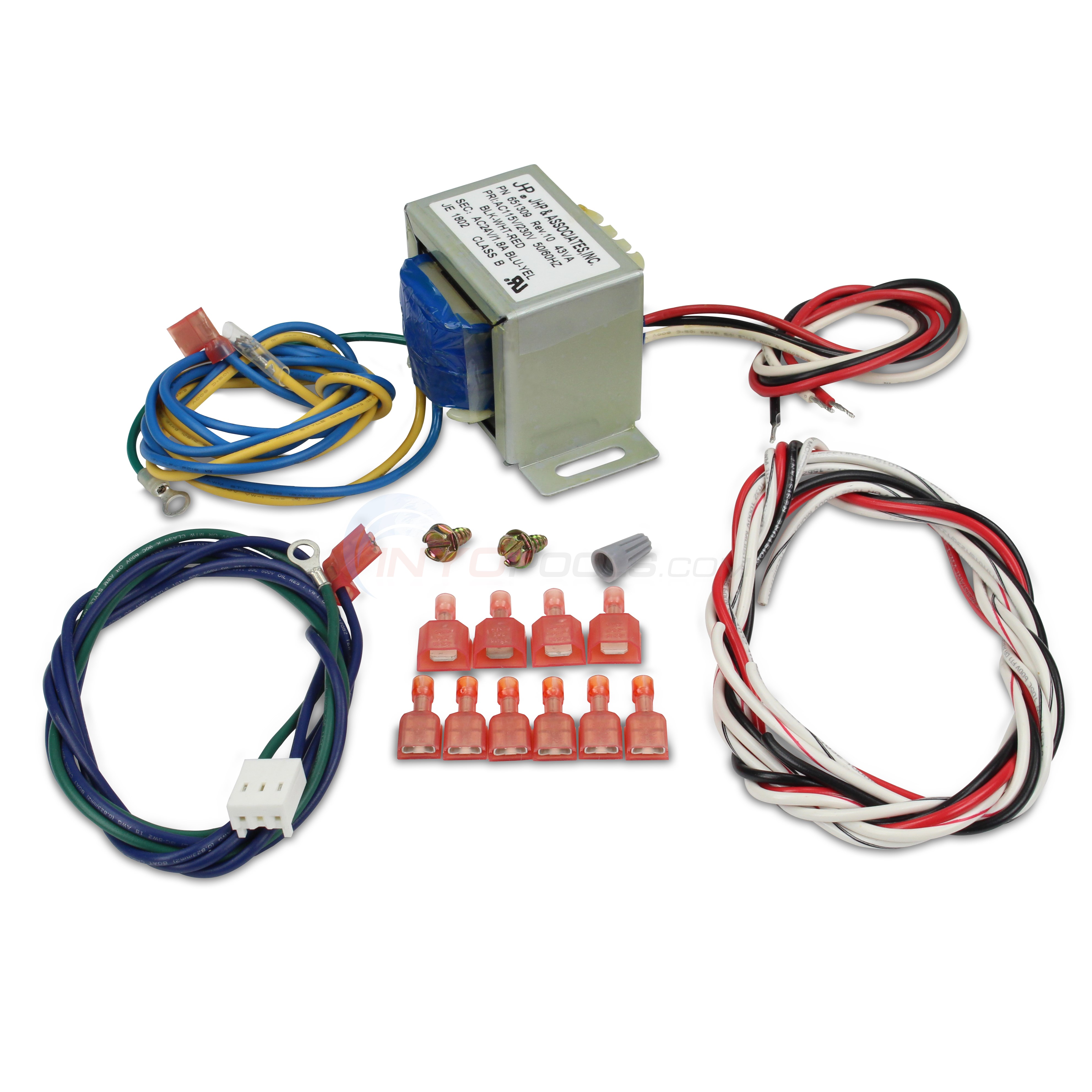

Transformer 115v/230v - 24v - 006736F


?     Asked on 10/13/2016by Steve Halsted

Need replacement trransformer for Versa B-155A heater. Looks like 24 and 30 VAC output? Will the 06736F work as a replacement?

A  Answered on 10/13/2016 by InyoPools Product Specialist Scott W.

Yes, that would be the correct replacement transformer for your heater.

?     Asked on 4/28/2017by cavid

I have a Raypak RP 2100 pool/spa heater. The control panel does not light up and the heater will not come on. There is 240 v to the input side and only 7.5v coming out of the output side of the 24v transformer. Could the low voltage be the reason the heater wont work and should the transformer be replaced? if I order the part from you and it turns out that the transformer is not the problem can I send the part back for a refund?

A  Answered on 4/29/2017 by InyoPools Product Specialist Lennox H.

Hi, Cavid. If the output to the PCB is 7.5 volts then the transformer is bad. It should be putting out 24 volts to the PCB. Once the part is installed we're unable to take it back, please review our complete Return Policy.

?     Asked on 8/15/2017by Inyo Visitor

how do you check the power on the transformer

A  Answered on 8/18/2017 by InyoPools Product Specialist Hector F.

You can use a voltage meter which you can purchase at a local hardware store to test the voltage both going into and out of it.

?     Asked on 10/24/2017by Mike

Is the white wire used on the transformer for wiring a 230v system?

A  Answered on 10/24/2017 by InyoPools Product Specialist Lennox H.

Hi, Mike. The White wire is not used when wiring the unit to 230 volts.
