Raypak Spa Pak & California III 151 (1974-12/01/81) Parts

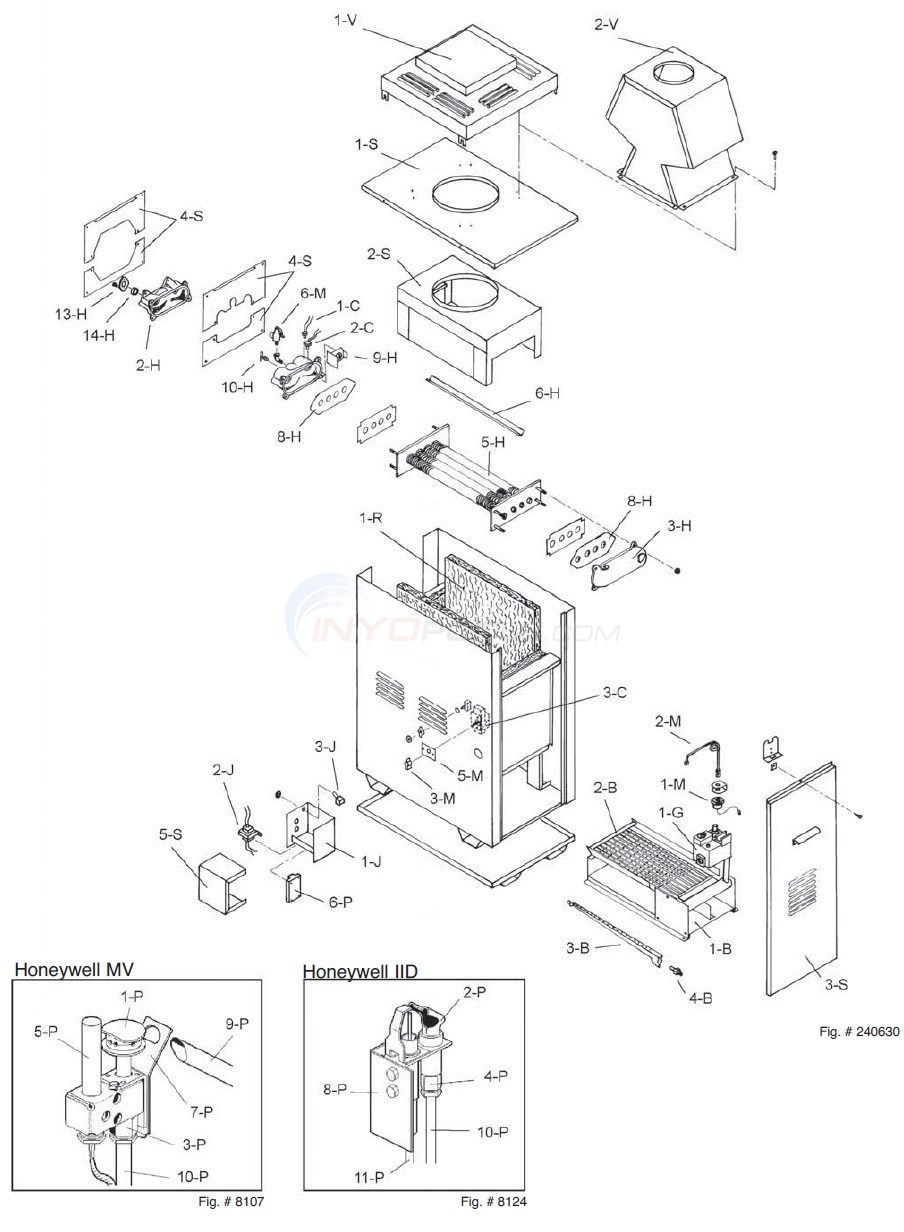

Raypak Spa Pak & California III 151 (1974-12/01/81) Diagram

Click to zoom in

Diagram #	Part Title
2-B	Burner Hold Down Kit
3-B	Burner Only
4-B	Orifice, Burner Nat (350080)
1-C	High Limit, 135 Degree
3-C	Thermostat Control
1-G	Valve, Gas Nat. Mv Raypak
4-H	Exchanger Only, 155a
7-H	Bolt, Kit 155a
8-H	Gasket, Header Set 155a
9-H	Governor
11-H	Bulb Sensor Well
12-H	Clip, Well Retaining
13-H	Flange Kit In/out 1 1/2" - Mod.151/105
14-H	Gasket, Flange - Sold Each
2-J	Transformer 24v
3-J	Switch, Toggle M.v. Raypak (650761)
1-M	Switch, Pressure
2-M	Tube, Pressure Switch Assy.
6-M	Valve, Pressure Relief 125 Psi
7-M	Deliming 7/8 Tube Kit
1-P	Pilot, Nat. Mv Raypak
2-P	Pilot, Natural Or Propane, Iid
3-P	Orifice, Pilot, Nat. Mv
5-P	Raypak Generator, Pilot, Mv
6-P	Control Ignition, Iid Nat.
7-P	Bracket, Pilot Mounting, Mv (303730f)
8-P	Bracket, Pilot Mounting, Iid (304670f)
9-P	Tube, Lighter Mv (185a-405a)
10-P	Tube, Pilot
1-R	Refractory Kit
1-S	Jacket Top Kit, 133a/153a
2-V	Indoor Drafthood Versa 130
*	Conversion Kit Nat To Lp 185- 265

View Parts List

Diagram #	Part Title
2-B	Burner Hold Down Kit
3-B	Burner Only
4-B	Orifice, Burner Nat (350080)
1-C	High Limit, 135 Degree
3-C	Thermostat Control
1-G	Valve, Gas Nat. Mv Raypak
4-H	Exchanger Only, 155a
7-H	Bolt, Kit 155a
8-H	Gasket, Header Set 155a
9-H	Governor
11-H	Bulb Sensor Well
12-H	Clip, Well Retaining
13-H	Flange Kit In/out 1 1/2" - Mod.151/105
14-H	Gasket, Flange - Sold Each
2-J	Transformer 24v
3-J	Switch, Toggle M.v. Raypak (650761)
1-M	Switch, Pressure
2-M	Tube, Pressure Switch Assy.
6-M	Valve, Pressure Relief 125 Psi
7-M	Deliming 7/8 Tube Kit
1-P	Pilot, Nat. Mv Raypak
2-P	Pilot, Natural Or Propane, Iid
3-P	Orifice, Pilot, Nat. Mv
5-P	Raypak Generator, Pilot, Mv
6-P	Control Ignition, Iid Nat.
7-P	Bracket, Pilot Mounting, Mv (303730f)
8-P	Bracket, Pilot Mounting, Iid (304670f)
9-P	Tube, Lighter Mv (185a-405a)
10-P	Tube, Pilot
1-R	Refractory Kit
1-S	Jacket Top Kit, 133a/153a
2-V	Indoor Drafthood Versa 130
*	Conversion Kit Nat To Lp 185- 265

Available Parts:

Burner Hold Down Kit

Part # 6232-02 Mfg # 001991F

Burner Hold Down Kit

$87.99

Burner Only

Part # 6230-03 Mfg # 301210

Burner Only

$31.49

Quantity Needed 10

Quantity Needed 10

Orifice, Burner Nat (350080)

Part # 6234-04 Mfg # 350080F

Orifice, Burner Nat (350080)

$19.99 IN STOCK

Quantity Needed 10

Quantity Needed 10

Qty:

Orifice Burner, Propane

Part # 6230-04A Mfg # 350083F

Orifice Burner, Propane

$24.99 IN STOCK

Quantity Needed 10

Quantity Needed 10

Qty:

High Limit, 135 Degree

Part # 6230-05 Mfg # 600892B

High Limit, 135 Degree

$82.99 IN STOCK

Qty:

High Limit, 140 Degree

Part # 6230-06 Mfg # 600893B

High Limit, 140 Degree

$39.99 IN STOCK

Qty:

Thermostat Control

Part # 6231-092 Mfg # 003346F

Thermostat Control

$157.99 IN STOCK

Qty:

Valve, Gas Nat. Mv Raypak

Part # 6230-09 Mfg # 003898F

Valve, Gas Nat. Mv Raypak

$344.99 IN STOCK

Qty:

Valve, Gas Propane Mv Raypak

Part # 6230-09A Mfg # 003899F

Valve, Gas Propane Mv Raypak

$370.99 IN STOCK

Qty:

Valve, Gas Nat. Iid Raypak

Part # 6230-09B Mfg # 003900F

Valve, Gas Nat. Iid Raypak

$303.99 IN STOCK

Qty:

Exchanger Only, 155a

Part # 6232-13A Mfg # 002439F

Exchanger Only, 155a

$1041.99

Bolt, Kit 155a

Part # 6232-16A Mfg # 001056F

Bolt, Kit 155a

$74.49 IN STOCK

Qty:

Gasket, Header Set 155a

Part # 6232-17A Mfg # 800075B

Gasket, Header Set 155a

$64.49 IN STOCK

Qty:

Governor

Part # 6230-18A Mfg # 053242B

Governor

$157.99 IN STOCK

Qty:

Bulb Sensor Well

Part # 6231-041 Mfg # 007211F

Bulb Sensor Well

$67.49

Clip, Well Retaining

Part # 6230-24 Mfg # 300203

Clip, Well Retaining

$13.49

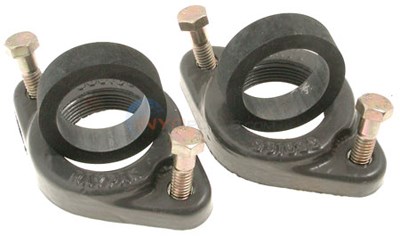

Flange Kit In/out 1 1/2" - Mod.151/105

Part # 6234-84 Mfg # 004056F

Flange Kit In/out 1 1/2" - Mod.151/105

$308.99

Model SPA PAK BRASS ONLY

Model SPA PAK BRASS ONLY

Gasket, Flange - Sold Each

Part # 6202-02 Mfg # RAY B800013

Gasket, Flange - Sold Each

$24.99 IN STOCK

Model SPA PAK BRASS ONLY

Model SPA PAK BRASS ONLY

Qty:

Transformer 24v

Part # 6234-99 Mfg # 006736F

Transformer 24v

$109.99 IN STOCK

Qty:

Switch, Toggle M.v. Raypak (650761)

Part # 6230-30A Mfg # 100-10000442

Switch, Toggle M.v. Raypak (650761)

$38.99

Switch, Pressure

Part # 6230-32 Mfg # 062237B

Switch, Pressure

$81.49 IN STOCK

Qty:

Tube, Pressure Switch Assy.

Part # 6232-33 Mfg # 003271F

Tube, Pressure Switch Assy.

$95.99 IN STOCK

Qty:

Valve, Pressure Relief 125 Psi

Part # 6230-372 Mfg # 008091F

Valve, Pressure Relief 125 Psi

$117.99 IN STOCK

Qty:

Deliming 7/8 Tube Kit

Part # 6239-502 Mfg # 052870F

Deliming 7/8 Tube Kit

$411.99 IN STOCK

Qty:

Pilot, Nat. Mv Raypak

Part # 6230-40 Mfg # 600525B

Pilot, Nat. Mv Raypak

$173.99 IN STOCK

Qty:

Pilot, Propane Mv Raypak

Part # 6230-40A Mfg # 600575B

Pilot, Propane Mv Raypak

$113.99 IN STOCK

Qty:

Pilot, Natural Or Propane, Iid

Part # 6230-41 Mfg # 002003F

Pilot, Natural Or Propane, Iid

$114.99 IN STOCK

Qty:

Orifice, Pilot, Nat. Mv

Part # 6230-42 Mfg # 003901F

Orifice, Pilot, Nat. Mv

$52.49 IN STOCK

Qty:

Orifice, Pilot, Propane Mv

Part # 6230-42A Mfg # 003902F

Orifice, Pilot, Propane Mv

$60.99 IN STOCK

Qty:

Orifice, Pilot, Nat. Iid

Part # 6230-43 Mfg # 003903F

Orifice, Pilot, Nat. Iid

$49.99 IN STOCK

Qty:

Raypak Generator, Pilot, Mv

Part # 6230-44 Mfg # 600019B

Raypak Generator, Pilot, Mv

$115.99 IN STOCK

Qty:

Control Ignition, Iid Nat.

Part # 6230-28 Mfg # 004817B

Control Ignition, Iid Nat.

$250.99 IN STOCK

Qty:

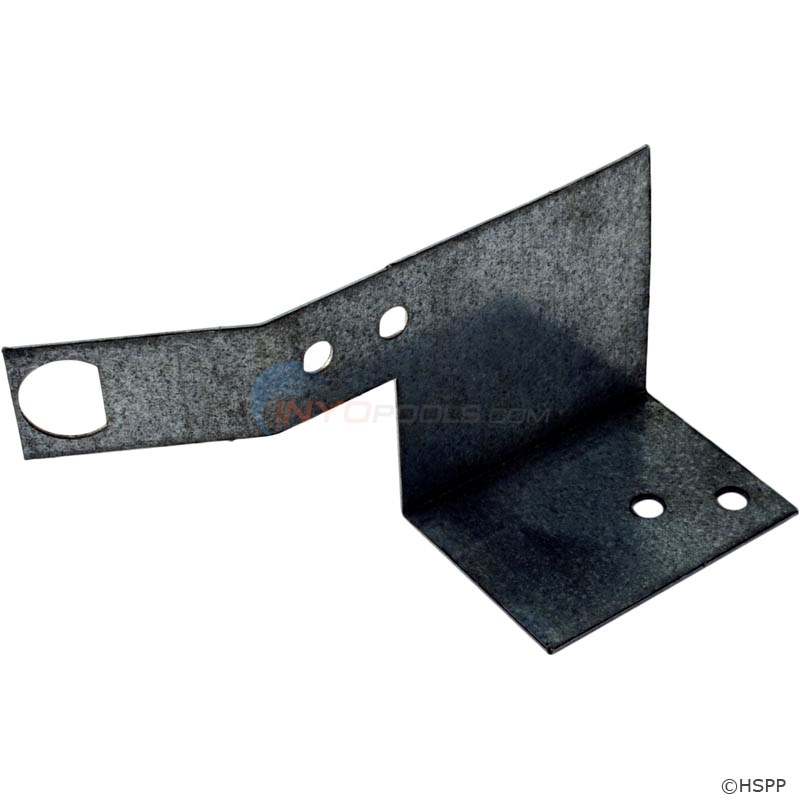

Bracket, Pilot Mounting, Mv (303730f)

Part # 6232-46

Bracket, Pilot Mounting, Mv (303730f)

$45.49

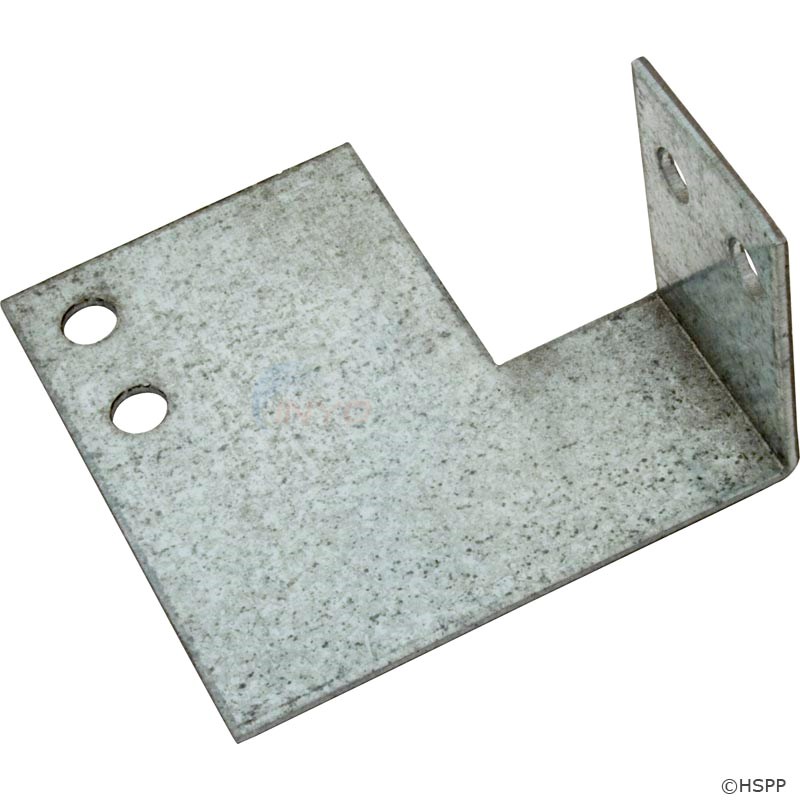

Bracket, Pilot Mounting, Iid (304670f)
