Tc330-mb Internal Kit - 42370210K

Part # 4669-30

By Jacuzzi Inc.

  5 Average

Details

Top

Part # 4669-30

Manufacturer Code 42370210K

Dimensions 15" L x 15" W x 28" D

Alternate Part #'s 42370210K, 17-105-1165

Product Description

INYO # 4669-30 JACUZZI # 42370210K

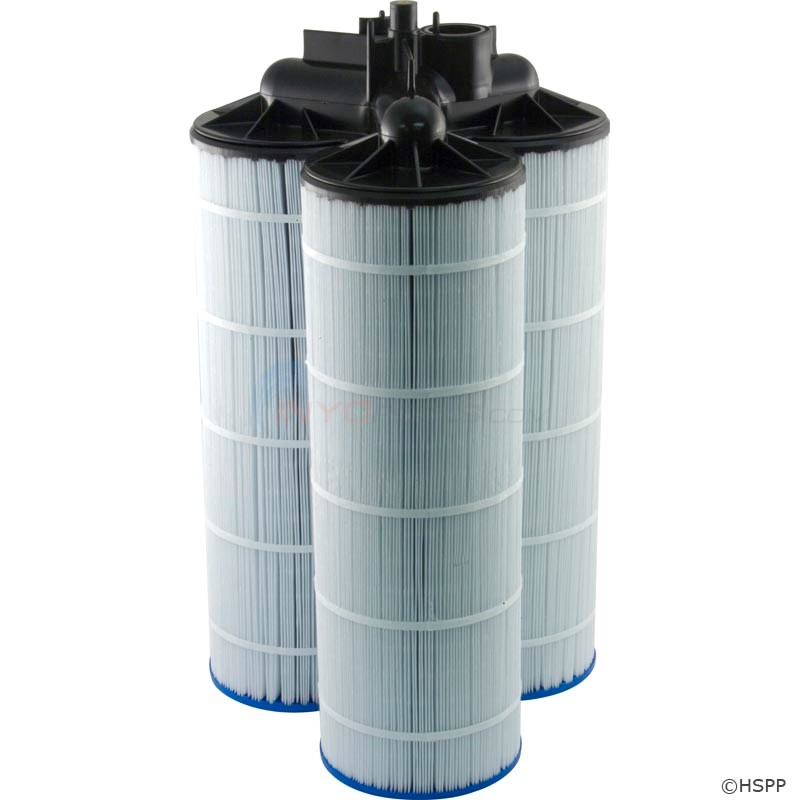

Internal cartridge assembly for the Jacuzzi Tri-Clops model TC-330.  New style assembly features round cartridges and will replace the original TC-300 assembly which had the triangular cartridges.  Includes all parts required to convert the TC-300 to a TC-330:

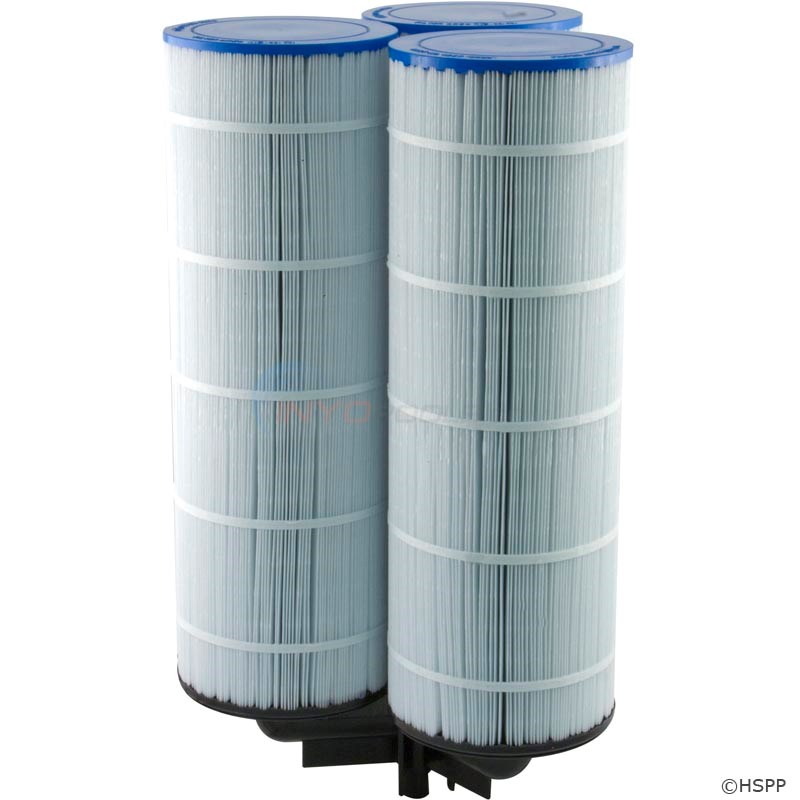

  • (3) Round 110 sq ft cartridges

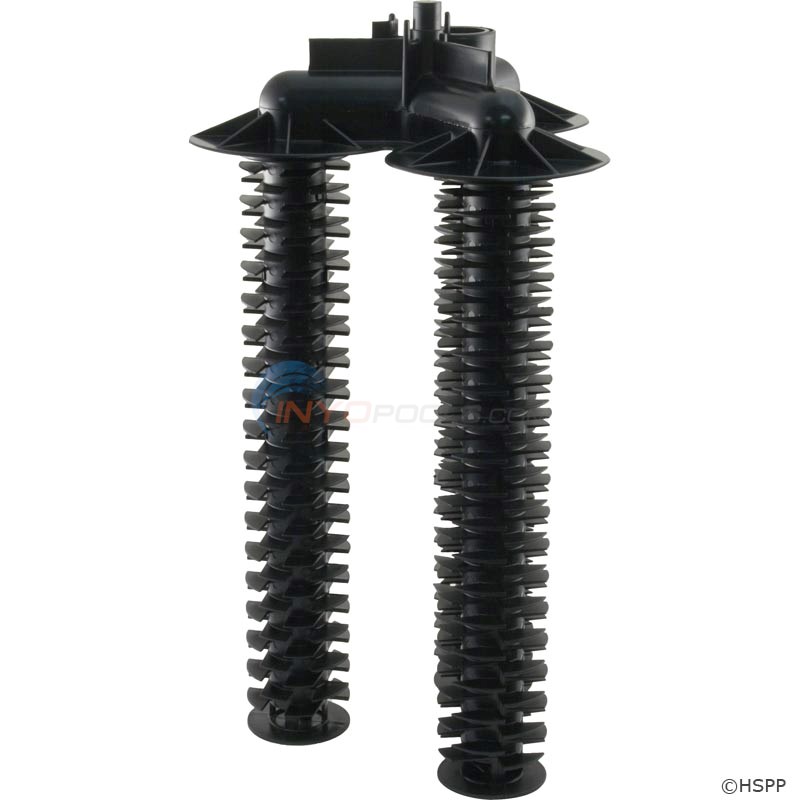

  • (3) Cartridge supports
  • (1) Bottom manifold
  • (1) O-ring 1-1/4"
  • (1) O-ring 2-1/2"

If you have an EarthWorks™ D.E. Filter that you want to convert to a Tri-C.L.O.P.S.™ Element Filter, follow these steps :
Note :EW150 and EW72 have no Tri-C.L.O.P.S. replacement.
1). Replace manifold grid assembly and complete dial valve assembly with Tri-C.L.O.P.S. element manifold, manifold retainer knob, manifold O-ring, 3 standpipe supports, and 3 elements.
2). Replace EarthWorks data label with Tri-C.L.O.P.S data label.
Note :Tri-C.L.O.P.S. retainer knob O-ring and EarthWorks dial valve O-ring are identical. Order a replacement if the original part is Tri-C.L.O.P.S. retainer knob O-ring and EarthWorks dial valve O-ring are identical. Order a replacement if the original part is misplaced or needs replacing.

Top

?     Asked on 4/17/2017by Rich

replaced the manifold and filters with Tc330-mb Internal Kit - 42370210K. Now when I vacuum I am getting particles shooting from the jets. Any ideas?
 Reply

A  Answered on 4/18/2017 by InyoPools Product Specialist Lennox H.

Hi, Rich. You may have installed the manifold incorrectly causing debris to bypass the manifold which will cause debris not be filtered.
 Reply


?     Asked on 4/5/2013by Guest

How does the manifold line up with the bottom of the Jacuzzi Triclops tank?
 Reply

A  Answered on 4/5/2013 by InyoPools Product Specialist Patrick P.

The hole in the bottom of the manifold will line up over the outlet in the bottom of the filter. Water will come into the filter by the inlet and pass through the cartridge. Then the water will be directed to the outlet by the manifold.
 Reply
