Part # 3525-071
Manufacturer Code 79101600

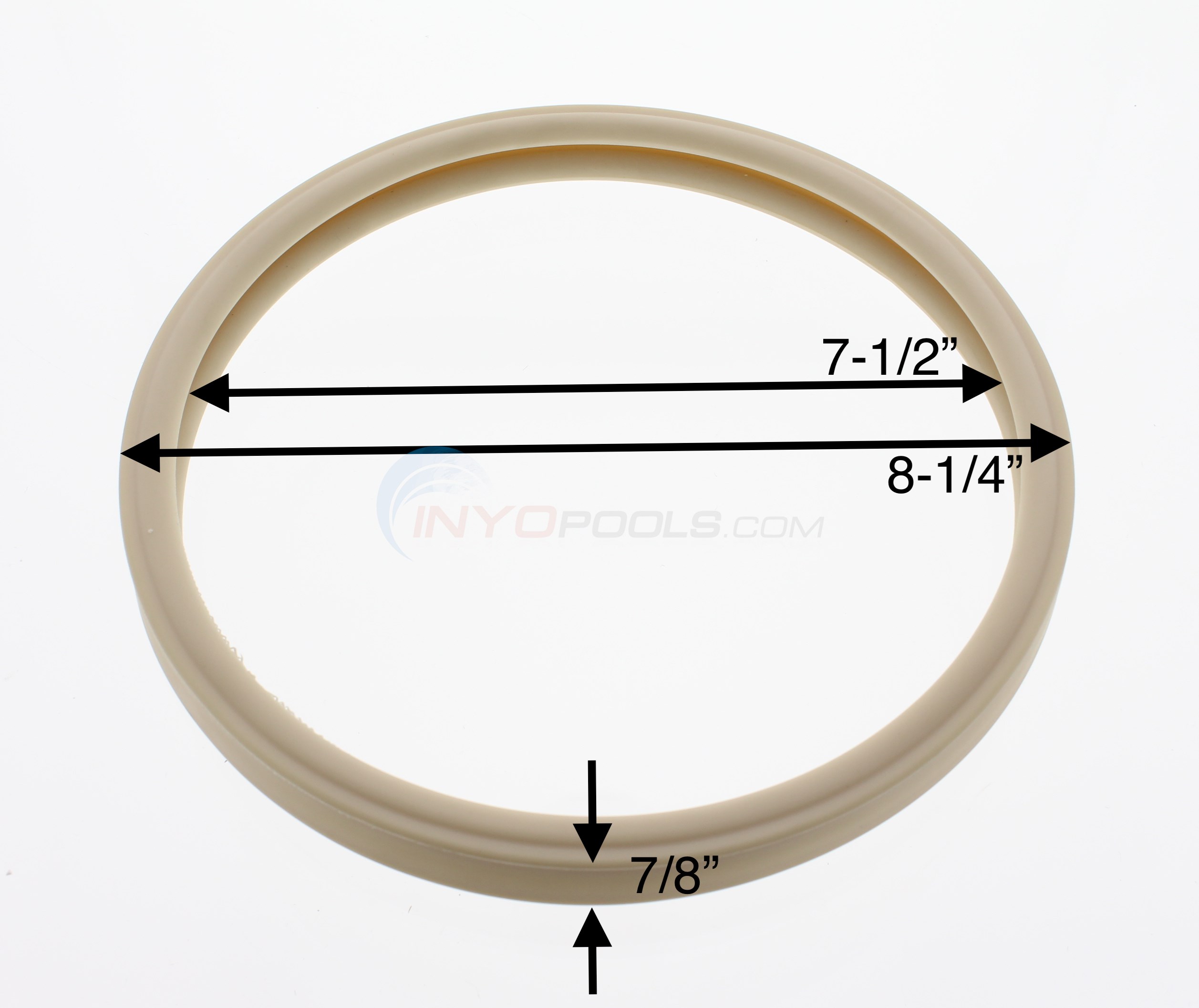

Dimensions 8-1/4" X 7/8"
Alternate Part #'s 79101600, 79101600Z, O-170, 57-110-1202, AMP-301-1221, APCO2030, PEN79101600Z

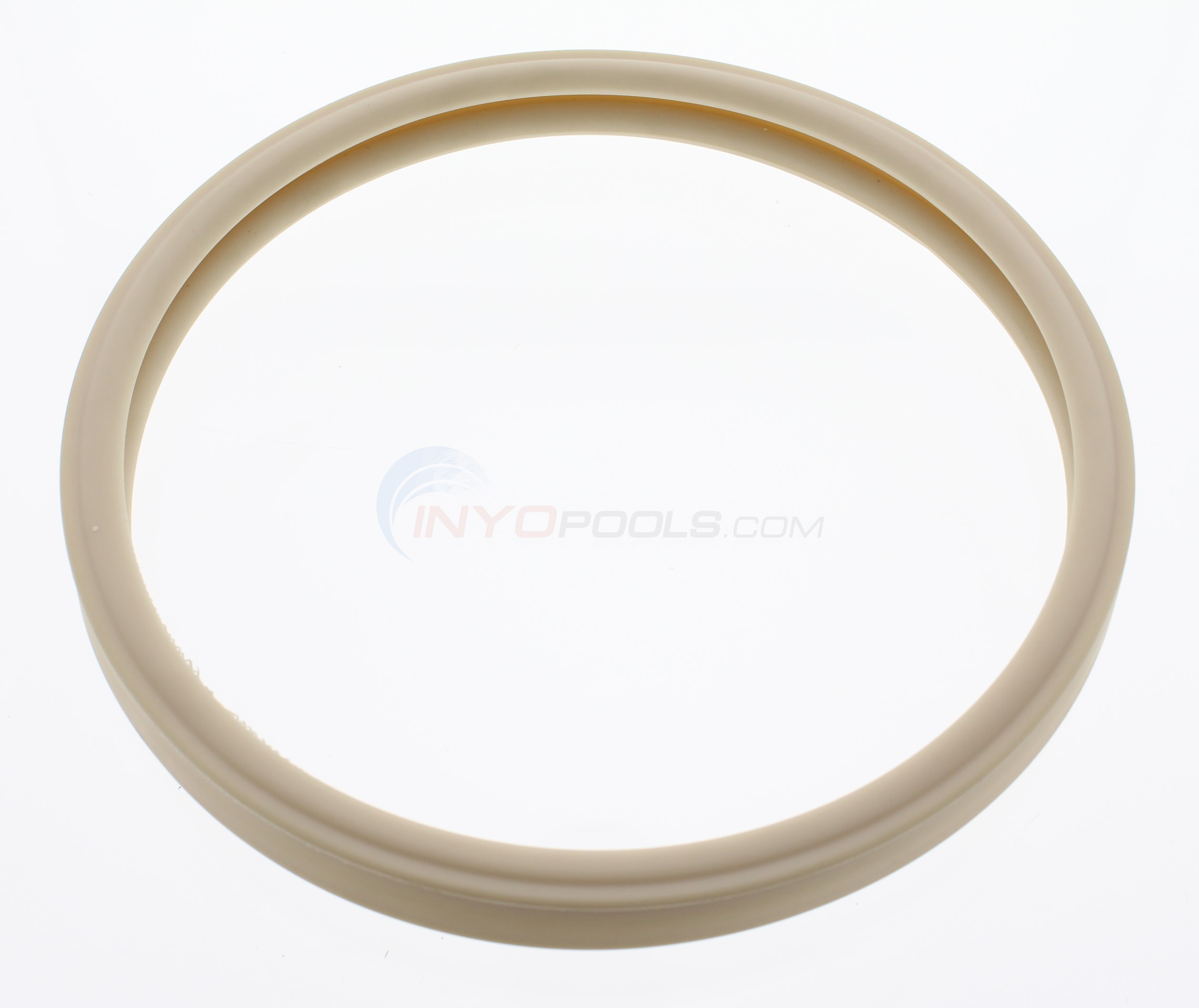

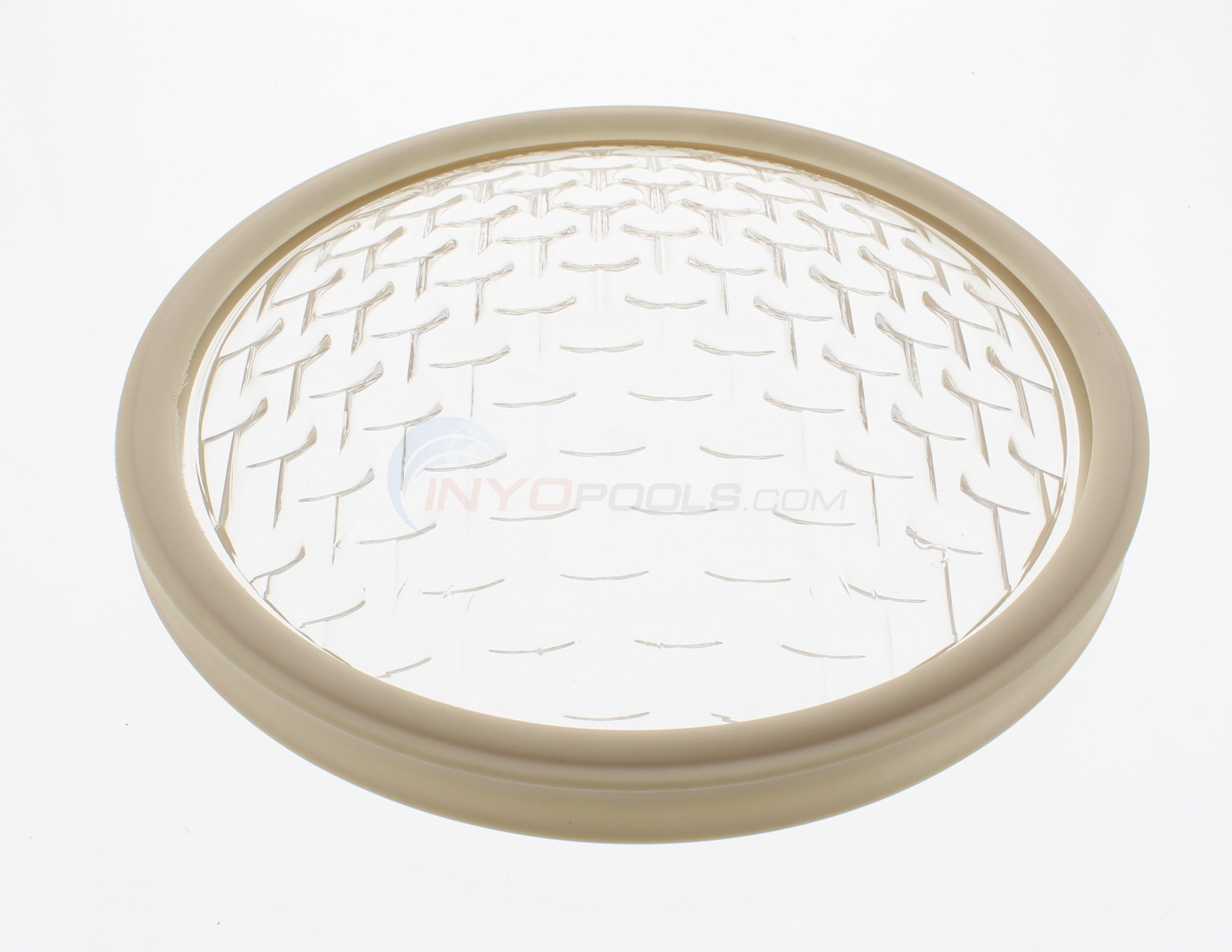

lens gasket used on Amerlite incandescent and IntelliBrite LED pool lights. White rubber o-ring goes between the face ring and glass lens to prevent water from entering the light fixture.
Hi, I am looking for the replacement for the gasket. Is this the correct parts for this light fixture? Please see the attached picture.
Hi EC, Yes this is the correct replacement gasket for the Pentair Amerlite Pool Light shown in your photos.
78454100 is my light
I have this gasket in good shape but I noticed the slightest moisture inside the housing when I changed the light bulb (which burned out faster than I would have expected).
1. Are you supposed to apply thin silicone to these to help seal?
2. Is the orange upgrade ring the superior answer?
3. I have already had to epoxy the cord/housing interface to keep water out. What is Inyo's rec. on a BEST new light that does not leak?
We have been selling a generic (90-423-1170 ) with no issues. You do NOT need to add silicone the lens gasket. If the gasket is in perfect shape then we recommend you look again at the epoxied repair at the back of the light niche where the cord comes in.
i have a American Products Model# R-500 BC pool light ,I am looking for a replacement gasket .
Sizes i see are not matching
Hi. Pentair:620004.....will fit? is a Jandy PLNICLRG
Please see pics and let me know if this will fit to the Pentair
, Amerilight fixture that I have.
Hi TM, Yes this is the proper replacement gasket for your Amerlite Light Fixture.
Hello. I have a Pentair Amerlite p/n 78456300. My current white gasket around th lens measures 8.5” OD, 7.5” ID and what appears to be 3/4” thick. To my knowledge this is the original gasket that came with the light 3 years ago. Is this gasket a correct (exact) replacement?
I have same question as Jon F from 6/13/2017. My light has a label with exactly the same model numbers. However, the old gasket measures 8 ¾ OD, 7 ½ ID and 5/8 thickness. Your website shows the dimensions as 8 ¼ OD, same ID of 7 ½ and thickness of 7/8. Has my old one been compressed so much that its thickness has reduced and the OD increased? Also, should I use any lubricant with the new gasket?
Hi, Peter S. If you're measuring the gasket while it is on the lens then it will be a little bit larger in diameter because the gasket stretches over the lens. No lubricant is required when installing this gasket.
I have two American Products pool lights. 500 watts / 120 V/ R40 bulb type. I have replaced gaskets already and a pool repair guy reinstalled lights. Both of them leaked. I have put silicone on the power cord leading into the light housing. The light housing says series 7885xx, 7845xx, 7895xx. Use with model 7821xx, 7822xx, 7823xx, 79206700, 79208900 fixture housing. Wet niche type.
What is the right gasket? Thanks.
Hi Jon, this is the correct lens gasket for the pool light you have listed.
Is this the correct gasket for American Products Model R-100 BC? Also, is there an LED bulb I can use? The product indicates R-30; 100 watt; 12 volt. Thanks very much.
Good morning Henry, Yes, This is the correct lens gasket. I would recommend the LED Pool Bulb Color Changing 12V 18W - PL5815. It is a great bulb and it is on sale at only $99.00.
Less than 1 hr
Screwdriver, Nut Drivers
After watching an Inyo Pools DIY video on how to replace your pool light, it was recommended that you replace the lens gasket as well. It was a simple remove and replace. If you dont see water in the lens and the light is working there is no need to replace the gasket. Replacing it while I had the fixture open made sense and added extra confidence that there wouldn't be any leaks.
(5 out of 5 stars) Seal must be put in right
Reviewed By: R S. from Anaheim CA ()
Cons: Must be installed correctly
Installed new bulb and seal in old Anthony pool. First install leaked like a sieve. My brother, who actually is a rocket scientist, happened to be visiting and noticed a very slight bevel on one side of the ring (which should face the light). Reversed it and so far no leaks.
