By Hayward Pool Products



Part # 4663-40

Manufacturer Code SP1480BLK

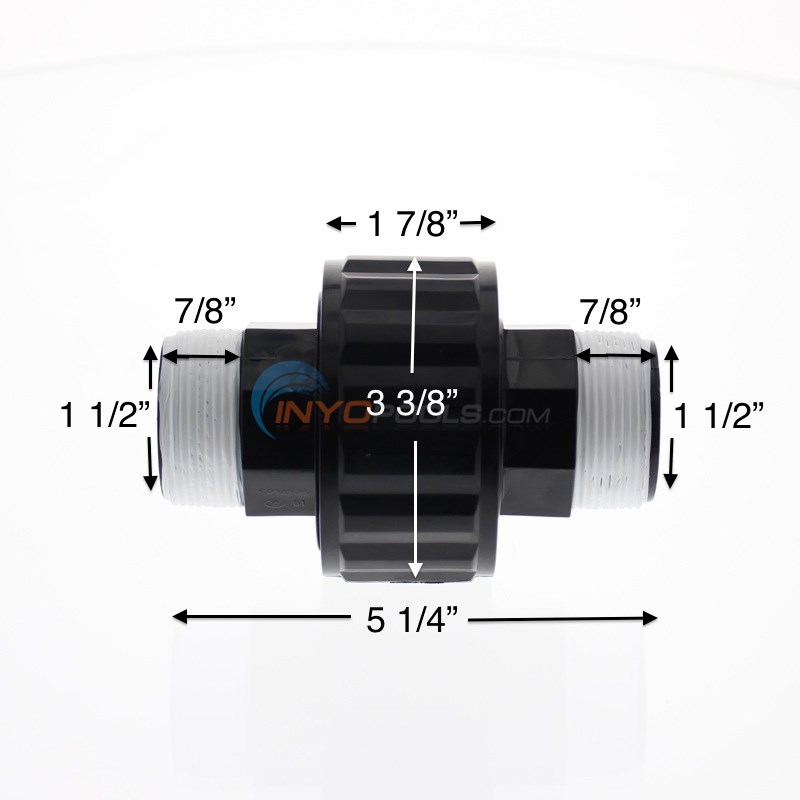

Dimensions 4" L x 4" W x 5.5" D

Alternate Part #'s 21054-150-000, SP1480BLK, 89-150-1213, HPPSP1480BLK

Product Description

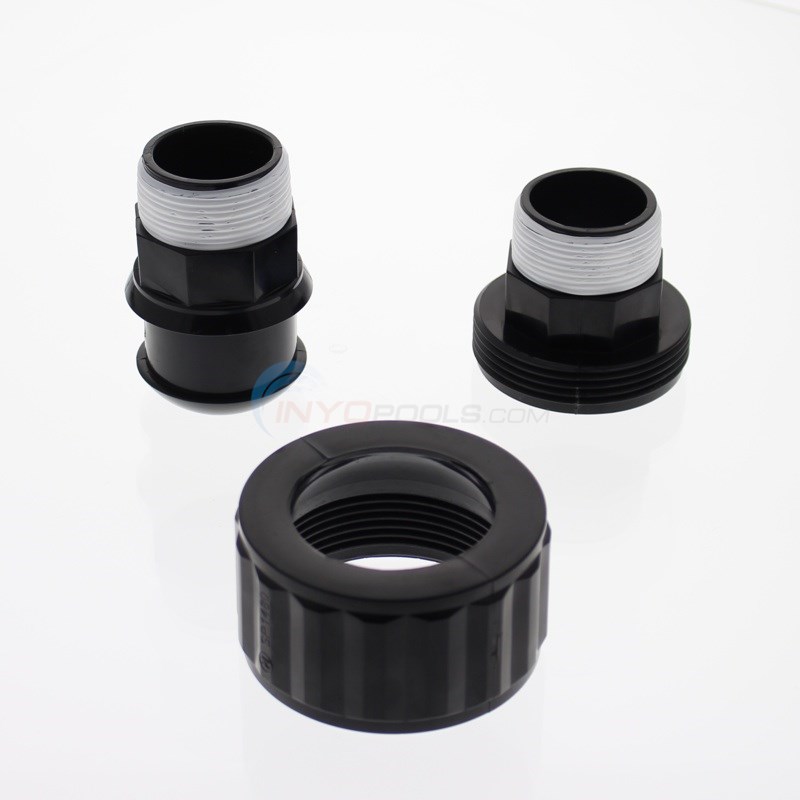

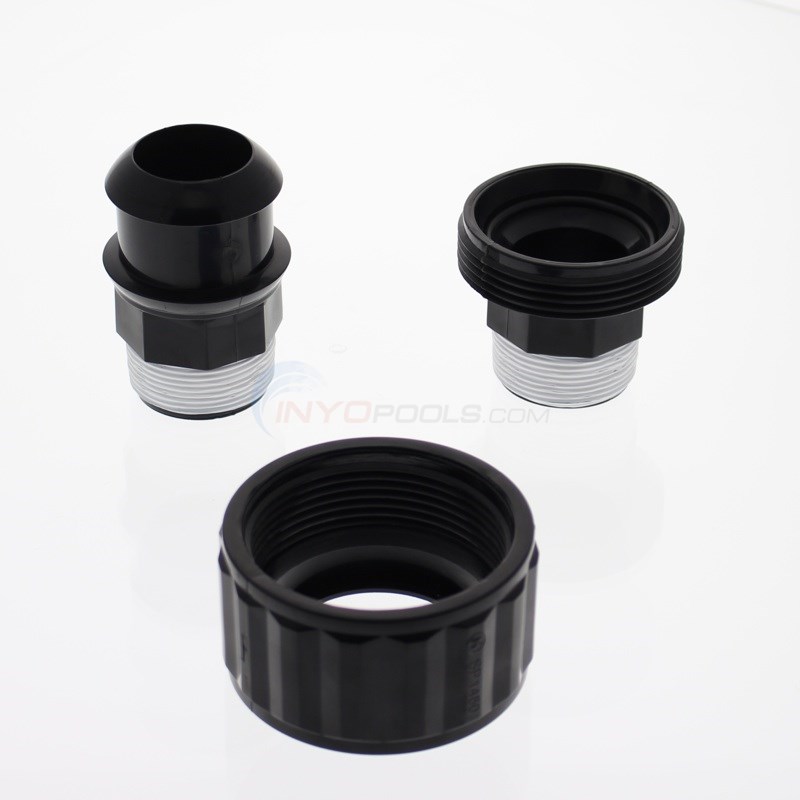

Union, 1-1/2" MPT x 1-1/2" MPT, Black- SP1480BLK

Looking for the replacement o-ring for the SP1480BLK Union? The o-ring part number is 5056-11.


?     Asked on 6/1/2016by Inyo Visitor

What is the best way to install? take apart or leave as one unit???? The always leaks , like this one not to....

A  Answered on 6/10/2016 by InyoPools Product Specialist Lennox H.

Hi, The easiest way to install is separate it leaving the locking nut in place, then connect the locking nut to the other side.

?     Asked on 9/22/2016by Jerry F

Does the o-ring come with the pump side union half (glued in the groove or separate) ? I tried to remove the old o-ring, it was leaking, and it appears that it was glued into the o-ring groove. I could not remove the leaking o-ring without scratching the groove and leaving pieces of the o-ring in the union groove.

A  Answered on 9/23/2016 by InyoPools Product Specialist Megan C.

Hello, Jerry. The O-Ring/Gasket  (SPX1425Z6) and (SPX1485C) should not be glued in. It may corroded by chlorine or years of use.

?     Asked on 6/11/2019by Philip Iorio

Do you have this union with a threaded port for an in line chlorinator?

A  Answered on 6/11/2019 by InyoPools Product Specialist Patrick P.

Hi Philip, If you have a Hayward Chlorinator then you will require this Hayward Chlorinator Union Kit.

?     Asked on 7/12/2019by Inyo Visitor

Will this fit Model DRQD1504 pump? Suppose to be replacement for Hayward pump, 2hp

A  Answered on 7/12/2019 by InyoPools Product Specialist Lennox H.

Hi. I was unable to find any specific info on the DRQD1504 model pump to confirm if this union will work.

?     Asked on 7/14/2019by Roger

Does this union include a flow control switching fro d.e. filter to Cartridge but noticed my D.e. filter has a flow control washer. thanks

A  Answered on 7/14/2019 by InyoPools Product Specialist Lennox H.

Hi, Roger. This union does not have such a feature. That part is specific to the D.E. Filter you have.
