$44.14

Qty:

By Custom Molded Products


Details

Top

Part # 25932-151-000

Alternate Part #'s CMP25932151000

Product Description

Your Source for Swimming Pool & Spa Parts With 40,000 Parts in Stock - INYOpools.com

Product Specifications

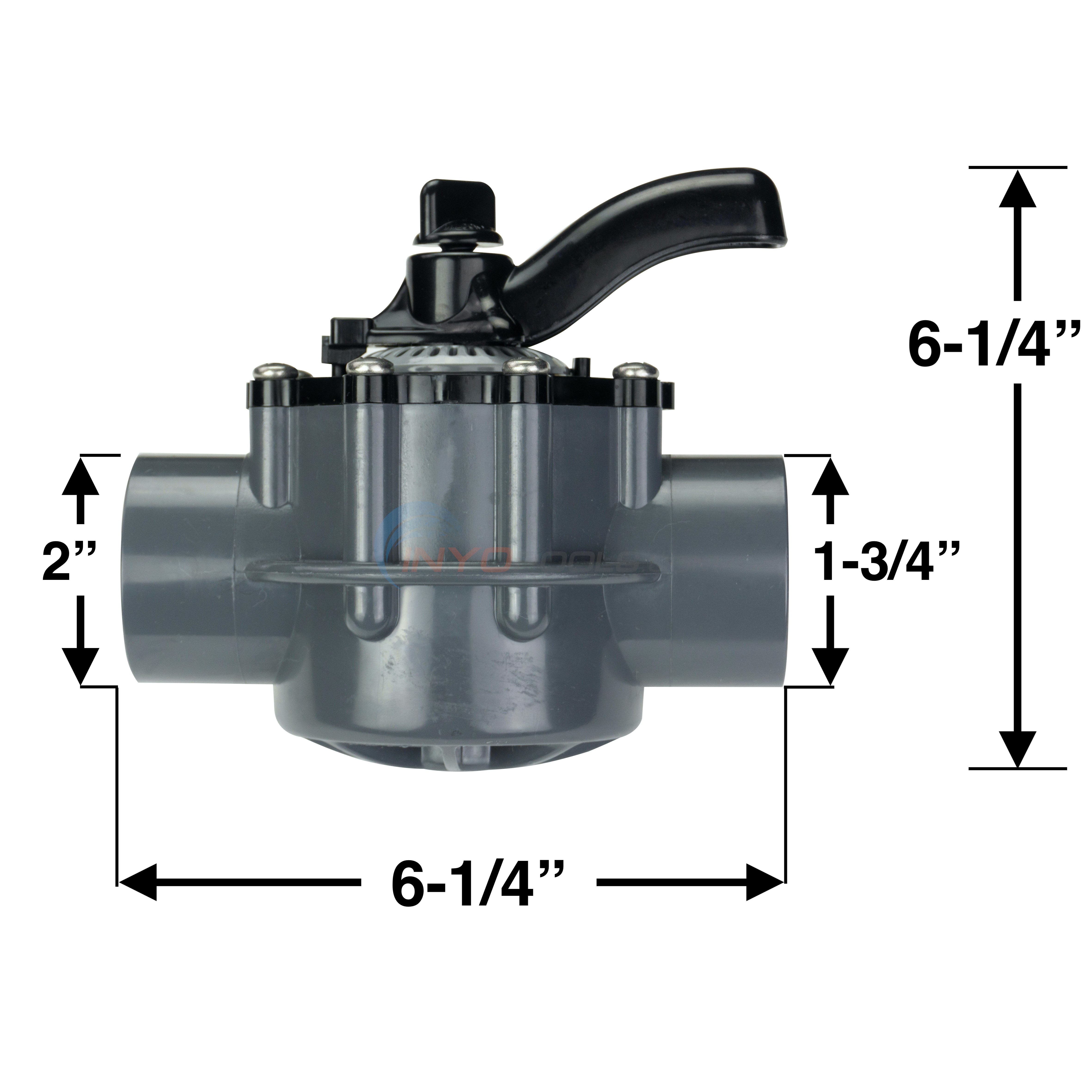

Inside Diameter:
1 1/2 in.
Outside Diameter:
2 in.
Valve:
2 Way
Top

?     Asked on 6/10/2015by Gary

On the two way valve does "off" mean water goes through the valve " thanks
 Reply

A  Answered on 6/12/2015 by InyoPools Product Specialist Lennox H.

Gary, On any diverter valve "OFF" means the no water will be able to flow through that port.
 Reply


?     Asked on 8/13/2015by Fred Shreck

i have Zandy 2 way and 3 way diverter valves in my pool circulation system and the handles have been removed and replaced and I need to know how to reorient them so I know for sure that the off location is correct to valve operation without removing the valves from the plumbing? Can you give me the steps to reorient them?? Thanks for assistance.... Fred Shreck
 Reply

A  Answered on 8/15/2015 by InyoPools Product Specialist Lennox H.

Hi Fred, You would have to position the diverter and the off position of the handle in the same direction. Wherever the diverter is positioned that port will be closed.
 Reply


?     Asked on 11/23/2016by Andrew Clark

My pool valves (5) are all old 3 way Arneson Valves. They are at least 20-23 years old. One of the valves froze and I broke the handle off trying to force it open. If possible, I would like to replace the diverter kit assemblies in all of the valves. Could you advise if there is a diverter kit assembly available that would permit me to do this. Thank you, Andrew C.
 Reply

A  Answered on 11/23/2016 by InyoPools Product Specialist Adam Y.

Good afternoon Andrew, You can purchase the Jandy valves and use the guts. It will be more expensive to just buy the diverters ,o-rings and handles. Plus, If you happen to break any of the plumbing housings you'll already have replacements. Here are both options for youJandy Gray 2 Way Valve 1 1/2 Inside / 2 Outside - 1157 and here is a list of all the separate parts Jandy Standard & Never Lube Valve Parts. Hope that helps you out. Happy Thanksgiving!
 Reply


?     Asked on 8/16/2017by Mathew

I need a 2 way (on/off) Jandy valve for 1.5 inch pvc pipe. What would be the part number for that? Thanks.
 Reply

A  Answered on 8/17/2017 by InyoPools Product Specialist Andy O.

Hi Mathew- The Neverlube 2 Way Valve 1 1/2 Inside / 2 Outside - 4724 would be the valve you need.
 Reply


?     Asked on 8/18/2017by Mathew

The Jandy 4724 valve is listed as CPVC. All of my current piping is PVC. Will PVC cement work to glue these together, or should I be using CPVC cement?
 Reply

A  Answered on 8/18/2017 by InyoPools Product Specialist Hector F.

Yes, standard PVC glue will work with these valves.
 Reply


Top

Review Summary

 (Average 5  out of 5 stars)
1 Ratings
5 star:

(1)
4 star:

(0)
3 star:

(0)
2 star:

(0)
1 star:

(0)

The Most Recent Reviews
