Model # 52458

Product Description

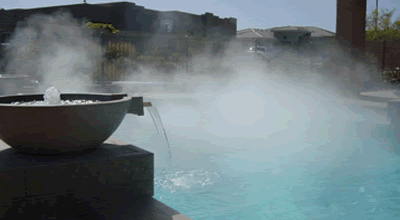

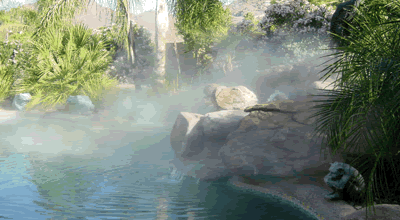

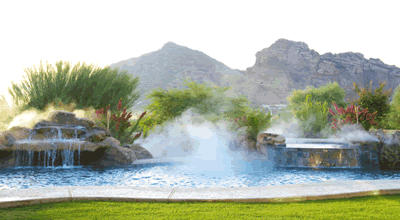

Aero Mist Fogging Systems are designed to accentuate your water feature by adding a unique aesthetic and cooling experience to your landscaping. Aero Mist has developed specially designed fog risers and fogging kits that make it easy to transform your backyard into your own tropical oasis. Combined with our 1000 PSI pumps, these risers come with triple or single head adapters that allow you to manage the density of the fog and the memory tubing inserts allow you to direct the spray for ultimate control. Aero Mist fogging systems are easy to install kits that use our high pressure compression fittings and flexible nylon tubing to add risers wherever you'd like. Simply connect the nylon tubing to each riser and in no time your backyard will give you the fog effect that will set your water feature apart from others.

This kit includes:
This kit contains 1 direct-drive pump, 10 3-Nozzle Fog Risers, 50 FT of flexible nylon tubing and all fittings needed to create a fogging system.

Kit Includes:

Item # Description Qty:
60100 Misting Pump 1000 PSI 1.0 GPM 1
56400 Nylon Tubing 50' Roll 1
52468-1 Fog Riser Assembly (3 Head) 10
52012 Misting Nozzle 10/24 x .012 30
52513-1 Brass End Plug 1

Aero Mist, the International Standard of Excellence in Misting Systems and Fogging Equipment





Click Here for more Fogging Systems

Top

?     Asked on 8/9/2012by Guest

Do these Aeromist misting systems use a reservoir, your home water supply, or the water from your pool to create the mist?
 Reply

A  Answered on 8/9/2012 by InyoPools Product Specialist Patrick P.

The misting pump uses the home water supply.  It needs about 40 PSI supply to the pump.  The pump does not draw water from a reservoir or from a pool.  Some people have done a gravity fed installation (pump sits below the water level), but the water supply needs to be constantly monitored so that it doesn't run out.
