I currently have a hayward 300 super filter system for my pool that has a capacity of 90,000 gallons I am running with a hayward pump 200gpm I believe my question is would the performance of upgrading to a higher filteration capacity ( say 350 or better enhance the filtration performance and result in me having a longer duration of time before cleanings circumstances,is there a point where upsizing is of no benefit.
Reply
Hello Ron - A larger filter will allow you to go longer between cleaning cycles.
Reply
Dear Sir.
Would you be kind enough to tell me the height & diameter of both the 3030 filter tank & the 4030 tank ?
Many thanks,
John.
Reply
Hi John, The C3030 measures 24" in width and 34-1/2" tall where the C4030 measures 24" in width and 40-1/2" tall.
Reply
I HAVE A 30,000 GAL I GROUND POOL WHAT SIZE FILTER WOULD BE PROPER LOOKING AT THE C4030 & c3030
Reply
Hello Bryan the C3030 will be a good size for your pool. C3030 325 ft.2122 GPM 58,560 73,200 Turnover (In Gallons)
Reply
How difficult is a Hayward C3030 to install for a handy person? Your price is much better than my local pool store!
Reply
Hi, Installing this unit is not difficult. Once you get it in place you'd run PVC pipes to the correct ports on the filter.
Reply
I understand that the cartridges on a cartridge filter are supposed to be cleaned about once a month. How often do the cartridges have to be replaced, e.g., Hayward C3030?
Reply
Hi, You should replace your filter cartridges every 2-3 season with a quad filter. However, several factors like pump size, the dirtiness of the pool, how good you clean the cartridge etc. can lead to you having to replace the filter's sooner.
Reply
What is the warranty on a new C3030? Is there any extended warranty that can be purchased? Who will take care of the warranty?
Reply
The warranty for the Hayward Swimclear Cart. Filter 325 Sq Ft PART#C3030 is 1-Year from the date of purchase or the date of installation by a Certified Pool Installer (The dated invoice is required). The warranty is handled direct through the manufacturer.
Reply
Hello, I want to replace my filter with a Hayward cartridge filter. My pool is approximately 24,000 gallons. I am looking at the C3030. Could you please tell me which model would be best for my pool. I recently installed a variable speed pump. Thank you.
Reply
Hi Gary, To determine what size filter you will need for your pool you will need to calculate the "Feet of Head" of your pool and use the performance curve to confirm the flow rate. If at max rpm's the pump does not exceed 122 gpm then the C3030 filter will work.
Reply
Looking for a similar replacement to a very old Super Star Clear C-3000, 2" ports. Will this unit be a good match? Hoping maybe it uses the same size cartridges as I just recently purchased 4 new ones, thanks
Reply
Yes, this is a sufficient replacement and will use the same replacement cartridges.
Reply
Can I use this filter with 1.5 hp pump? I have 30,000 gal in ground pool. Currently using single filter cartridge. Undersized for the pool.
Reply
Yes this would be a great filter for a 1.5 HP pump
Reply
I am looking to replace my old sand filter with Hayward C3030 Swim Clear Cartridge filter. What should be my expectation with regard to cleaning performance. the pool is about 15x30 and holds approx 16,000gallons.
Let me know your thoughts
Reply
Hi, Reed. You will get a better quality of filtration and water flow using a cartridge than sand.
Reply
I want to replace a twenty year old jacuzzi cyclops 330 filter system. Which cartride filters would be best suited. I have a inteliflow variable speed pump. the pool is 28000 gal.
Reply
Hi, Michael. This 325 sqft filter will be a suitable replacement.
Reply
Hi need to replace my existing Hayward C-3000 with a new unit please advise which unit is the replacement.
Thank you,
Hi, Mario. This W3C3030 is the current replacement available.
Reply
Thank you for info does it come with filters or do they need to be purchase separately.
Reply
Mario, yes, cartridges are included.
Reply
Hi, Looking to replace motor only for my SP2610X15 any recommendation on replacement ? PS: If it matters but pool is salt water. Thank you,
Reply
Mario, The PL1152 or UST1152 motor along with the Super Pump Tune Up Kit - GOKIT3 or GOKIT3SALT.
Reply
I am considering switching from a DE filter to a cartridge filter. In one of the answers posted online it says "If you are switching from a de filter to cartridge, you will not get the same water clarity that you have now."
Does that mean the water clarity will be worse or better?
Thank you for your consideration.
Reply
Hi, Jeff. Switch from a D.E. filter to a cartridge filter, the effective filtration will be reduced, however, in some cases, you will not notice the difference.
Reply
I have a 16X32 INGROUND POOL WOULD THIS FILTER WORK??
Reply
Hi Tim, there are a few variables to consider when sizing an inground pool filter. Here is a guide that we put together called "How To Size a Pool Filter" that should assist with that.
Reply
I am looking for filter cartridge for this system. Do you know which filter replacement cartridge I need?
Reply
Hello, I currently have a Hayward Super Star Clear Cartridge C4500 (or maybe a C4000). It is close to 20 years old. Which filter would be the equivalent model if I were to change it out?
Hi Melanie, We don't have the exact drop-in replacement model of your old filter, however, the closest model would be this Waterway 425 Sq. Ft. Cartridge Filter.
Reply
looking at the hayward 3030 filter. What are the thread sizes of the Drain, Intake. and Output fitings. Also does this 3030 filter come with Unions for Quick Disconect ? Whst size plumbing 1-1/5 or 2 inch ?
Thanking you in advance
Bill T.
Reply

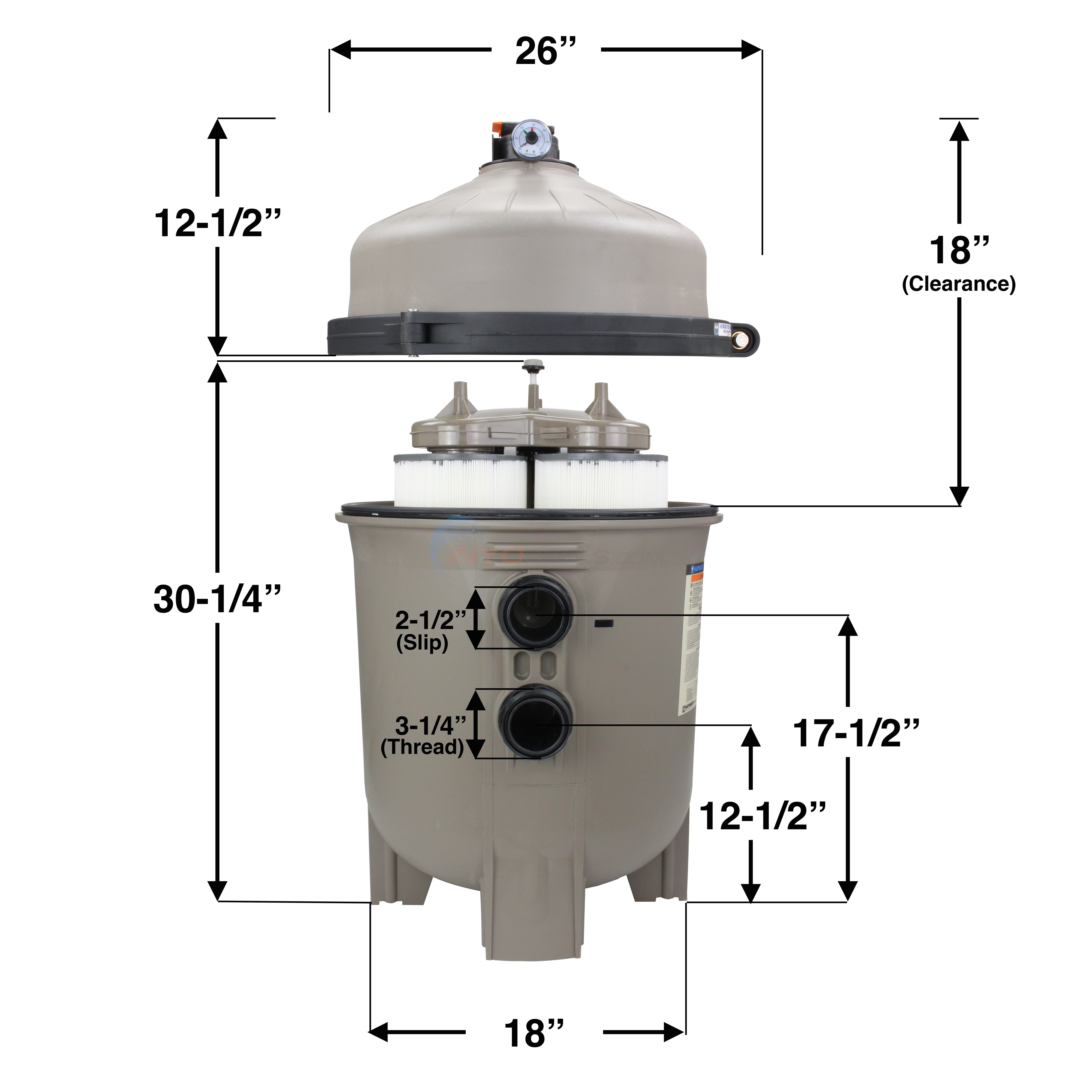

Hi Bill, Please click this link to view the Port Dimensions for the Hayward C3030 Filter. This filter does come with unions. This filter is designed to accommodate 2" or 2.5" plumbing. If you have 1.5" plumbing then you can use a common 2" x 1.5" pvc reducer bushing.
Reply
Is this the whole tank assempbly ready to connect to 2" existing Piping. I am replacing my existing Hayward C3000-S whole assembly.
Reply
Good day, yes this would be a complete unit ready to be plumed in.
Reply
can I use the SP0740DE side valve with the Swimclear Cart. Filter? if not, what valve should be used?
Reply
Hello Michael. The Hayward Swimclear Cart. Filter 325 sqft - W3C3030 does not require a Multiport Valve. The W3C3030 is a cartridge filter and does not utilize DE. Plumbing connections are made directly into the Inlet and Outlet Ports. Attached please find the SwimClear™ QUAD-CLUSTER CARTRIDGE FILTERS product brochure and the SwimClear Owner's Manual for reference.
Reply
