By Hayward Pool Products



Part # W3C3030

Alternate Part #'s HAY-05-360, HAYC3030, HAYW3C3030

Product Description

Inyo Recommended Filters

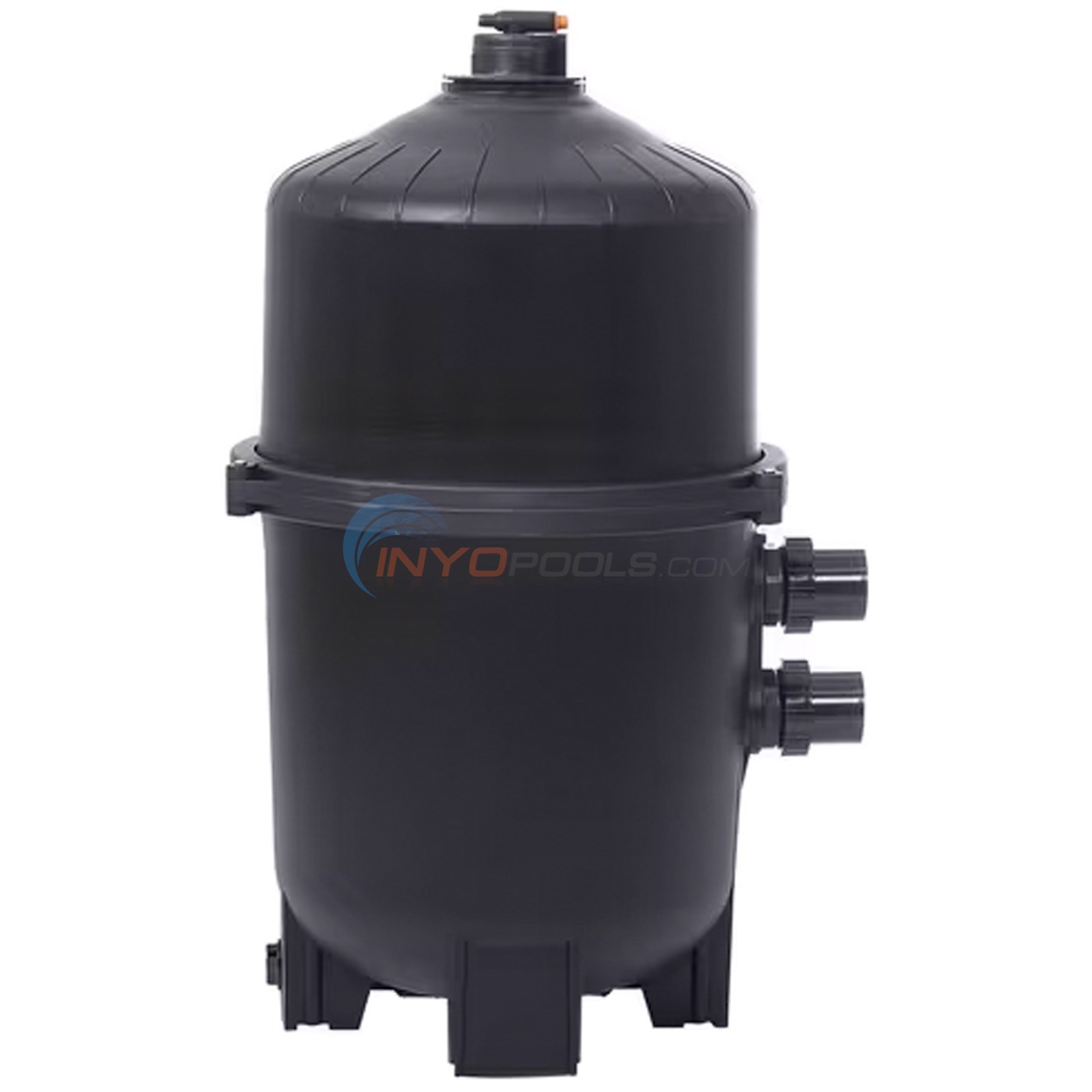

Utilizing a cluster of four reusable cartridge elements, Hayward Swimclear cartridge filter offers a choice of 225, 325, 425 or 525 square feet of heavy-duty dirt-holding capacity for extra-long filter cycles, up to an entire season without cleaning. With filter tanks constructed of improved PermaGlass XL™ material, SwimClear filters will provide years of trouble-free operation and crystal clear, sparkling water.

Commonly Replaced Parts (Click on Link to view/purchase):


  • In-ground pools
  • In-ground pool/spa combinations
  • In-ground spas (residential or commercial)


  • Patent pending Innovative Automatic Air Relief Valve provides peace of mind when it automatically purges any entrapped air during filter operation
  • Self-Aligned tank top and bottom make access to serving the Quad-ClusterTM cartridge elements fast and simple
  • Quad-ClusterTM of high-quality polyester cartridge elements provide 225, 325, 425 or 525 square feet of filter area for extra dirt-holding capacity and long, long filter cycles
  • Union coupling connection accepts 2" or 2 1/2" piping for plumbing versatility
  • New, stronger PermaGlass XLTM filter tanks made from extra durable glass reinforced copolymer
  • Heavy-duty, tamper-proof, one-piece clamp securely fastens tank top and bottom. Allows quick access to all internal components without disturbing piping or connections
  • Non-corrosive top closure plate prevents elements from lifting and allowing unfiltered water to by-pass into pool or spa during operation
  • 2" full-flow internal piping and plumbing for less resistance to flow and maximum performance.
  • Full size 1 1/2" integral drain allows for fast, 100% clean-out and easier flushing of tank

Click here for more Hayward Filters

Product Specifications

Port Size:
2" or 2 1/2 in.
Flow Rating:
122 GPM
Filtration Area:
325 sq. ft.
Turnover 8 Hrs.:
58560 gal.
Turnover 10 Hrs.:
73200 gal.

?     Asked on 9/21/2006by Guest

Does this come with the filter cartridge and gauges?

A  Answered on 9/21/2006 by InyoPools Product Specialist Patrick P.

This filter comes direct from the manufacturer and includes the cartridge and gauges.

?     Asked on 6/20/2012by Guest

What is the measurement from the ground to the center of the intake and discharge?

A  Answered on 6/20/2012 by InyoPools Product Specialist Patrick P.

The measurement from the ground to the center of the intake is 12.5" and 17.5" on the discharge.

?     Asked on 2/14/2015by Ron

I currently have a hayward 300 super filter system for my pool that has a capacity of 90,000 gallons I am running with a hayward pump 200gpm I believe my question is would the performance of upgrading to a higher filteration capacity ( say 350 or better enhance the filtration performance and result in me having a longer duration of time before cleanings circumstances,is there a point where upsizing is of no benefit.

A  Answered on 2/16/2015 by InyoPools Product Specialist Robert M.

Hello Ron - A larger filter will allow you to go longer between cleaning cycles.

?     Asked on 5/11/2015by John McClennan

Dear Sir. Would you be kind enough to tell me the height & diameter of both the 3030 filter tank & the 4030 tank ? Many thanks, John.

A  Answered on 5/11/2015 by InyoPools Product Specialist Patrick P.

Hi John, The C3030 measures 24" in width and 34-1/2" tall where the C4030 measures 24" in width and 40-1/2" tall.

?     Asked on 8/5/2015by Bryan


A  Answered on 8/5/2015 by InyoPools Product Specialist Joe S.

Hello Bryan the C3030 will be a good size for your pool. C3030 325 ft.2122 GPM 58,560 73,200 Turnover (In Gallons)
