I need to replace my the capacitor on my 1.5HP pool pump. Do you carry the capacitor I need?
Reply
Please note that capacitors store an electric charge and should be handled with the utmost caution and care. We do not encourage handling a capacitor without any type of safety measures in place and highly recommend contacting a professional service company for repair/replacement. For those that feel comfortable changing the capacitor here's >How to replace a pool pump capacitor. In order to match up the capacitor you will need more specifications on the capacitor. You will need to match the voltage, the MFD, whether or not the capacitor is a >run or >start type and the actual dimensions of the capacitor body.
Reply
We have a Hayward Super Pump 2600 Series for our pool (installed in 1998). Need a new run capacitor for it. Not sure which one to get since the label on the one we have is old and hard to read. We know it is 370V. It is 1 3/4" diameter / 2 7/8" length. Can you recommend which capacitor we would need?
Reply
Hi Richard, unfortunately we do not a 370V capacitor that is 2-7/8" in length. Here is a listing of all the Run Capacitors we carry.
Reply
I purchased a Model B849 Pump Motor from you last May, probably 5/13/14. I installed it on 5/16/14. It now needs a capacitor. Is the covered by a warranty? Whether it is or not I need one asap. The only one I can get locally has the correct specifications but is physically too big to fit in the capacitor cover on the motor.
Reply
Skip, 5vr0303 is the run capacitor we show for a B849 pump. Not sure why it doesn't fit. And unfortunately we do not sell 370v 30mfd run capacitors smaller than 3 3/8" in length.
Reply
Hello, I have an A.O. Smith centurion pump motor model B855. It fails to start unless I manually spin the shaft and then it runs fine. Do I need to replace the capacitor mounted on the top of the motor to fix this start up problem?
Reply
Hi, The B855 motor does not have a start capacitor, the Run Capacitor 30MFD 370V (5VR0303) would be the correct capacitor.
Reply
I have Cat B855 motor how do I know which capacitor , run or start, needs to be replaced ? I have to manually assist my motor by turning the shaft at the rear, but once it starts it seems to run fine. Common sense would tell me that it would be a start capacitor but from the research that I have been doing it sounds like I need a run capacitor ? any advise would be appreciated . Thanks
Reply
Hi John, Since the motor is running once you manually turn the shaft I would say the start capacitor will need to be replaced. You can read our blog on Using the Proper Test Equipment to Troubleshoot Pool Motors to test the capacitors.
Reply
G'day InYoPools Team,
I have an Astral/Hurlcon CX280 pool pump which requires a new capacitor. The original capacitor is a 30uF cylindrical aluminium can mounted horizontally on top of the motor. Can you guys please confirm that this is a 'Run' capacitor and that your '5vr0303' Capacitor is the correct replacement unit for my pump ?
Reply
Hi Gary, A capacitor with a single MFD number is a run capacitor, start capacitors usually have an MFD range. The only thing that you will need to confirm is the voltage of the capacitor that you have, it has a voltage that is 370 volts or less this capacitor will work.
Reply
i have a jandy stealth pool pump with a bad run capacitor the model # of the cap is628318-308 by genteq the rating on it is 50/60hz 370 volts.i looked up that cap and yours say only 30hz.do you have the one i need? thanks
Reply
Hi Julio, This 30 MFD 370V Run Capacitor is the correct replacement for p/n 628318-308 which is 50/60hz.
Reply
Hi,
I'm looking for a capacitor replacement for my Hayward Northstar 1hp pool pump.
The capacitor has this label:
CSC
ECCOL II NO PCB'S
A COMBUSTIBLE FLUID
P 10000 AFC PROTECTED
30UF +/-6% 370VAC/B 50/60HZ
40/070/21 P2 SH 0417 B 70 C
325P306H37M30N4X
628318-308
What is the equivalent capacitor that can replace this?
Reply
Hello, the Capacitor, Run 370v 30 Mfd (5vr0303) part number 5270-05 is the correct replacement.
Reply
My pool pump hums when it starts and then it shuts down in seconds. does it look like it can be the run capacitor? After a few minutes I can start it again but it does the same thing.
Reply
Hello- It is possible that the capacitor could be the issue. Please note that if the motor was making any loud or grinding sounds prior to it failing, it is more likely the bearings have seized up.
Reply
I have a Century Centurion B858. The back plate has fused on, so I can't tell if there is more than one capacitor. Assuming there is only a run capacitor; is the 5270-05 the correct replacement?
Reply
Yes, that is the correct capacitor for your B858.
Reply
I am looking for a replacement capacitor for my hp 2.0 a o smith centurion pool pump.
The current capacitor is a CSC sh p2 EIA-456A. 30.0uf +- 6% 370VAC/B
50/60HZ
325p306h37m30a4xao
what capacitor should i use?
Reply
I have a Zodiac FloPro series pump for an inground pool. Model FHPM. I need a new run capacitor. Can you help confirm replacement part number. The label reads C65R. 30+5%. 370VAC. 50/60Hz. 10000AFC. C22.2NO 190. SH P2 Capacitor. EIA-456-A.
Reply
Hi, Ryan. Based on the info provided this 30 MFD 370V Run Capacitor - 5VR0303 is the correct replacement.
Reply
We have a genteq pool pump and the current capacitor number is 628318-308 50/60 hz. I can't find this part, is there a replacement part that is compatible? Thanks!
Reply
Hello Vivian- The Capacitor, Run 370v 30 Mfd (5vr0303) part number 5270-05 should work. It lists your part number 628318-308 as an alternate part number.
Reply
I have a century Centurion Model B2854 - Capacitor C65R-370Vac 50/60 hz10000 AFC what is the correct replacement? Thanks
Reply
Hi, Richard. Yes, this is the correct run capacitor for the B2854 motor.
Reply
I have a cap. With num 628318_307
370vac/B. Is this a start or run capacitor
Reply
Hi, Eric. The 628318-307 capacitor which is rated at 25 MFD 370 Volts is a Run Capacitor.
Reply
I think I have a bad pool pump motor run capacitor CSC 30.0 uF 370vac/b NUMBER 628318-308 DO YOU HAVE THIS ONE OR COMPATIBLE? Thank you.
Reply
Hi, Ron. This is the correct replacement for the 628318-308.
Reply
I have a Max E Pro pump and my capacitor blow up the number is a Genteq number 27L1358, 30uf , 50/60Hz and 370 vac. Where I can get it
Reply
Hi. This capacitor can be used as a replacement for the Genteq.
Reply
Hello I was wondering if you had a capacitor compatible with C65R 30uf + 5% 370 VAC 50/60Hz 10000 AFC C22.2 NO. 190
Reply
Hi, Anthony. Yes, this capacitor can be used to replace the one that you have based on the specs.
Reply
Hi, I'm looking for a replacement capacitor for a C65R, 30uf +/- 6% 440 VAC, 50/60 Hz, 10000 AFC, C22.2N0.190. This is off a 1 h.p. A.O.Smith replacement motor (2853). Thanks.
Reply
Hi Christian, you would require this B2853 Capacitor Replacement Kit
Reply
Need a capacitor for Century Centurion B855 2 hp.....its says I need part number 2444.....part number of pump 7-177897-22 also does it just have the run capacitor or does it have a run and start capacitor...thanks
Reply
Hi, Gary. The B855 Motor does not have a start capacitor, just a run capacitor which is this 30MFD 370V Run Capacitor - 5VR0303.
Reply
Hi, I'm looking for a replacement capacitor for a C65R, 30uf +/- 5% 370VAC, 50/60 Hz, 10000 AFC, C22.2N0.190. This is off a 1 h.p. Century Centurion Motor CAT B2853. Thanks.
Reply
Hi, Chris. This is the correct replacement capacitor for the Century B2853 motor.
Reply
Hi, I'm looking for a replacement capacitor for a C65R, 30uf +/- 5% 370 VAC, 50/60 Hz, 10000 AFC, C22.2N0.190. This is off a 1 h.p. Century Centurion Motor B2853. Thanks.
Reply
Hi Christian, you would require this B2853 Capacitor Replacement Kit
Reply
I have a dead capacitor on my centurion 1.5 hp CAT B229SE part # 184982. All I can see on the label is 30UF. Is Part # 5270-05 the correct one?
Reply
Hi, Dan. You can use this 30 MFD 370VAC Run Capacitor with the B229SE motor.
Reply
I have a genteq 27L 576 30uf 50/60hz 440vac will this work Thanks
Reply
Hi, Richard. This capacitor will not work, you will need the 30 MFD, 440 Volt Capacitor Kit - 10003946-001-001.
Reply
need a replacement CAPACITOR for GENTEQ 97F9606 25UF 50/60 HZ 370 VAC for a pentair 3/4 HP 208-230/115V 60 HZ 1PH KW
Reply
Hi, Paul. The 25MFD 370VAC Run Capacitor - 628318-307 is direct replacement, however, you can also use this 30MFD 370VAC Run Capacitor - 5VR0303.
Reply
Hi, I have a Pentair 177475-20 1 1/2 HP pool pump and need a run capacitor. Can you please advise which one is needed? Thanks,
Reply
Hi, Dave. This 35 MFD, 370 Volt Run Capacitor is the correct capacitor for Part # 177475-20.
Reply
HI, I HAVE A GECKO AQUAFLOW WITH A C10755855048 RUN CAPACITOR. NOT SURE WHICH ONE OF YOURS MARRYS UP TO IT.
THANKK YOU
Reply
Hi, Jay. Please refer to our How To Select the Right Capacitor For Your Pool Pump Motor You may also How To Replace a Pool Pump Capacitor and Pump Motor Parts (Capacitors) helpful.
Reply
I need Capacitor C65R 30uF 5%, 370 VAC 50/60 Hz 10000AFC C22 2NO 190
2511398-008
For Pentair SF 1.0 HP 340038
Please can you send me correct number
Reply
I have a Centurion one horse power switchless motor, serial #19812CH, Type CX, 230 volts / 6.6amps, 115volts / 13.2 amps. What is the correct capacitor for this motor?
Reply
Hi, Mike. I will need the motor's part, cat, or mod # in order to locate the replacement capacitor.
Reply
I have a Pentair Whisperflo 3/4 HP motor, in need of a capacitor. Motor number is 177474, part no. 011579. The capacitor is identical in appearance to this one, but noticed a couple of the code numbers are slightly different: 628318-308 SH P2 CAPACITOR EIA-456-A 370 VAC/B
Reply
Hi. This 30 MFD / 370 VAC Run Capacitor will fit the 177474 Motor.
Reply
Trying to find the right Capacitor for our Pentair Pool pump Model # 196239 , HP 1.50, B.F HP 1.65, Pump model number SF-N1-1-1 1/2A/340039, 208-230/115 V , Max Amps 8.0/16.0
Thank you for your help
Reply

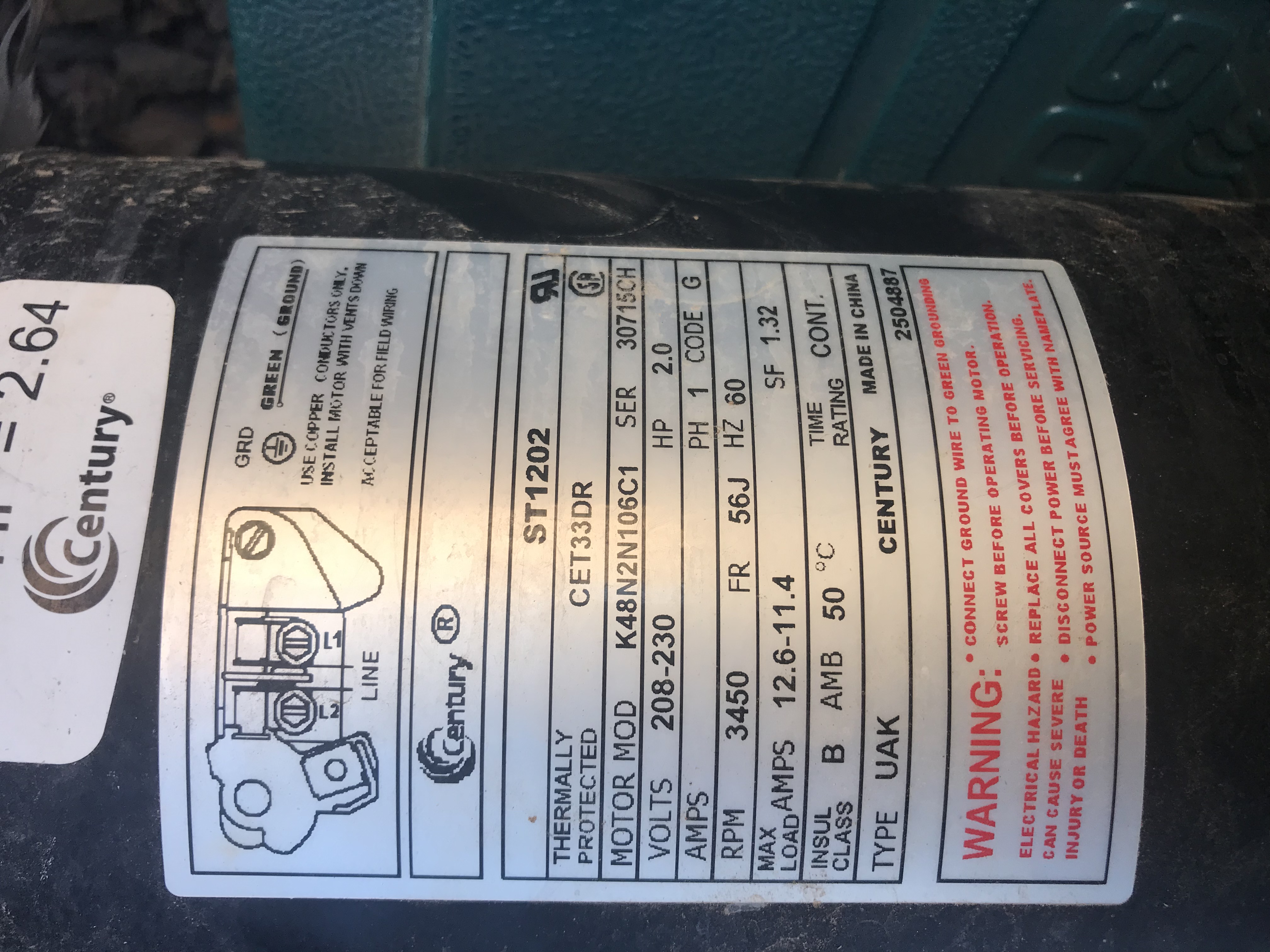

Trying to find the correct run capacitor for the following pump: Mod K48N2PA105C4 Ser. 33715CH, Type UAK Century, 230 Voltage, HP 2. The capacitor removed is a 30UF 27L1358. Is this the correct capacitor for the pump? Can I use a higher capacitor such as a 50UF for this pump? Thanks, Wes 808 277-4037 (I Live in NV).
Reply
Yes, this is the correct capacitor for the motor model K48N2PA105C4 and we would recommend to use what the manufacturer recommends which is indeed this capacitor.
Reply
I currently have a SCS 25UF, 440VAC Capacitor. I don't see one in your inventory. So what other choise do I have?
Reply
Hi, Tony. You will have to locate a retailer that has a replacement capacitor that matches those specs. We do not have an alternate replacement.
Reply
what is the correct capacitor for
Pentair 340040 Stainless Steel SuperFlo Single-Speed Almod Pool Pump, 2-Horsepower 230-Volt Single-Phase
Reply
Hi, Tolga. This size Run Capacitor is used to operate the motor for the Pentair SuperFlo Pump - 340040.
Reply
I have a Model LA01n Centurion Booster pump that needs a capasitor not sure what size to get
Reply
Hi, Robin. Our info shows that the motor used on the Pentair Booster Pump model LA01N is part # 628318-307. This 30 MFD 370VAC Run Capacitor can also be used as a replacement.
Reply
Hello, can I get the part number for a capacitor replacement for a Pentair whisperflo 011775 2.5HP motor? Thanks!
Reply
Hi, Josh. This 30 MFD / 370 VAC Run Capacitor - 628318-308 is the correct size for the Pentair Whisperflo Pump - 011775.
Reply
need capacitor replace for 1081 pool motor model k63cxesd-4791 1HP 208-230/115 60Hz. Emerson/US motor
old capacitor is can type located within the back housing cover of motor...looks like the pictures of the run capacitor. It is NOT located in the "doghouse" on top of motor. I assume it is a run capacitor from the pictures shown on your selection guide? It is "metal can", not plastic. Can is rusted so I don't know any of the statistics. Please help me find the correct one!!!
Reply
need replacement capacitor for a 3/4hp wisperflow model#196232 thanks
Reply
Hi, Mike. I was unable to use the model # provide to locate the correct replacement capacitor. Please provide a picture of the motor specs or the capacitor.
Reply
Greetings! I need a capacitor for a Century SP3215Z1M (2 h.p.). Can you please provide a part # for this motor? Thank you.
Reply
Hi, Greg. This 30 MFD 370 VAC Run Capacitor is the correct replacement for motor SP3215Z1M.
Reply
Pentair 1 hp motor #196238. Capacitor on top of motor c65r 30uf +/- 6% 440vac 50/60 hz 10000 afc c22.2 #190. 3 1/2" long 2" dia. I believe this enough info for you to give me a replacement
Reply
Hi, Jerry. We're unable to provide you with that replacement capacitor at this time. You can use Part # 10003946-001-001.
Reply

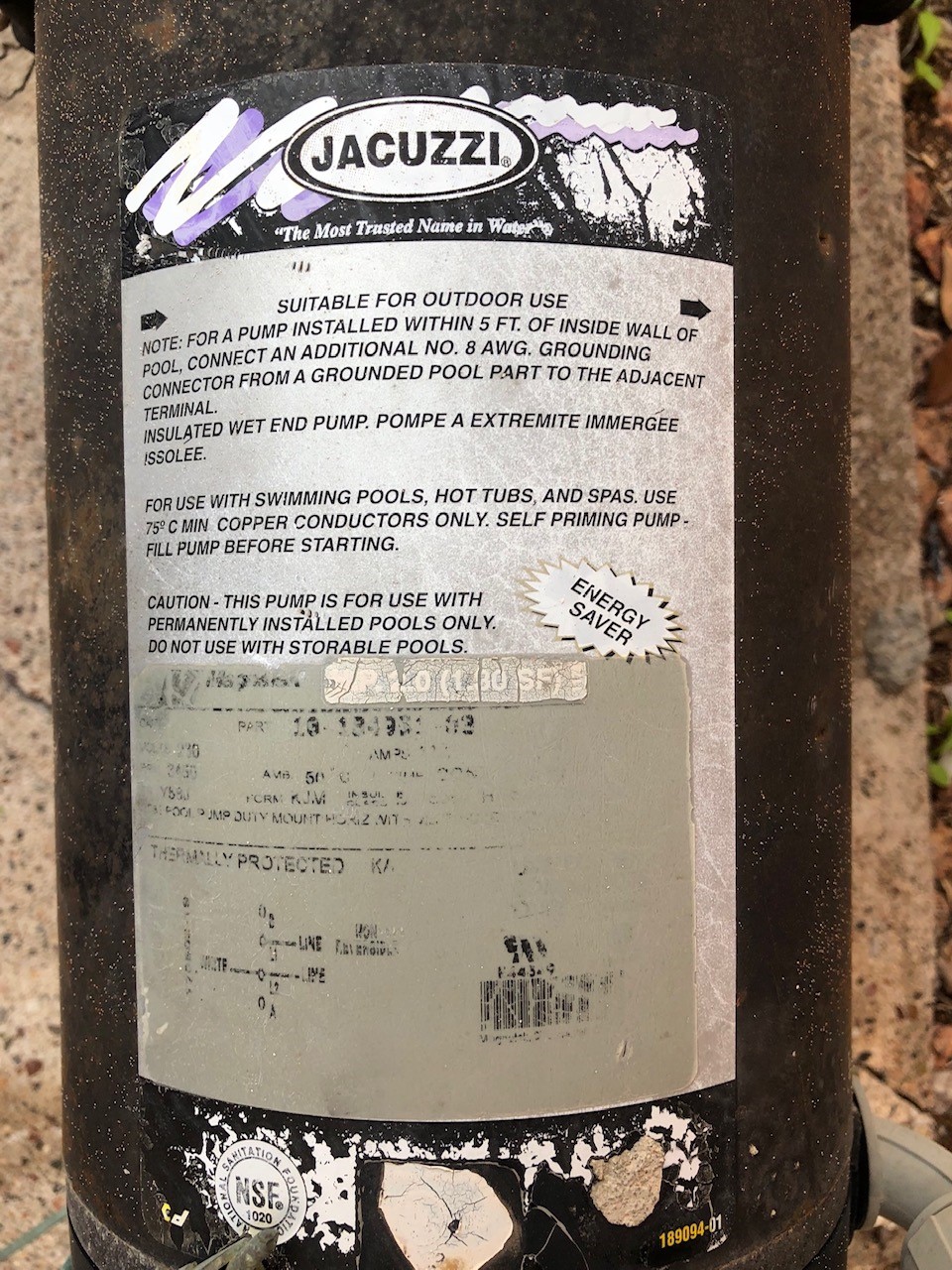

I have a Jacuzzi Magnum Force 2MF-S2 Pump with what I believe is an EST1202 2HP 230V Motor - Is this the right Starter Capacitor for the unit?
Hi Rock, yes based on your photos this is the proper replacement capacitor for your pool pump motor.
Reply
Hi,
I need a replacement capacitor for a Century Pool Pump Model B855.
Can you advise which part I need?
Hi, Eric. The replacement capacitor will be Part # 628308-407.
Reply
Will this capacitor work with my Whisperflo pump (model no. 177474); pump model WF-3 (part no. 011579). The existing capacitor is 3 1/2 inches longer and 1 3/4 inches in diameter. Photo attached.
Also, do you know if this model also requires a start capacitor. I took off the front housing to the motor and couldn't find one but thought I would ask anyways.
Thanks.
Hi, Greg. This is the correct replacement capacitor. That motor # 177474 does not have a Start Capacitor.
Reply
I’m trying to figure out if this is the right run capacitor for my Century Centurion 1.5hp pool pump motor (part no. 7-196262-24). The capacitor I’m replacing is a GenTeq 27L 1358, 30uf, 50/60hz, 370VAC. Thanks.
Hi Jeff, Thanks for the photos those were quite helpful. Yes this is the proper replacement capacitor for your GenTeq 27L1358
Reply
Hello, My mom's pool pump motor capacitor needs to be replaced. The pump is Century Centurion (Cat. B130, P/N 7-159988-06, Frame X56J, 2 hp, 230V, 1Phase, 60Hz). Since she doesn't live near me, I can't open the motor to see the capacitor size. Is this capacitor the right one for this pump? If not, please recommend one. Thank you for your assistance.
Reply
Hi, Don. This Run Capacitor - 5VR0303 is the correct replacement for the B130 motor.
Reply
Help me find the capacitor for this motor please! Thank you!
Hi Rachel, The capacitor on this page is NOT the correct capacitor for your motor. You will need this 50 MFD Run Capacitor
Reply
I need to find the correct capacitor for our Pentair WF-28, 2.0 HP (photo attached). Can you please advise?
Hi S, For the Pentair WF-28, 2.0 HP in your photo. You will need this 5207-06 Run Capacitor the capacitor on this page is not the correct capacitor.
Reply
Hi I have a 2007 Jandy LX250-L Pool heater and the blower fan will only turn if I turn it with a screw driver. I believe it is the capacitor. Jandy will only sell me the Blower Fan Assy (R0329800), not the capacity. I am attaching the picture. I need to know the PN of the drop in replacement so I can order the capacitor. I call also be reached at 408.500.7846
I’m looking for the correct capacitor for this 2hp Cerntury motor, photo attached, would this run a 370v, 30MFD?
Thanks
Yes, this 628318-308, 30 MFD is the correct replacement run capacitor for your ST1202 2-HP Full Rate. This motor also uses the 36-43 MFD (BC36M-250-S), start capacitor.
Reply
Hello... please provide a link to a replacement capacitor.. this one was taken from a WFE-8 Whisperflo pump 2HP FR EE 208/230V. Thanks in advance!
Greetings! I need a capacitor for a Century SP3215Z1M (2 h.p.). Can you please provide a part # for this motor? Thank you.
Reply
Hello - the SP3215Z1M pump motor requires the 30 MFD (5VR0303) - Run Capacitor
Reply
Hello,
can i please get the part # for the CAPACITOR - 325P306H37M30A4XAO
Thank you,
Anthony
Good afternoon, yes based on your photo the RUN CAPACITOR, 30 MFD (5VR0303) would be the correct unit.
Reply
looking for a replacement for Genteq 27L1576 50/60 Hz 440 VAC 30 UF other numbers seen are: 628308-407 and JC13116250
for a Jandy 1 HP Motor, model FHPM1.0 self priming; I believe its a Run capacitor because it sits in the 'dog house' on top of the motor. This is the second capacitor to go out in 4 months, so wondering if stepping up to the next level is the right solution. pool guy replaced the last one and I'm only going by what is in place at this time.
please advise. thanks
Reply
Hi, John. That capacitor is no longer available as a replacement part. Some motor has successfully run using the run using this 370VAC vs the original 440VAC run capacitor.
Reply
I have an AO Smith Centurion pool filter motor for a Magnum Force 1UMF-S PUMP. Can you tell what capacitor I need to order from you. I can’t read the specs from my old capacitor.
Hi, Tom. Please provide the Part # of the motor since the capacitor is not legible.
Reply
Hello, im looking for a run capacitor (top mounted?) replacement for a Century Centurion B668. 3/4hp, SF 1.50, 60 hz, Volts 230/115, Amps SF6.5/13.0
Hi, Casey. The replacement capacitor is P/N 628308-405. We do not have that available, however, P/N 628318-307 can be used as a replacement.
Reply
I need to replace an older run capacitor Genteq 27L1576 (30uf +/-6%, 50/60 Hz and 440 VAC
Only vary with your capacitor in +70VAC
Can I say that your capacitor is ok for my pump Century B2748 (Part 196263) that has the following specifications:
Volts 230
Hz 60
AMPS SF 11.5
HP 2
RPM 3450
FR Y56Y
Reply
This capacitor will work in that pump according to the info from the old capacitor. VAC is not important in his case.
Reply
Pump would hum loud then trip breaker. Once apart would hesitate but shaft would spin after a pause. Seems like capacitor problem. What would be replacement for below? Thanks!
Hi, Lance. We do not have a replacement capacitor available, however, you can use the RUN CAPACITOR, 25 MFD - 628318-307.
Reply
Hi. I'm looking to replace a run capacitor with a part number of 628318-308. It is a 30UF 370VAC 50/60 HZ capacitor from a Pentair 1 HP pump motor. The other number on the label is 325P306H37M30N4X (photo attached). Is the 5VR0303 capacitor advertised on this page an exact replacement? Thanks for any help you can provide. Regards, Paul
-(2444).jpg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&height=75&width=75&mode=pad)
-(2444).jpg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&mode=pad&width=650&height=650 "U.S. Seal Manufacturing Pool Pump Run Capacitor, 30 MFD, 2444 - 5VR0303")

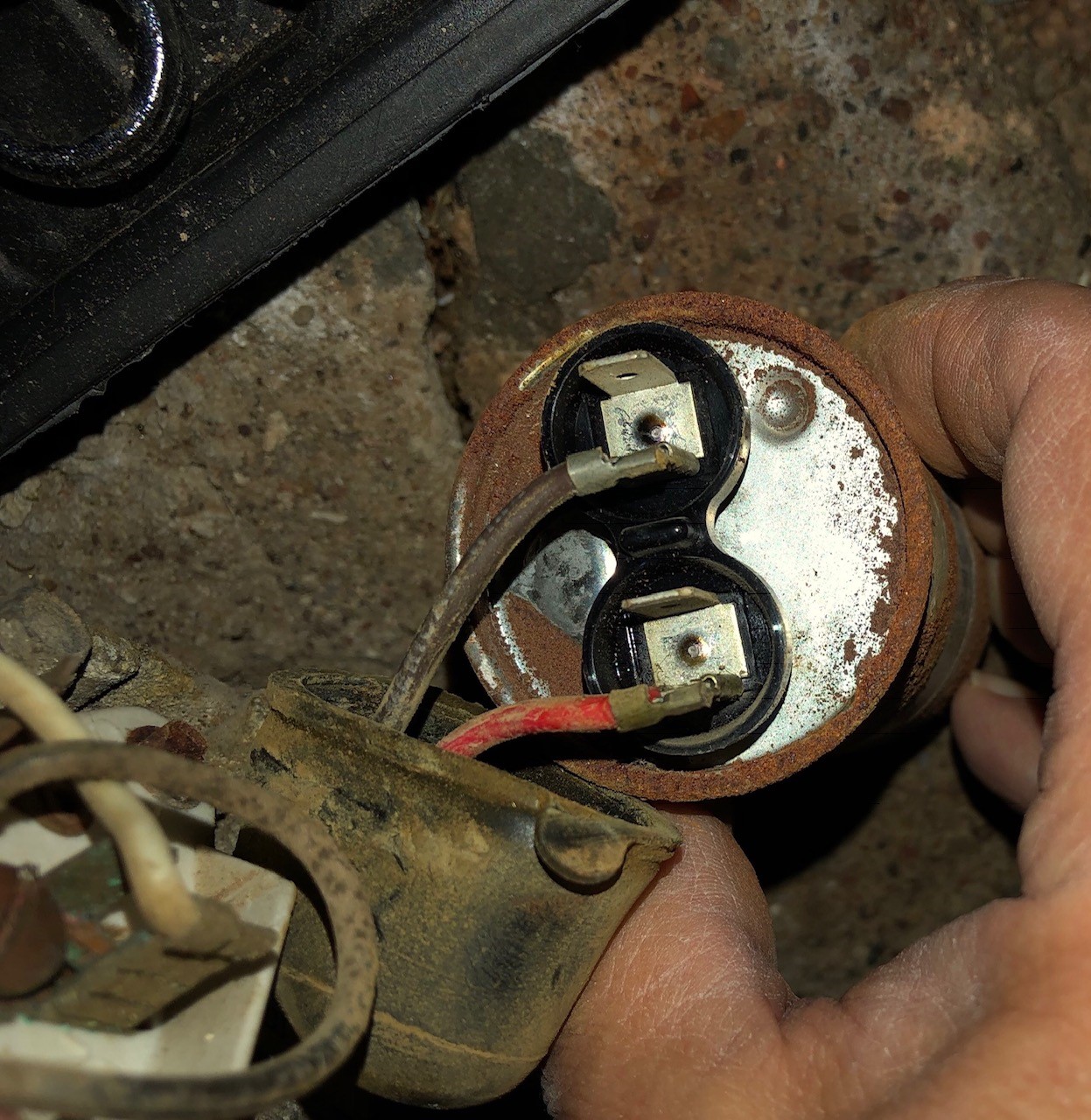

I need to find the correct capacitor to replace this one
-(2444)-f1d6b369-92af-4789-93b9-5a16586490cf.jpeg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&height=75&width=75&mode=pad)
-(2444)-f1d6b369-92af-4789-93b9-5a16586490cf.jpeg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&mode=pad&width=650&height=650 "U.S. Seal Manufacturing Pool Pump Run Capacitor, 30 MFD, 2444 - 5VR0303")
Hi Dave you will require this 5270-07 Capacitor this capacitor measures 2-7/8" in length and 1-3/4" in diameter
Reply
MY POOL PUMP RUNS THEN STOPS......IT DOES FEEL HOT
THE CAPACITOR ORIGINAL SAYS 470V.......30 UF........I BOUGHT A NEW ONE BUT IS RATED 40 UF
CAN THE 40 UF BE USED OR WILL IT CAUSE OVERHEATING (A REMARK FROM SOMEONE)
Reply
You can go with a higher UF rated capacitor but not a lower rated capacitor. So if your old capacitor was 30 UF and the new one is 40 UF you should be fine.
Reply
Please see photo attached and confirm if the 5VR0303 is the exact match for this replacement? Want to order asap if this is the exact replacement. If this is not the exact replacement, do you have the exact replacement? What is it? Thank you so much for your time. Awaiting your reply.
-(2444)-acbd5e8a-e8c6-4d89-b7ce-1ebb40cb7f0f.jpg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&height=75&width=75&mode=pad)
-(2444)-acbd5e8a-e8c6-4d89-b7ce-1ebb40cb7f0f.jpg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&mode=pad&width=650&height=650 "U.S. Seal Manufacturing Pool Pump Run Capacitor, 30 MFD, 2444 - 5VR0303")
Yes, the RUN CAPACITOR, 30 MFD (5VR0303) (2444) can be used. Please verify the dimensions of the current capacitor are the same as this one. I attached an image of the dimensions.
Hello, Would you be able to let me know if this the the right part to order for the pump in the pic?
Thank you
Hi Florin, Yes this is the correct capacitor. Here is a link to the Capacitor Measurements for your reference
Reply
Hi, I would like to know if the item above can replace this one. Thanks
-(2444)-c1ff0e36-c814-4837-b9a2-d352d12c893e.jpg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&height=75&width=75&mode=pad)
-(2444)-c1ff0e36-c814-4837-b9a2-d352d12c893e.jpg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&mode=pad&width=650&height=650 "U.S. Seal Manufacturing Pool Pump Run Capacitor, 30 MFD, 2444 - 5VR0303")
Hi Vladimir. This capacitor is a correct replacement for the one in the picture, both are 30 microFarad and rated for 370 VAC.
Reply

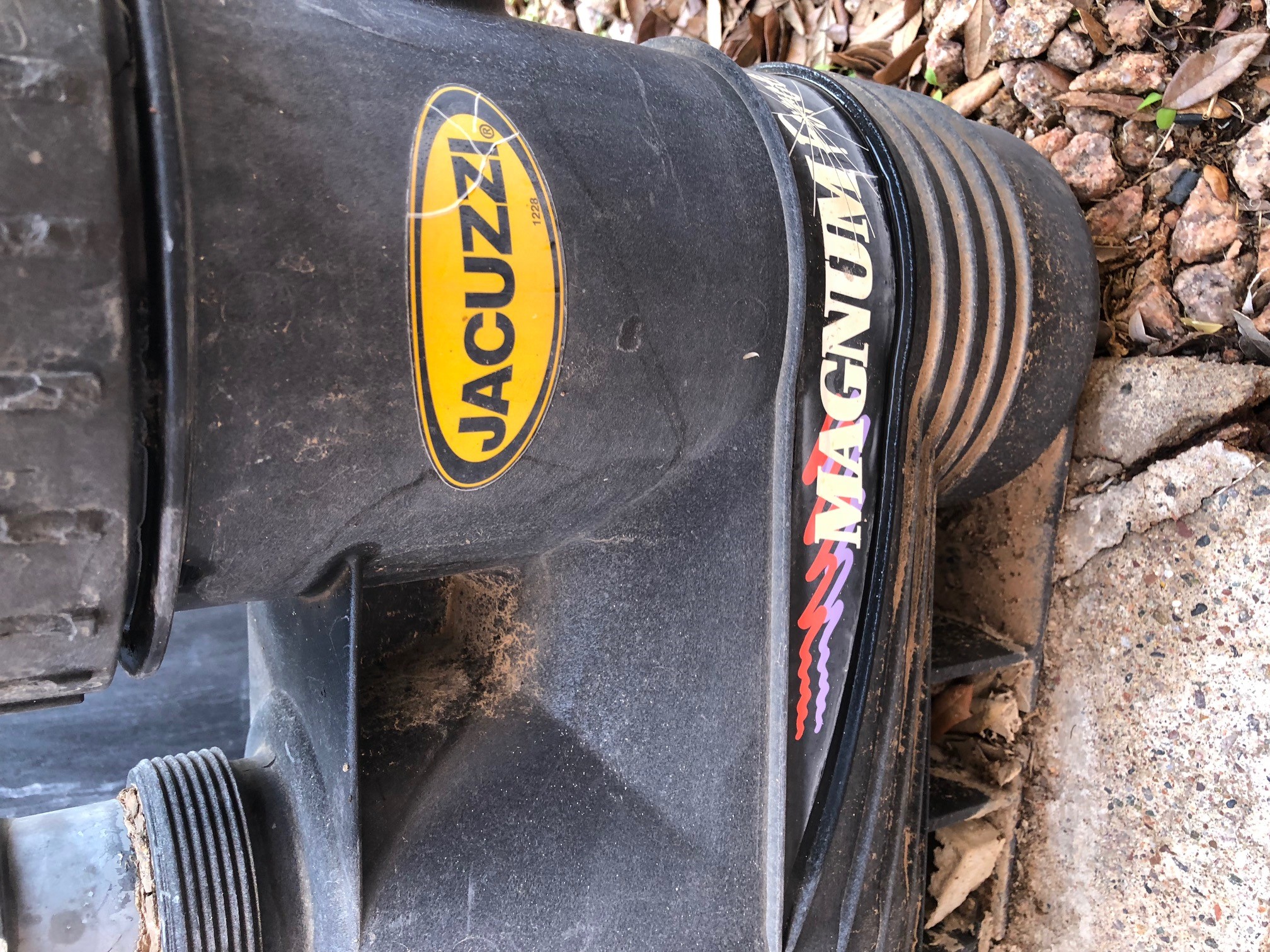

can i use this with jacuzzi magnum
Reply
Could you send us a few photos of your motor? Please take a close up shot of the motor label. To supply photos simply click the reply link below and upload your photos. Once we get those photos we can make the proper recommendation.
Reply
I need to replace a c65r capacitor for a century centurion pool pump.
Reply
Hello, so the specification of C65R, unfortunately, would not be enough to confirm the replacement capacitor however if you can provide the motor model, part, or catalog number then we may be able to cross-reference that capacitor for you.
Reply
I need replacement capacitor for c65r 30uf 440vac. It is for a pentair whisperflo 1.5hp pool pum
-(2444)-df5d3a07-3f16-4788-a883-7eb8712d0c4c.jpeg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&height=75&width=75&mode=pad)
-(2444)-df5d3a07-3f16-4788-a883-7eb8712d0c4c.jpeg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&mode=pad&width=650&height=650 "U.S. Seal Manufacturing Pool Pump Run Capacitor, 30 MFD, 2444 - 5VR0303")
Hi Ken, unfortunately, this capacitor is no longer available with no listed replacement. You can also contact Century motors to see if by chance there is another recommended to used to replace it.
Reply
Hi
The run capacitor for an A-O-Smith Century 3/4 HP B2852 pool pump.
The run capacitor is CSC 25 uF 440VAC, Part No. 628308-405.
Do you have a direct replacement capacitor?
Thank you for your help
Reply
Can you tell me if this is the correct replacement for this capacitor
-(2444)-fa087968-f736-4d27-9826-15121828b6c9.jpeg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&height=75&width=75&mode=pad)
-(2444)-fa087968-f736-4d27-9826-15121828b6c9.jpeg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&mode=pad&width=650&height=650 "U.S. Seal Manufacturing Pool Pump Run Capacitor, 30 MFD, 2444 - 5VR0303")
Hi, I have a star rite motor # K48M2PA105. Do u have replacement capacitor? Attached is picture. Thank you.
-(2444)-ed14a541-8e76-44ac-93ab-b96cab22c18c.jpeg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&height=75&width=75&mode=pad)
-(2444)-ed14a541-8e76-44ac-93ab-b96cab22c18c.jpeg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&mode=pad&width=650&height=650 "U.S. Seal Manufacturing Pool Pump Run Capacitor, 30 MFD, 2444 - 5VR0303")
Can I use a 35uf to replace a 30uf capacitor?
Reply
If you have no other choice but to use that 35 MFD capacitor, you can use it. But I warn against doing so because the higher MFD can create overheated winding issues, which leads to premature motor failure.
Reply
Is this capacitor a direct replacement for the one shown in the picture. Goes on a pentair WF-28 pump.
Good day, yes based on the photo and model provided the RUN CAPACITOR, 30 MFD (5VR0303) (2444) would be the correct unit to order.
Reply
What is the correct replacement for this run capacitator? Original capacitator part number is 27L1576. Centurion Motor Model # 193987 - Part # 7-193987-24.
The correct run capacitor replacement for your 7-193987-24 motor is the 30 MFD (5VR0303) (2444).
Reply
I’m looking to replace run capacitor for booster pump. This is the one currently used for it. Is there anything 440VAC or can I go lower
-(2444)-32c8e9fb-fb5f-4d57-a7ba-418c7c5ca2f7.jpeg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&height=75&width=75&mode=pad)
-(2444)-32c8e9fb-fb5f-4d57-a7ba-418c7c5ca2f7.jpeg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&mode=pad&width=650&height=650 "U.S. Seal Manufacturing Pool Pump Run Capacitor, 30 MFD, 2444 - 5VR0303")
Is this the right capacitor for 7-193986-24 Century Centurion 1HP Motor? Original capacitor was 27L1576
Hi, your 440V capacitor is no longer available we have had some customers use this 370V capacitor as a replacement for the 440V without issue.
Reply
Is this the right capacitor for my Harris 1.5HP pool pump?
-(2444)-652e0370-a305-42dc-bae0-d7122a098802.png?format=jpg&scale=both&anchor=middlecenter&autorotate=true&height=75&width=75&mode=pad)
-(2444)-652e0370-a305-42dc-bae0-d7122a098802.png?format=jpg&scale=both&anchor=middlecenter&autorotate=true&mode=pad&width=650&height=650 "U.S. Seal Manufacturing Pool Pump Run Capacitor, 30 MFD, 2444 - 5VR0303")
Hello Adam. Yes, the U. S. Seal Run Capacitor 30 MFD (5VR0303)is a compatible replacement for the capacitor identified in your photograph.
Reply
My old two speed spa pump motor is now one speed (high speed) only. Attached is a photo of one of the two capacitors. I am not sure if this is a start or run capacitor. The motor is a 230V Sta-Rite 6 BHP model. Can you please help me select the right replacement capacitor for this one? (I was looking for a two speed relay on my setup, but apparently it is internal to the motor.)
Hello Ronald. From the information you provided, the U.S. Seals Manufacturing Run Capacitor 30MFD 370V (5VR0303) (2444) is the correct replacement.
Reply
My guess is that the right capacitor is this one: RUN CAPACITOR, 30 MFD (5VR0303) (2444). Dimensions are identical to mine and the specs seem to be right. See previous message.
-(2444)-44bbf315-f37a-407c-8ac4-a3053e189df2.jpg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&height=75&width=75&mode=pad)
-(2444)-44bbf315-f37a-407c-8ac4-a3053e189df2.jpg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&mode=pad&width=650&height=650 "U.S. Seal Manufacturing Pool Pump Run Capacitor, 30 MFD, 2444 - 5VR0303")
Hello Ronald. From the information you provided, the U.S. Seal Manufacturing Run Capacitor 30MFD 370V (5VR0303) (2444) is the correct replacement.
Reply
Is this the correct capacitor for Hayward Super ii Pump 1.5hp SP3015EEAZ?
Reply
Hi Rich, You will actually require this 628318-307 Run Capacitor
Reply
is this the correct capacitor for century centurion pool pump b2854
Reply
Hello Dennis. The U. S. Seal Manufacturing Run Capacitor 30MFD, part number 5270-05, is the correct replacement run capacitor for the Century Motors model B2854.
Reply
What is the start capacitor part for a Century B2847 pump?
Reply
Hello. The replacement capacitor for the Century Motors model B2847 is the U. S. Seal Manufacturing capacitor part number 5270-05. Attached please find an exploded parts diagram for the Century Motors model B2847. Please note part, Key 7. Century B2847
Reply
The pump motor from A O Smith 7-184949-22 sometimes starts and sometimes does not. We think the capacitor needs to be replace. If so is this the this the correct one or is there another one lurking in the motor. Thanks.
Reply
Hello Stephen. The U. S. Seal Manufacturing Run Capacitor part number 2444 is the correct capacitor for the A. O. Smith Motor model 7-184949-22. There is only one capacitor in this motor.
Reply

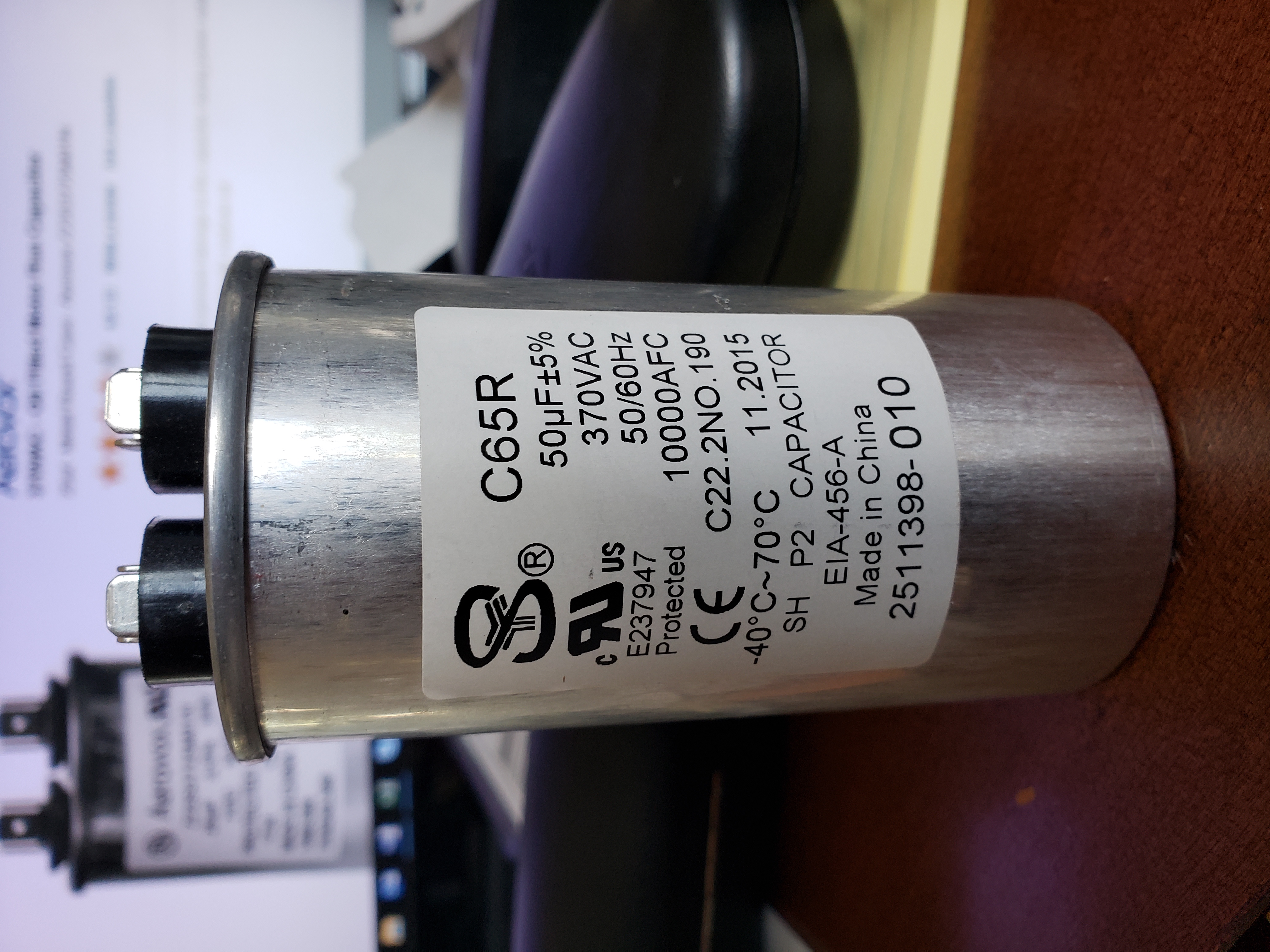

Looking for the correct capacitor for my filter pump (> 10 years old):
WHISPERPRO 1.5 HP
Pump Model #: WFE-6
Part #: 011514
Motor#: 196234
-(2444)-2da785ab-33ac-4a99-8fcb-27c5b13b4517.jpg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&height=75&width=75&mode=pad)
-(2444)-2da785ab-33ac-4a99-8fcb-27c5b13b4517.jpg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&mode=pad&width=650&height=650 "U.S. Seal Manufacturing Pool Pump Run Capacitor, 30 MFD, 2444 - 5VR0303")
Hello Scott. The U. S. Seal Manufacturing Run Capacitor Model RD-50-370 is the correct capacitor for the Pentair Motor model. RUN CAPACITOR, 50 MFD (RD-50-370)
Reply

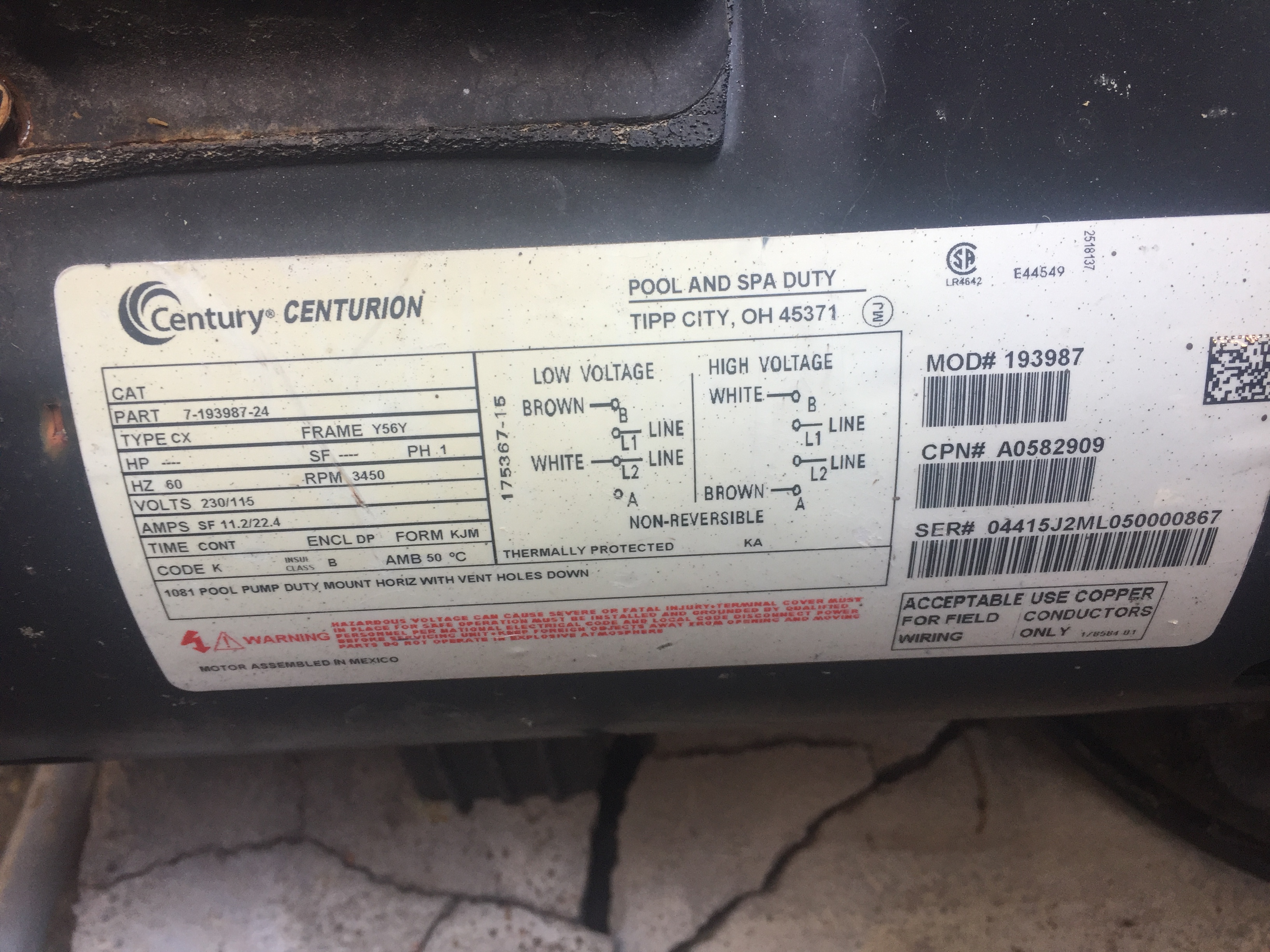

What is the correct replacement capacitor for Centurion 7-193987-24? Please let me know so I can order it. Thanks, Thomas
-(2444)-aee17d0f-d941-44cf-961a-c08e8fa38209.jpg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&height=75&width=75&mode=pad)
-(2444)-aee17d0f-d941-44cf-961a-c08e8fa38209.jpg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&mode=pad&width=650&height=650 "U.S. Seal Manufacturing Pool Pump Run Capacitor, 30 MFD, 2444 - 5VR0303")
Hi Thomas, the RUN CAPACITOR, 30 MFD (5VR0303) (2444) is the correct replacement capacitor for your 7-193987-24 motor.
Reply
I have a Jandy FloPro FHPM1.0 CND with a capacitor in the hump (supposed to be a start capacitor) that is consistent with a run capacitor (30UF370 VAC 50/60HZ) but I couldn't locate a start capacitor nor could I find one on the blown up schematics. My problem is that the motor makes a hum and will not start unless I manually spin the impeller shaft then it starts immediately with no problems or noises. To me it sounds like the start capacitor is faulty but I can't locate one.
Reply
Hello Nick. The U. S. Seal Manufacturing RUN Capacitor, (5VR0303) (2444) is the correct replacement for the capacitor described in your communication: 370VAC 30uf. Generally, there is only one capacitor installed on residential pool pump motors unless the total horsepower exceeds 3.0 HP. A RUN capacitor can be housed under the capacitor cover located on the top of the motor. Attached please find a brief tutorial covering the different capacitor types that may be beneficial. How To Select the Right Capacitor For Your Pool Pump Motor
Reply
Looking for a replacement of pictured capacitor. Length 3 3/8”. Diameter 2”.
-(2444)-2d6297f2-2b39-4110-95d3-d06478fbf40d.jpeg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&height=75&width=75&mode=pad)
-(2444)-2d6297f2-2b39-4110-95d3-d06478fbf40d.jpeg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&mode=pad&width=650&height=650 "U.S. Seal Manufacturing Pool Pump Run Capacitor, 30 MFD, 2444 - 5VR0303")
Thank you for contacting Inyo Pools, This is the correct replacement capacitor RUN CAPACITOR, 30 MFD (5VR0303) (2444)
Reply
What is the replacement for a 27L1576 genteq and do you have it in stock? Thanks
Reply
Good afternoon, yes the U.S. Seal Manufacturing RUN CAPACITOR, 30 MFD (5VR0303) (2444) would be the correct replacement for your 27L1576.
Reply
Looking for a capacitor for my Pentair Pool Pump - Century Motor number 196240. Please see photos.
Hi Steven, this RUN CAPACITOR, 30 MFD (5VR0303) (2444) will be a perfect replacement. Read our guide on How To Replace a Pool Pump Capacitor so you complete the task safely since they can hold a charge of electricity for a long time after power is disconnected.
Reply
I am replacing a Genteq 27L1576 run capacitor on a Century B2853 pump motor. The old capacitor says 35uf and 440VAC. This replacement part is 370VAC. Is that going to work?
Reply
Hello Steven, yes this is the correct capacitor for your capacitor part number 27L1576 .
Reply
Looking for a run capacitor for a century two speed. Cat 983 part number on the motor is 7-177068-07.
Reply
Hello, The Run Capacitor, Dual, 25 + 10 MFD / 370 VAC - 195662-25 is the correct replacement capacitor for your motor. However, we are currently out of stock but you can add yourself to the "contact me when in stock" list from the items page if you would like.
Reply
-(2444).jpeg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&height=75&width=75&mode=pad)
-(2444)-14953551-8d1d-45e8-b517-866e62e8fd62.jpeg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&height=75&width=75&mode=pad)
-(2444).jpeg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&mode=pad&width=650&height=650 "U.S. Seal Manufacturing Pool Pump Run Capacitor, 30 MFD, 2444 - 5VR0303")
-(2444)-14953551-8d1d-45e8-b517-866e62e8fd62.jpeg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&mode=pad&width=650&height=650 "U.S. Seal Manufacturing Pool Pump Run Capacitor, 30 MFD, 2444 - 5VR0303")
-(2444)-c18dc67e-0c2f-44fa-91c2-24457d96565c.jpg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&height=75&width=75&mode=pad)
-(2444)-b5eeebe9-38fb-4cc1-bdae-f5202ee3893e.jpg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&height=75&width=75&mode=pad)
-(2444)-c18dc67e-0c2f-44fa-91c2-24457d96565c.jpg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&mode=pad&width=650&height=650 "U.S. Seal Manufacturing Pool Pump Run Capacitor, 30 MFD, 2444 - 5VR0303")
-(2444)-b5eeebe9-38fb-4cc1-bdae-f5202ee3893e.jpg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&mode=pad&width=650&height=650 "U.S. Seal Manufacturing Pool Pump Run Capacitor, 30 MFD, 2444 - 5VR0303")
-(2444)-4f0d0f24-72b1-49d8-8b66-343563e27241.jpg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&height=75&width=75&mode=pad)
-(2444)-e463af4e-51d2-465e-a3f2-b9de24ed1845.jpg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&height=75&width=75&mode=pad)
-(2444)-4f0d0f24-72b1-49d8-8b66-343563e27241.jpg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&mode=pad&width=650&height=650 "U.S. Seal Manufacturing Pool Pump Run Capacitor, 30 MFD, 2444 - 5VR0303")
-(2444)-e463af4e-51d2-465e-a3f2-b9de24ed1845.jpg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&mode=pad&width=650&height=650 "U.S. Seal Manufacturing Pool Pump Run Capacitor, 30 MFD, 2444 - 5VR0303")
-(2444)-63b8dbdb-894c-4cd8-bbae-792808a55f5c.jpg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&height=75&width=75&mode=pad)
-(2444)-63b8dbdb-894c-4cd8-bbae-792808a55f5c.jpg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&mode=pad&width=650&height=650 "U.S. Seal Manufacturing Pool Pump Run Capacitor, 30 MFD, 2444 - 5VR0303")
-(2444)-807a1a7d-5a6d-4d4f-a156-7ef0e41185cd.jpeg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&height=75&width=75&mode=pad)
-(2444)-6ec8a1ba-ed0e-499a-b0e8-f12c5ae7aaf4.jpeg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&height=75&width=75&mode=pad)
-(2444)-807a1a7d-5a6d-4d4f-a156-7ef0e41185cd.jpeg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&mode=pad&width=650&height=650 "U.S. Seal Manufacturing Pool Pump Run Capacitor, 30 MFD, 2444 - 5VR0303")
-(2444)-6ec8a1ba-ed0e-499a-b0e8-f12c5ae7aaf4.jpeg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&mode=pad&width=650&height=650 "U.S. Seal Manufacturing Pool Pump Run Capacitor, 30 MFD, 2444 - 5VR0303")
-(2444)-fd9e19bf-e95f-426f-8429-c2342efce254.jpg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&height=75&width=75&mode=pad)
-(2444)-40fba1f3-4940-453e-b67c-00a870539291.jpg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&height=75&width=75&mode=pad)
-(2444)-fd9e19bf-e95f-426f-8429-c2342efce254.jpg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&mode=pad&width=650&height=650 "U.S. Seal Manufacturing Pool Pump Run Capacitor, 30 MFD, 2444 - 5VR0303")
-(2444)-40fba1f3-4940-453e-b67c-00a870539291.jpg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&mode=pad&width=650&height=650 "U.S. Seal Manufacturing Pool Pump Run Capacitor, 30 MFD, 2444 - 5VR0303")
-(2444)-93ffb7b8-3ca2-4e72-ab46-79fb45d9969c.jpg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&height=75&width=75&mode=pad)
-(2444)-93ffb7b8-3ca2-4e72-ab46-79fb45d9969c.jpg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&mode=pad&width=650&height=650 "U.S. Seal Manufacturing Pool Pump Run Capacitor, 30 MFD, 2444 - 5VR0303")
-(2444)-eb31c368-f674-4d5e-99a9-3fa842d85069.jpeg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&height=75&width=75&mode=pad)
-(2444)-10ca642b-15db-4c30-8a49-03fcdd616904.jpeg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&height=75&width=75&mode=pad)
-(2444)-eb31c368-f674-4d5e-99a9-3fa842d85069.jpeg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&mode=pad&width=650&height=650 "U.S. Seal Manufacturing Pool Pump Run Capacitor, 30 MFD, 2444 - 5VR0303")
-(2444)-10ca642b-15db-4c30-8a49-03fcdd616904.jpeg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&mode=pad&width=650&height=650 "U.S. Seal Manufacturing Pool Pump Run Capacitor, 30 MFD, 2444 - 5VR0303")
-(2444)-eba62e7c-c2ce-4621-8a76-f814cc6a85e6.jpg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&height=75&width=75&mode=pad)
-(2444)-71f5c1fc-1d5b-4ffd-98be-028a52913399.jpg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&height=75&width=75&mode=pad)
-(2444)-eba62e7c-c2ce-4621-8a76-f814cc6a85e6.jpg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&mode=pad&width=650&height=650 "U.S. Seal Manufacturing Pool Pump Run Capacitor, 30 MFD, 2444 - 5VR0303")
-(2444)-71f5c1fc-1d5b-4ffd-98be-028a52913399.jpg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&mode=pad&width=650&height=650 "U.S. Seal Manufacturing Pool Pump Run Capacitor, 30 MFD, 2444 - 5VR0303")
-(2444)-50b5a078-ba00-4270-a96c-a66b80876a43.jpeg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&height=75&width=75&mode=pad)
-(2444)-a36083ce-7b0b-4a45-9afa-88361a5b8a43.jpeg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&height=75&width=75&mode=pad)
-(2444)-50b5a078-ba00-4270-a96c-a66b80876a43.jpeg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&mode=pad&width=650&height=650 "U.S. Seal Manufacturing Pool Pump Run Capacitor, 30 MFD, 2444 - 5VR0303")
-(2444)-a36083ce-7b0b-4a45-9afa-88361a5b8a43.jpeg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&mode=pad&width=650&height=650 "U.S. Seal Manufacturing Pool Pump Run Capacitor, 30 MFD, 2444 - 5VR0303")
-(2444)-63eb9c9b-6f45-4bb2-904f-1a4078979f1f.jpeg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&height=75&width=75&mode=pad)
-(2444)-c7461d36-784b-40da-aa7b-679bac26fe40.jpeg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&height=75&width=75&mode=pad)
-(2444)-45f003b3-9f2a-4db0-9382-ada0e3269560.jpeg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&height=75&width=75&mode=pad)
-(2444)-3fb47ac4-53b6-453b-b39c-40ffdf9b43f2.jpeg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&height=75&width=75&mode=pad)
-(2444)-63eb9c9b-6f45-4bb2-904f-1a4078979f1f.jpeg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&mode=pad&width=650&height=650 "U.S. Seal Manufacturing Pool Pump Run Capacitor, 30 MFD, 2444 - 5VR0303")
-(2444)-c7461d36-784b-40da-aa7b-679bac26fe40.jpeg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&mode=pad&width=650&height=650 "U.S. Seal Manufacturing Pool Pump Run Capacitor, 30 MFD, 2444 - 5VR0303")
-(2444)-45f003b3-9f2a-4db0-9382-ada0e3269560.jpeg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&mode=pad&width=650&height=650 "U.S. Seal Manufacturing Pool Pump Run Capacitor, 30 MFD, 2444 - 5VR0303")
-(2444)-3fb47ac4-53b6-453b-b39c-40ffdf9b43f2.jpeg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&mode=pad&width=650&height=650 "U.S. Seal Manufacturing Pool Pump Run Capacitor, 30 MFD, 2444 - 5VR0303")
