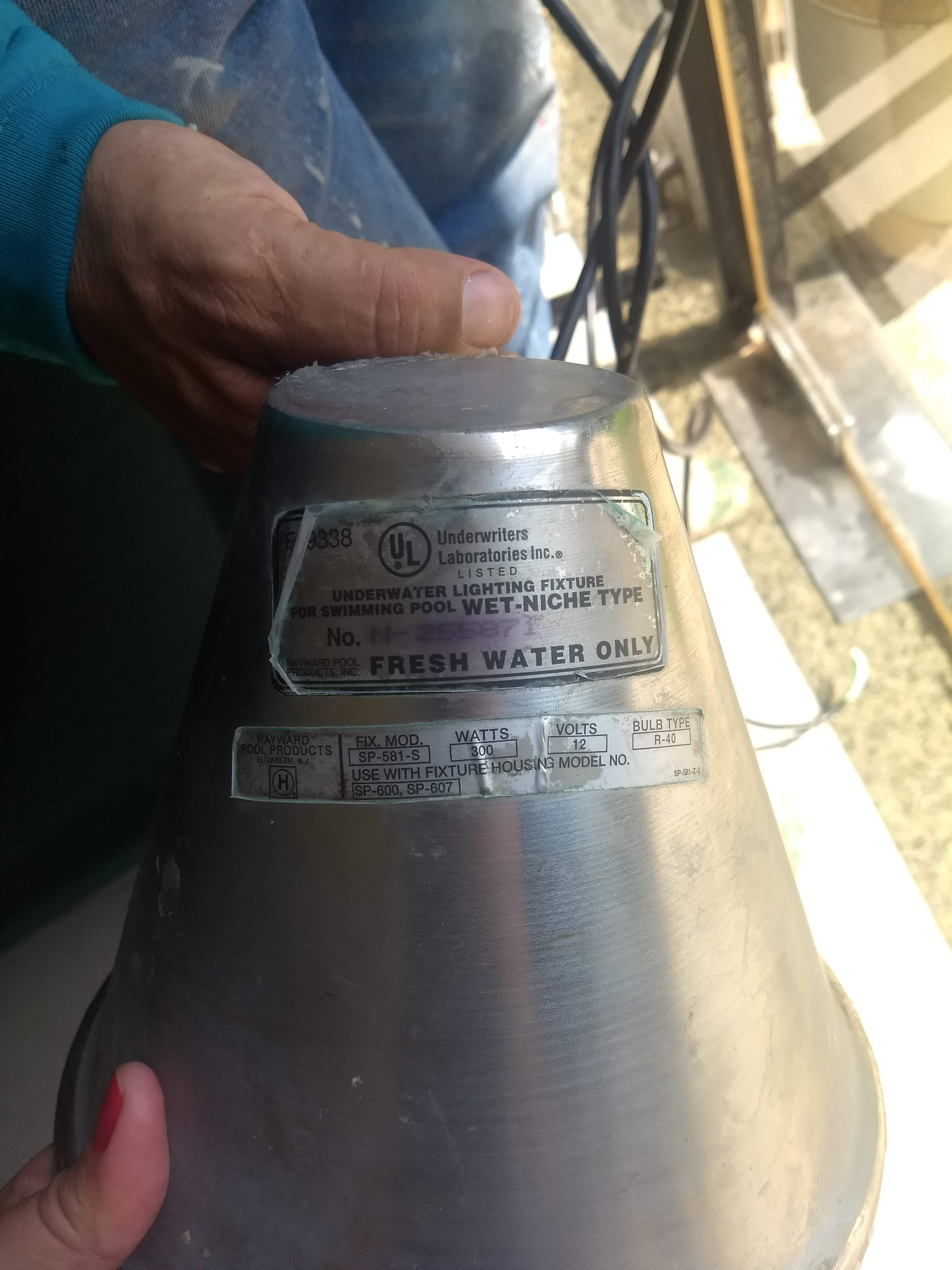

DOES THIS GASKET FIT HAYWARD HOUSING MODEL # SP-600 OR SP-607
Reply
Ron, This gasket will only work on the Hayward Astrolite - SP580 Series. Model number SP-600 & SP-607 reference the niche not the light fixture.
Reply
I need a replacement lens gasket for a lens # SP-540-z-1 I measure the existing gasket as having a diameter or 7-3/4". Can you suggest a replacement? My existing gasket is several years old I suppect. Thanks,
Reply
Hi Ben, The Lens Gasket for Starlite, Duralite, CHD and Poolstar Light (SP-540-Z-2) would be the correct replacement for your Hayward Starlite Light. You can find other replacement parts via the Hayward Starlite Parts Diagram.
Reply
when replacing spx0580z2 lens gasket, doe the small rib on gasket go in fixture housing or up against face plate ??
Reply
Hi Bill, The flat side goes up against the fixture or the dry end and the raised side faces the water side.
Reply
hi, I just bought a house, and the bulb needs to be changed, but I am not sure what gasket to buy, I can see that the light is a Hayward, but how can I tell the model number, ty
Reply
You would need to remove the light from the wall in order to attempt to identify which Hayward fixture you have.
Reply
hi, I have a Hayward inground pool light, model # sp573, will this gasket work for me? if not can you send me a link or , tell me what would be the correct gasket, ty very much
Reply
Will this gasket work in light model SP-561?
Reply
Hi Bill, No, the Lens Gasket (SPX540Z2) is the correct gasket that will fit.
Reply
I have a 25 year old pool light and need to replace the 100W 12 V bulb and gasket. The old gasket is black and measures 8" OD and is about 1/2" thick. The model number is not on the light fixture but the ring that holds it all together has number 61-4600. Hopefully you can trace this back to the fixture and recommend the proper gasket. Please advise. Thanks
Reply
Jerry, The part number for the clamp cross references to the Pac Fab Hatteras Pool Light. The original lens has been replaced with the Lens, Clear (spx0540z1) and will use the Gasket Lens Hatteras (614516). The replacement bulb is the Bulb, 12v 100w Flood (br30cl100/12v)
Reply
I have am looking for the lens to fit this gasket... do you have it
Reply
Hello Jean- Here is a link to the lens for the Hayward Astrolite pool light, Lens, Clear (spx0540z1).
Reply
How come the instruction on the SPX0580Z2 gasket isays to place the flat side of the gasket facing the pool and your comment in one of the responses says to place the flat side against the housing?
Reply
Hi. You can watch the Hayward AstroLite Swimming Pool Light Assembling Video for instructions.
Reply
I need gasket for Haywood fix. Model # sp-561, will this one fit?
Thanks
Reply
Hi, Rick. This Hayward Astrolite Lens Gasket - SPX0580Z2 will fit the SP-561 DuraLite Series Fixture.
Reply
I need a new lens gasket for my hayward pool light. The model # is SP-583-L. Could you please tell me the correct part number that I would need. Thanks in advance.
Reply
Hi, Mike. This Hayward Astrolite Lens Gasket - SPX0580Z2 is the correct gasket for the SP583L fixture.
Reply
I am looking for a gasket to fit a Hayward FIX MOD SP-563-L
FIXTURE HOUSING ASSY NO. SP506, SP555, SP507
Reply
Hi, Penny. This Lens Gasket - SPX0580Z2 will fit the SP-563-L fixture.
Reply
i think Hayward Fixture Mod. SP-581 is a fit? Also does it show which side should face out to pool ? like original gasket does? is one side molded differently? Thanks Ronnie.b
Reply
Hi, Ronnie B. One side is molded differently which indicates which side faces the pool.
Reply

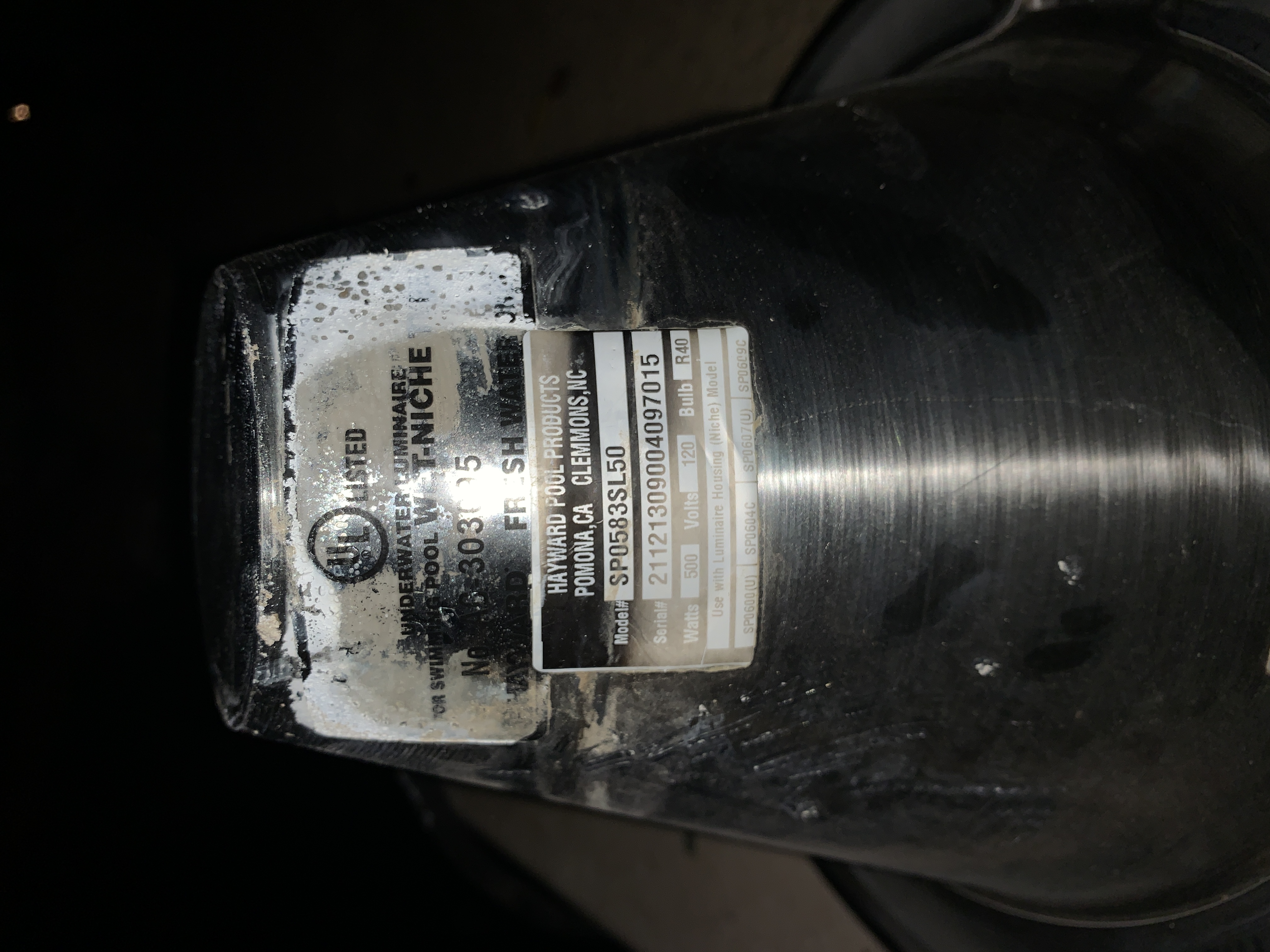

What gasket do i but for this light ? Sp0583sl100
Reply
Hi, Jeffery. This Astrolite Lens Gasket - SPX0580Z2 is the correct gasket for the SP0583SL100 model fixture.
Reply
Hello I have a Hayward SP-540-z-1 pool light and I am trying to change to light bulb. I bought a new gasket and the gasket has an edge on 1 side and flat on the other side. Which side of the gasket is pointing forward ie facing the pool and which side sits on the niche
Reply
Hi, Ziad. The flat side goes against the fixture and the lip towards the pool.
Reply
I just replaced the bulb in my Hayward Astro lite SP0582 and I'm re-attaching the lens gasket to the lens, light housing and metal outer ring. The flat side of the gasket says to face the pool. Does that mean I should attach the gasket with the flat side to the metal outer ring and the lip side to the light housing? Need help asap. Thanks.
Reply
can you tell me the part number for the lens gasket for a Hayward SP 506-L underwater light. Thanks
Reply
Hi, Larry. The SP 506-L is the model of a Hayward Stainless Steel Vinyl Niche for the Starlite and Duralite fixture. Those fixtures use the SPX540Z2 - Lens Gasket.
Reply
Is this the correct gasket for Hayward sp581s?
Hi Silvia, Yes this is the correct gasket for the light in your photo Hayward SP581S
Reply
Great. Thank you. And can provide the epoxy and the socket for replacement?
Reply
Hi Silvia, If you are speaking of the epoxy that goes into the conduit hole of the pool light niche then yes we do carry that here by clicking on this link Pool Light Epoxy if you are speaking of lubricant for the O-ring then we do carry that here by clicking on Pool Light O-Ring Lubricant. When you say "Socket" could you give more detail on that as we might be calling that something different?
Reply
The model # on my pool light gasket is Hayward SP-540-Z-2. I didn't see that on any of the items on the website. What is the equivalent? Thanks.
Reply
Hi Michael, You will require this SPX540Z2 Hayward Light Gasket
Reply
Hello,
I need a replacement lens gasket. The model on my pool light gasket is Hayward SP-540-Z-1. I didn't see that on any of the items on the website.
Reply
Please see Lens Gasket for Starlite, Duralite, CHD and Poolstar Light Fixture - SPX540Z2 http://www.inyopools.com/Products/07501352018188.htm
Reply
Does the bump side of the lens gasket face out (the convex side of the lens)?
Reply
Hi Bonnie, yes the dome side of the light faces outward. Here is a general guide that we put together called "How to Replace a Pool Light Bulb" that can better clarify.
Reply
the seal was broke. the socket & bulb were submerged in water for a long time. can i just replace the bulb & gasket or does the whole fixture need replaced?
Reply
Hi James, You would require a complete new light if the socket was submerged underwater. Here is a link to our Complete Hayward AstroLites
Reply
Is this an original (OEM) Hayward part?
Reply
Hello Mike, actually this is a generic lens gasket replacement as we, unfortunately, do not carry the OEM version. This version is just as good as the OEM.
Reply
I want to replace two Hayward pool light gaskets. The number on the old ones is SP0580Z2. Is this the same as the SPX0580Z2 gasket that you sell? The old number does not have an "X". Thanks for your help.
Reply
Yes, these are the same gasket and is just an alternate part number.
Reply
I need a new gasket for a Hayward SP0584SL30 light, is the SPX0580Z2 the correct one?
Reply
The SP0584SL30 400W/120V Astrolite 30' Cord W is part of the Expert Line of products that are not sold online. You will need to contact them directly at (908) 355-7995 for the suggested part number for ordering.
Reply
Need to replace gasket for Hayward model SP0584SLB100 wanted to know if this model will work.
Reply
Hi Carlos, yes this lens gasket is compatible with the Hayward Astrolite model SP0584SLB100 pool light.
