Anthony Centrifugal Pool Pumps Parts

MODELS: AR204-L(3/4HP), AR205-L(1 HP), AR206-L(1 1/2 HP), AR207-L (2 HP), AR208-L(2 1/2 HP). Your Source for pool pumps - INYOpools.com

Anthony Centrifugal Pool Pumps Diagram

Click to zoom in

Diagram #	Part Title
*	Anthony Centrifugal Pool Pump Seal Kit - Model GOKITANT
1	Motor 3/4 HP Full Rate
**	Protective Pool Motor Cover
2	Nut, 3/8-16
3	Slinger, Water
4	Stud, 3/8"-16 x 1-13/16"
5	Seal Plate - 3/4 HP
6	Shaft Seal, Pump 5/8" (OEM)
7	O-ring, Seal Plate
8	Impeller, 3/4 HP
**	Screw. Impeller- 2.0, 2.5 HP
9	Diffuser, 3/4HP
10	Screw, Diffuser #8-32 x 7/8" LG
12	Ring, Diffuser Seal 3/4 HP
13	Handle, Lock
14	Trap Cover
15	O-ring, Trap Cover
16	Basket, Trap
17	Volute/Trap Body
20	Plug, Brass 1/4"
*	Pad, Pump

View Parts List

Diagram #	Part Title
*	Anthony Centrifugal Pool Pump Seal Kit - Model GOKITANT
1	Motor 3/4 HP Full Rate
**	Protective Pool Motor Cover
2	Nut, 3/8-16
3	Slinger, Water
4	Stud, 3/8"-16 x 1-13/16"
5	Seal Plate - 3/4 HP
6	Shaft Seal, Pump 5/8" (OEM)
7	O-ring, Seal Plate
8	Impeller, 3/4 HP
**	Screw. Impeller- 2.0, 2.5 HP
9	Diffuser, 3/4HP
10	Screw, Diffuser #8-32 x 7/8" LG
12	Ring, Diffuser Seal 3/4 HP
13	Handle, Lock
14	Trap Cover
15	O-ring, Trap Cover
16	Basket, Trap
17	Volute/Trap Body
20	Plug, Brass 1/4"
*	Pad, Pump

Available Parts:

Anthony Centrifugal Pool Pump Seal Kit - Model GOKITANT

Part # GOKITANT

Anthony Centrifugal Pool Pump Seal Kit - Model GOKITANT

$34.99 IN STOCK

Qty:

Anthony Centrifugal Pool Pump Saltwater Seal Kit - Model GOKITANTSALT

Part # GOKITANTSALT

Anthony Centrifugal Pool Pump Saltwater Seal Kit - Model GOKITANTSALT

$58.26 IN STOCK

Qty:

Motor 3/4 HP Full Rate

Part # SQ1072 Mfg # SQ1072

Motor 3/4 HP Full Rate

$243.77 IN STOCK

Service Factor 1.65 Voltage 115/230 Max Amps 15.3/7.6 Frame 48Y

Service Factor 1.65 Voltage 115/230 Max Amps 15.3/7.6 Frame 48Y

Qty:

Motor 1.0 HP Full Rate

Part # SQ1102 Mfg # SQ1102

Motor 1.0 HP Full Rate

$269.99 IN STOCK

Service Factor 1.65 Voltage 115/230 Max Amps 19.2/9.6 Frame 48Y

Service Factor 1.65 Voltage 115/230 Max Amps 19.2/9.6 Frame 48Y

Qty:

Motor 1.5 HP Full Rate

Part # SQ1152 Mfg # SQ1152

Motor 1.5 HP Full Rate

$349.99 IN STOCK

Service Factor 1.47 Voltage 230 Max Amps 10.1 Frame 48Y

Service Factor 1.47 Voltage 230 Max Amps 10.1 Frame 48Y

Qty:

Motor 2.0 HP Full Rate

Part # SQ1202 Mfg # SQ1202

Motor 2.0 HP Full Rate

$413.99 IN STOCK

Service Factor 1.3 Voltage 230 Max Amps 11.2 Frame 48Y

Service Factor 1.3 Voltage 230 Max Amps 11.2 Frame 48Y

Qty:

Protective Pool Motor Cover

Part # 3050-38 Mfg # R221016

Protective Pool Motor Cover

$35.71 IN STOCK

Qty:

Nut, 3/8-16

Part # 6932-0 Mfg # 071403

$7.99 IN STOCK

Qty:

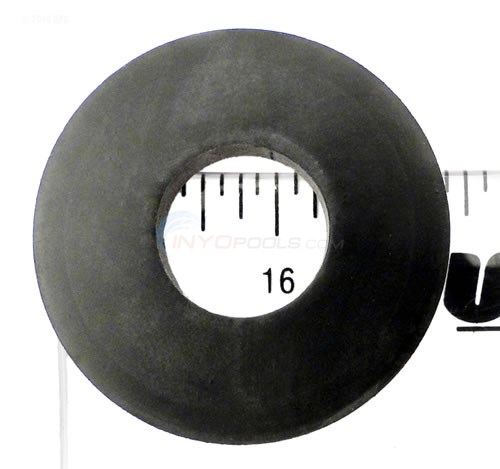

Slinger, Water

Part # 5056-04 Mfg # G-215

$10.39 IN STOCK

Qty:

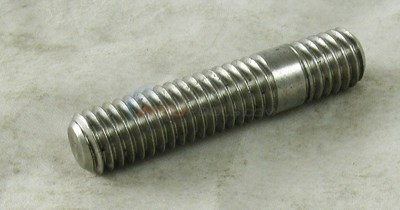

Stud, 3/8"-16 x 1-13/16"

Part # 5001-04 Mfg # U30-35SS

Stud, 3/8"-16 x 1-13/16"

$35.99 IN STOCK

Qty:

5

Seal Plate - 3/4 HP

Mfg # C3-121D

Seal Plate - 3/4 HP

NOT AVAILABLE

5

Seal Plate - 1 - 2.5 HP

Mfg # C3-122D

Seal Plate - 1 - 2.5 HP

NOT AVAILABLE

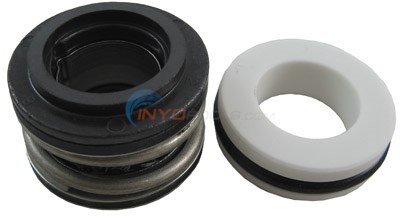

Shaft Seal, Pump 5/8" (OEM)

Part # 5056-08 Mfg # U109-93SS

Shaft Seal, Pump 5/8" (OEM)

$46.09 IN STOCK

Qty:

Shaft Seal, Pump 5/8" (Standard)

Part # 5250-100 Mfg # PSR-100

Shaft Seal, Pump 5/8" (Standard)

$7.49 IN STOCK

Qty:

Shaft Seal, Pump 5/8" (Heavy Duty)

Part # 5250-200 Mfg # PS-3866

Shaft Seal, Pump 5/8" (Heavy Duty)

$28.34 IN STOCK

Qty:

O-ring, Seal Plate

Part # 4610-37 Mfg # 259

O-ring, Seal Plate

$12.73 IN STOCK

Qty:

Impeller, 3/4 HP

Part # 5001-08 Mfg # C105-117PD

Impeller, 3/4 HP

$73.99 IN STOCK

Qty:

8

Impeller, 1.0 HP

Mfg # C105-138PEC

Impeller, 1.0 HP

NOT AVAILABLE

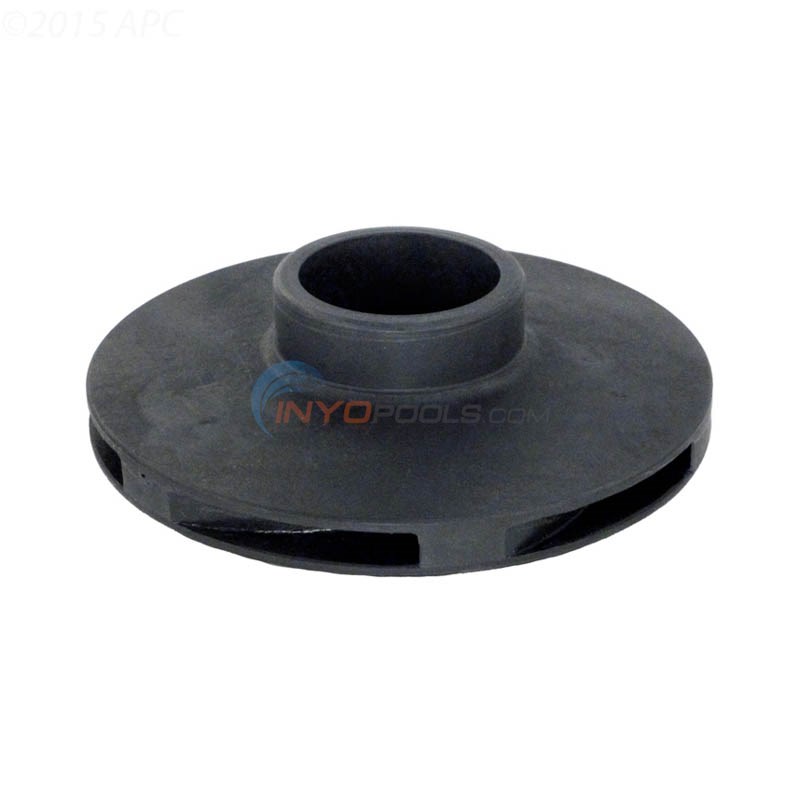

Impeller, 1.5 HP

Part # 5001-08B Mfg # C105-137PEC

Impeller, 1.5 HP

$154.80 IN STOCK

Qty:

Impeller, 2.0 HP

Part # 5056-09EA Mfg # C105-137PDBA

Impeller, 2.0 HP

$96.03 IN STOCK

Qty:

Impeller, 2.5 HP

Part # 5056-09E Mfg # C105-137PDA

Impeller, 2.5 HP

$114.84 IN STOCK

Qty:

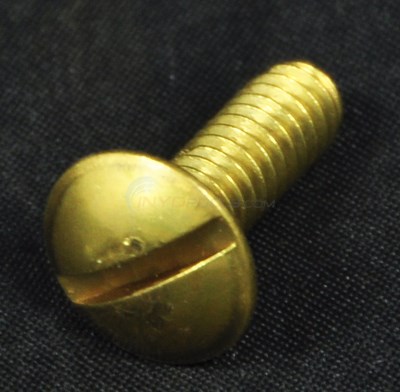

Screw. Impeller- 2.0, 2.5 HP

Part # 5001-10

Screw. Impeller- 2.0, 2.5 HP

$32.99 IN STOCK

Qty:

Diffuser, 3/4HP

Part # 5053-06D Mfg # L1-25P21

Diffuser, 3/4HP

$43.99 IN STOCK

Qty:

Diffuser, 1.0 - 2.5 HP

Part # 5001-09 Mfg # C1-200P

Diffuser, 1.0 - 2.5 HP

$31.99 IN STOCK

Qty:

Screw, Diffuser #8-32 x 7/8" LG

Part # 5056-22 Mfg # SAMPLE S-3

Screw, Diffuser #8-32 x 7/8" LG

$9.34 IN STOCK

Qty:

Ring, Diffuser Seal 3/4 HP

Part # 5053-07B Mfg # L21-1

Ring, Diffuser Seal 3/4 HP

$17.74 IN STOCK

Qty:

Ring, Diffuser Seal 1.0 - 2.5 HP

Part # 5001-12 Mfg # C21-10

Ring, Diffuser Seal 1.0 - 2.5 HP

$13.64 IN STOCK

Qty:

Handle, Lock

Part # 5050-17 Mfg # V40-468

$54.40 IN STOCK

Qty:

14

Trap Cover

Mfg # C3-140DC

Trap Cover

NOT AVAILABLE

O-ring, Trap Cover

Part # 5050-14B Mfg # 428

O-ring, Trap Cover

$10.73 IN STOCK

Qty:

Basket, Trap

Part # 5050-16 Mfg # C108-33P

$15.68 IN STOCK

Qty:

17

Volute/Trap Body

Mfg # C76-45DD

Volute/Trap Body

NOT AVAILABLE

Plug, Brass 1/4"

Part # 6740-0 Mfg # 06121-04

Plug, Brass 1/4"

$16.99 IN STOCK

Qty:

*

Pad, Pump

Mfg # C35-39

Pad, Pump

NOT AVAILABLE

Manufactured by Sta-Rite for Anthony
*Not Shown
** NOT SHOWN
