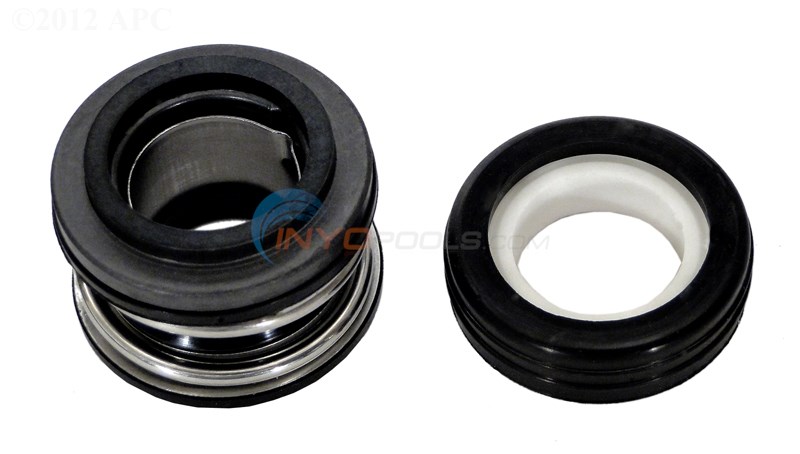

Pump Shaft Seal 5/8" PSR-100

$13.99

IN STOCK

Part # 5250-100

  4.8 Average

Details

Top

Part # 5250-100

Manufacturer Code PSR-100

Dimensions 0.815" X 1.2"

Alternate Part #'s 004547, 04547, 07-1733, 30224, AS100, P-28280, P28280, PS-100, PS100, U109-093, U109-6A, U109-93SS, VG-100, VG100, 35-423-1000, APCAS100, PSR100, USSPS100

Product Description

Pump Shaft Seal 5/8"  - PSR-100

2-part motor shaft seal used on the following pumps:

  • Sta-Rite Dura-Glas and Max-E-Glas
  • Sta-Rite PLBC Booster Pump
  • Anthony AJ Pump

To protect against leakage, replace the shaft seal when changing out the pump motor.

Frequently Bought with Shaft Seal

Shaft Seal Lubricant LUBE-PP



Top

?     Asked on 5/27/2021by Eddie J Romero

will this seal setup fit my Century 1, 1/10 HP , Pool motor (Mfr #: B2982) with its Seal Plate Kit C203-193P ? Ed

 Reply

A  Answered on 5/27/2021 by InyoPools Product Specialist Craig C.

Hello Eddie.  Yes, this is the correct shaft seal for the Seal Plate Kit C203-193P.  Please note that the C203-193P Seal Plate Kit contains a shaft seal, seal plate, and seal plate o-ring.
 Reply


?     Asked on 5/11/2021by Gordon Bishop

Will part # 5250-100 work with a CHII 1 hp pump and a VGreen variable speed pump?
 Reply

A  Answered on 5/11/2021 by InyoPools Product Specialist Robert M.

No, this would not be the correct shaft seal for a Challenger CHII pump. You would need the 5250-104. If you have salt water or want a heavy-duty seal, use part number 5250-210.
 Reply


?     Asked on 10/5/2020by Inyo Visitor

is a psr-100 the same as ps-100 or as100 pump seal?
 Reply

A  Answered on 10/15/2020 by InyoPools Product Specialist Hector F.

Yes, those are all alternate part numbers for the PSR100 shaft seal.
 Reply


?     Asked on 5/30/2020by Stan Peloza

Will this fit an Anthony AR207-L ? Or do I need the OEM?
 Reply

A  Answered on 5/30/2020 by InyoPools Product Specialist Hector F.

Yes, this shaft seal is compatible with the model AR207-L pool pump.
 Reply


?     Asked on 4/25/2020by Inyo Visitor

Does this deal fit Sara-rite P2RA5E-181L pump?
 Reply

A  Answered on 11/5/2020 by InyoPools Product Specialist Hector F.

Hello, yes this shaft seal is compatible with the Sta-Rite Dura-Glass/ Max E Glass pool pump manufactured prior to 1998. One way to tell if it was, is if the seal plate has the copper or steel insert in it where the shaft seal sits. If there is no metal insert there then you can use the shaft seal part number 5250-104.
 Reply


?     Asked on 5/14/2019by Alan

I don't know if my dura-glas is pre or post 98. The pump model tag was painted over. It has an A.O. Smith C48J2PA105C1 motor. Do I need this pump seal or the new style?
 Reply

A  Answered on 5/14/2019 by InyoPools Product Specialist Hector F.

I would just use the new style seal and then remove the copper cone insert that would be in the seal plate if it is an old generation model. That would allow the new style seal to fit properly.
 Reply


?     Asked on 5/31/2018by Ray

I am looking for a shaft seal that fits a Doughboy Powerline pool pump, model # 0-3047-200. Do you carry this or do you know where I can find one? Thank you!
 Reply

A  Answered on 6/1/2018 by InyoPools Product Specialist Lennox H.

Hi, Ray. This Pump Seal 100 - PSR100 will not fit the Doughboy Powerline pool pump. We do not carry a pump seal that will fit. You may need to contact DOUGHBOY @ 866-DOUGHBOY.
 Reply


?     Asked on 6/21/2017by lina prudhomme

I have an AO Smith Century Centurian 1 1/2 hp pump B128. Which shaft seal do I need?
 Reply

A  Answered on 6/23/2017 by InyoPools Product Specialist Lennox H.

Hi, Lina. You will need to provide us with the model # of the pump housing in order to locate the correct pump seal.
 Reply


?     Asked on 6/6/2016by Inyo Visitor

Are the metal parts of this seal (PART#5250-100) stainless steel?
 Reply

A  Answered on 6/7/2016 by InyoPools Product Specialist Alan M.

The retaining spring and its frame on the shaft seal is a stainless steel skeleton.
 Reply


?     Asked on 1/25/2012by Guest

How do I change the shaft seal on my pool pump?
 Reply

A  Answered on 1/25/2012 by InyoPools Product Specialist Patrick P.

Changing the shaft seal is quite simple. Here's How To Replace a Pool Motor Shaft Seal.
 Reply


Top
Difficulty

Est. Repair Time

Less than 1 hr

Tools Needed

Socket Set

Motor gave up the ghost

Written on 4/18/2022 by Guest

Step 1 Go to local pool store and get told the motor is bad and you might as well replace the pump as well... That will only be about $600.

Step 2 Check out Inyopools.com and enter in the relevant data. I found all the parts I needed and dropped them in the shopping cart... but wait, do I need this other gizmo???

Step 3 Chat with Inyopools.com. They looked at my shopping cart and ensured I had the right parts for my pump and I was now 100% confident.

Step 4 Parts arrive and I am ready to get to work.... but this pump seal, what side faces which way.

Step 5 Watch Inyopools.com videos on how to install a pump seal.

Step 6 Called Inyopools.com and the guy checked the part and the motor and we scoured over the exploded diagram and he explained to me how to install the pump seal.

Step 7 Installed pump seal and motor and plumbed everything back in. No leaks, no issues, no problem!
