Aqua Flo Dominator - Medium Head Parts
See
Aqua Flo Dominator - High Head
for Pump Caing and Trap Parts.
Click to zoom in
Diagram #
Part Title
**
Tune Up Kit - Dominator Pump (Pre-1995)
1
Motor 1/2 HP Full Rate
***
Protective Pool Motor Cover
2
Bolt, Hex 3/8"-16 x 3/4"
6A
Bracket, (Pre-1995)
8
Screw, Shaft Extention 1/4-20 x 5/16"
9A
Shaft Extension (Pre-1995)
10A
Seal Plate (Pre-1995)
11A
Shaft Seal, Pump 5/8" (Standard)
*
U.S. Seal Manufacturing Sealube- Water Based Lubricant 1CC Pillow Pack
12A
Impeller 1/2 HP
13
Diffuser w/ Wear Ring
14
O-ring, Diffuser
15
Screw, Diffuser
19
Screw, Impeller
View Parts List
Diagram #
Part Title
**
Tune Up Kit - Dominator Pump (Pre-1995)
1
Motor 1/2 HP Full Rate
***
Protective Pool Motor Cover
2
Bolt, Hex 3/8"-16 x 3/4"
6A
Bracket, (Pre-1995)
8
Screw, Shaft Extention 1/4-20 x 5/16"
9A
Shaft Extension (Pre-1995)
10A
Seal Plate (Pre-1995)
11A
Shaft Seal, Pump 5/8" (Standard)
*
U.S. Seal Manufacturing Sealube- Water Based Lubricant 1CC Pillow Pack
12A
Impeller 1/2 HP
13
Diffuser w/ Wear Ring
14
O-ring, Diffuser
15
Screw, Diffuser
19
Screw, Impeller
Available Parts:
**
Part # APCK1031
Tune Up Kit - Dominator Pump (Pre-1995)
$36.99
OUT OF STOCK
VIEW DETAILS
**
Part # APCK1041
Tune Up Kit - Dominator Pump (After-1995)
$32.99
IN STOCK
Qty:
ADD TO CART
1
Mfg # B120
Motor 1/2 HP Full Rate
NOT AVAILABLE
Service Factor
1.6
Voltage
115/230
Max Amps
10.6/5.3
Frame
56C
Service Factor
1.6
Voltage
115/230
Max Amps
10.6/5.3
Frame
56C
1
Part # 5202X
Mfg # B121
Motor 3/4 HP Full Rate
$258.99
OUT OF STOCK
Service Factor
1.5
Voltage
115/230
Max Amps
12.0/6.0
Frame
56C
Service Factor
1.5
Voltage
115/230
Max Amps
12.0/6.0
Frame
56C
VIEW DETAILS
1
Part # B122
Mfg # B122
Motor 1.0 HP Full Rate
$260.07
IN STOCK
Service Factor
1.4
Voltage
115/230
Max Amps
14.4/7.2
Frame
56C
Service Factor
1.4
Voltage
115/230
Max Amps
14.4/7.2
Frame
56C
Qty:
ADD TO CART
1
Part # 5204X
Mfg # B123
Motor 1.5 HP Full Rate
$417.99
OUT OF STOCK
Service Factor
1.3
Voltage
115/230
Max Amps
18.4/9.2
Frame
56C
Service Factor
1.3
Voltage
115/230
Max Amps
18.4/9.2
Frame
56C
VIEW DETAILS
1
Part # 5205X
Mfg # B124
Motor 2.0 HP Full Rate
$394.48
IN STOCK
Service Factor
1.2
Voltage
230
Max Amps
10.5
Frame
56C
Service Factor
1.2
Voltage
230
Max Amps
10.5
Frame
56C
Qty:
ADD TO CART
***
Part # 3050-38
Mfg # R221016
Protective Pool Motor Cover
$47.03
IN STOCK
Qty:
ADD TO CART
2
Part # 6901-0
Mfg # 99050250
Bolt, Hex 3/8"-16 x 3/4"
NOT AVAILABLE
6A
Part # 5125-06
Mfg # 91140351

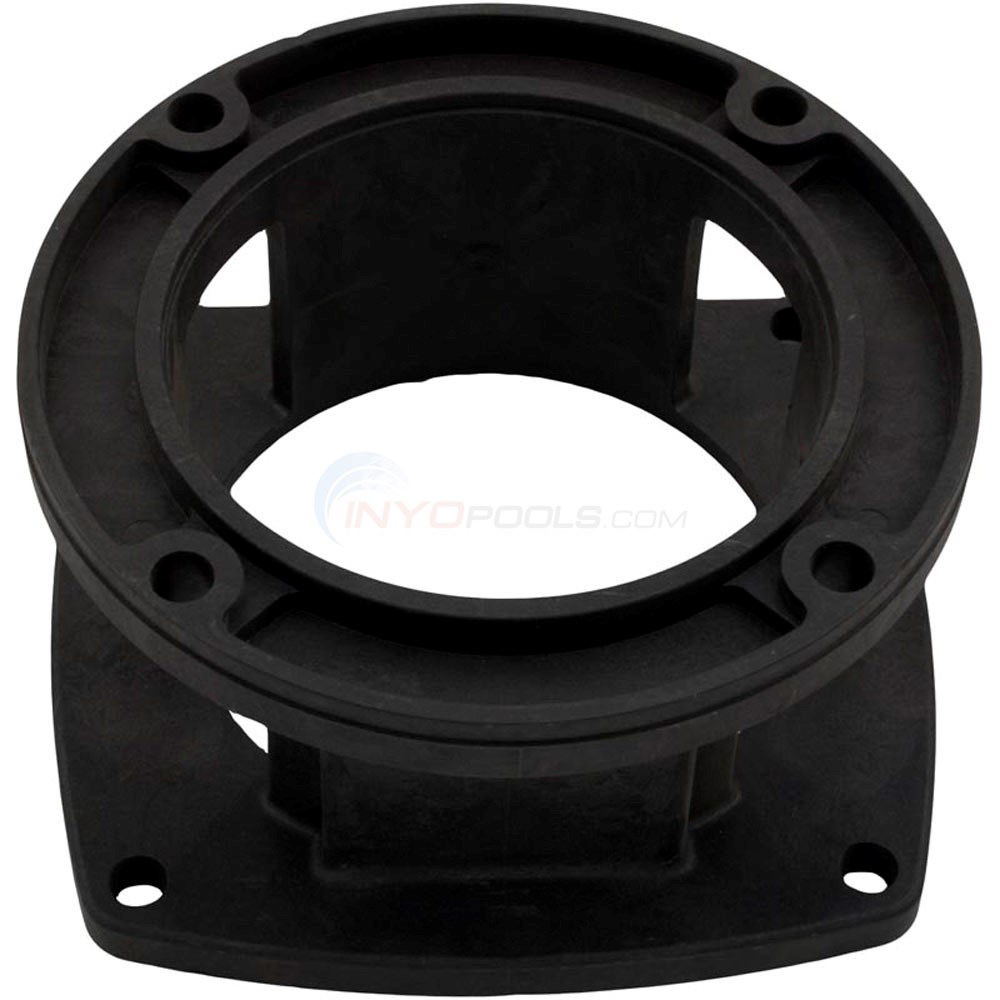

Bracket, (Pre-1995)
$149.99
OUT OF STOCK
VIEW DETAILS
6B
Mfg # 91143050
Bracket, (After-1995)
NOT AVAILABLE
8
Part # 5050-03
Mfg # 99730000
Screw, Shaft Extention 1/4-20 x 5/16"
$8.39
IN STOCK
Qty:
ADD TO CART
9A
Part # 92520010
Shaft Extension (Pre-1995)
$55.99
OUT OF STOCK
VIEW DETAILS
9B
Part # 5125-09
Mfg # 92520040
Shaft Extension (After-1995)
$98.99
OUT OF STOCK
VIEW DETAILS
10A
Part # 5124-07
Mfg # V40-901
Seal Plate (Pre-1995)
$138.99
IN STOCK
Qty:
ADD TO CART
10B
Mfg # 92280002
Seal Plate (After-1995)
NOT AVAILABLE
11A
Part # 5250-104
Mfg # PSR-200
Shaft Seal, Pump 5/8" (Standard)
$10.99
IN STOCK
Year
After-1995
Year
After-1995
Qty:
ADD TO CART
11A
Part # 5250-210
Mfg # PS-3867
Shaft Seal, Pump 5/8" (Heavy Duty)
$20.99
IN STOCK
Year
After-1995
Year
After-1995
Qty:
ADD TO CART
11B
Part # 5250-106
Mfg # PS-1000
Shaft Seal, Pump 5/8" (Standard)
$13.94
IN STOCK
Year
Pre-1995
Year
Pre-1995
Qty:
ADD TO CART
11B
Part # 5250-225
Mfg # PS-3865
Shaft Seal, Pump 5/8" (Heavy Duty)
$14.69
IN STOCK
Year
Pre-1995
Year
Pre-1995
Qty:
ADD TO CART
*
Part # LUBE-PP
U.S. Seal Manufacturing Sealube- Water Based Lubricant 1CC Pillow Pack
$6.99
OUT OF STOCK
VIEW DETAILS
*
Part # LUBE-10ML
U.S. Seal Manufacturing Sealube- Water Based Lubricant 10ML Tube
$29.99
IN STOCK
Qty:
ADD TO CART
12A
Part # 5125-12
Mfg # 91692405

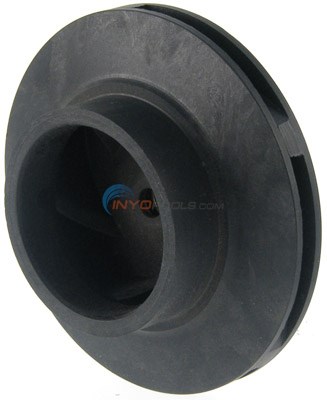

Impeller 1/2 HP
$41.99
OUT OF STOCK
VIEW DETAILS
12B
Part # 5125-12A
Mfg # V40-411

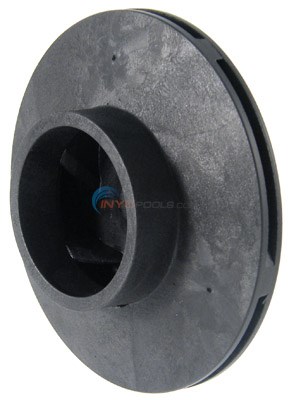

Impeller 3/4 HP
$115.99
OUT OF STOCK
VIEW DETAILS
12C
Part # 5125-12B
Mfg # V40-412
Impeller 1.0 HP
$149.99
OUT OF STOCK
VIEW DETAILS
12D
Part # 5125-12C
Mfg # V40-413

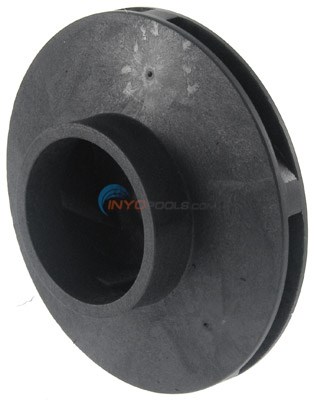

Impeller 1.5 HP
$130.99
OUT OF STOCK
VIEW DETAILS
12E
Part # 5125-12D
Mfg # V40-414

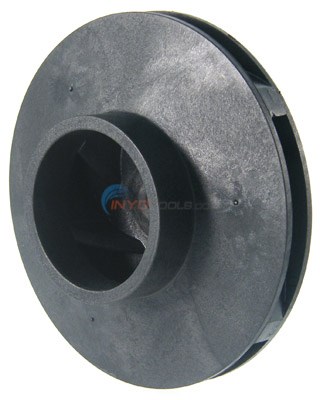

Impeller 2.0 HP
$149.99
OUT OF STOCK
VIEW DETAILS
13
Part # 5125-13
Mfg # V40-410

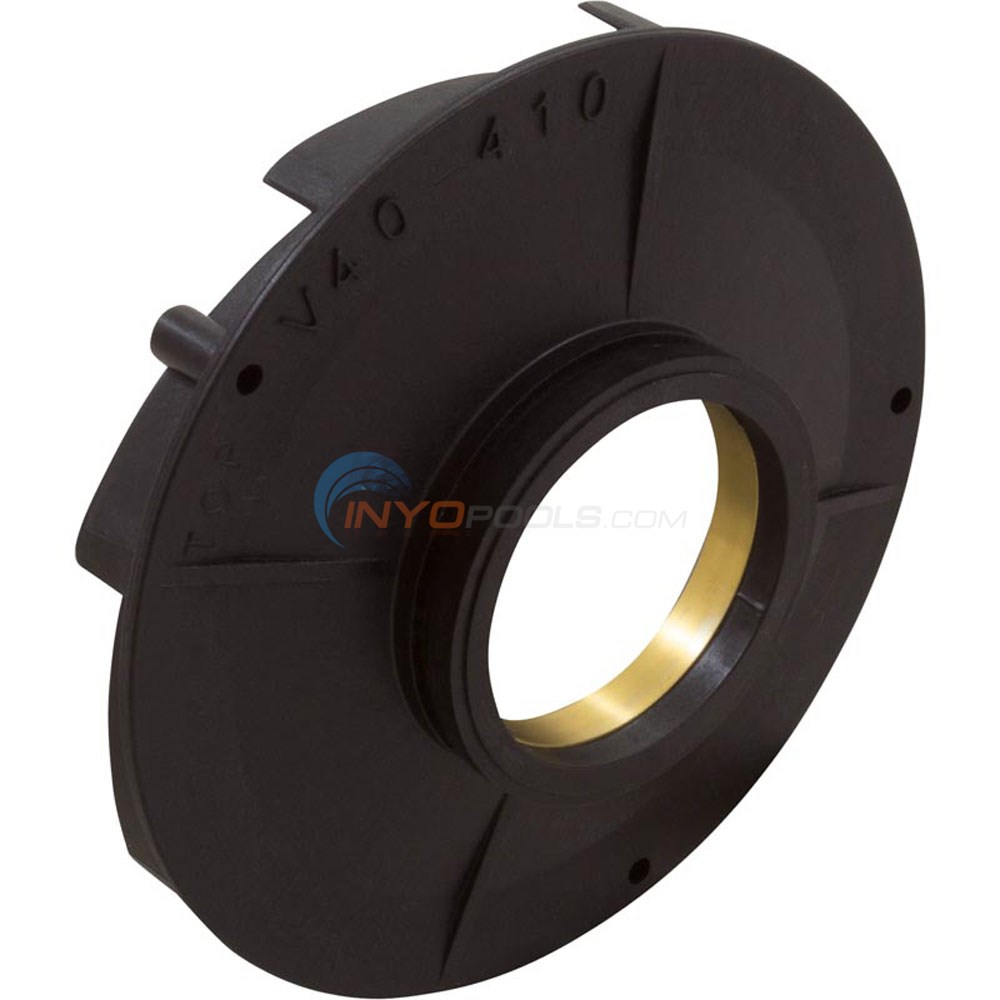

Diffuser w/ Wear Ring
$86.99
OUT OF STOCK
Replaces
91270020
Replaces
91270020
VIEW DETAILS
14
Part # 5002-21
Mfg # 229
O-ring, Diffuser
$7.80
IN STOCK
Qty:
ADD TO CART
15
Part # 5125-15
Mfg # 99730550

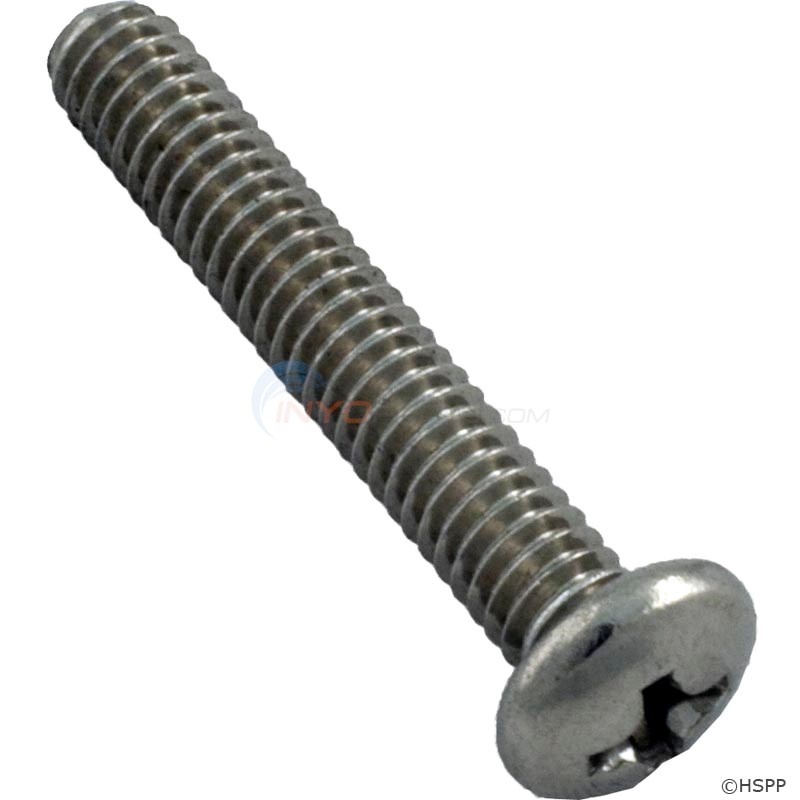

Screw, Diffuser
$10.99
OUT OF STOCK
VIEW DETAILS
19
Part # 5124-11
Mfg # V40-427

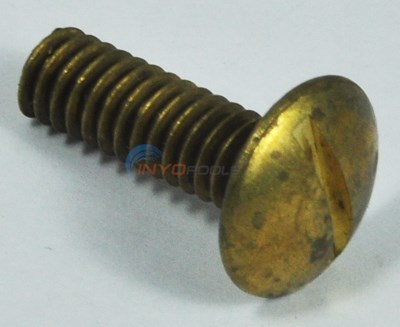

Screw, Impeller
$22.99
OUT OF STOCK
VIEW DETAILS
NOTE: SHAFT SEAL WAS CHANGED IN 1995 FROM THE PS1000 (5250-106) TO THE PS-200 (5250-104) * NOT SHOWN
** O-RING/GASKET REPAIR KIT
*** NOT SHOWN,
See
Aqua Flo Dominator - High Head
for Pump Caing and Trap Parts.
×
