Baker Hydro HRV Commercial Dual Lateral Sand Filter Parts

Baker Hydro HRV Commercial Dual Lateral Sand Filter Diagram

Click to zoom in

Diagram #	Part Title
1	Pressure Gauge, 0-50 PSI
2	V-band Lid
3	V-band Clamp Assembly
4	Screen,air Drain
5	V-Band Lid Gasket
6	Commercial Hydro Dome Distributor
7	Commercial Dist. Pipe Assembly HRV 24"
8	Vent Tube Assembly HRV 24"
9	Collector Assembly. HRV 24" Less Laterals
10	Winterdrain Screen
11	8-1/2" Threaded Lateral HRV 30" & 36"
12	Base, 24" Filter
13	Winterdrain Assembly, HRV 24"
14	Drain Cap, 1"
15	Bulkhead Nut
16	Keyed Spacer HRV 24"
17	Bulkhead Gasket HRV 24"
18	Tee, 1/4" Brass
19	Brass 1/4 Draincock
20	Commercial Bulkhead Assembly HRV 24"

View Parts List

Diagram #	Part Title
1	Pressure Gauge, 0-50 PSI
2	V-band Lid
3	V-band Clamp Assembly
4	Screen,air Drain
5	V-Band Lid Gasket
6	Commercial Hydro Dome Distributor
7	Commercial Dist. Pipe Assembly HRV 24"
8	Vent Tube Assembly HRV 24"
9	Collector Assembly. HRV 24" Less Laterals
10	Winterdrain Screen
11	8-1/2" Threaded Lateral HRV 30" & 36"
12	Base, 24" Filter
13	Winterdrain Assembly, HRV 24"
14	Drain Cap, 1"
15	Bulkhead Nut
16	Keyed Spacer HRV 24"
17	Bulkhead Gasket HRV 24"
18	Tee, 1/4" Brass
19	Brass 1/4 Draincock
20	Commercial Bulkhead Assembly HRV 24"

Available Parts:

Pressure Gauge, 0-50 PSI

Part # 30B3000

Pressure Gauge, 0-50 PSI

$39.44

V-band Lid

Part # 4640-33 Mfg # 15B0299

V-band Lid

$131.42 IN STOCK

Qty:

V-band Clamp Assembly

Part # 4640-34 Mfg # 00B8083

V-band Clamp Assembly

$125.02 IN STOCK

Qty:

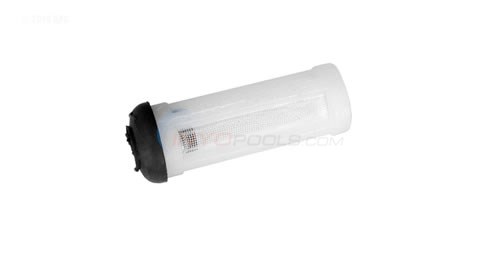

Screen,air Drain

Part # 4640-23 Mfg # 15B0074

Screen,air Drain

$18.91 IN STOCK

Qty:

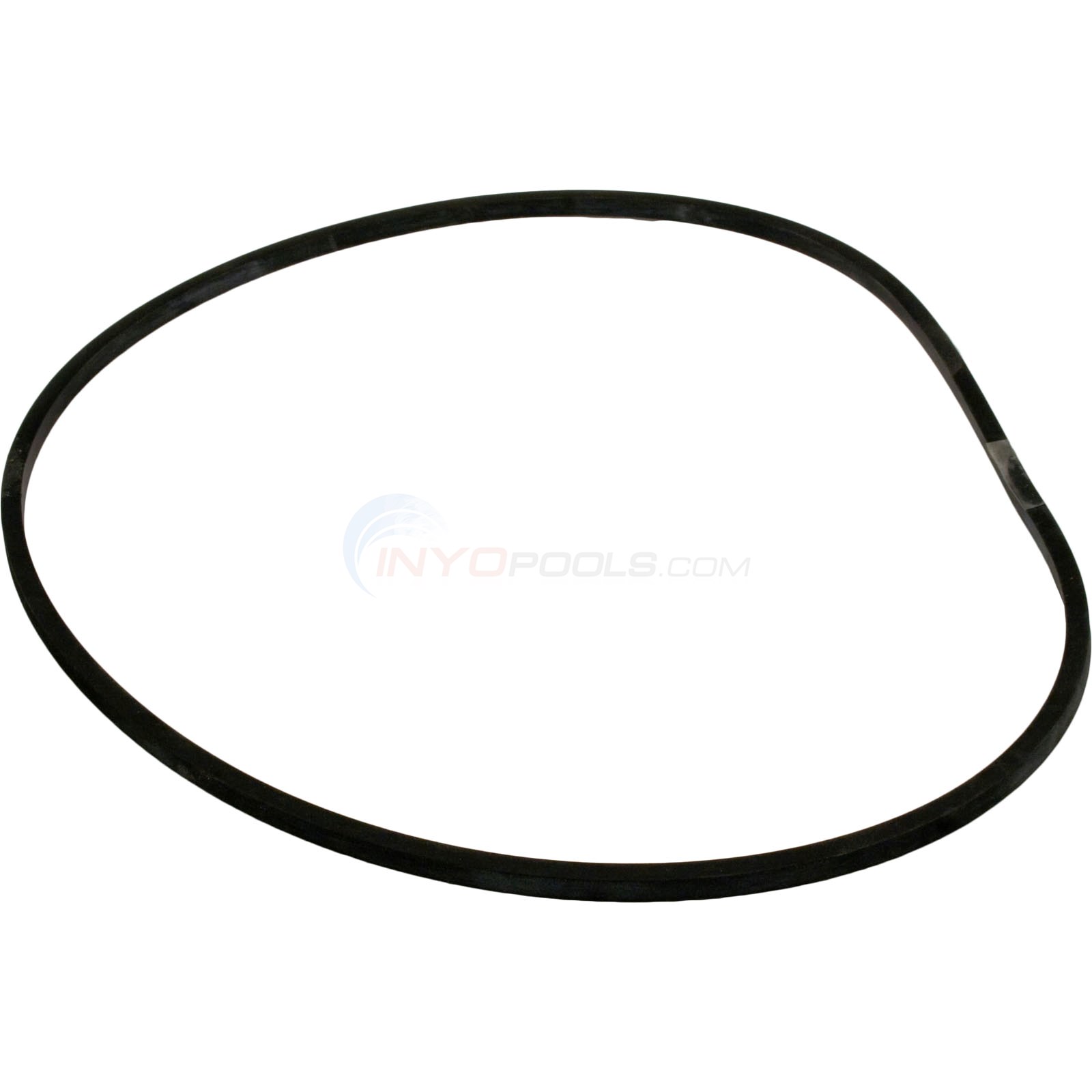

V-Band Lid Gasket

Part # 31-102-1506 Mfg # 00B7013

V-Band Lid Gasket

$41.57 IN STOCK

Qty:

Commercial Hydro Dome Distributor

Part # 15C0043

Commercial Hydro Dome Distributor

$107.67

Commercial Dist. Pipe Assembly HRV 24"

Part # 15C0024

Commercial Dist. Pipe Assembly HRV 24"

$122.60

Commercial Dist. Pipe Assembly HRV 30"

Part # 15C0030

Commercial Dist. Pipe Assembly HRV 30"

$129.00

Commercial Dist. Pipe Assembly HRV 36"

Part # 15C0036

Commercial Dist. Pipe Assembly HRV 36"

$129.00

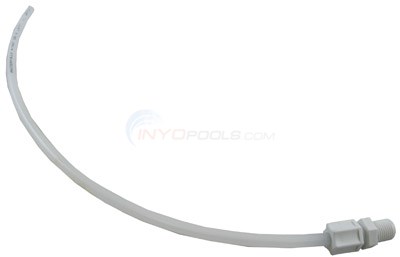

Vent Tube Assembly HRV 24"

Part # 4640-14 Mfg # 15B0101

Vent Tube Assembly HRV 24"

$19.94

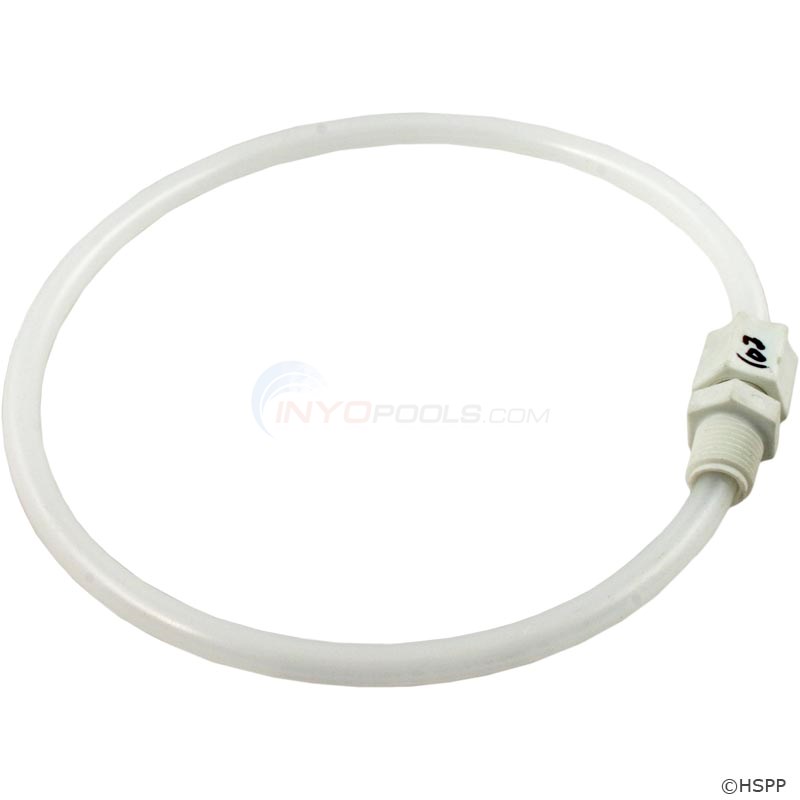

Vent Tube Assembly HRV 30"

Part # 4640-14A Mfg # 15B0102

Vent Tube Assembly HRV 30"

$29.18 IN STOCK

Qty:

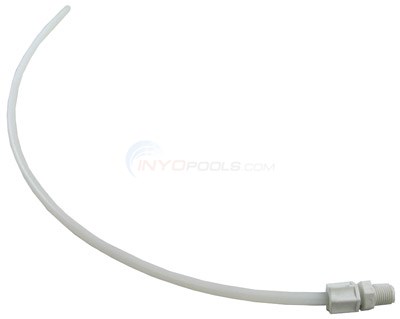

Vent Tube Assembly HRV 36"

Part # 4640-14C Mfg # 15B0232

Vent Tube Assembly HRV 36"

$19.18

Collector Assembly. HRV 24" Less Laterals

Part # 15C0169

Collector Assembly. HRV 24" Less Laterals

$249.48

Collector Assembly HRV 30" Less Laterals

Part # 15C0170

Collector Assembly HRV 30" Less Laterals

$249.48

Collector Assembly HRV 36" Less Laterals

Part # 15C0171

Collector Assembly HRV 36" Less Laterals

$255.88

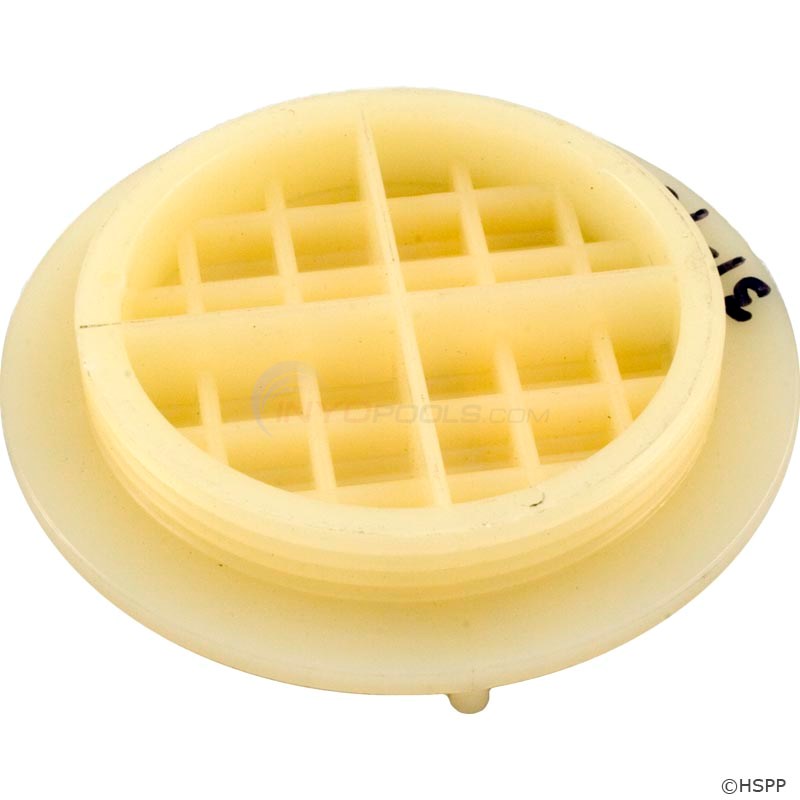

Winterdrain Screen

Part # 4640-36 Mfg # 15B0319

Winterdrain Screen

$35.16

8-1/2" Threaded Lateral HRV 30" & 36"

Part # 4640-13A Mfg # 15B0124

8-1/2" Threaded Lateral HRV 30" & 36"

$15.98

5-1/2" Th'd Lateral HRV 18" & 24"

Part # 4640-13 Mfg # 15B0125

5-1/2" Th'd Lateral HRV 18" & 24"

$24.50

Base, 24" Filter

Part # 4640-02A Mfg # 15Q0312

Base, 24" Filter

$165.24

Base, 30" Filter

Part # 15Q0313

Base, 30" Filter

$234.55

Winterdrain Assembly, HRV 24"

Part # 4640-76 Mfg # 16B0306

Winterdrain Assembly, HRV 24"

$138.60

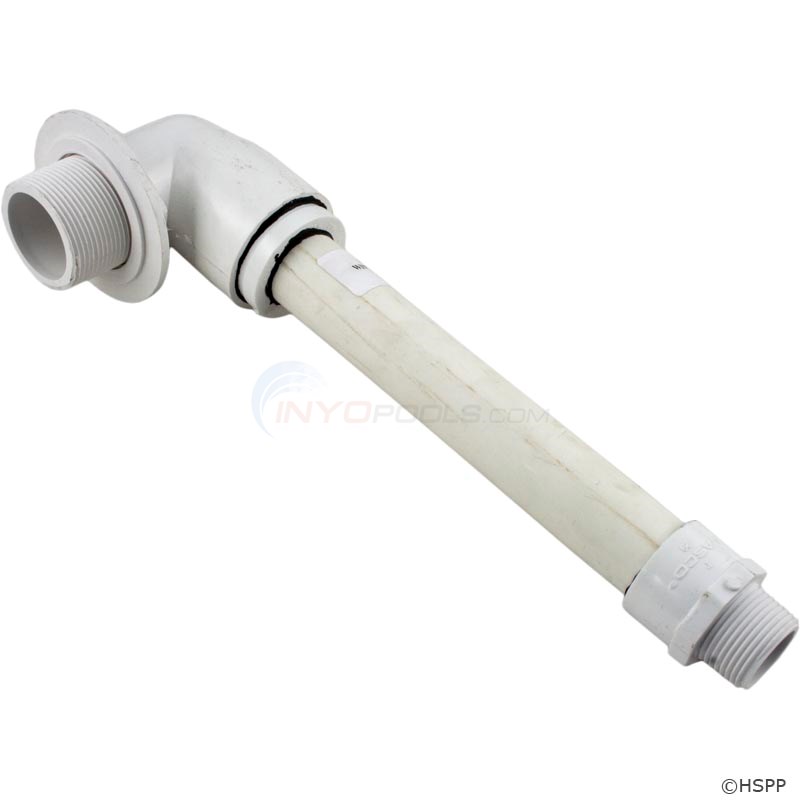

Winterdrain Assembly, HRV 30"

Part # 4640-81 Mfg # 16B0307

Winterdrain Assembly, HRV 30"

$107.67

Winterdrain Assembly, HRV 36"

Part # 4642-13 Mfg # 16B0308

Winterdrain Assembly, HRV 36"

$107.67

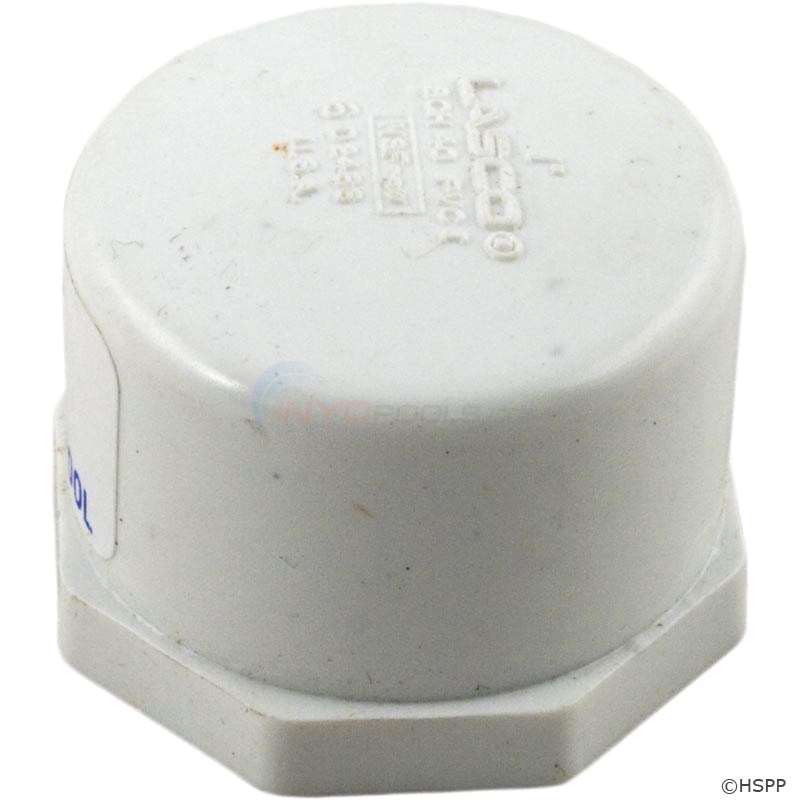

Drain Cap, 1"

Part # 4640-82 Mfg # 88B3043

Drain Cap, 1"

$20.24 IN STOCK

Qty:

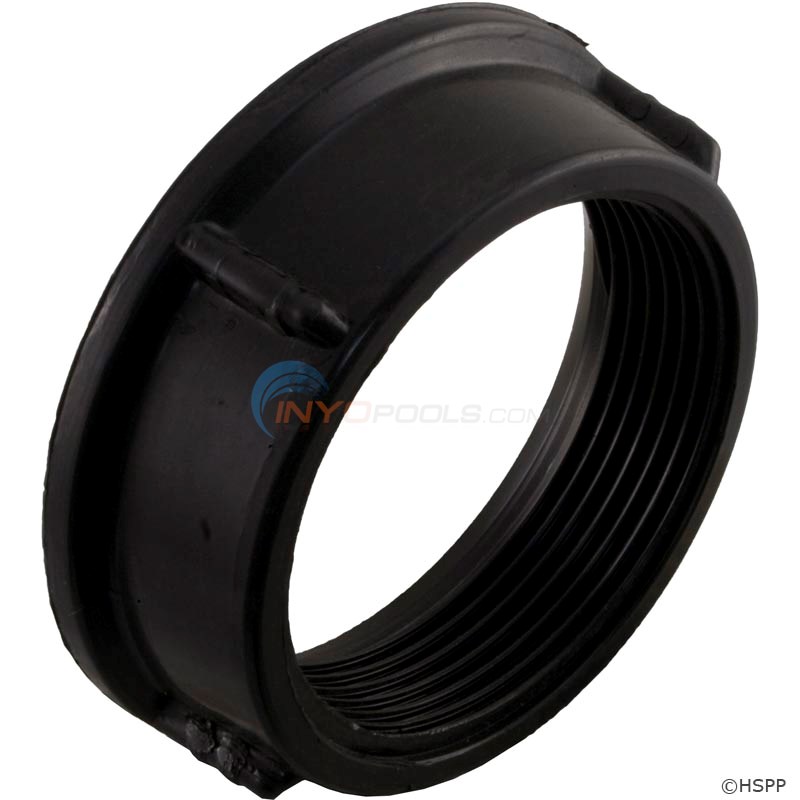

Bulkhead Nut

Part # 4640-47 Mfg # 31B9002

Bulkhead Nut

$52.23

Keyed Spacer HRV 24"

Part # 4640-43 Mfg # 31B9033

Keyed Spacer HRV 24"

$23.44 IN STOCK

Qty:

Keyed Spacer HRV 30" & 36

Part # 4640-43A Mfg # 31B9034

Keyed Spacer HRV 30" & 36

$21.31 IN STOCK

Qty:

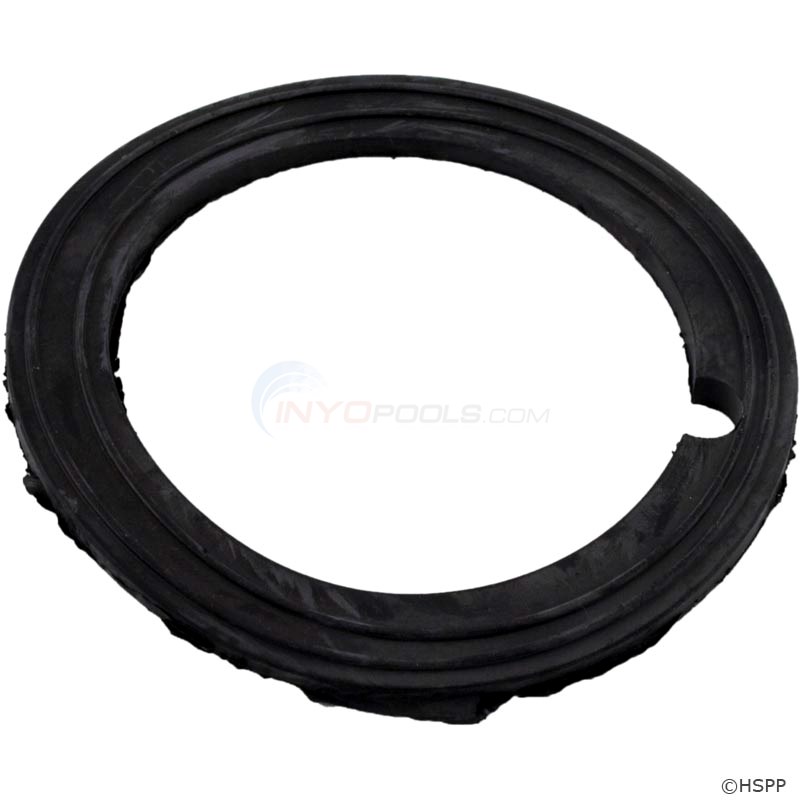

Bulkhead Gasket HRV 24"

Part # 4640-44 Mfg # 31B9035

Bulkhead Gasket HRV 24"

$13.84 IN STOCK

Qty:

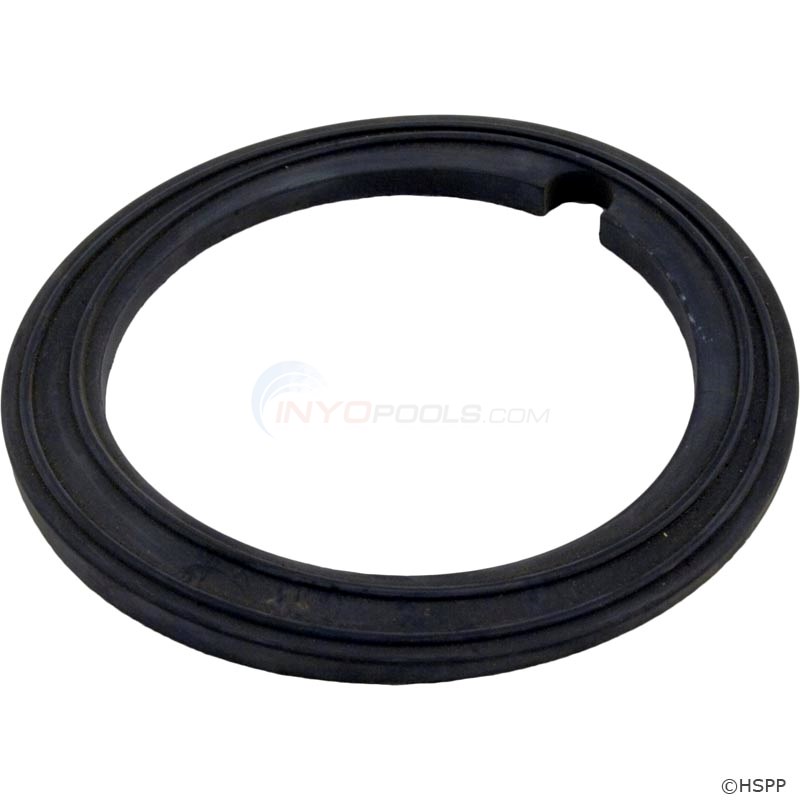

Bulkhead Gasket HRV 30" & 36"

Part # 4640-44A Mfg # 31B9036

Bulkhead Gasket HRV 30" & 36"

$28.60 IN STOCK

Qty:

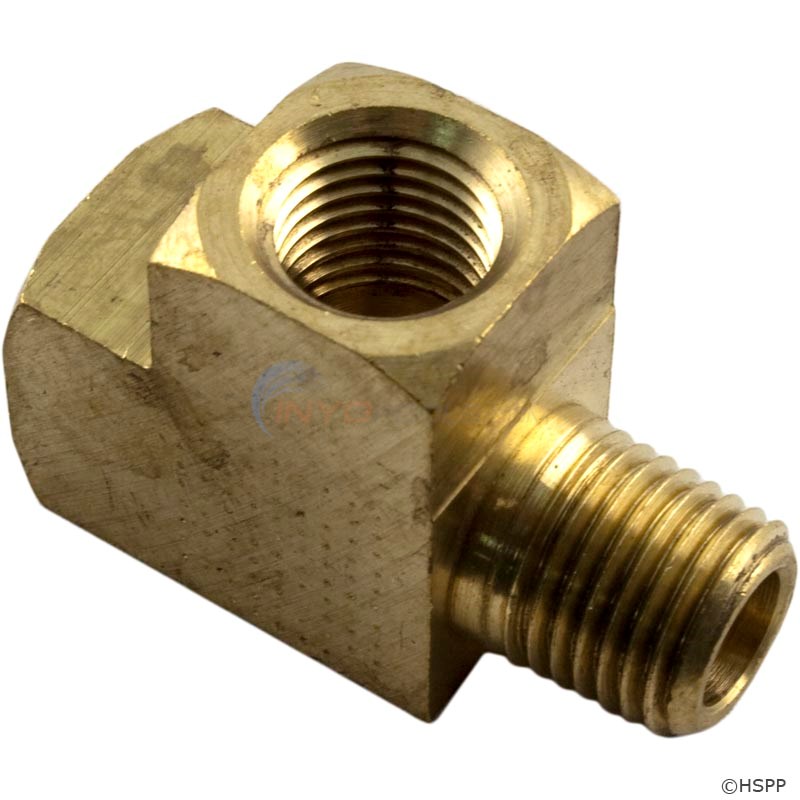

Tee, 1/4" Brass

Part # 4643-14 Mfg # 88B6013

Tee, 1/4" Brass

$38.38 IN STOCK

Qty:

Brass 1/4 Draincock

Part # 17-252-1004 Mfg # 88B6002

Brass 1/4 Draincock

$62.89

Commercial Bulkhead Assembly HRV 24"

Part # 31C9030

Commercial Bulkhead Assembly HRV 24"

$137.53

Commercial Bulkhead Assembly HRV 30" & 36"

Part # 31C9031

Commercial Bulkhead Assembly HRV 30" & 36"

$162.05
