Costa Del Sol 15x26' Oval 52" (Resin Top Rail, Steel Upright, Resin Stabilizer) Parts

PCDS-YE52RSRRRRD11

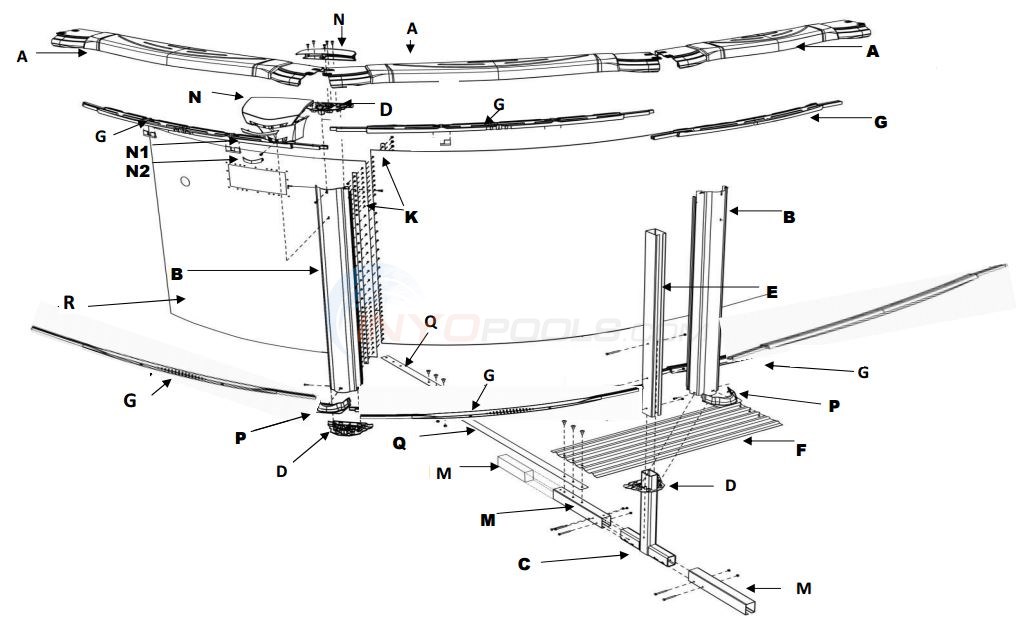

Costa Del Sol 15x26' Oval 52" (Resin Top Rail, Steel Upright, Resin Stabilizer) Parts Diagram

Click to zoom in

Diagram #	Part Title
A	Resin Top Ledge - Simbio 7" (Single
B	Upright Ali Pearl Steel 51-3/4" (Single)
C	Top Plate 5.5" Enc/Ven 2009 Xylon (Single)
D	Top Plate - Resin (Single)
F	Brace Plate Braceless Galvanized 47" (Single)
G	Bottom Rail Straight Side Champagne 42" (Single)
K	Wall Joiner Bar
M	Horizontal Sleeve Galvanized With Pen Nuts 17" (Single)
N	Ledge Cover Interior - Costal Del Sol (Single)
P	Foot Cover (Single)
Q	Steel Strap Galvanized Braceless 59-3/4" (Single)

View Parts List

Diagram #	Part Title
A	Resin Top Ledge - Simbio 7" (Single
B	Upright Ali Pearl Steel 51-3/4" (Single)
C	Top Plate 5.5" Enc/Ven 2009 Xylon (Single)
D	Top Plate - Resin (Single)
F	Brace Plate Braceless Galvanized 47" (Single)
G	Bottom Rail Straight Side Champagne 42" (Single)
K	Wall Joiner Bar
M	Horizontal Sleeve Galvanized With Pen Nuts 17" (Single)
N	Ledge Cover Interior - Costal Del Sol (Single)
P	Foot Cover (Single)
Q	Steel Strap Galvanized Braceless 59-3/4" (Single)

Available Parts:

Resin Top Ledge - Simbio 7" (Single

Part # AR744-001-R

Resin Top Ledge - Simbio 7" (Single

$149.26 IN STOCK

Qty Per Pool 10

Qty Per Pool 10

Qty:

Top Ledge Straight Section Simbio 45" (Single)

Part # AR744-001-45

Top Ledge Straight Section Simbio 45" (Single)

$90.67

Qty Per Pool 6

Qty Per Pool 6

Upright Ali Pearl Steel 51-3/4" (Single)

Part # UR10001

Upright Ali Pearl Steel 51-3/4" (Single)

$145.13 IN STOCK

Qty Per Pool 16

Qty Per Pool 16

Qty:

Top Plate 5.5" Enc/Ven 2009 Xylon (Single)

Part # 20801

Top Plate 5.5" Enc/Ven 2009 Xylon (Single)

$20.75 IN STOCK

Qty Per Pool 8

Qty Per Pool 8

Qty:

5.5" Top Plate Resin Upgrade Kit Enc/Venture for 15' x 26' Oval Pool

Part # 20801-1526-RESKIT

5.5" Top Plate Resin Upgrade Kit Enc/Venture for 15' x 26' Oval Pool

$350.23

Qty Per Pool 1

Qty Per Pool 1

Top Plate - Resin (Single)

Part # PL10000

Top Plate - Resin (Single)

$22.59 IN STOCK

Qty Per Pool 24

Qty Per Pool 24

Qty:

Bottom Plate Straight Sections (Single)

Part # PL10001

Bottom Plate Straight Sections (Single)

$5.00

Qty Per Pool 8

Qty Per Pool 8

Brace Plate Braceless Galvanized 47" (Single)

Part # 20809

Brace Plate Braceless Galvanized 47" (Single)

$147.76

Qty Per Pool 6

Qty Per Pool 6

Bottom Rail Straight Side Champagne 42" (Single)

Part # 1514215

Bottom Rail Straight Side Champagne 42" (Single)

$39.17

Qty Per Pool 12

Qty Per Pool 12

Bottom Rail Regular Champagne 15'D 55-1/4" (Single)

Part # 1525515

Bottom Rail Regular Champagne 15'D 55-1/4" (Single)

$62.52

Qty Per Pool 16

Qty Per Pool 16

Bottom Rail Transition Cut One End 54-1/8" (Single)

Part # 1325315

Bottom Rail Transition Cut One End 54-1/8" (Single)

$39.17

Qty Per Pool 4

Qty Per Pool 4

Wall Joiner Bar

Part # 11823

Wall Joiner Bar

$35.81

Qty Per Pool 2

Qty Per Pool 2

Horizontal Sleeve Galvanized With Pen Nuts 17" (Single)

Part # 20810

Horizontal Sleeve Galvanized With Pen Nuts 17" (Single)

$74.99

Qty Per Pool 8

Qty Per Pool 8

Extruded Polystyrene Piece (Single)

Part # 1000100

Extruded Polystyrene Piece (Single)

$7.83

Qty Per Pool 8

Qty Per Pool 8

Ledge Cover Interior - Costal Del Sol (Single)

Part # LC10001

Ledge Cover Interior - Costal Del Sol (Single)

$19.02 IN STOCK

Qty Per Pool 16

Qty Per Pool 16

Qty:

Ledge Cover Exterior - Costal Del Sol (Single)

Part # LC10000

Ledge Cover Exterior - Costal Del Sol (Single)

$29.10

Qty Per Pool 16

Qty Per Pool 16

Ledge Cover Deco Piece (Single)

Part # LC10002

Ledge Cover Deco Piece (Single)

$9.50 IN STOCK

Qty Per Pool 16

Qty Per Pool 16

Qty:

Ledge Cover Deco Piece (Single)

Part # LC10003 Mfg # LC10003

Ledge Cover Deco Piece (Single)

$13.84 IN STOCK

Qty Per Pool 16

Qty Per Pool 16

Qty:

Foot Cover (Single)

Part # FC10000

Foot Cover (Single)

$9.50

Qty Per Pool 16

Qty Per Pool 16

Steel Strap Galvanized Braceless 59-3/4" (Single)

Part # 20560

Steel Strap Galvanized Braceless 59-3/4" (Single)

$62.68

Qty Per Pool 12

Qty Per Pool 12

*NOT SHOWN
