Eclipse LX 15'x30' Oval (Steel Top Rail, Steel Upright) Parts

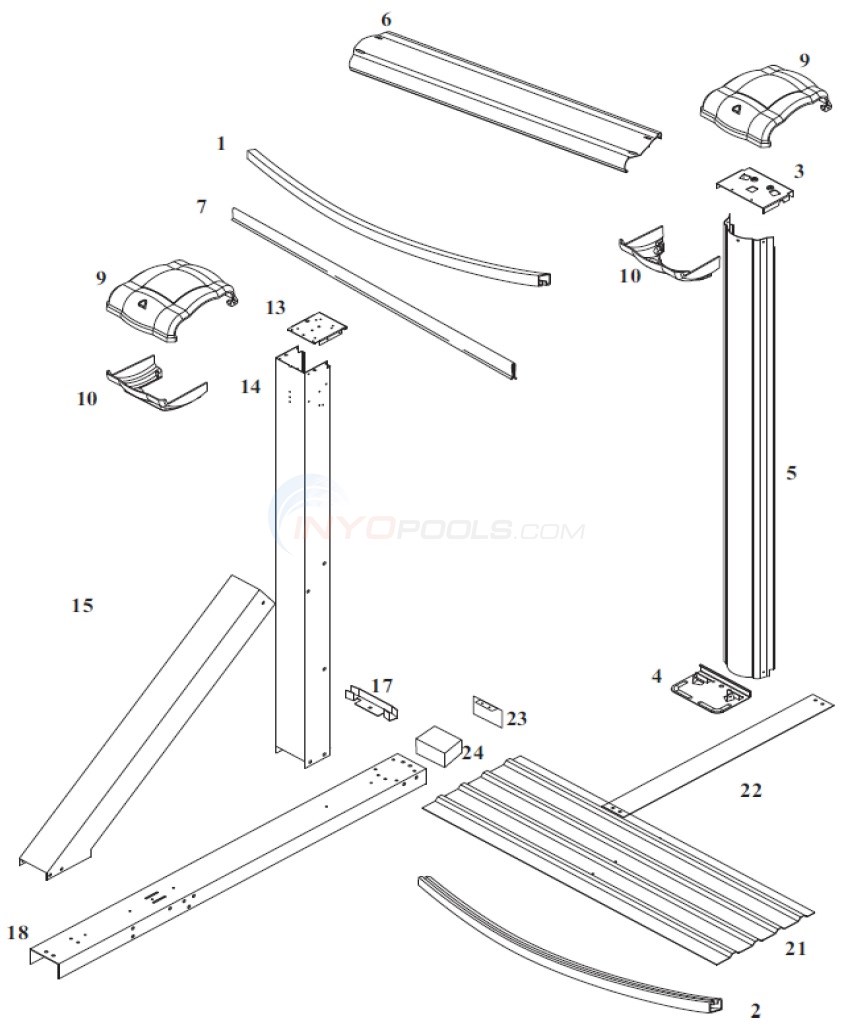

Eclipse LX 15'x30' Oval (Steel Top Rail, Steel Upright) Diagram

Click to zoom in

Diagram #	Part Title
*Liner	15' x 30' 48"-54" Depth All Swirl Overlap Standard Gauge
1	Inner Stabilizer Steel 53.25" (Single)
2	Bottom Rail Steel Straight Side 37.5"
3	Top Plate 5"
4	Bottom Plate 5" Steel (Summerfield)
5	Upright 51-13/16" (Single)
6	Top Rail Steel 41-1/4" Curved Side
7	Plastic Coping 48" (Single)
9	Top Cap 6" Pearl (SINGLE)
10	Top Cap 6" Pearl Support (Single)
13	Top Plate Oval 4" (Single)
14	Up Right 51 13/16” (Single)
15	Wrap Strut TPP Sand (Pearl)
17	Connector Btm Rail Str Side Aluminum (Single)
18	Strap Oval Channel 52-3/8" (Single)
21	Pressure Plate 44" (Single)
22	Strap Section 39-9/32" (Single)
23	Oval Channel End Cap (Single)
24	Oval Channel Foam Block
*	Hardware Strut (4 Pack)

View Parts List

Diagram #	Part Title
*Liner	15' x 30' 48"-54" Depth All Swirl Overlap Standard Gauge
1	Inner Stabilizer Steel 53.25" (Single)
2	Bottom Rail Steel Straight Side 37.5"
3	Top Plate 5"
4	Bottom Plate 5" Steel (Summerfield)
5	Upright 51-13/16" (Single)
6	Top Rail Steel 41-1/4" Curved Side
7	Plastic Coping 48" (Single)
9	Top Cap 6" Pearl (SINGLE)
10	Top Cap 6" Pearl Support (Single)
13	Top Plate Oval 4" (Single)
14	Up Right 51 13/16” (Single)
15	Wrap Strut TPP Sand (Pearl)
17	Connector Btm Rail Str Side Aluminum (Single)
18	Strap Oval Channel 52-3/8" (Single)
21	Pressure Plate 44" (Single)
22	Strap Section 39-9/32" (Single)
23	Oval Channel End Cap (Single)
24	Oval Channel Foam Block
*	Hardware Strut (4 Pack)

Available Parts:

15' x 30' 48"-54" Depth All Swirl Overlap Standard Gauge

Part # LI1530ASO

15' x 30' 48"-54" Depth All Swirl Overlap Standard Gauge

$471.33

Findlay Vinyl 15' x 30' Country Stone Overlap

Part # FC1530OVOL

Findlay Vinyl 15' x 30' Country Stone Overlap

$419.07

Inner Stabilizer Steel 53.25" (Single)

Part # 38502

Inner Stabilizer Steel 53.25" (Single)

$46.94 IN STOCK

Quantity Per Pool 10

Quantity Per Pool 10

Qty:

Rim 33" Steel (Single) Xylon Black

Part # 38512

Rim 33" Steel (Single) Xylon Black

$29.09 IN STOCK

Quantity Per Pool 6

Quantity Per Pool 6

Qty:

Rim 8" Steel (Single)

Part # 38513

Rim 8" Steel (Single)

$10.35 IN STOCK

Quantity Per Pool 8

Quantity Per Pool 8

Qty:

Rim 37 " (Single) Xylon Black

Part # 38511

Rim 37 " (Single) Xylon Black

$43.62 IN STOCK

Quantity Per Pool 4

Quantity Per Pool 4

Qty:

Inner Stabilizer Steel 53.25" (4 pack)

Part # 38502-PACK4

Inner Stabilizer Steel 53.25" (4 pack)

$116.33 IN STOCK

Quantity Per Pool

Quantity Per Pool

Qty:

Rim 37 " (4 pack) Xylon Black

Part # 38511-PACK4

Rim 37 " (4 pack) Xylon Black

$105.86 IN STOCK

Quantity Per Pool

Quantity Per Pool

Qty:

Rim 8" Steel (4 pack)

Part # 38513-PACK4

Rim 8" Steel (4 pack)

$57.24 IN STOCK

Quantity Per Pool

Quantity Per Pool

Qty:

38502 Resin Stabilizer Upgrade Kit for 15' x 30' Oval Pool

Part # 38502-1530-RESKIT

38502 Resin Stabilizer Upgrade Kit for 15' x 30' Oval Pool

$1365.97 IN STOCK

Quantity Per Pool 1

Quantity Per Pool 1

Qty:

Bottom Rail Steel Straight Side 37.5"

Part # 16713

Bottom Rail Steel Straight Side 37.5"

$42.68 IN STOCK

Quantity Per Pool 6

Quantity Per Pool 6

Qty:

Bottom Rail Steel 49" (Single)

Part # 14950

Bottom Rail Steel 49" (Single)

$45.72 IN STOCK

Quantity Per Pool 10

Quantity Per Pool 10

Qty:

Bottom Rail Steel Corner 39"

Part # 16714

Bottom Rail Steel Corner 39"

$39.99 IN STOCK

Quantity Per Pool 4

Quantity Per Pool 4

Qty:

Bottom Rail Steel 49" (4 pack)

Part # 14950-PACK4

Bottom Rail Steel 49" (4 pack)

$100.65 IN STOCK

Quantity Per Pool

Quantity Per Pool

Qty:

14950 Resin Bottom Rail Upgrade Kit for 15' x 30' Oval Pool Oval Pool

Part # 14950-1530-RESKIT

14950 Resin Bottom Rail Upgrade Kit for 15' x 30' Oval Pool Oval Pool

$588.45

Quantity Per Pool 1

Quantity Per Pool 1

Bottom Rail Steel Straight Side 37-3/4" (4-PACK)

Part # 16713-PACK4

Bottom Rail Steel Straight Side 37-3/4" (4-PACK)

$115.34 IN STOCK

Quantity Per Pool 4-PACK

Quantity Per Pool 4-PACK

Qty:

Bottom Rail Steel Straight Side 37-3/4" (8-PACK)

Part # 16713-PACK8

Bottom Rail Steel Straight Side 37-3/4" (8-PACK)

$341.45

Quantity Per Pool 8-PACK

Quantity Per Pool 8-PACK

Bottom Rail Steel Corner 39-1/4" (4-PACK)

Part # 16714-PACK4

Bottom Rail Steel Corner 39-1/4" (4-PACK)

$115.34 IN STOCK

Quantity Per Pool 4-PACK

Quantity Per Pool 4-PACK

Qty:

Bottom Rail Steel Corner 39-1/4" (8-PACK)

Part # 16714-PACK8

Bottom Rail Steel Corner 39-1/4" (8-PACK)

$158.91

Quantity Per Pool 8-PACK

Quantity Per Pool 8-PACK

Top Plate 5"

Part # 15442

Top Plate 5"

$11.19 IN STOCK

Quantity Per Pool 12

Quantity Per Pool 12

Qty:

Bottom Plate 5" Steel (Summerfield)

Part # 15444

Bottom Plate 5" Steel (Summerfield)

$11.19 IN STOCK

Quantity Per Pool 12

Quantity Per Pool 12

Qty:

Upright 51-13/16" (Single)

Part # 15441

Upright 51-13/16" (Single)

$68.28

Quantity Per Pool 12

Quantity Per Pool 12

Top Rail Steel 41-1/4" Curved Side

Part # 15436

Top Rail Steel 41-1/4" Curved Side

$61.52 IN STOCK

Quantity Per Pool 10

Quantity Per Pool 10

Qty:

Top Rail Steel 41-1/4"

Part # 17915

Top Rail Steel 41-1/4"

$55.01 IN STOCK

Quantity Per Pool 10

Quantity Per Pool 10

Qty:

Plastic Coping 48" (Single)

Part # 10296

Plastic Coping 48" (Single)

$12.31 IN STOCK

Quantity Per Pool 19

Quantity Per Pool 19

Qty:

Top Cap 6" Pearl (SINGLE)

Part # 15445

Top Cap 6" Pearl (SINGLE)

$32.99

Quantity Per Pool 20

Quantity Per Pool 20

Top Cap 6" Pearl Support (Single)

Part # 15446

Top Cap 6" Pearl Support (Single)

$24.30 IN STOCK

Quantity Per Pool 12

Quantity Per Pool 12

Qty:

Top Cap Support Straight Side 6" (Single)

Part # 15447

Top Cap Support Straight Side 6" (Single)

$13.99 IN STOCK

Quantity Per Pool 8

Quantity Per Pool 8

Qty:

Top Plate Oval 4" (Single)

Part # 10136

Top Plate Oval 4" (Single)

$12.48 IN STOCK

Quantity Per Pool 8

Quantity Per Pool 8

Qty:

Up Right 51 13/16” (Single)

Part # 35738

Up Right 51 13/16” (Single)

$91.79

Quantity Per Pool 8

Quantity Per Pool 8

Wrap Strut TPP Sand (Pearl)

Part # 17916

Wrap Strut TPP Sand (Pearl)

$15.00 IN STOCK

Quantity Per Pool 8

Quantity Per Pool 8

Qty:

Connector Btm Rail Str Side Aluminum (Single)

Part # 16542

Connector Btm Rail Str Side Aluminum (Single)

$38.24 IN STOCK

Quantity Per Pool 8

Quantity Per Pool 8

Qty:

Strap Oval Channel 52-3/8" (Single)

Part # 16539

Strap Oval Channel 52-3/8" (Single)

$118.67

Quantity Per Pool 8

Quantity Per Pool 8

Pressure Plate 44" (Single)

Part # 16549

Pressure Plate 44" (Single)

$85.28 IN STOCK

Quantity Per Pool 8

Quantity Per Pool 8

Qty:

Pressure Plate 44" (4 pack)

Part # 16549-PACK4

Pressure Plate 44" (4 pack)

$454.48 IN STOCK

Quantity Per Pool

Quantity Per Pool

Qty:

Strap Section 39-9/32" (Single)

Part # 16723

Strap Section 39-9/32" (Single)

$71.65 IN STOCK

Quantity Per Pool 4

Quantity Per Pool 4

Qty:

Strap Section 40-11/16" (Single)

Part # 16725

Strap Section 40-11/16" (Single)

$50.37

Quantity Per Pool 12

Quantity Per Pool 12

Oval Channel End Cap (Single)

Part # 22726 Mfg # 22726

Oval Channel End Cap (Single)

$11.43 IN STOCK

Quantity Per Pool 8

Quantity Per Pool 8

Qty:

Oval Channel Foam Block

Part # 29917

Oval Channel Foam Block

$4.47 IN STOCK

Quantity Per Pool 8

Quantity Per Pool 8

Qty:

Hardware Strut (4 Pack)

Part # 36501

Hardware Strut (4 Pack)

$59.33

Hdw YZ 15' X 30' / 18' X 33' OVAL

Part # 19222

Hdw YZ 15' X 30' / 18' X 33' OVAL

$300.02

Envelope Safety Stickers

Part # 95-0007

Envelope Safety Stickers

$16.78

Instructional DVD (Single)

Part # 37097

Instructional DVD (Single)

$16.78
