Hayward SharkVac

Hayward SharkVac Diagram
Key Model # Mfg Code Item Price
* W3RC9740CUB RC9740CUB SharkVac Pool Cleaner $849.00 Description
* W3RC9742CUBY SharkVac Pool Cleaner w/ Caddy $949.00 Description

Key Part # Item Price

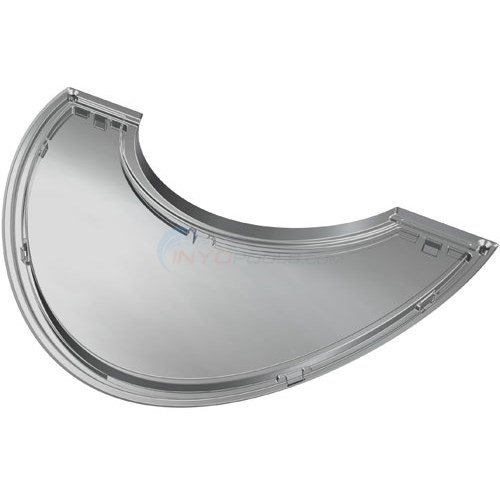

1 RCX97421 WINDOW, DOME, CLEAR SV $20.99 Description

Key Part # Item Price

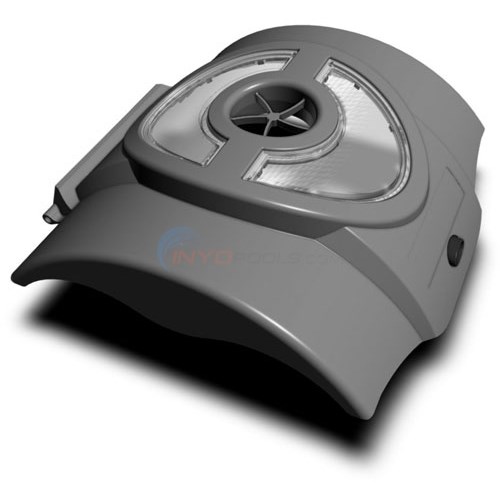

2 RCX97419DG ASSY DOME DRK GREY $103.99 Description

Key Part # Item Price
3 RCX97431 SPRING, FLAT SV/EV $24.99 Description

Key Part # Item Price

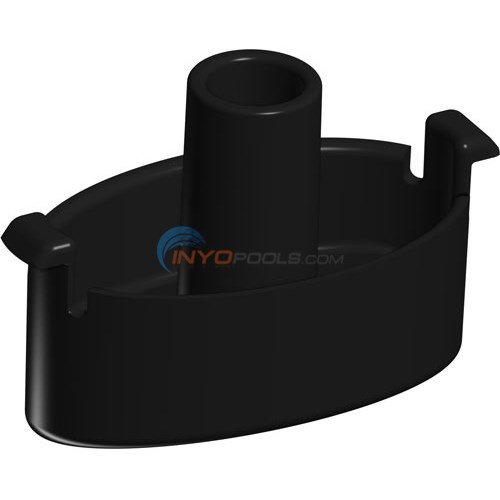

4 RCX97433 BUTTON, SV $17.99 Description

Key Part # Item Price

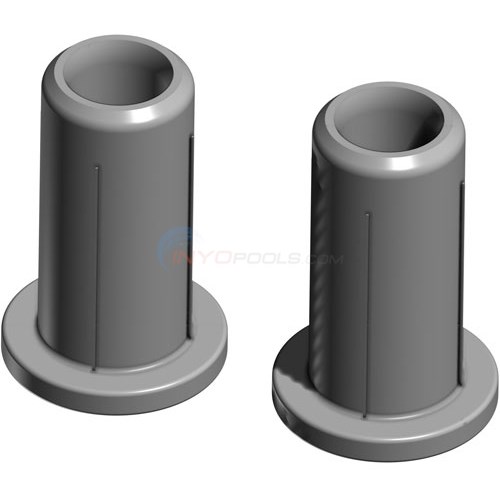

5 RCX97423 BUSHING, DOME SV SET OF 2 $28.99 Description

Key Part # Item Price

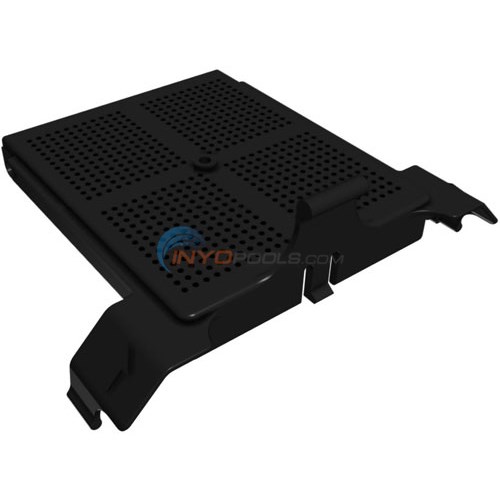

7 RCX97417 DOOR, FILTER $22.99 Description

Key Part # Item Price

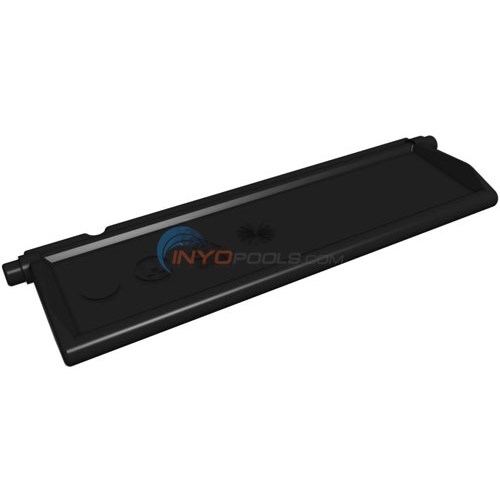

8 RCX97405 FLAP, DRAIN SMALL SV $28.99 Description

Key Part # Item Price

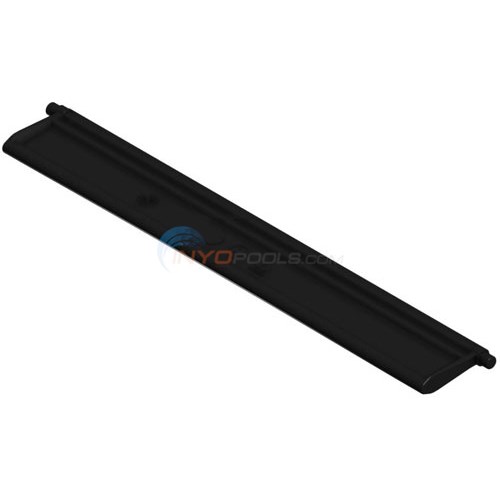

9 RCX97407 FLAP, DRAIN LARGE SV $35.99 Description

Key Part # Item Price

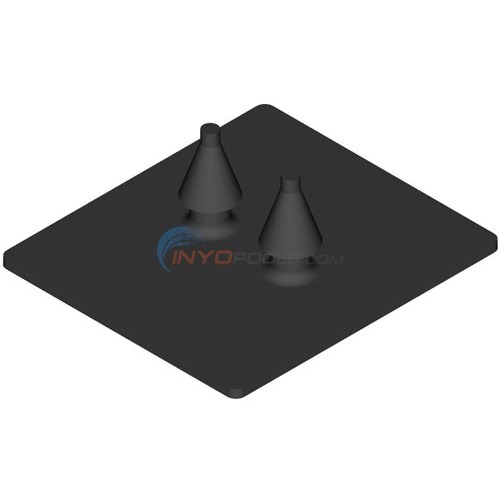

10 RCX97445 FLAP, RUBBER SV $26.99 Description

Key Part # Item Price

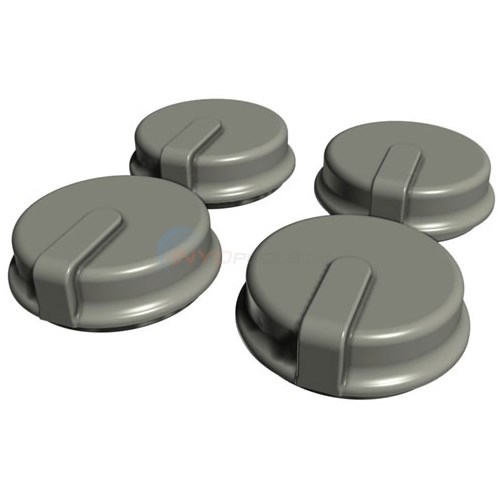

11 RCX97447 CAP, WHEEL RIM SV SET OF 4 $19.99 Description

Key Part # Item Price
12 RCX97449 WHEEL, RIM WITH TIRE SV $38.99 Description

Key Part # Item Price

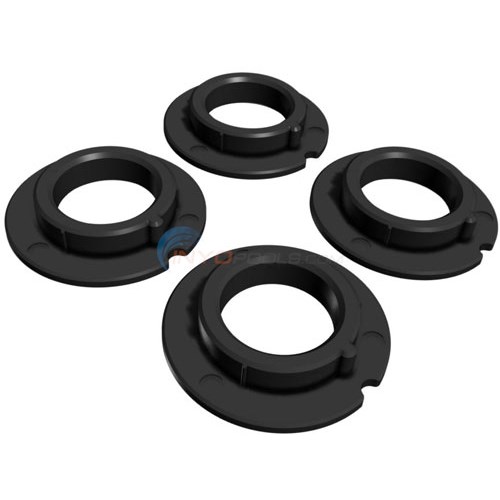

13 RCX97435 BUSHING, 1W SV SET OF 4 $28.99 Description

Key Part # Item Price

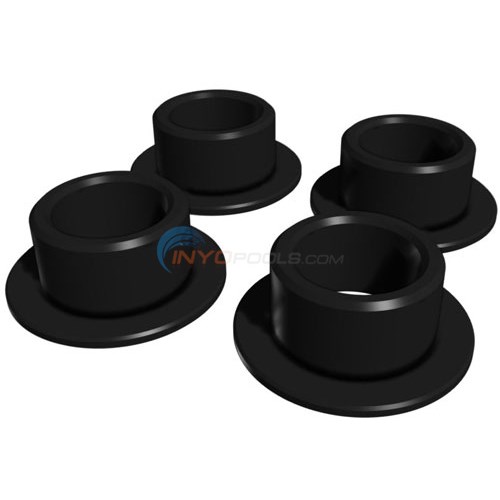

14 RCX97437 BUSHING, 2W SV SET OF 4 $28.99 Description

Key Part # Item Price

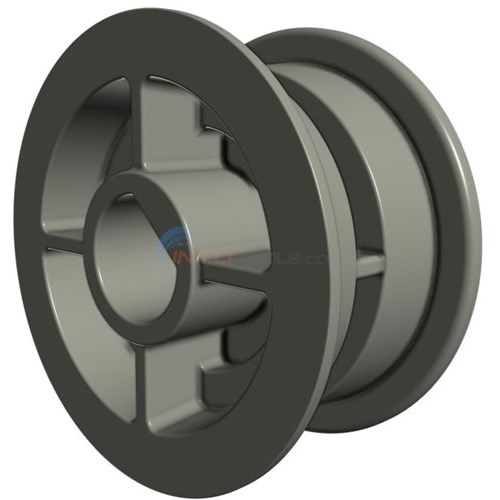

15 RCX97439 RING, DRIVE SV $28.99 Description

Key Part # Item Price
16 RCX97441 ROLLER END SV $22.99 Description

Key Part # Item Price

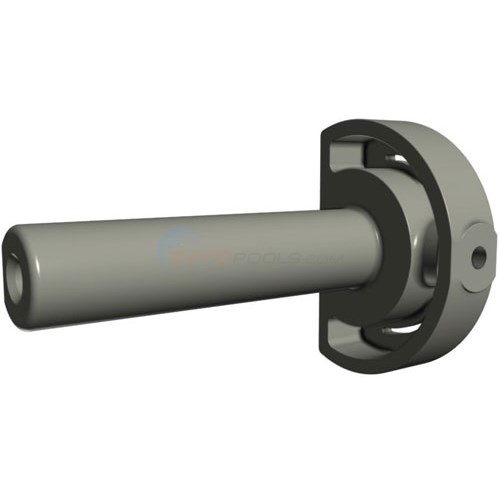

17 RCX97443 SHAFT SV $26.99 Description

Key Part # Item Price

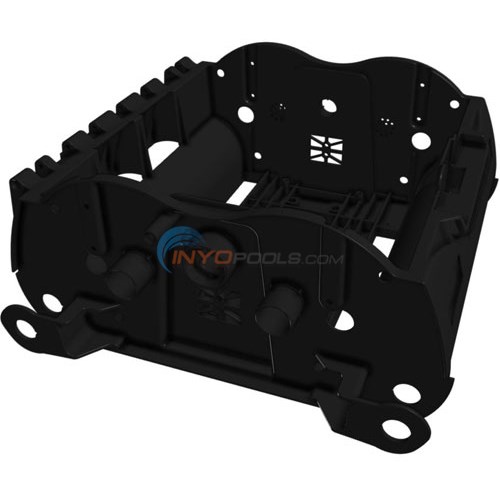

18 RCX97401 BASE, SV $110.99 Description

Key Part # Item Price

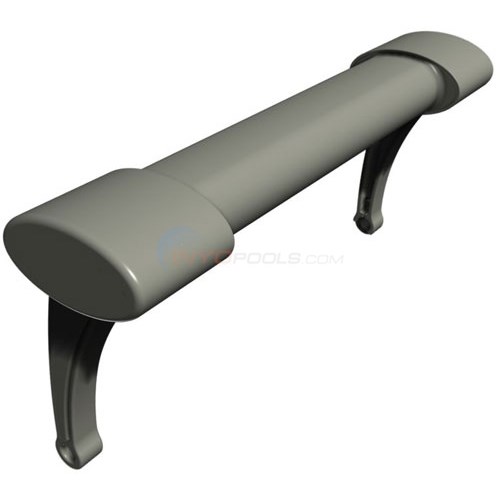

19 RCX97425 HANDLE, ASSY SV $44.87 Description

Key Part # Item Price

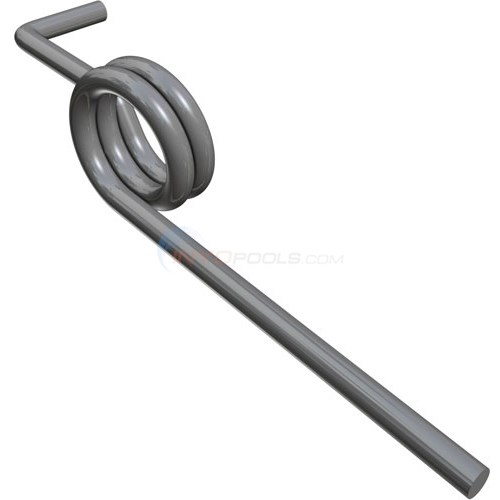

20 RCX97427 SPRING, HANDLE $17.99 Description

Key Part # Item Price

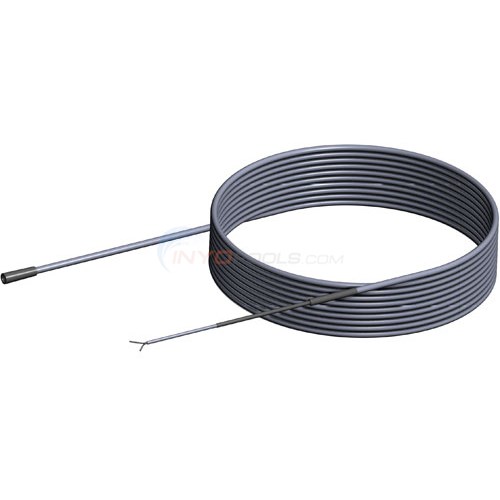

21 RCX97413 CORD, ASSY, 50' SV/EV $172.99 Description

Key Part # Item Price

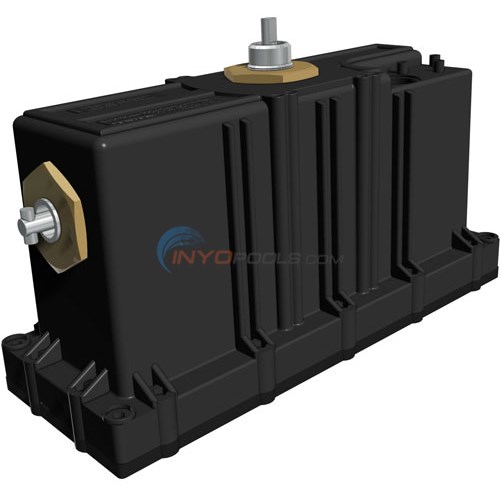

22 RCX97400 MOTOR ASSY, SV/EV $384.18 Description

Key Part # Item Price
23 RCX97455 TUBE, VENT $19.99 Description

Key Part # Item Price

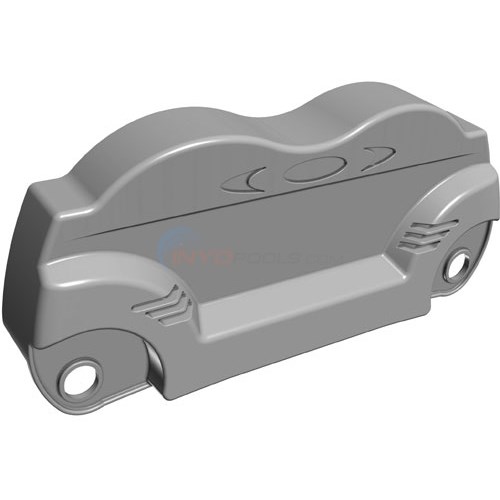

24 RCX97403 PANEL, SIDE SV $69.99 Description

Key Part # Item Price
25 RCX97459 SCREW M7X10MM TORX SET OF 5 $28.99 Description

Key Part # Item Price
26 RCX97457 SCREW M7X25MM TORX SET OF 5 $28.99 Description

Key Part # Item Price

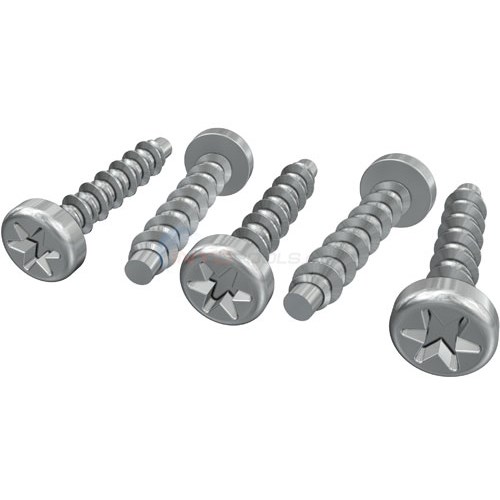

27 RCX97461 SCREW M5X35MM TORX SET OF 5 $29.99 Description

Key Part # Mfg Code Item Price

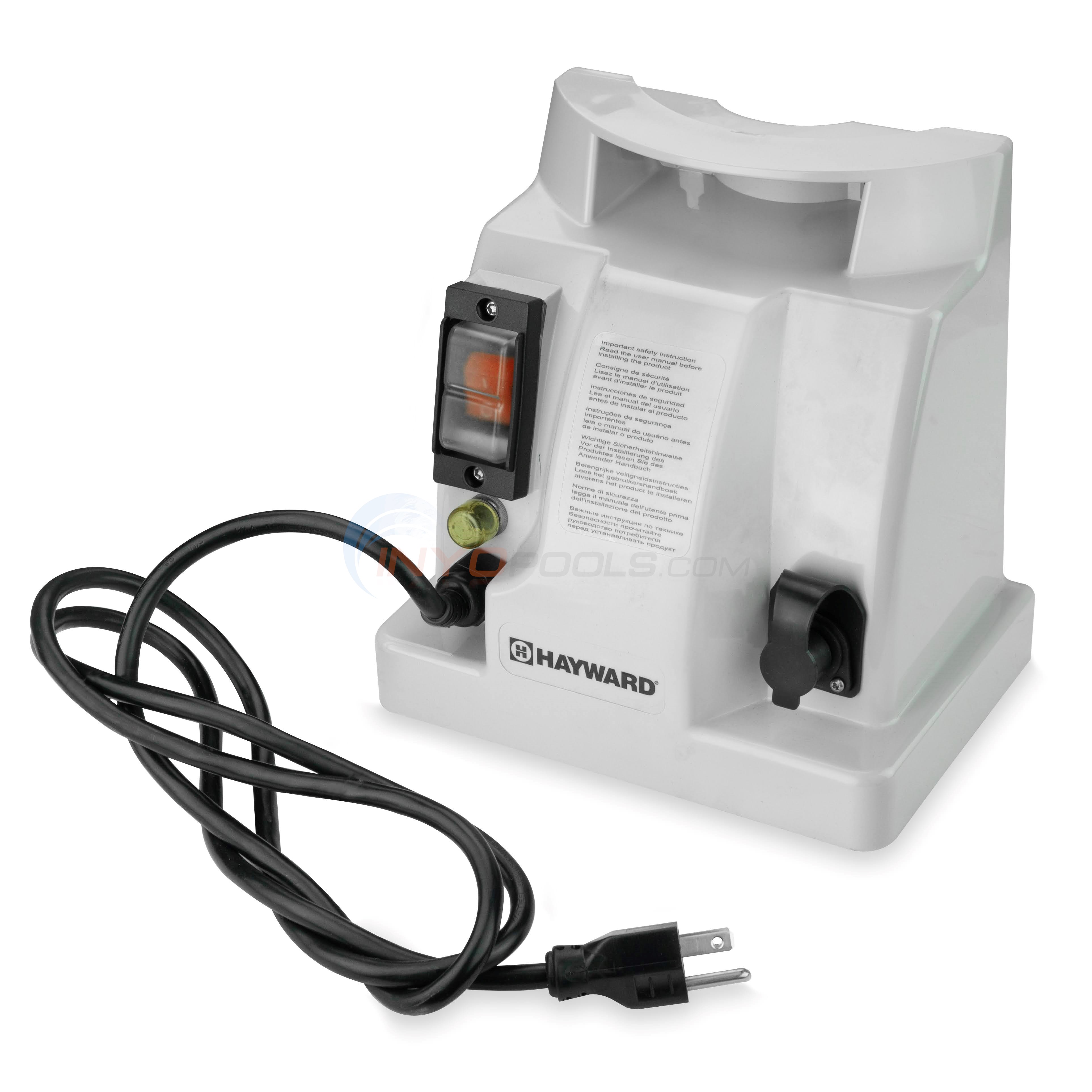

28 3277-280 RCX97453 POWER SUPPLY, 115V FOR SHARKVAC $323.41 Description

Key Part # Item Price
29 RCX12010 SCREW-M5X12 PAN SET OF 10 $28.99 Description

Key Part # Item Price

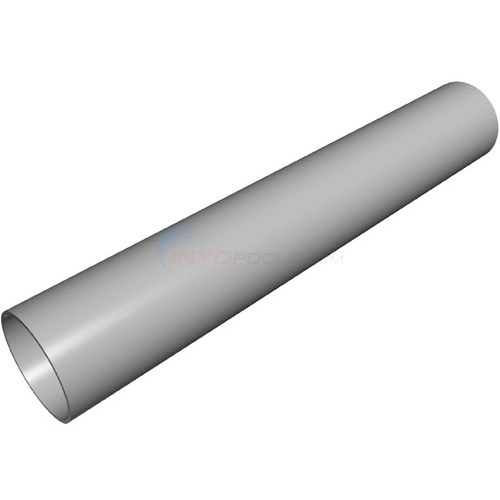

30 RCX97409 TUBE, WHEEL LT GREY SV $28.99 Description

Key Part # Item Price
31 RCX97429 SHAFT, HINGE S.S. SV/EV $28.99 Description

Key Part # Mfg Code Item Price
32 3276-083 RCX70101 FILTER CARTRIDGE (SET OF 2) (70101) $82.39 Description

Key Part # Item Price

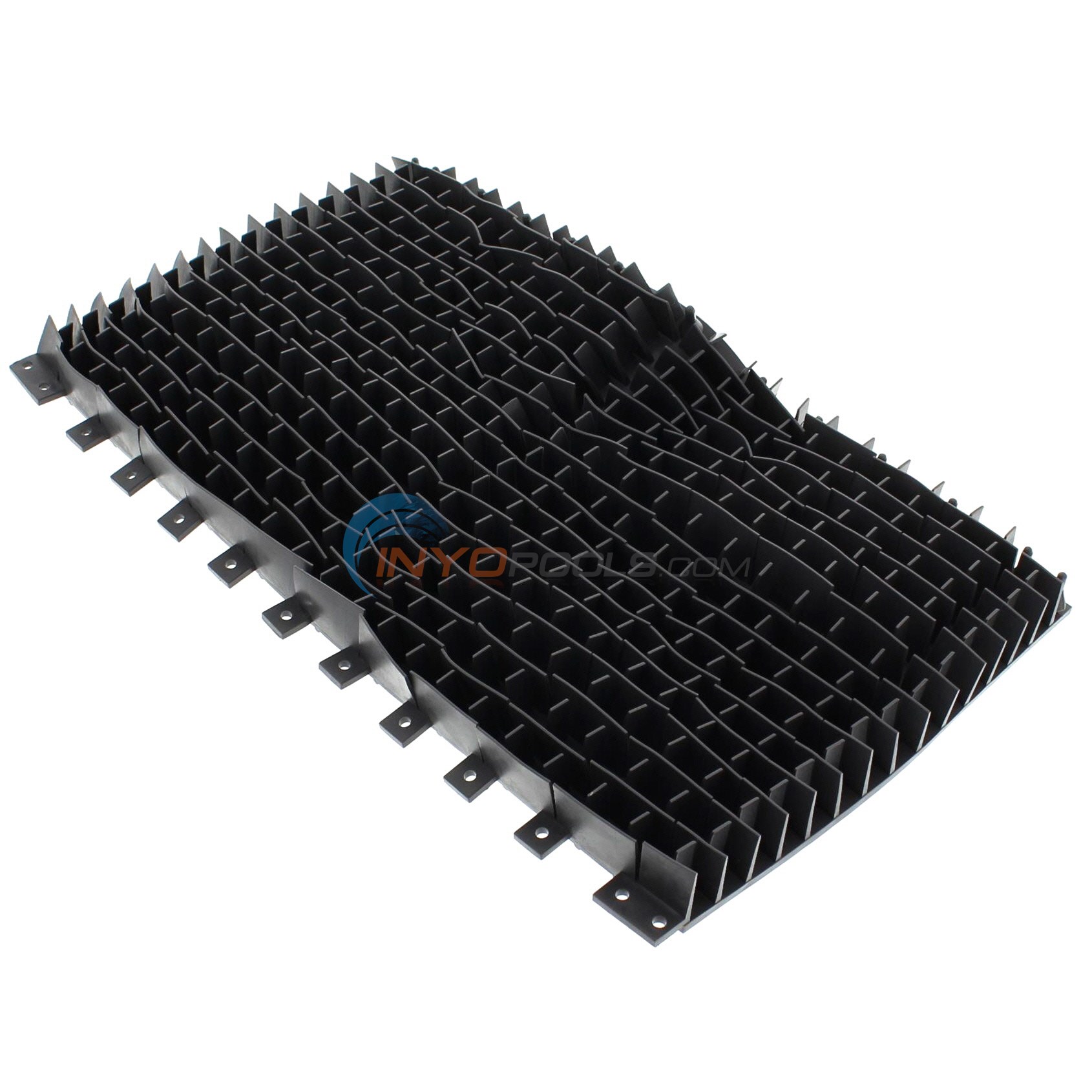

33 RCX26008 BRUSH-ROLLER T/S, CLEAR $44.87 Description

Key Part # Mfg Code Item Price
34 3276-050 RCX23002 DRIVE BELT (23002) $45.31 Description

Key Part # Mfg Code Item Price

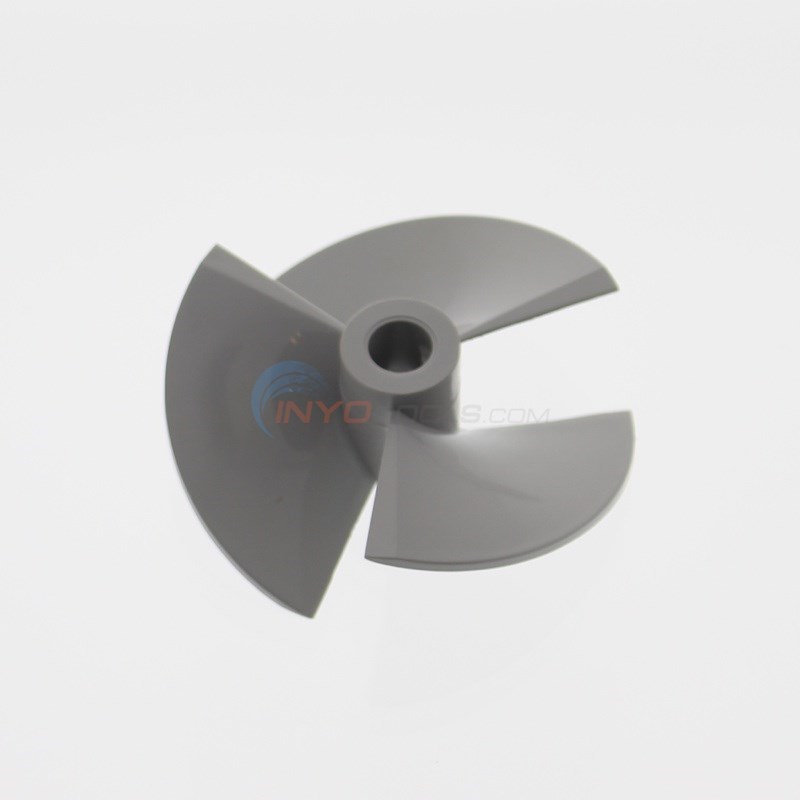

35 3276-023 RCX11000 IMPELLER (11000) $29.99 Description

Key Part # Item Price
36 RCX40117 ASSY-DRIVE PIN, FOR DR. MTR $29.99 Description

Key Part # Item Price

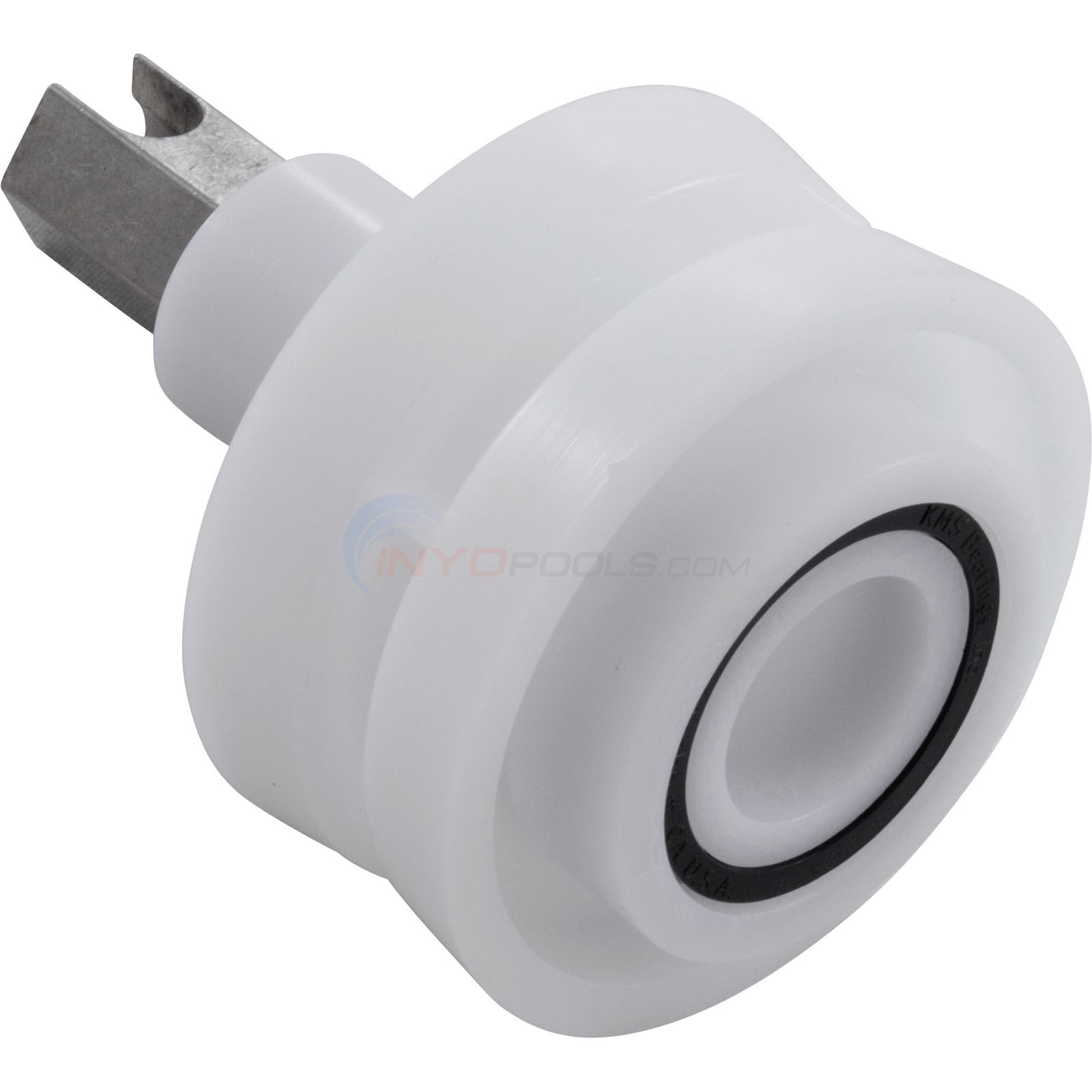

37 RCX97430 BEARING, DRIVE ASSY $39.99 Description

Key Part # Mfg Code Item Price

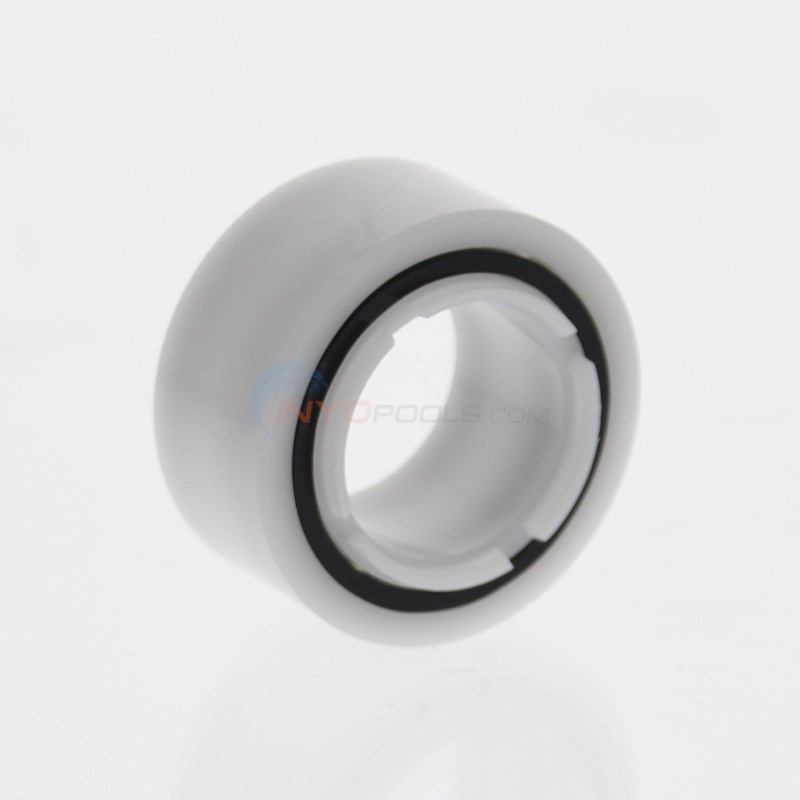

38 3276-052 RCX26000PAK2 IDLER PULLEY BEARING $41.99 Description

Key Part # Mfg Code Item Price
39 RCX59002 RCX59002KIT HOUSING-CONNECTOR $67.99 Description

Key Part # Mfg Code Item Price

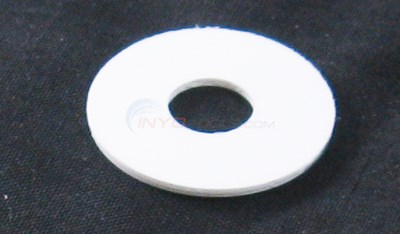

40 3276-035 RCX12301 WASHER PLASTIC CONNECTOR $12.99 Description

Key Part # Item Price
41 RCX97462 COMPRESSION SEAL $28.99 Description

Key Part # Mfg Code Item Price

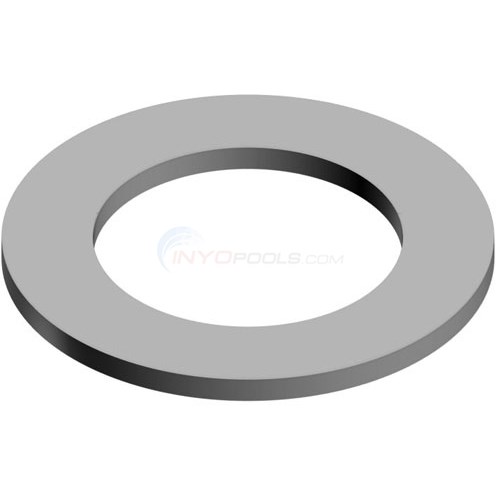

42 3276-036 RCX12302 WASHER PLASTIC CONNECTOR $12.99 Description

Key Part # Item Price

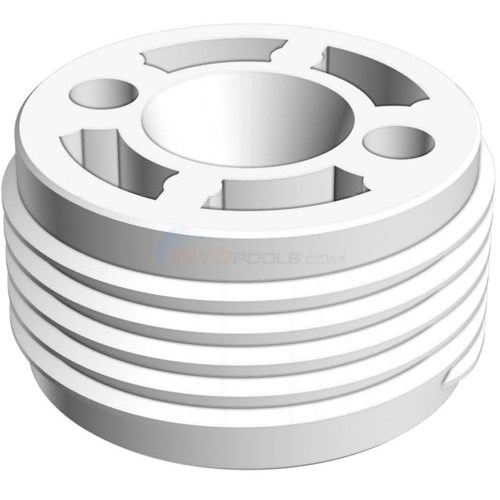

43 RCX59004 PLUG-SEAL $17.99 Description

Key Part # Mfg Code Item Price

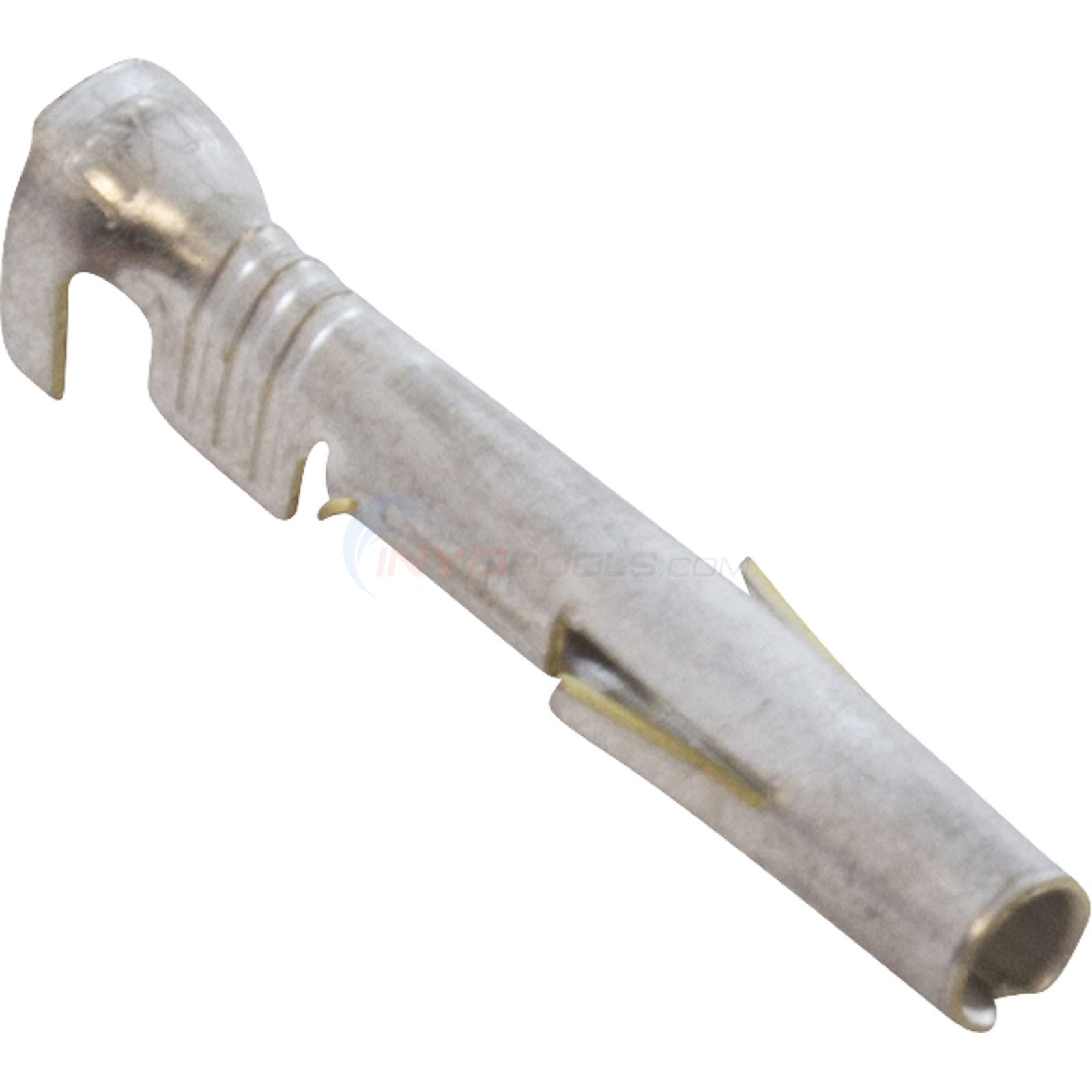

44 3276-170 RCX59006 TGR CONNECTOR SOCKET, MOLEX $11.99 Description

Key Part # Mfg Code Item Price

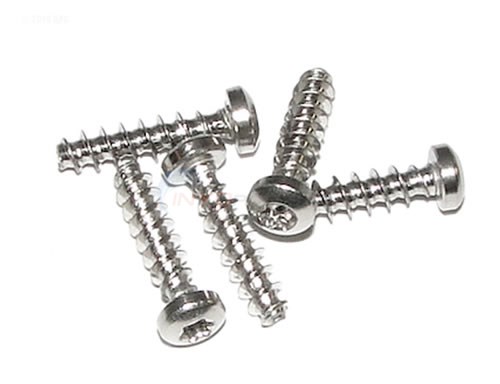

45 3276-031 RCX12011 SCREW M5 x 20 PAN TORX HD T-20 $10.99 Description

Key Part # Item Price

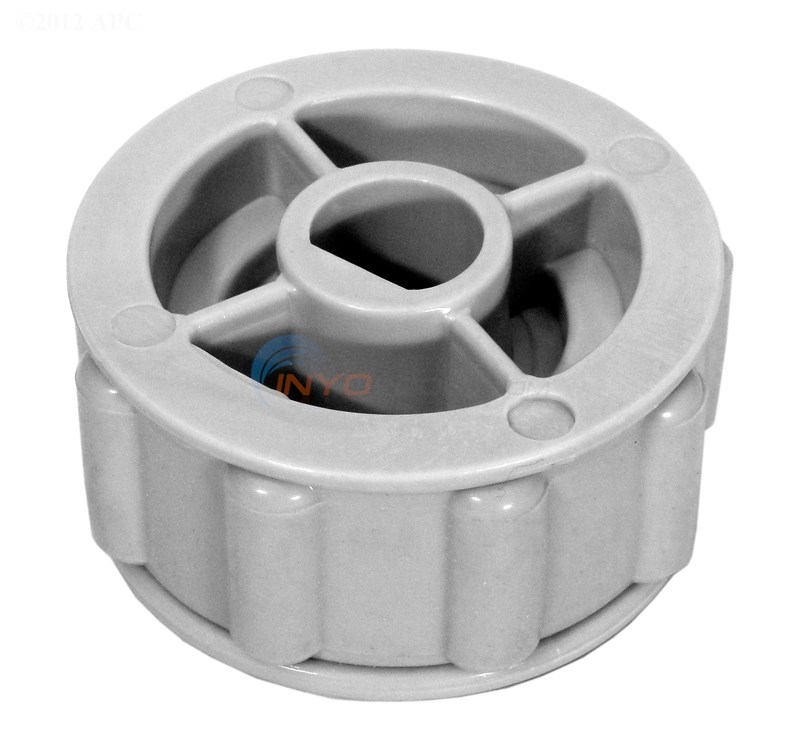

46 RCX97440 RING, DRIVE W/RUBBER ASSY $35.99 Description

Key Part # Item Price

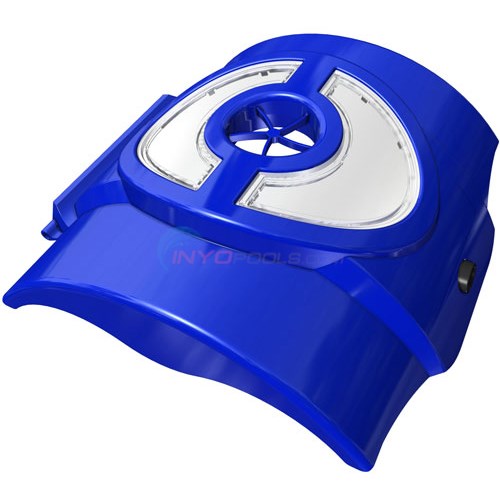

47 RCX97418 DOME, ASSY. SV BLUE $184.99 Description

Key Part # Item Price

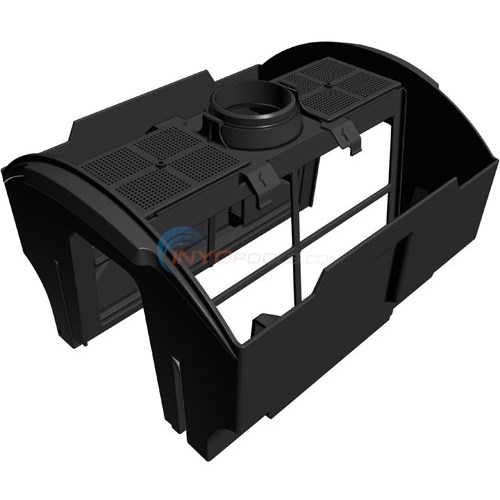

48 RCX97414 FILTER BUCKET ASSY. SV/EV $116.99 Description

Key Part # Item Price

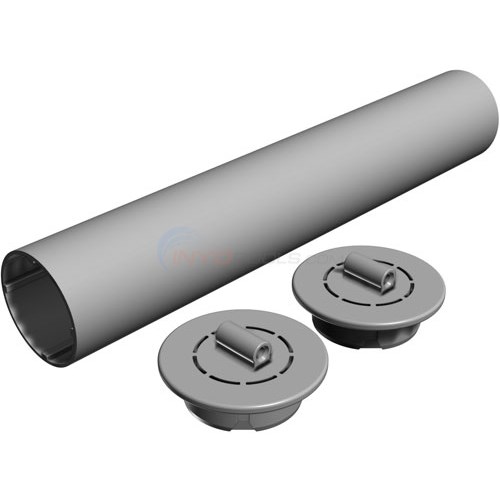

49 RCX97410 TUBE, WHEEL ASSY, LT GREY $67.99 Description

Key Part # Item Price
* RCX70103 FILTER-SPRING CLEAN-UP $39.99 Description

* Not Shown
