Malibu 30' Round 52" Wall (Steel Top Rail, Steel Upright) Parts

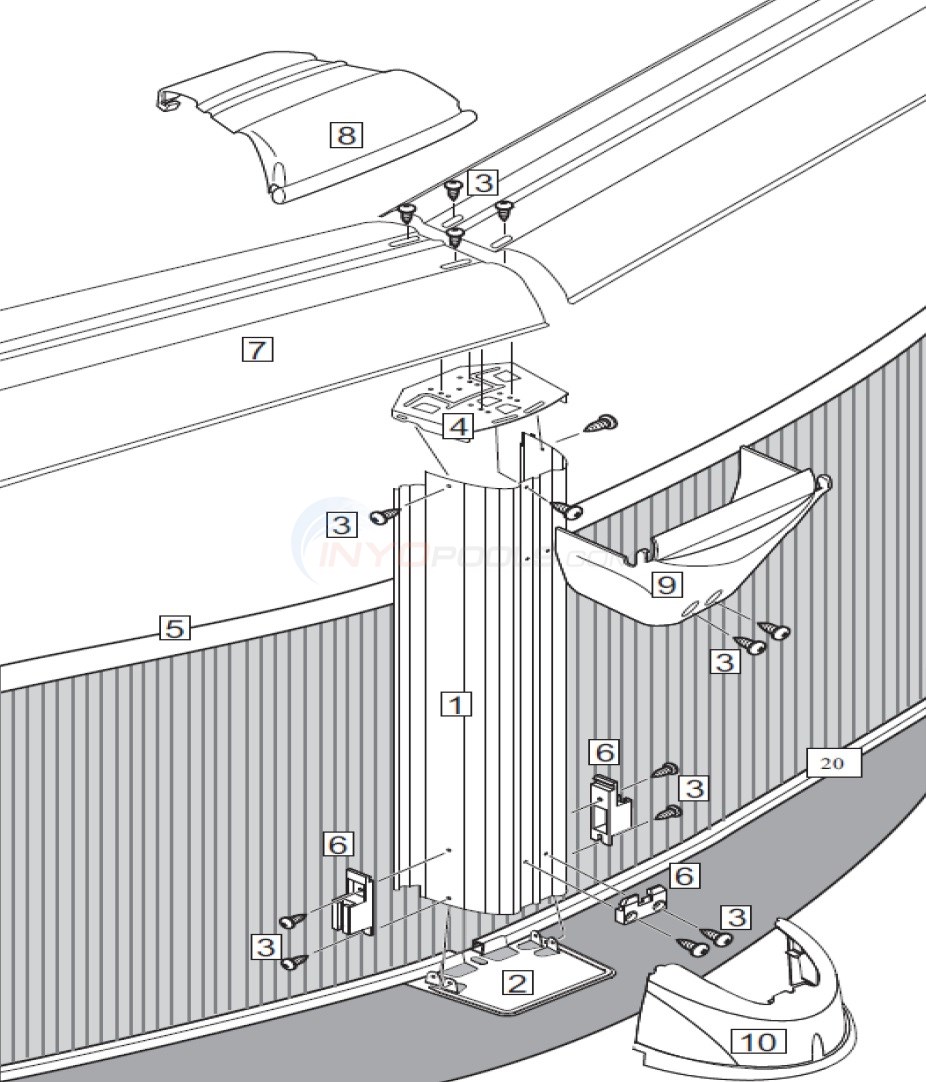

Malibu 30' Round 52" Wall (Steel Top Rail, Steel Upright) Diagram

Click to zoom in

Diagram #	Part Title
*Liner	30' Round 48"-54" Depth All Swirl Overlap Round Standard Gauge
1	Upright 51-1/2" for Malibu (Single)
2	Base Plate (Single)
3	Hardware for ledge cover (J4000)
4	Top Plate (Single)
5	30' Slotted Tube (Single)
6	Clips Foot Cover for Malibu (Single)
7	Top Rail 56-27/32" - Steel (SINGLE)
8	Atlantic Cap Upper (Single)
9	Atlantic Cap Lower (Single)
10	Foot Cover for Malibu (Single)
20	Bottom Rail - (Single)
*	6" slotted tube connector (Single)

View Parts List

Diagram #	Part Title
*Liner	30' Round 48"-54" Depth All Swirl Overlap Round Standard Gauge
1	Upright 51-1/2" for Malibu (Single)
2	Base Plate (Single)
3	Hardware for ledge cover (J4000)
4	Top Plate (Single)
5	30' Slotted Tube (Single)
6	Clips Foot Cover for Malibu (Single)
7	Top Rail 56-27/32" - Steel (SINGLE)
8	Atlantic Cap Upper (Single)
9	Atlantic Cap Lower (Single)
10	Foot Cover for Malibu (Single)
20	Bottom Rail - (Single)
*	6" slotted tube connector (Single)
