Pentair MasterTemp Heater Electrical System Parts

REPLACEMENT PARTS

Pentair MasterTemp Heater Electrical System Diagram

Click to zoom in

Diagram #	Part Title
2	HEATER DISPLAY COVER
3	IGNITOR BRACKET

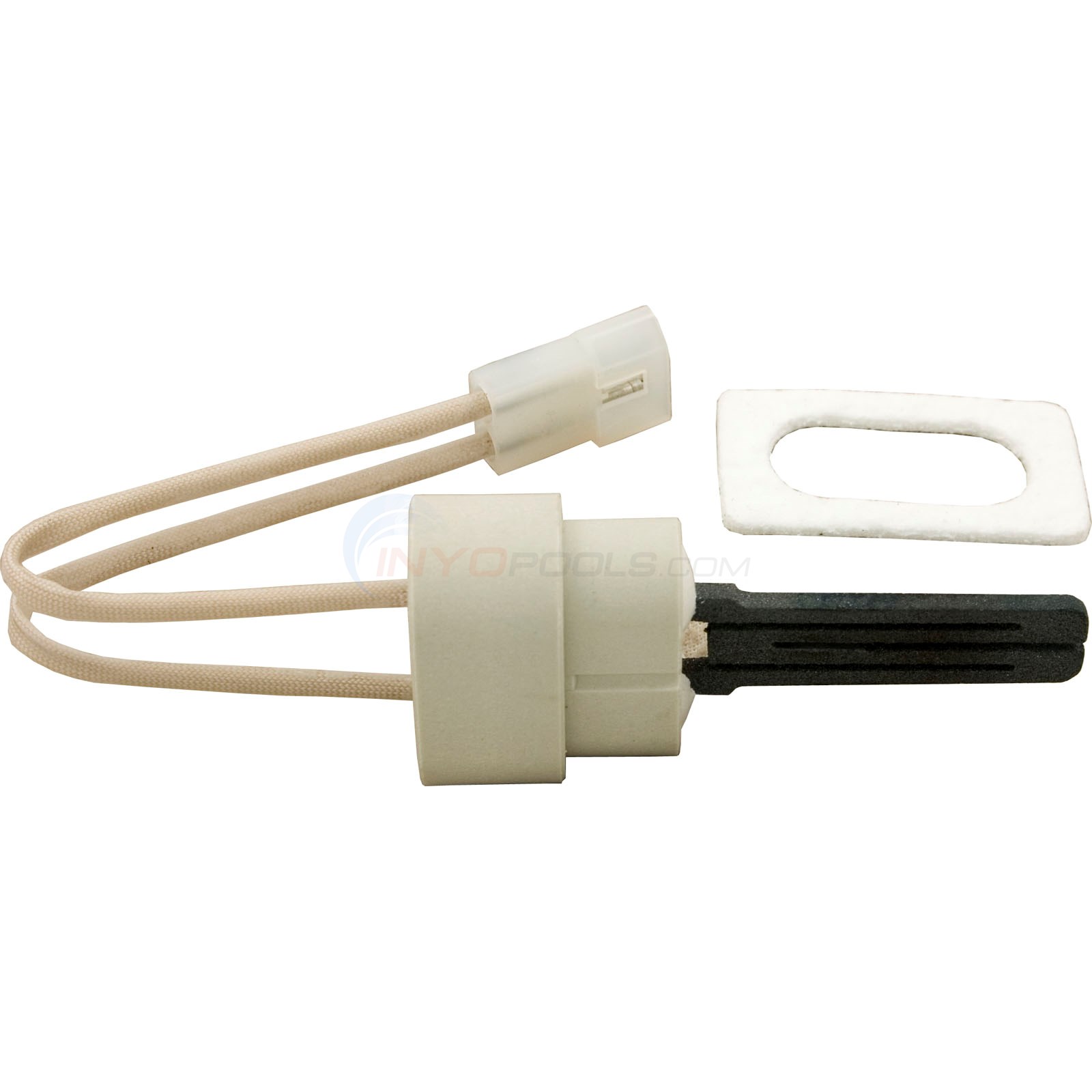

4	IGNITOR/IGNITOR GASKET KIT (INCLUDES KEYS 4, 5)
5	IGNITOR GASKET
7	AUTOMATIC GAS SHUT OFF
8	HI LIMIT SWITCH

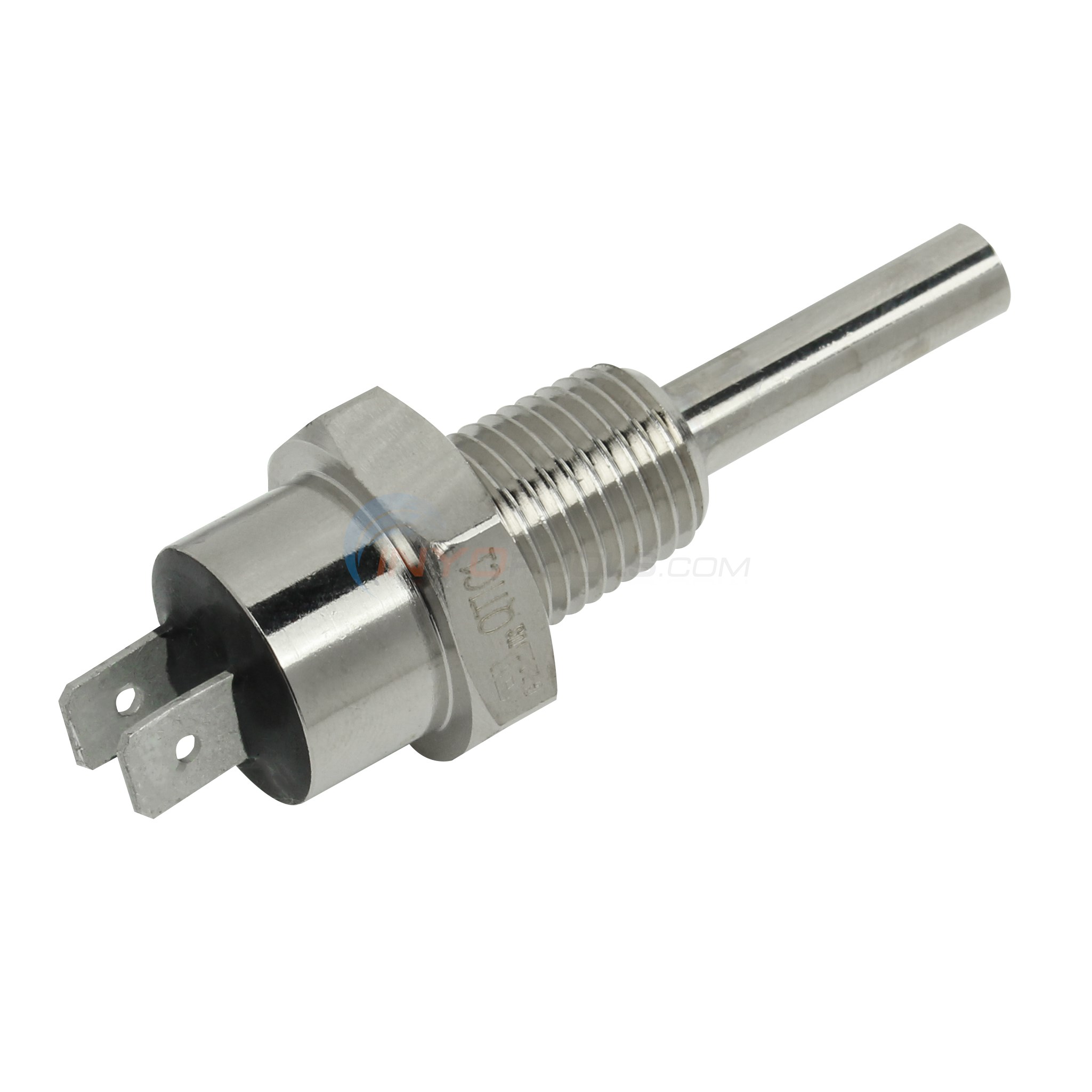

9	THERMISTER

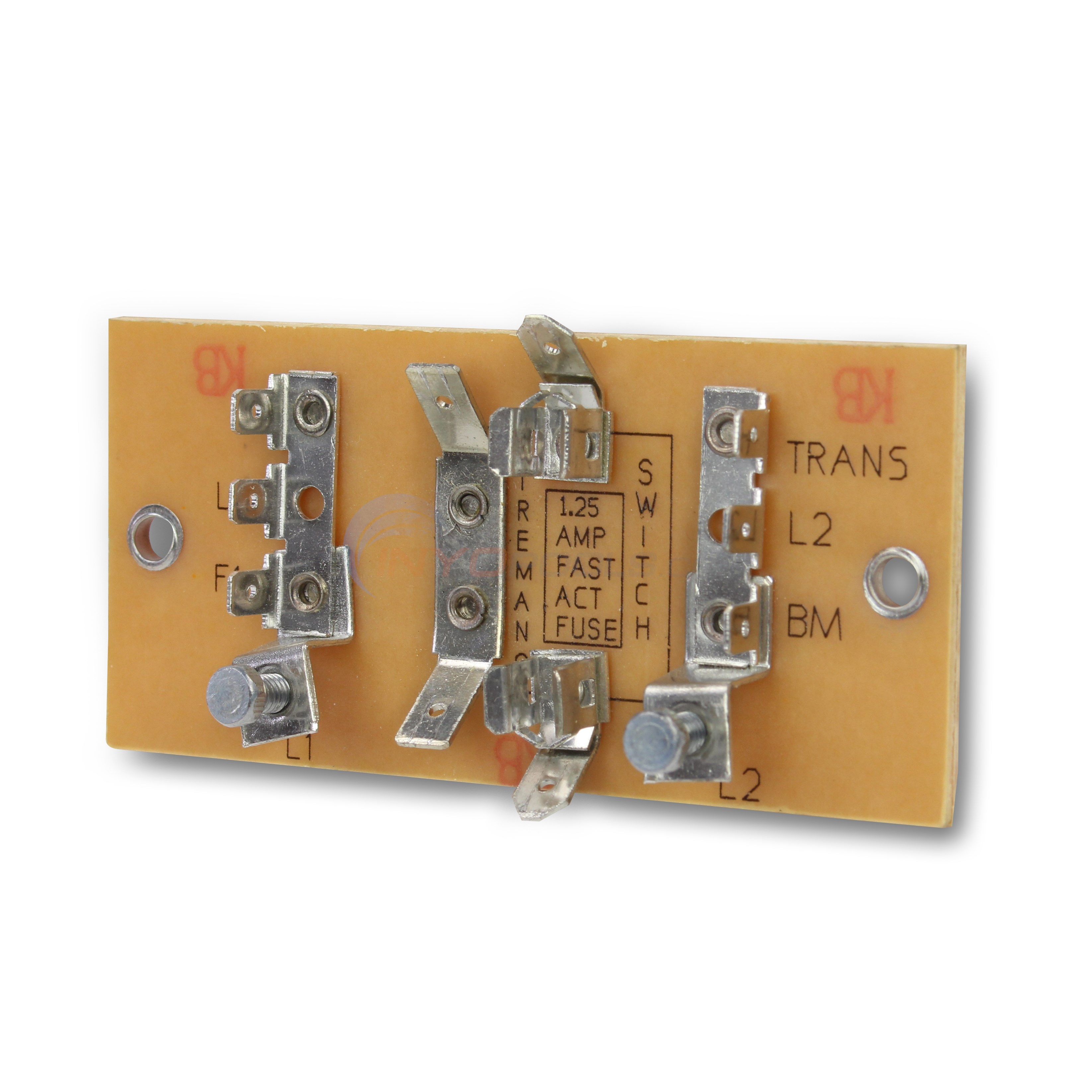

10	TERMINAL STRIP

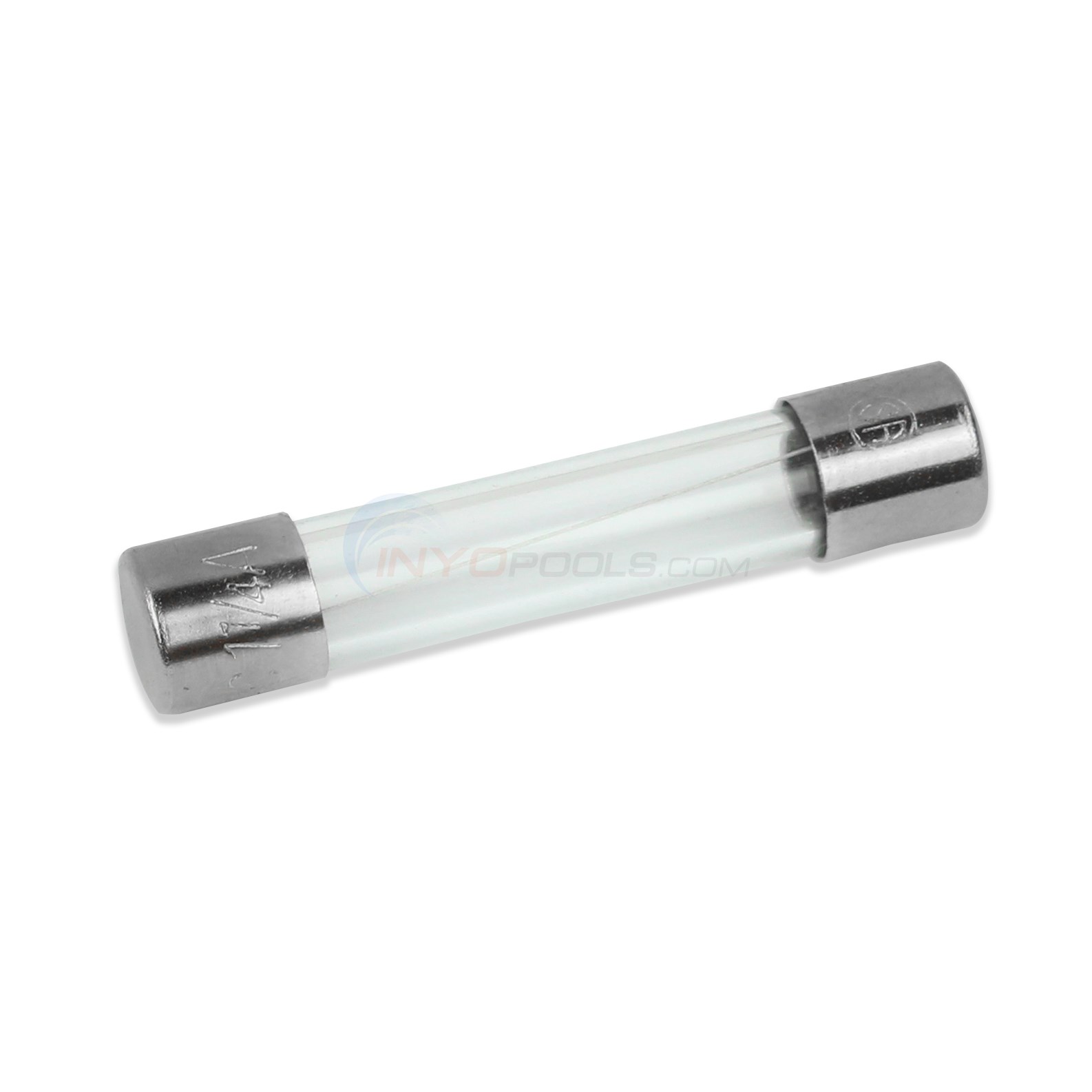

11	FUSE 1.25 AMP
12	IGNITION CONTROL MODULE (42001-0052S)

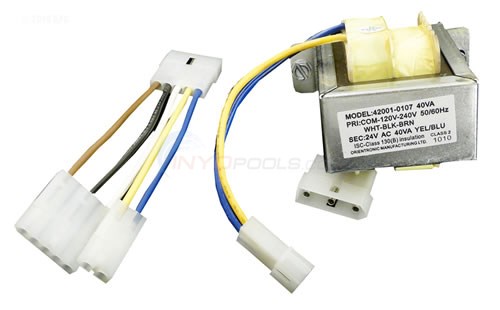

13	TRANSFORMER,115/230V
14	AIR FLOW SWITCH
15	Control Board Kit Basic (42002-0007s)

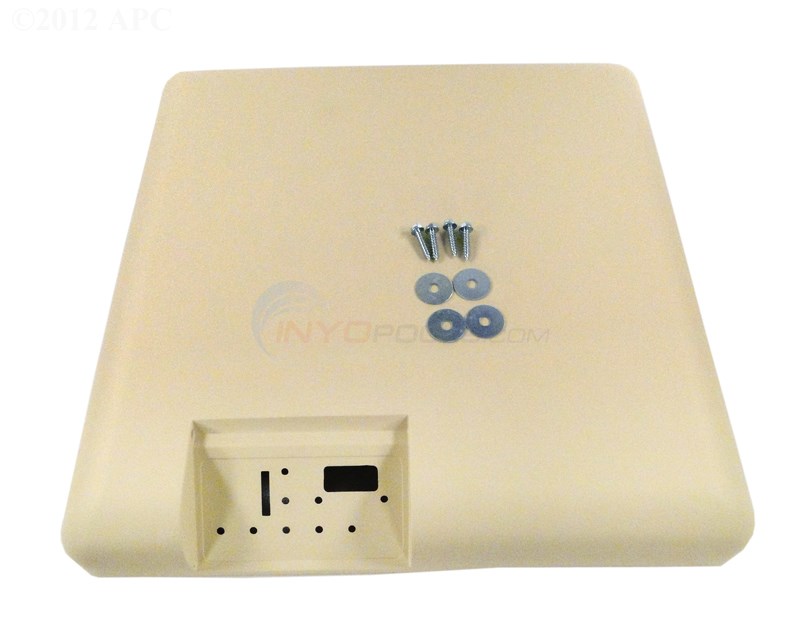

17	HEATER,TOP

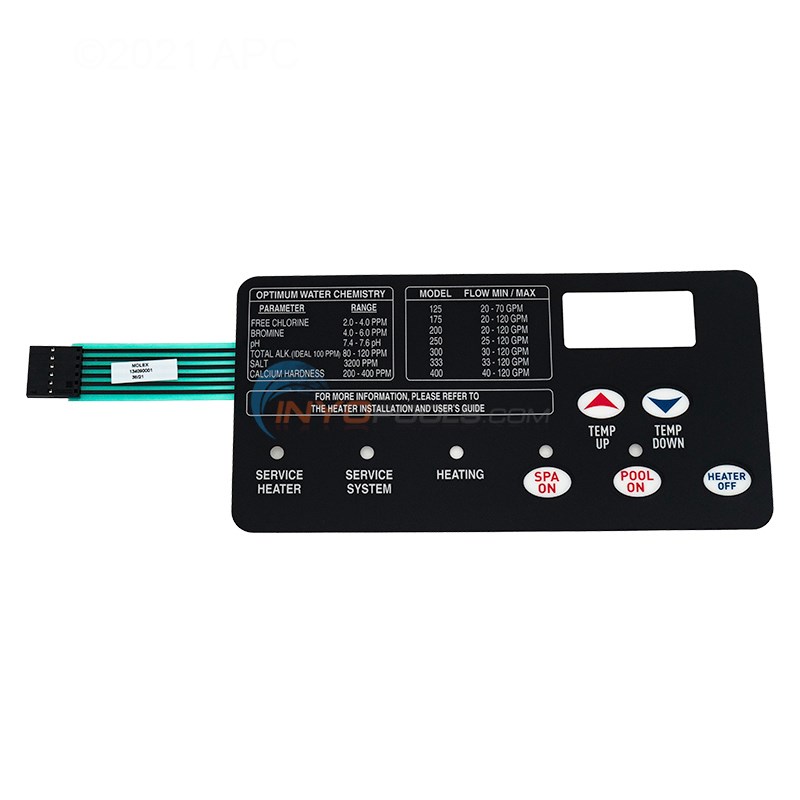

18	MEMBRANE PAD (NA,LP SERIES)
19	SENSOR,FLUE TEMP

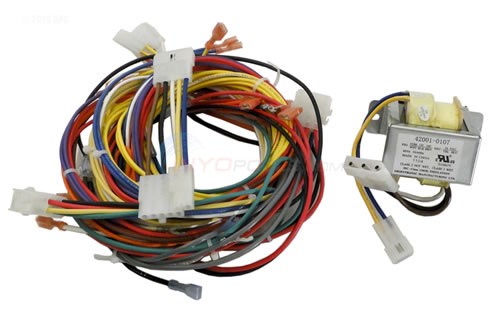

*	HEATER WIRING HARNESS 115/230V
*	Pentair Pool & Spa 2 PK/ Half Union 2" Slip

View Parts List

Diagram #	Part Title
2	HEATER DISPLAY COVER
3	IGNITOR BRACKET
4	IGNITOR/IGNITOR GASKET KIT (INCLUDES KEYS 4, 5)
5	IGNITOR GASKET
7	AUTOMATIC GAS SHUT OFF
8	HI LIMIT SWITCH
9	THERMISTER
10	TERMINAL STRIP
11	FUSE 1.25 AMP
12	IGNITION CONTROL MODULE (42001-0052S)
13	TRANSFORMER,115/230V
14	AIR FLOW SWITCH
15	Control Board Kit Basic (42002-0007s)
17	HEATER,TOP
18	MEMBRANE PAD (NA,LP SERIES)
19	SENSOR,FLUE TEMP
*	HEATER WIRING HARNESS 115/230V
*	Pentair Pool & Spa 2 PK/ Half Union 2" Slip

Available Parts:

Part # 6291-008 Mfg # 42002-0035

HEATER DISPLAY COVER

NOT AVAILABLE

Part # 6290-030 Mfg # 42001-0030S

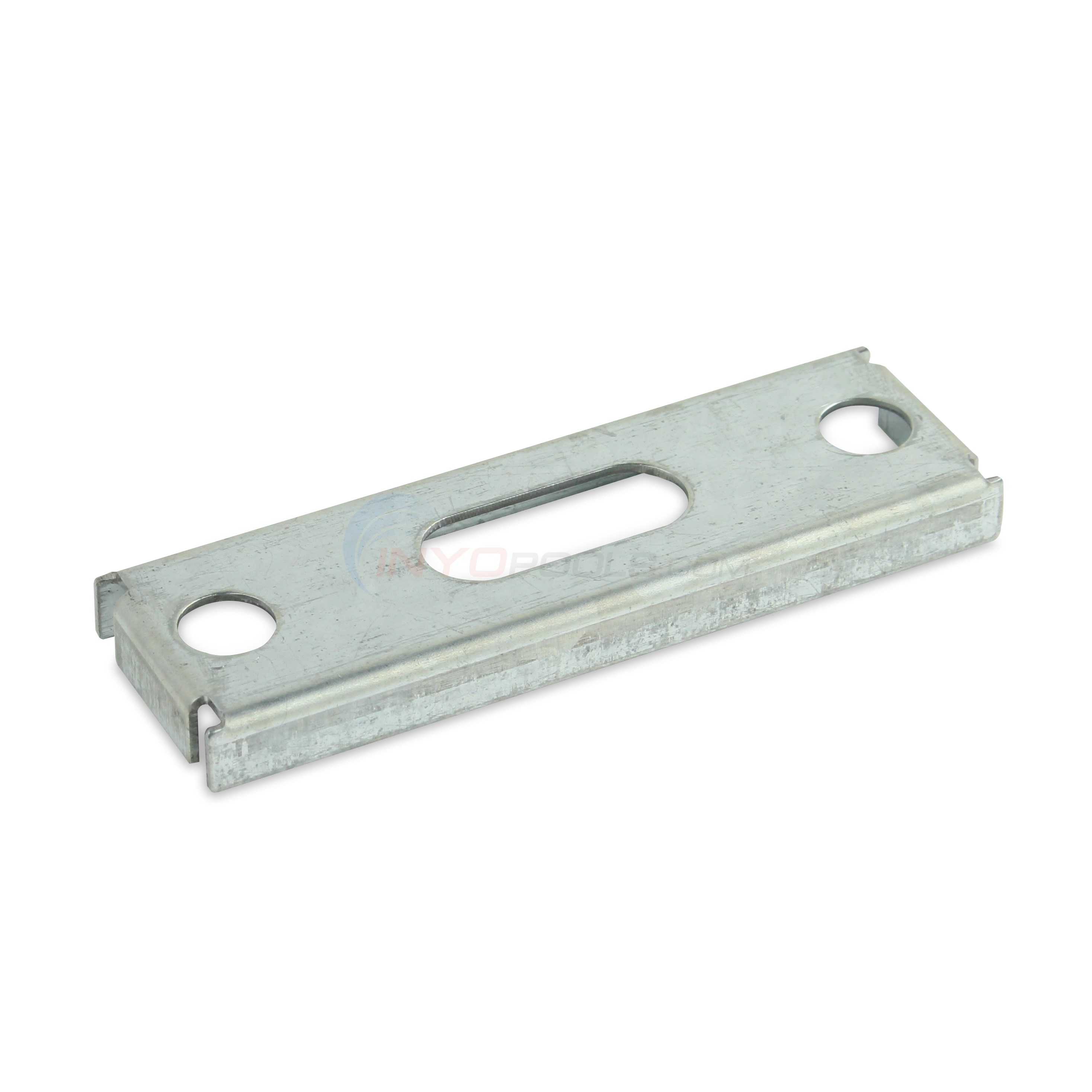

IGNITOR BRACKET

$87.99 IN STOCK
