Control Board Kit Basic - 42002-0007S replaced by 461105

Part # 6291-150

By Pentair Pool Products

  4 Average

Details

Top

Part # 6291-150

Manufacturer Code 461105

Dimensions 6.5" L x 3.5" W x 1.5" D

Alternate Part #'s 42002-0007S, 420020007S, 461105

Product Description

INYO # 6291-150 PENTAIR # 42002-0007S

************************************************

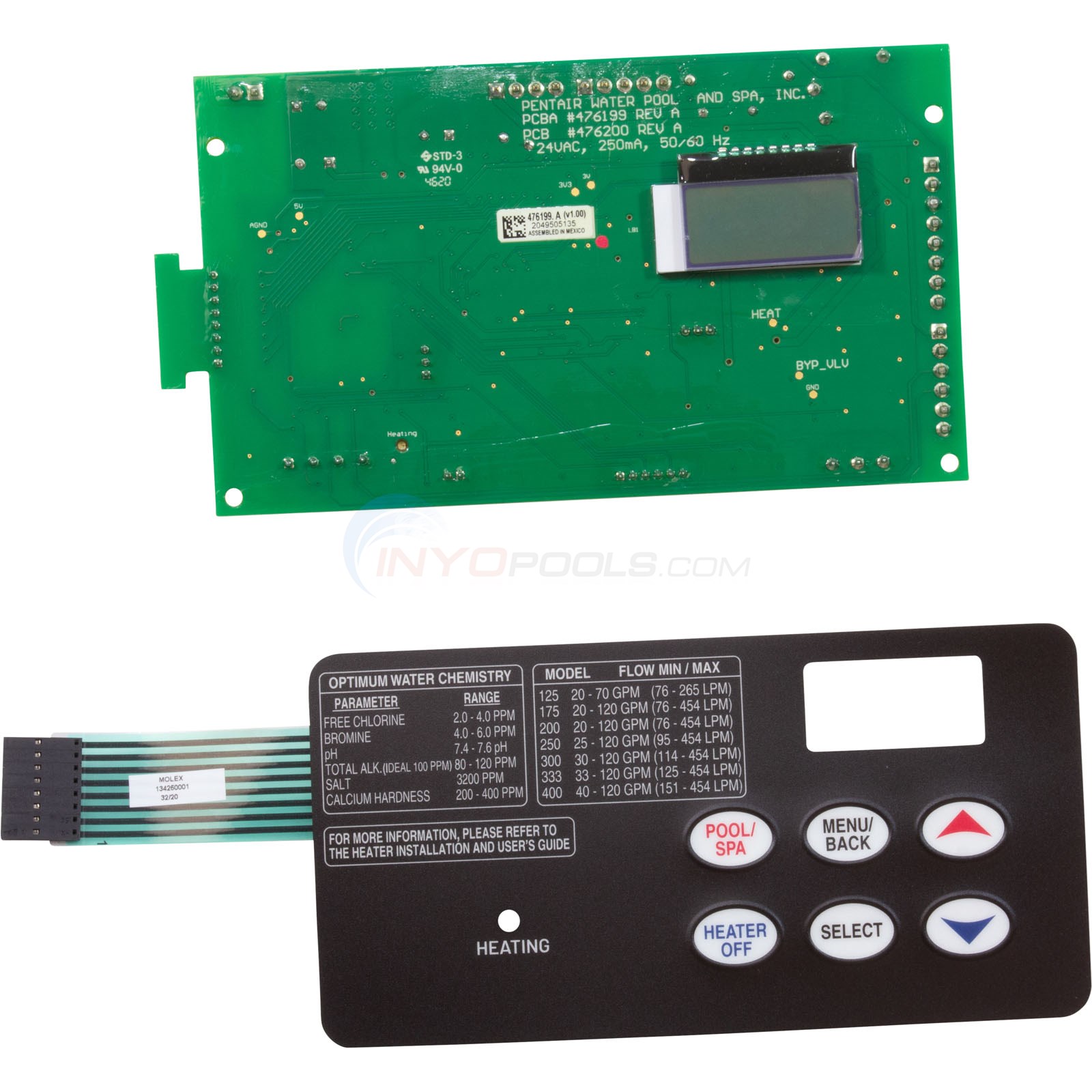

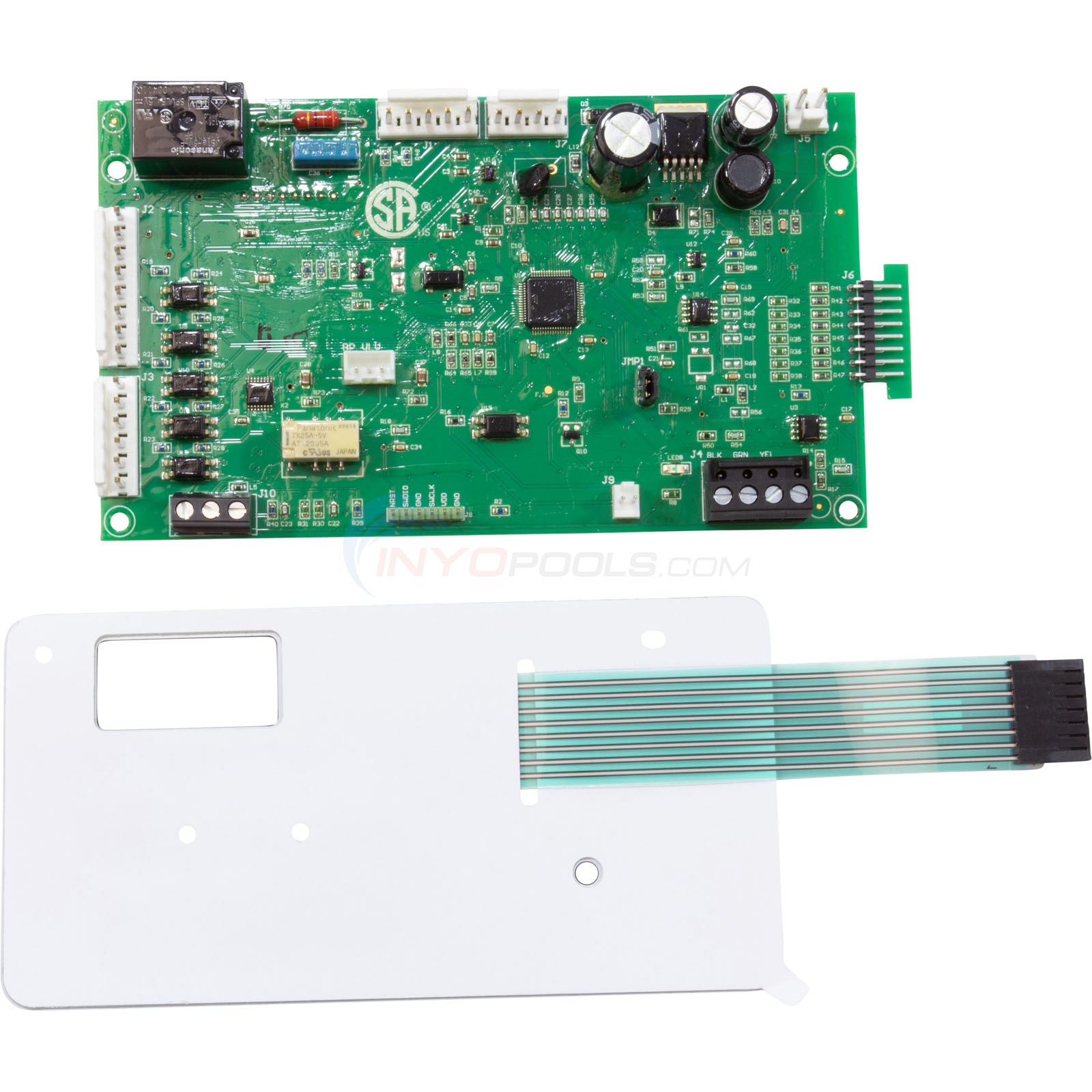

GENERAL DESCRIPTION: RECTANGULAR CIRCUIT BOARD GREEEN BOARD COLOR THIS IS USED IN THE PENTAIR MASTER TEMP HEATER THE BOARD HAS 2 MALE CONNECTORS AT ONE END ONE IS 6 PINS, THE OTHER IS 8 THERE ARE 3 MALE CONNECTORS ON ONE SIDE THESE ARE 5, 4, AND 2 PINS THERE A CONNECTOR WITH 10 SMALLER PINS ON ONE SIDE THERE IS ONE 6 PIN CONNECTOR WHICH EXTENDS AT ONE END

************************************************

DIMENSION: LENGTH: 6" (NOT INLUDING THE SHORT EXTENSION) WIDTH: 3-1/2"

************************************************

MARKINGS: 42002-0007S IS ON THE LABEL

Top

?     Asked on 2/7/2022by STEVE

IS THIS THE SAME PART FOR A MASTERTEMP 250?
 Reply

A  Answered on 2/7/2022 by InyoPools Product Specialist Craig C.

Hello Steve.  The Pentair Pool Products Control Board Kit 42002-0007S is compatible with the Pentair MasterTemp 250 gas heater.  Attached please find an exploded parts diagram for the Pentair MasterTemp Heater Electrical System for reference (part #15).  Pentair MasterTemp Heater Electrical System
 Reply


?     Asked on 5/5/2021by Juan

Have a mastertemp 400 and need to replace the control board. My P/N is 42002-007 REV N ,will the 42002-0007S work in its place?
 Reply

A  Answered on 5/5/2021 by InyoPools Product Specialist Patrick P.

Hi Juan, Yes this 42002-0007S is the proper replacement for the Mastertemp 400 Heater.
 Reply


?     Asked on 9/22/2020by Inyo Visitor

Is this correct part for Pentair Mastertemp Pool and Spa Heater Model # 460731?
 Reply

A  Answered on 9/22/2020 by InyoPools Product Specialist Matt S.

Yes, the Control Board Kit (42002-0007S) is the correct replacement main PCB for your Pentair MasterTemp
 Reply


?     Asked on 11/7/2019by JT

Have a mastertemp 400 and need to replace the control board. My P/N is 42002-0007,,,will the 42002-0007S work in its place?
 Reply

A  Answered on 11/8/2019 by InyoPools Product Specialist Lennox H.

Hi, JT. Yes, this is the correct Control Board for your MasteTemp heater.
 Reply


?     Asked on 8/10/2019by Inyo Visitor

Will this work to replace a board marked “Rev C” ?
 Reply

A  Answered on 8/15/2019 by Industry Professional

As long as you have a Starite Max E therm or Pentair MasterTemp, then yes it should be the latest revision.
 Reply


?     Asked on 10/14/2016by Pedro M Vasquez

Hi, is this the replacement for the Sta Rite Max E Therm Control Board Kit 42001-0096s? Is the same item?
 Reply

A  Answered on 10/14/2016 by InyoPools Product Specialist Stacey M.

Hello Pedro, the control board for Sta Rite Max E Therm Control Board 42001-0096s is part number 6290-160.
 Reply


?     Asked on 4/6/2016by webb

how long is warranty on pentair heater parts
 Reply

A  Answered on 4/7/2016 by InyoPools Product Specialist Lennox H.

Hi Webb, The manufacture does warrant this product for 60 day once installed by a pool professional.
 Reply
