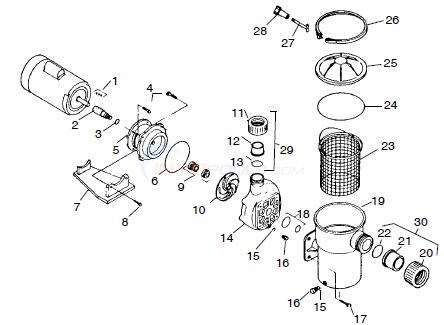

Premier 556N Series Pump Parts

Click to zoom in

Diagram #	Part Title
1	SCREW, EXTENDED SHAFT (EACH)
2	EXTENSION SHAFT, BRONZE (150)
3	No Longer Available O-RING Replace With 3262-08
4	No Longer Available BOLT 3/8-16 X ¾" Replace With 6916-0
5	OBSOLETE ADAPTER NORYL 500
6	O-RING
7	OBSOLETE BASE ABS
8	SCREW HEX HEAD (HEX HEAD SCREW)
9	SEAL, PUMP 1000 (PSR 1000)
10	OBSOLETE IMPELLER ½ HP 500
11	NUT, UNION 1 1/2IN
12	TAILPIECE, 1 1/2IN (91431050)
13	O-RING (226)
14	OBSOLETE VOLUTE NORYL 500
15	O-RING OD 11/16"
16	PLUG,DRAIN (33-717)
17	SCREW, CAP 5/16-18 X 3/4IN
18	O-RING (229) (355330)
19	TRAP BODY PREMIER 6

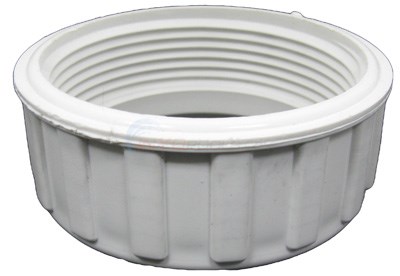

20	NUT, UNION 2IN (22-P1-3057-WHT)
21	UNION, MALE END 1 1/2" S/2"SPG
22	O-RING, 2" UNION (7404-03)
23	No Longer Available BASKET 6" Replace With 5400-B034
24	No Longer Available O-RING 6" Replace With 5050-14A
25	OBSOLETE COVER 6"
26	OOBSOLETE CLAMP RING 6"
27	OBSOLETE TEE BOLT
28	OBSOLETE TEE HANDLE 6"
29	UNION, PUMP, 1-1/2" NUT X 1-1/2" SLIP (400-4060)

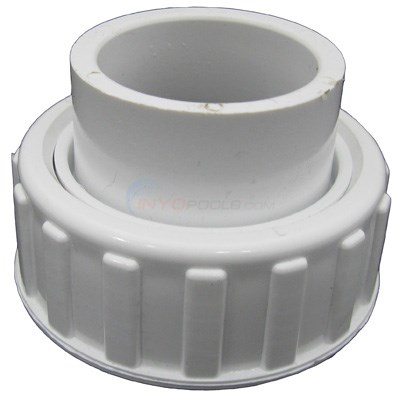

30	UNION ASSY., 2"NUT X 1.5"TAIL
31	MOTORS - 56C KEYED
