Premier Renegade Spa Pump Parts

MODEL 756
ALSO SOLD BY WATERWAY

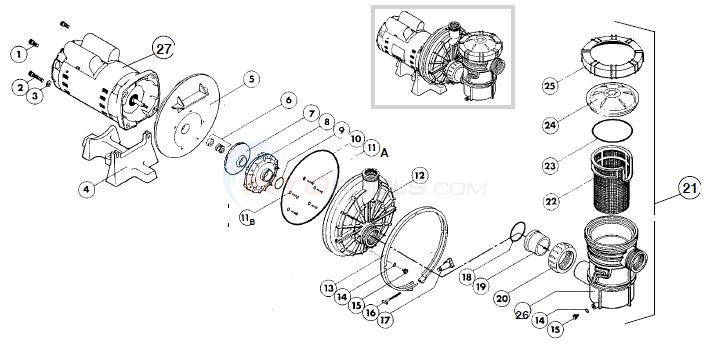

Premier Renegade Spa Pump Diagram

Click to zoom in

Diagram #	Part Title
1	SCREW HEX HEAD (HEX HEAD SCREW)
2	OBSOLETE BOLT, HEX HEAD
3	WASHER SS 7/16"ID X 7/8"OD (SAMPLE W-7)
4	OBSOLETE BASE, 700 SERIES
5	OBSOLETE VOLUTE, BACK HALF
6	SEAL, PUMP 201 (PSR201) (PS201)
7	OBSOLETE IMPELLER, 3/4HP
8	OBSOLETE DIFFUSER ASSY
9	O-RING (226)
10	OBSOLETE O-RING, VOLUTE
11A	SCREW, CAP (SAMPLE S-3) (U30542SS)
12A	OBSOLETE VOLUTE, FRONT HALF
13	No Longer Available CLAMP ASSY Replace With 5056-12A
14	O-RING OD 11/16"
15	PLUG,DRAIN (33-717)
16	OBSOLETE BOLT, TEE
17	OBSOLETE KNOB, HAND
18	O-RING (229) (355330)
19	TAILPIECE, UNION 2IN
20	NUT, UNION COMPRESSION 2IN
21*	No Longer Available TRAP Replace With 5081-20A
22	BASKET, PUMP (070387)
23	O-RING, LID 6IN
24	COVER, POT 6" LEXAN (33-488)
25	OBSOLETE RING, TRAP THREADED
26	No Longer Available TRAP BODY Replace With 5081-20A
27	A.O. Smith 1 H.P Square Flange Dual Speed Up Rate Motor
27	3/4 HP Square Flange Dual Speed Full Rate Motor 115V
27	Motor, Sq Fl E-plus,full,2 Speed 230v 3/4 Hp

View Parts List

Diagram #	Part Title
1	SCREW HEX HEAD (HEX HEAD SCREW)
2	OBSOLETE BOLT, HEX HEAD
3	WASHER SS 7/16"ID X 7/8"OD (SAMPLE W-7)
4	OBSOLETE BASE, 700 SERIES
5	OBSOLETE VOLUTE, BACK HALF
6	SEAL, PUMP 201 (PSR201) (PS201)
7	OBSOLETE IMPELLER, 3/4HP
8	OBSOLETE DIFFUSER ASSY
9	O-RING (226)
10	OBSOLETE O-RING, VOLUTE
11A	SCREW, CAP (SAMPLE S-3) (U30542SS)
12A	OBSOLETE VOLUTE, FRONT HALF
13	No Longer Available CLAMP ASSY Replace With 5056-12A
14	O-RING OD 11/16"
15	PLUG,DRAIN (33-717)
16	OBSOLETE BOLT, TEE
17	OBSOLETE KNOB, HAND
18	O-RING (229) (355330)
19	TAILPIECE, UNION 2IN
20	NUT, UNION COMPRESSION 2IN
21*	No Longer Available TRAP Replace With 5081-20A
22	BASKET, PUMP (070387)
23	O-RING, LID 6IN
24	COVER, POT 6" LEXAN (33-488)
25	OBSOLETE RING, TRAP THREADED
26	No Longer Available TRAP BODY Replace With 5081-20A
27	A.O. Smith 1 H.P Square Flange Dual Speed Up Rate Motor
27	3/4 HP Square Flange Dual Speed Full Rate Motor 115V
27	Motor, Sq Fl E-plus,full,2 Speed 230v 3/4 Hp

Available Parts:

SCREW HEX HEAD (HEX HEAD SCREW)

Part # 6901-0 Mfg # 354290

SCREW HEX HEAD (HEX HEAD SCREW)

$7.06 IN STOCK

Qty:

2

OBSOLETE BOLT, HEX HEAD

Mfg # 90-601

OBSOLETE BOLT, HEX HEAD

NOT AVAILABLE

WASHER SS 7/16"ID X 7/8"OD (SAMPLE W-7)

Part # 6982-0 Mfg # 072184

WASHER SS 7/16"ID X 7/8"OD (SAMPLE W-7)

$3.32 IN STOCK

Qty:

4

OBSOLETE BASE, 700 SERIES

Mfg # 31-249

OBSOLETE BASE, 700 SERIES

NOT AVAILABLE

5

OBSOLETE VOLUTE, BACK HALF

Mfg # 31-791

OBSOLETE VOLUTE, BACK HALF

NOT AVAILABLE

SEAL, PUMP 201 (PSR201) (PS201)

Part # 5250-102 Mfg # PS-201

SEAL, PUMP 201 (PSR201) (PS201)

$9.19 IN STOCK

Qty:

7

OBSOLETE IMPELLER, 3/4HP

Mfg # 31-421

OBSOLETE IMPELLER, 3/4HP

NOT AVAILABLE

7

OBSOLETE IMPELLER, 1HP

Mfg # 31-422

OBSOLETE IMPELLER, 1HP

NOT AVAILABLE

7

OBSOLETE IMPELLER, 1 1/2HP

Mfg # 31-423

OBSOLETE IMPELLER, 1 1/2HP

NOT AVAILABLE

7

OBSOLETE IMPELLER, 2HP

Mfg # 31-424

OBSOLETE IMPELLER, 2HP

NOT AVAILABLE

7

IMPELLER, 3HP

Mfg # 31-425

IMPELLER, 3HP

NOT AVAILABLE

8

OBSOLETE DIFFUSER ASSY

Mfg # 31-417

OBSOLETE DIFFUSER ASSY

NOT AVAILABLE

O-RING (226)

Part # 5056-11 Mfg # O-49

O-RING (226)

$9.77 IN STOCK

Qty:

10

OBSOLETE O-RING, VOLUTE

Mfg # 31-420

OBSOLETE O-RING, VOLUTE

NOT AVAILABLE

SCREW, CAP (SAMPLE S-3) (U30542SS)

Part # 5056-22 Mfg # SAMPLE S-3

SCREW, CAP (SAMPLE S-3) (U30542SS)

$3.89 IN STOCK

Qty:

LOCK WASHER

Part # 5056-23 Mfg # SAMPLE W-4

LOCK WASHER

$2.95 IN STOCK

Qty:

12A

OBSOLETE VOLUTE, FRONT HALF

Mfg # 31-790

OBSOLETE VOLUTE, FRONT HALF

NOT AVAILABLE

12B

OBSOLETE VOLUTE, FRONT HALF

OBSOLETE VOLUTE, FRONT HALF

NOT AVAILABLE

13

No Longer Available CLAMP ASSY Replace With <a class="productlink" href="http://www.inyopools.com/Products/07501352014507.htm">5056-12A</a>

Mfg # 33-102

No Longer Available CLAMP ASSY Replace With 5056-12A

NOT AVAILABLE

CLAMP, TANK BODY (V26-351)

Part # 5056-12A Mfg # C119-37S

CLAMP, TANK BODY (V26-351)

$132.58 IN STOCK

Qty:

O-RING OD 11/16"

Part # 3262-08 Mfg # 112

O-RING OD 11/16"

$3.66 IN STOCK

Qty:

PLUG,DRAIN (33-717)

Part # 9172-10 Mfg # 760-1201B

PLUG,DRAIN (33-717)

$15.98 IN STOCK

Qty:

16

OBSOLETE BOLT, TEE

Mfg # 90-297

OBSOLETE BOLT, TEE

NOT AVAILABLE

17

OBSOLETE KNOB, HAND

Mfg # 27-494

OBSOLETE KNOB, HAND

NOT AVAILABLE

O-RING (229) (355330)

Part # 5002-21

O-RING (229) (355330)

$12.02 IN STOCK

Qty:

TAILPIECE, UNION 2IN

Part # 5081-19 Mfg # 417-5120

TAILPIECE, UNION 2IN

$13.84 IN STOCK

Qty:

NUT, UNION COMPRESSION 2IN

Part # 5081-20 Mfg # 415-5000

NUT, UNION COMPRESSION 2IN

$18.11 IN STOCK

Qty:

21*

No Longer Available TRAP Replace With <a class="productlink" href="http://www.inyopools.com/Products/07501352027521.htm">5081-20A</a>

Mfg # NOT AVAILABLE

No Longer Available TRAP Replace With 5081-20A

NOT AVAILABLE

BASKET, PUMP (070387)

Part # 5400-B199 Mfg # B-199

BASKET, PUMP (070387)

$20.35 IN STOCK

Qty:

O-RING, LID 6IN

Part # 5050-14A Mfg # 437

O-RING, LID 6IN

$13.14 IN STOCK

Qty:

COVER, POT 6" LEXAN (33-488)

Part # 5080-14D

COVER, POT 6" LEXAN (33-488)

$35.16

25

OBSOLETE RING, TRAP THREADED

Mfg # 31-740

OBSOLETE RING, TRAP THREADED

NOT AVAILABLE

26

No Longer Available TRAP BODY Replace With <a class="productlink" href="http://www.inyopools.com/Products/07501352027521.htm">5081-20A</a>

Mfg # 319-3240

No Longer Available TRAP BODY Replace With 5081-20A

NOT AVAILABLE

A.O. Smith 1 H.P Square Flange Dual Speed Up Rate Motor

Part # UQS1102R Mfg # UQS1102R

A.O. Smith 1 H.P Square Flange Dual Speed Up Rate Motor

$330.63

Service Factor 1.25 Voltage 230 Max Amps 7.3/2.6 Frame 48Y

Service Factor 1.25 Voltage 230 Max Amps 7.3/2.6 Frame 48Y

A.O. Smith 1 1/2 H.P Square Flange Dual Speed Up Rate Motor

Part # UQS1152R Mfg # SQS1102R

A.O. Smith 1 1/2 H.P Square Flange Dual Speed Up Rate Motor

$447.36 IN STOCK

Service Factor 1.1 Voltage 230 Max Amps 9.5/2.5 Frame 48Y

Service Factor 1.1 Voltage 230 Max Amps 9.5/2.5 Frame 48Y

Qty:

A.O. Smith 2 HP Square Flange 2-Speed Up Rate Motor

Part # UQS1202R Mfg # UQS1202R

A.O. Smith 2 HP Square Flange 2-Speed Up Rate Motor

$575.53

Service Factor 1.1 Voltage 230 Max Amps 10.4/3.3 Frame 48Y

Service Factor 1.1 Voltage 230 Max Amps 10.4/3.3 Frame 48Y

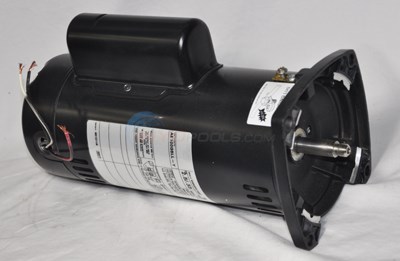

MOTOR, 2-SPEED, 48Y SQ FL, UPRATE, 2 1/2 HP

Part # 5285-04 Mfg # AE100G5LL-Y

MOTOR, 2-SPEED, 48Y SQ FL, UPRATE, 2 1/2 HP

$429.12

Service Factor 1.1 Voltage 230 Max Amps 11.4/4.1 Frame 48Y

Service Factor 1.1 Voltage 230 Max Amps 11.4/4.1 Frame 48Y

3/4 HP Square Flange Dual Speed Full Rate Motor 115V

Part # SQL1072R Mfg # SQL1072R

3/4 HP Square Flange Dual Speed Full Rate Motor 115V

$433.14

Service Factor 1.85 Voltage 115 Max Amps 12/4 Frame 48Y

Service Factor 1.85 Voltage 115 Max Amps 12/4 Frame 48Y

3/4 H.P Square Flange Dual Speed Full Rate Motor 220V

Part # SQS1072R Mfg # SQS1072R

3/4 H.P Square Flange Dual Speed Full Rate Motor 220V

$328.62

Service Factor 1.65 Voltage 230 Max Amps 7.3/2.6 Frame 48Y

Service Factor 1.65 Voltage 230 Max Amps 7.3/2.6 Frame 48Y

1 H.P Square Flange Dual Speed Full Rate Motor

Part # SQS1102R Mfg # SQS1102R

1 H.P Square Flange Dual Speed Full Rate Motor

$448.31 IN STOCK

Service Factor 1.65 Voltage 230 Max Amps 9.5/2.5 Frame 48Y

Service Factor 1.65 Voltage 230 Max Amps 9.5/2.5 Frame 48Y

Qty:

1 1/2 H.P Square Flange Dual Speed Full Rate Motor

Part # SQS1152R Mfg # SQS1152R

1 1/2 H.P Square Flange Dual Speed Full Rate Motor

$516.00 IN STOCK

Service Factor 1.47 Voltage 230 Max Amps 10.1/3.7 Frame 48Y

Service Factor 1.47 Voltage 230 Max Amps 10.1/3.7 Frame 48Y

Qty:

A.O. Smith 2 H.P Square Flange Dual Speed Full Rate Motor

Part # SQS1202R Mfg # SQS1202R

A.O. Smith 2 H.P Square Flange Dual Speed Full Rate Motor

$655.00 IN STOCK

Service Factor 1.3 Voltage 230 Max Amps 11.4/4.1 Frame 48Y

Service Factor 1.3 Voltage 230 Max Amps 11.4/4.1 Frame 48Y

Qty:

Motor, Sq Fl E-plus,full,2 Speed 230v 3/4 Hp

Part # 5280-5 Mfg # B2980

Motor, Sq Fl E-plus,full,2 Speed 230v 3/4 Hp

$374.85

Service Factor 1.67 Voltage 6.0/1 Max Amps 230 Frame 56Y

Service Factor 1.67 Voltage 6.0/1 Max Amps 230 Frame 56Y

3/4 HP Dual Spd. Motor - Full Rate

Part # B981 Mfg # B2981

3/4 HP Dual Spd. Motor - Full Rate

$390.00 IN STOCK

Service Factor 1.67 Voltage 14.6/4.7 Max Amps 115 Frame 56Y

Service Factor 1.67 Voltage 14.6/4.7 Max Amps 115 Frame 56Y

Qty:

1 HP Energy Efficient Dual Spd. Motor - Full Rate

Part # B2982 Mfg # B2982

1 HP Energy Efficient Dual Spd. Motor - Full Rate

$396.06 IN STOCK

Service Factor 1.65 Voltage 7.2/3.0 Max Amps 230 Frame 56Y

Service Factor 1.65 Voltage 7.2/3.0 Max Amps 230 Frame 56Y

Qty:

1.5 HP Dual Spd. Motor - Full Rate

Part # B983 Mfg # B2983

1.5 HP Dual Spd. Motor - Full Rate

$466.27 IN STOCK

Service Factor 1.47 Voltage 10.0/3.5 Max Amps 230 Frame 56Y

Service Factor 1.47 Voltage 10.0/3.5 Max Amps 230 Frame 56Y

Qty:

2 HP EE Dual Spd. Motor - Full Rate

Part # B2984 Mfg # B2984

2 HP EE Dual Spd. Motor - Full Rate

$574.00 IN STOCK

Service Factor 1.30 Voltage 11.0/4.0 Max Amps 230 Frame 56Y

Service Factor 1.30 Voltage 11.0/4.0 Max Amps 230 Frame 56Y

Qty:

* 5081-20A CURRENT STYLE TRAP
