American Products Side Mount 1 1/2" Models 501501 & 501601 Parts

MULTIPORT VALVE MODELS 501501 & 501601

SPECIAL NOTE : THIS VALVE IS VERY LARGE FOR A
1 1/2" VALVE. THE TOP COVER, KEY #6, IS ALMOST 7"
FROM THE FLAT SIDE TO THE OPPOSITE FLAT SIDE.

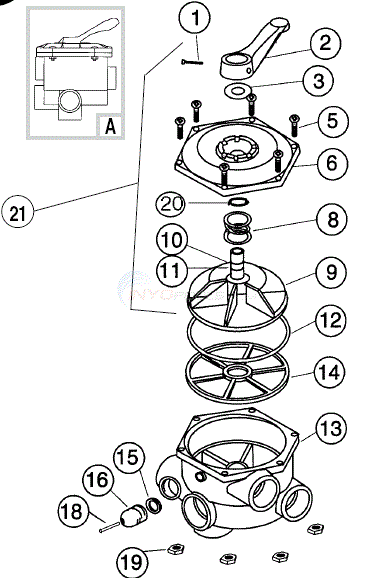

American Products Side Mount 1 1/2" Models 501501 & 501601 Diagram

Click to zoom in

Diagram #	Part Title
**	American Products MPV O-Ring Replacment Kit (Pre '76)
A	OBSOLETE COMPLETE VALVE SLIP
1	SCREW, HANDLE
2	HANDLE, AFT 275
3	WASHER
5	SCREW, PAN HEAD
6	LID, VALVE
8	Spring
9	ROTOR
10	RING, BACK UP, SPLIT, TEFLON
11	O-RING
12	O-RING, LID (SQUARE RING)
13	OBSOLETE BODY ONLY, SLIP
14	Spider Gasket 6 Spoke (Before 4-1-76)
15	WASHER, NEOPRENE
16	SIGHT GLASS
18	SCREW, SIGHT GLASS
19	NUT
20	WASHER, THRUST
21*	TOP ASSY.(LID, HANDLE, ROTOR)

View Parts List

Diagram #	Part Title
**	American Products MPV O-Ring Replacment Kit (Pre '76)
A	OBSOLETE COMPLETE VALVE SLIP
1	SCREW, HANDLE
2	HANDLE, AFT 275
3	WASHER
5	SCREW, PAN HEAD
6	LID, VALVE
8	Spring
9	ROTOR
10	RING, BACK UP, SPLIT, TEFLON
11	O-RING
12	O-RING, LID (SQUARE RING)
13	OBSOLETE BODY ONLY, SLIP
14	Spider Gasket 6 Spoke (Before 4-1-76)
15	WASHER, NEOPRENE
16	SIGHT GLASS
18	SCREW, SIGHT GLASS
19	NUT
20	WASHER, THRUST
21*	TOP ASSY.(LID, HANDLE, ROTOR)

Available Parts:

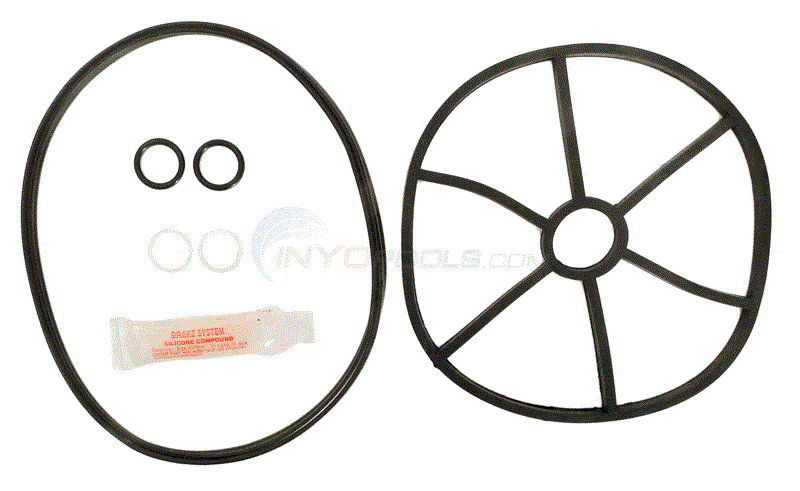

American Products MPV O-Ring Replacment Kit (Pre '76)

Part # APCK1011

American Products MPV O-Ring Replacment Kit (Pre '76)

$29.00 IN STOCK

Qty:

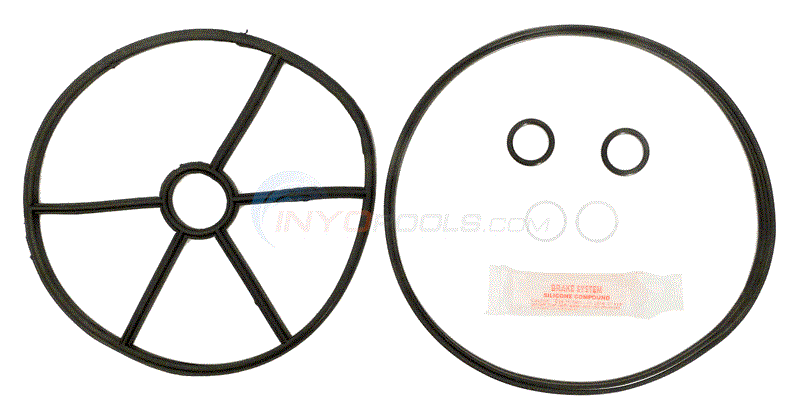

American Products MPV O-Ring Replacment Kit (Post '76)

Part # APCK1012

American Products MPV O-Ring Replacment Kit (Post '76)

$34.00

A

OBSOLETE COMPLETE VALVE SLIP

Mfg # 50150111

OBSOLETE COMPLETE VALVE SLIP

NOT AVAILABLE

A

OBSOLETE COMPLETE VALVE THREADED

Mfg # 50160111

OBSOLETE COMPLETE VALVE THREADED

NOT AVAILABLE

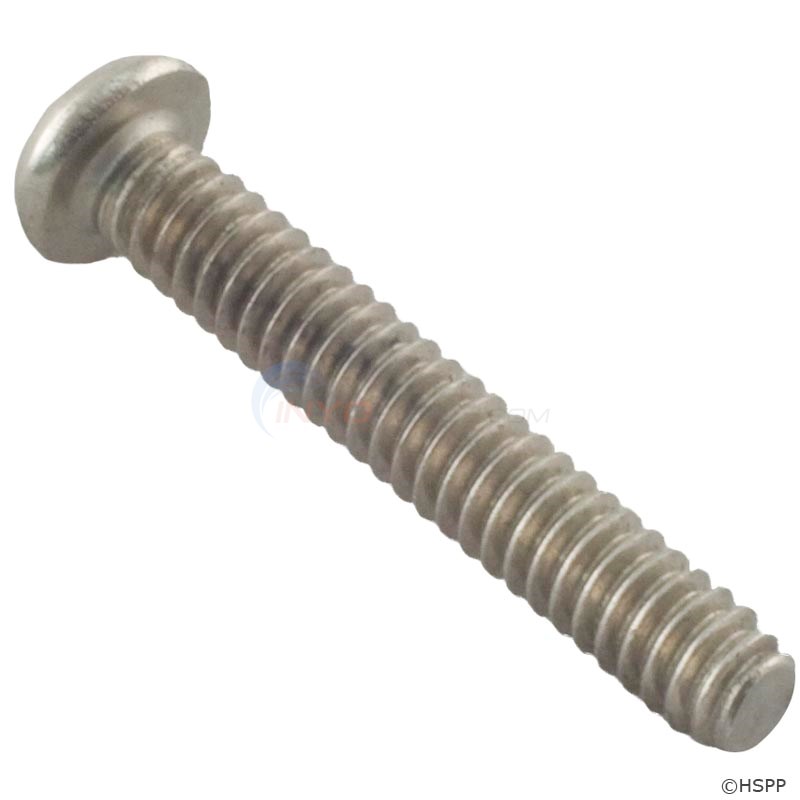

SCREW, HANDLE

Part # 4659-01 Mfg # 98201900

SCREW, HANDLE

$12.78 IN STOCK

Qty:

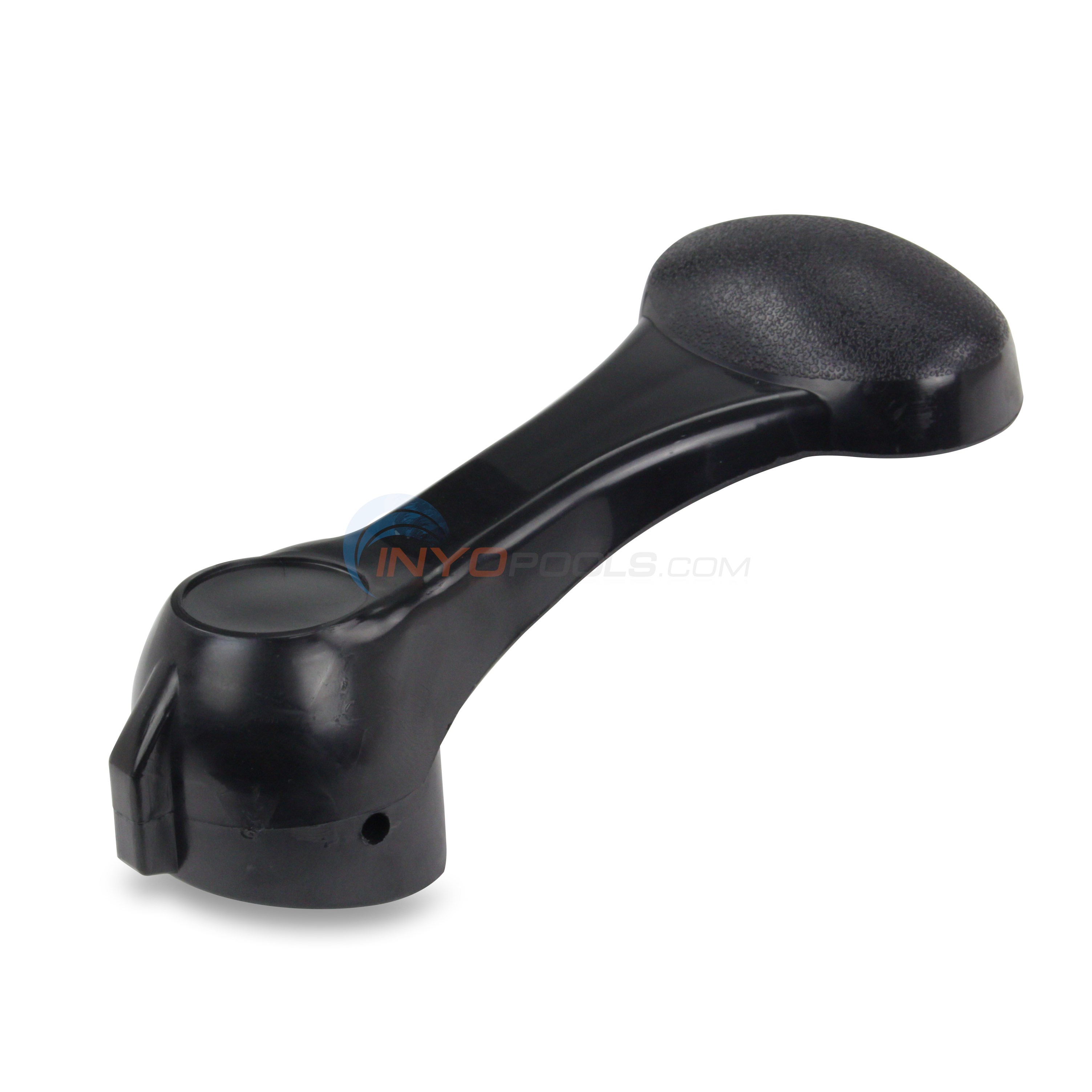

HANDLE, AFT 275

Part # 4659-02 Mfg # 51002700

HANDLE, AFT 275

$47.97

WASHER

Part # 4659-03 Mfg # AP510088

WASHER

$22.37

SCREW, PAN HEAD

Part # 4659-05 Mfg # 98209000

SCREW, PAN HEAD

$12.78 IN STOCK

Qty:

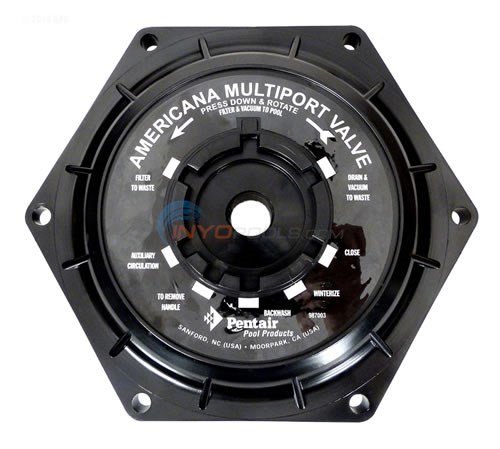

LID, VALVE

Part # 4659-06 Mfg # 51000511

LID, VALVE

$92.74

Spring

Part # 4659-08 Mfg # 51000700

Spring

$42.43

ROTOR

Part # 4659-09 Mfg # 51001100

ROTOR

$42.08

RING, BACK UP, SPLIT, TEFLON

Part # 4659-10 Mfg # AP510013

RING, BACK UP, SPLIT, TEFLON

$14.91 IN STOCK

Qty:

O-RING

Part # 3260-C140 Mfg # 113

O-RING

$4.20 IN STOCK

Qty:

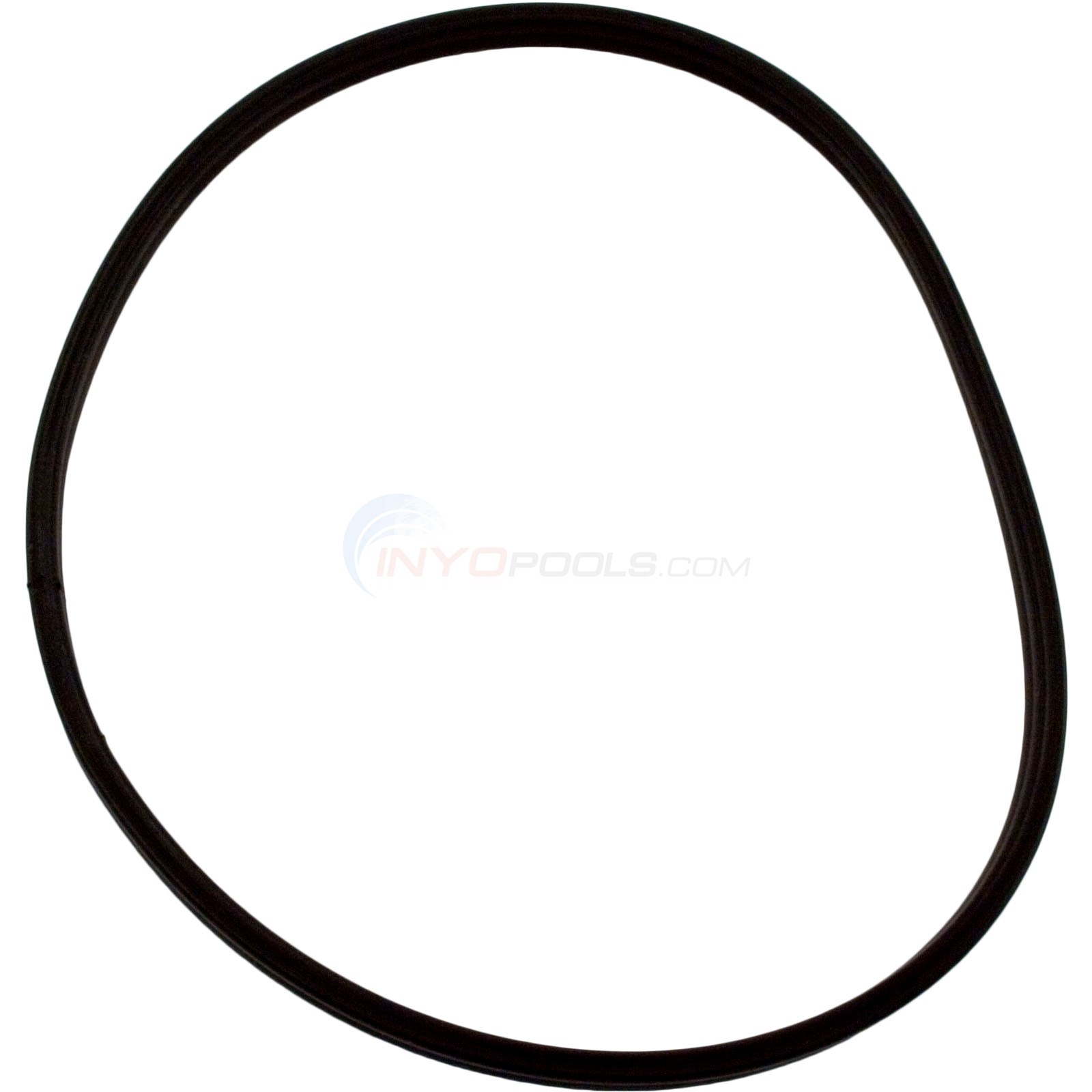

O-RING, LID (SQUARE RING)

Part # 4659-12 Mfg # O-389

O-RING, LID (SQUARE RING)

$19.38 IN STOCK

Qty:

13

OBSOLETE BODY ONLY, SLIP

Mfg # 51000200

OBSOLETE BODY ONLY, SLIP

NOT AVAILABLE

13

OBSOLETE BODY ONLY, THREADED

Mfg # 51000300

OBSOLETE BODY ONLY, THREADED

NOT AVAILABLE

Spider Gasket 6 Spoke (Before 4-1-76)

Part # 4659-14 Mfg # AP510084

Spider Gasket 6 Spoke (Before 4-1-76)

$33.43 IN STOCK

Qty:

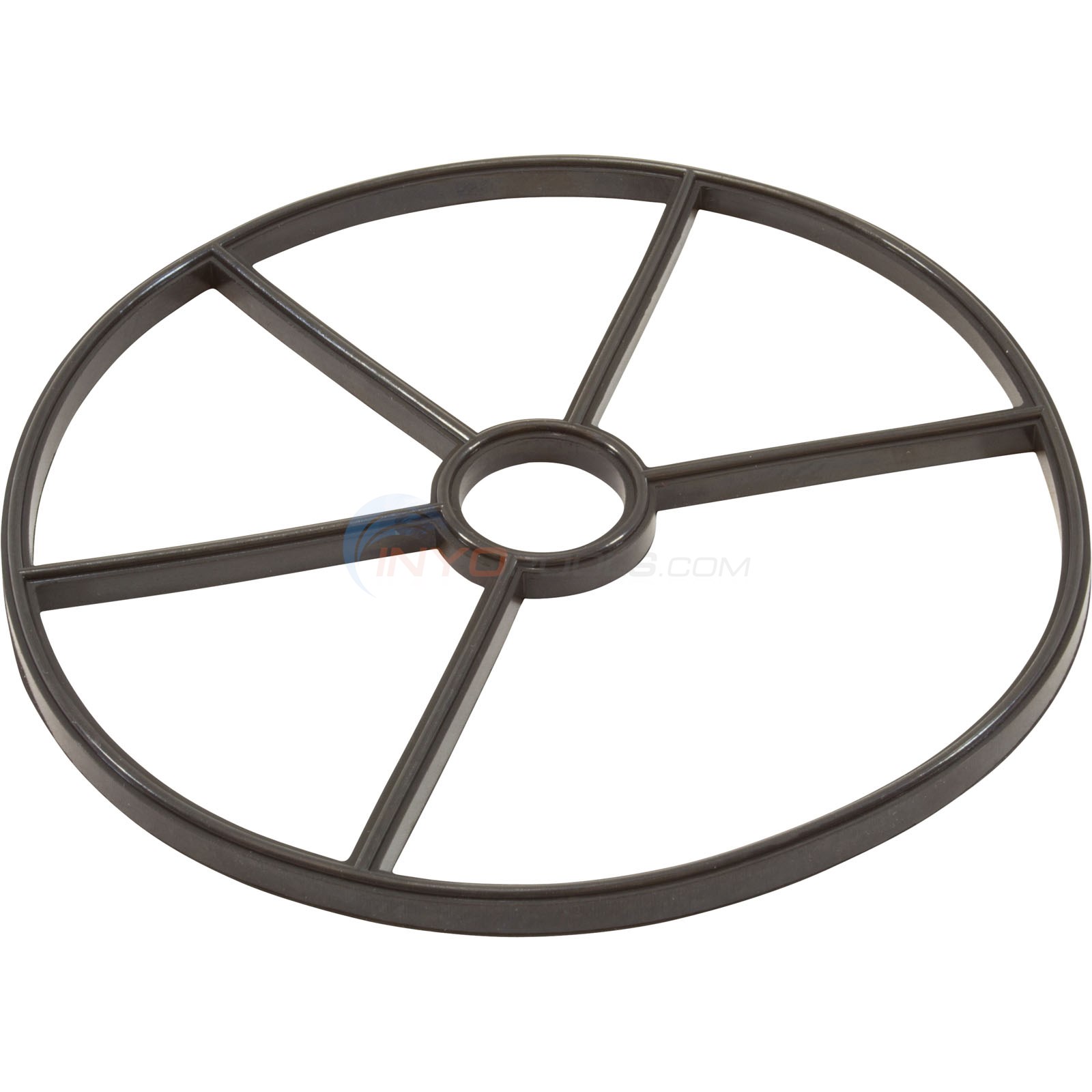

Spider Gasket 5 Spoke (After 4-1-76)

Part # 27-110-1182 Mfg # 51008400

Spider Gasket 5 Spoke (After 4-1-76)

$26.99 IN STOCK

Qty:

WASHER, NEOPRENE

Part # 4659-15 Mfg # AP510018

WASHER, NEOPRENE

$19.18

SIGHT GLASS

Part # 4659-16 Mfg # 51001600

SIGHT GLASS

$12.54

SCREW, SIGHT GLASS

Part # 4659-18 Mfg # 98205000

SCREW, SIGHT GLASS

$11.71 IN STOCK

Qty:

NUT

Part # 4659-19 Mfg # 98211400

NUT

$12.78 IN STOCK

Qty:

WASHER, THRUST

Part # 4659-20 Mfg # 51021600

WASHER, THRUST

$22.15

TOP ASSY.(LID, HANDLE, ROTOR)

Part # 4659-19A Mfg # 51000111

TOP ASSY.(LID, HANDLE, ROTOR)

$210.84

* DOES NOT INCLUDE KEY #5 OR #19
**O-ring/Gasket Kit
