American Products Side Mount 2" M Series Parts

American Products Side Mount 2" M Series Diagram

Click to zoom in

Diagram #	Part Title
1	No Longer Available PIN, HANDLE Replace With 4700-02X
2	No Longer Available HANDLE Replace With 4600-1156
3	WASHER (51017900)

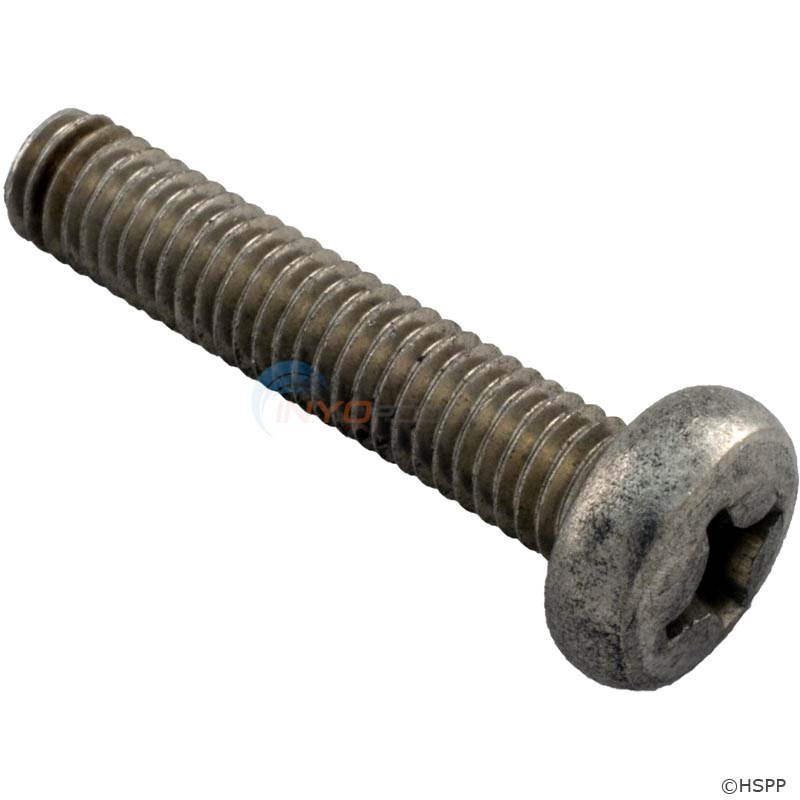

4	SCREW
5A	LID (NOT SOLD SEPARATELY) SEE KEY #16
5B	ROTOR (NOT SOLD SEPARATELY) SEE KEY #16
6	O-RING, LID
7	No Longer Available WASHER Replace With 4600-1160
8	No Longer Available SPRING Replace With 4600-1161
9	No Longer Available O-RING Replace With 4700-08A
10	No Longer Available GASKET, VALVE Replace With 4685-20
11	OBSOLETE BODY
12	No Longer Available GASKET Replace With 4600-1106

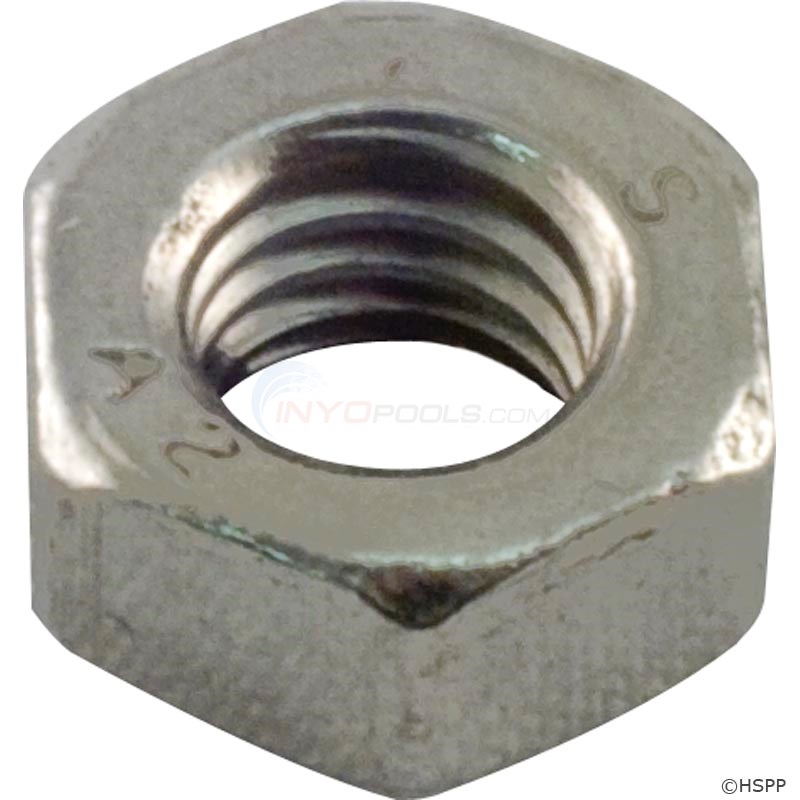

13	NUT
14	No Longer Available SIGHT GLASS Replace With 4600-2550
15	PLUG (51017500)
16	2" KEY, COVER, & HANDLE ASSY.
*	PLUG, 2" MPT
