Sta-Rite Great White Above Ground Parts

ABOVE GROUND MODEL GW9000

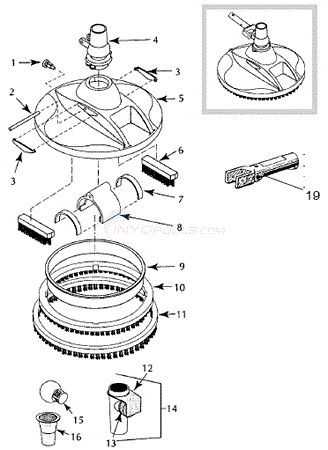

Sta-Rite Great White Above Ground Diagram

Click to zoom in

Diagram #	Part Title

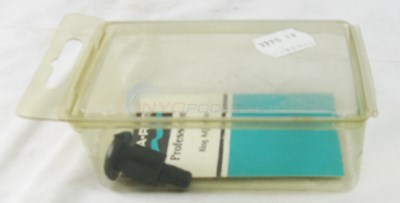

1	RING ADJUSTER
2	AXLE SHAFT

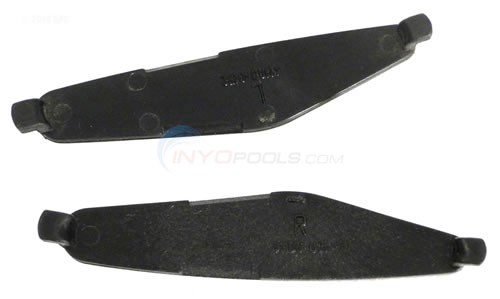

3	SIDE PLATES
4	SWIVEL ASSEMBLY
5	BODY, CLEANER
6	BRUSH, CENTER (PKG OF 2)
7	OSCILLATOR SEAL KIT (2 SEALS)
8	OSCILLATOR KIT

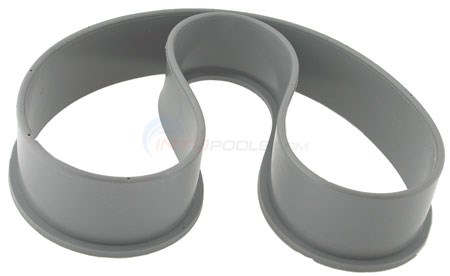

9	RUBBER VACUUM SKIRT
10	OBSOLETE INNER BRUSH RING
11	OBSOLETE OUTER BRUSH RING

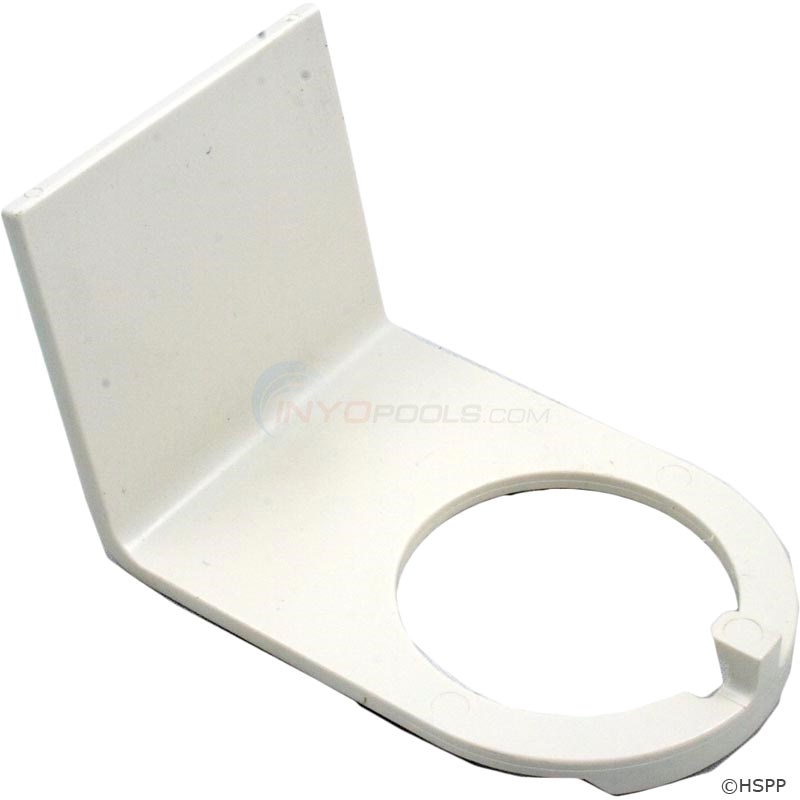

12	VACUUM REGULATOR SHIELD
13	VAC, REGULAR CAP (1 #50, 2 #60)
14	VACUUM REGULAR KIT
15	FLOW DIRECTOR
16	REDUCER CONE
19	HANDLE, SNAP-ADAPT
*	No Longer Available 8’ HOSE Replace With 3290-16E
*	CUFF, HOSE FOR 1 1/2" HOSE
*	OBSOLETE FEM X FEM ADAPTER HOSE
*	VACUUM HOSE 32' (INGROUND) WG
*	VACUUM HOSE, 20'
*	VACUUM HOSE - 8' EXTENSION (INGROUND) WG
*	VACUUM HOSE, 4'

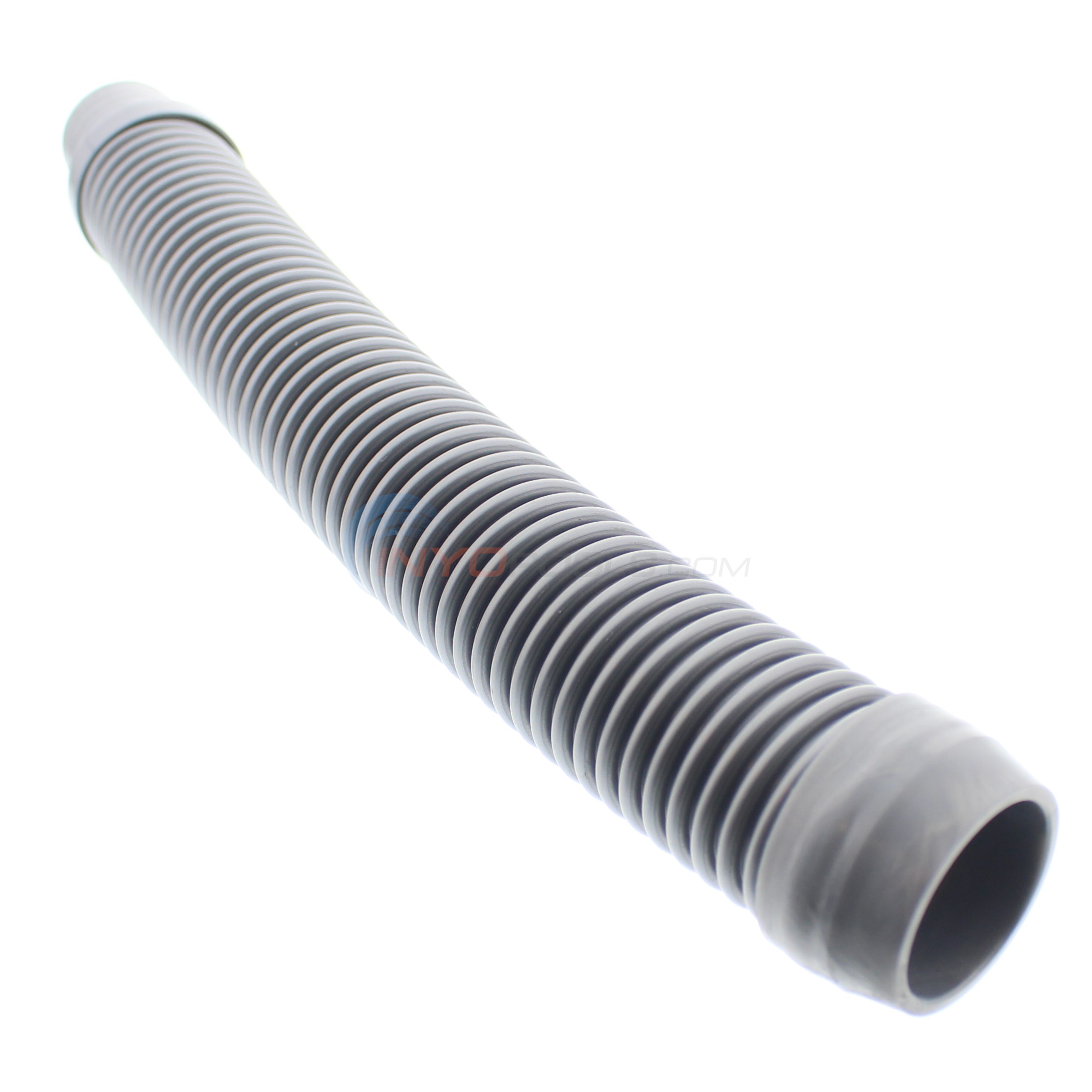

*	SHORT EXTENSION HOSE
