Urbania 8' Round 52" Wall (Steel Top Rail, Steel Upright) Parts

Model PURB-52SSSTSSFC0

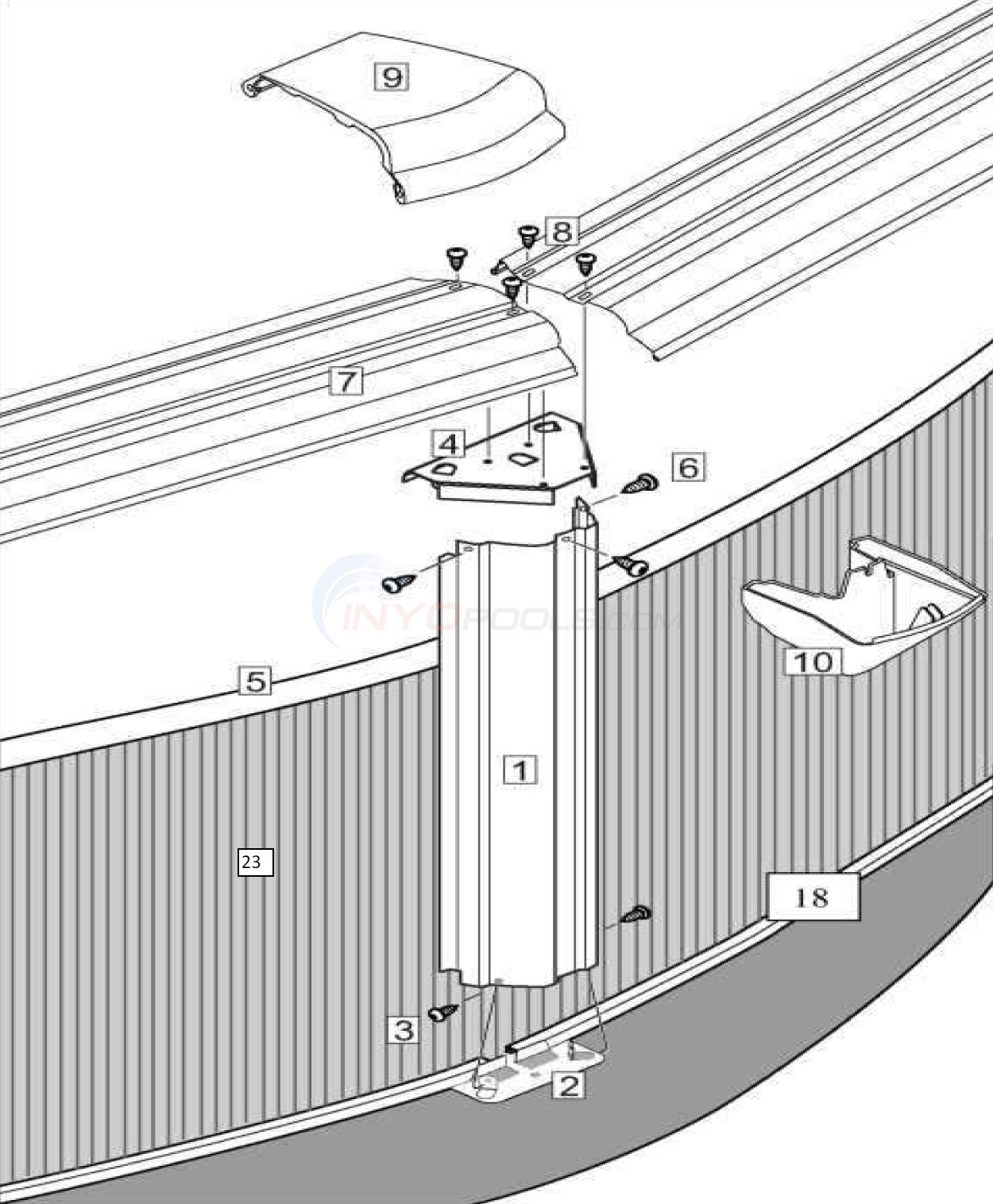

Urbania 8' Round 52" Wall (Steel Top Rail, Steel Upright) Diagram

Click to zoom in

Diagram #	Part Title
1	Upright 51-1/2" - Steel (Single)
2	Atlantis Base Plate (Single) For Atlantis, Esprit, Esprit GLX, Urbania, Caribbean, Classic, Evolutio
4	Top Plate (Single)
7	Top Ledge 25-25/32" Urbania (single)
9	Upper Top Cap Urbania (Single)
10	Lower Top Cap Urbania (Single)
18	Bottom Rail 24-5/8" Urbania (Single)
*	6" slotted tube connector (Single)
*	47" Round Coping For Atlantic Pools

View Parts List

Diagram #	Part Title
1	Upright 51-1/2" - Steel (Single)
2	Atlantis Base Plate (Single) For Atlantis, Esprit, Esprit GLX, Urbania, Caribbean, Classic, Evolutio
4	Top Plate (Single)
7	Top Ledge 25-25/32" Urbania (single)
9	Upper Top Cap Urbania (Single)
10	Lower Top Cap Urbania (Single)
18	Bottom Rail 24-5/8" Urbania (Single)
*	6" slotted tube connector (Single)
*	47" Round Coping For Atlantic Pools
