Waterco Micron Side Mount Filter Parts

SM500 20”; SM600 24”; SM750 30”; SM900 36”

Waterco Micron Side Mount Filter Diagram

Click to zoom in

Diagram #	Part Title
2	8"" CLEAR LID
3	LID LOCKING RING
4	LID O-RING
5	Bottom Mount Pressure Gauge 0-60 1/4" NPT (101D-204D)
6	AIR BLEED SCREEN
7	AIR BLEED ASSY.
8	WATER DIFFUSER
9	LATERAL CAP
10	LATERAL, 75 MM
11	PORT ASSEMBLY, 1-1/2
15	HALF BARREL UNION HYDRON (122243)
*	AIR RELIEF VALVE (NOT SHOWN)
*	DRAIN ASSY
*	Side Mount Valve Package
*	1-1/2" Side Mount Valve Pkge (wc229042a)
*	2" Side Mount Valve With Plumbing

View Parts List

Diagram #	Part Title
2	8"" CLEAR LID
3	LID LOCKING RING
4	LID O-RING
5	Bottom Mount Pressure Gauge 0-60 1/4" NPT (101D-204D)
6	AIR BLEED SCREEN
7	AIR BLEED ASSY.
8	WATER DIFFUSER
9	LATERAL CAP
10	LATERAL, 75 MM
11	PORT ASSEMBLY, 1-1/2
15	HALF BARREL UNION HYDRON (122243)
*	AIR RELIEF VALVE (NOT SHOWN)
*	DRAIN ASSY
*	Side Mount Valve Package
*	1-1/2" Side Mount Valve Pkge (wc229042a)
*	2" Side Mount Valve With Plumbing

Available Parts:

8"" CLEAR LID

Part # 4697-001 Mfg # 6209291

8"" CLEAR LID

$160.99 IN STOCK

Qty:

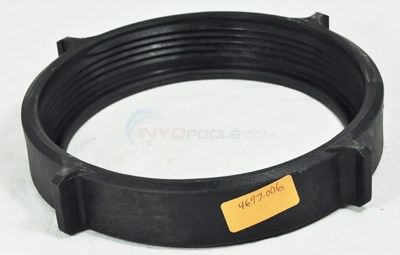

LID LOCKING RING

Part # 4697-006 Mfg # 62024BLK

LID LOCKING RING

$147.99 IN STOCK

Qty:

LID O-RING

Part # 4697-007 Mfg # 62026

LID O-RING

$13.49 IN STOCK

Qty:

Bottom Mount Pressure Gauge 0-60 1/4" NPT (101D-204D)

Part # 4726-0 Mfg # 101D-204D/ 25501-000-800

Bottom Mount Pressure Gauge 0-60 1/4" NPT (101D-204D)

$18.49 IN STOCK

Qty:

AIR BLEED SCREEN

Part # 4697-008 Mfg # W04190

AIR BLEED SCREEN

$20.99 IN STOCK

Qty:

AIR BLEED ASSY.

Part # 4697-009 Mfg # W02654

AIR BLEED ASSY.

$31.99

WATER DIFFUSER

Part # 4697-010 Mfg # 620940

WATER DIFFUSER

$69.49 IN STOCK

Qty:

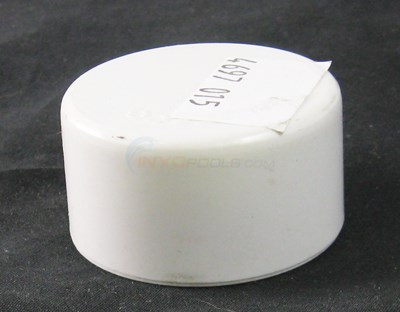

LATERAL CAP

Part # 4697-015 Mfg # W02117

LATERAL CAP

$29.49

LATERAL, 75 MM

Part # 4697-002 Mfg # W02111

LATERAL, 75 MM

$31.99 IN STOCK

Qty:

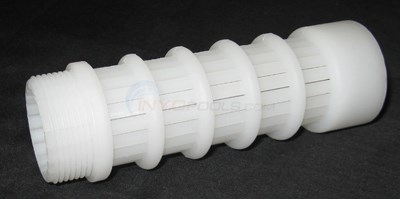

LATERAL, 110 MM

Part # 4697-003 Mfg # W02112

LATERAL, 110 MM

$34.99 IN STOCK

Qty:

LATERAL, 145 MM

Part # 4697-004 Mfg # W02113

LATERAL, 145 MM

$57.49 IN STOCK

Qty:

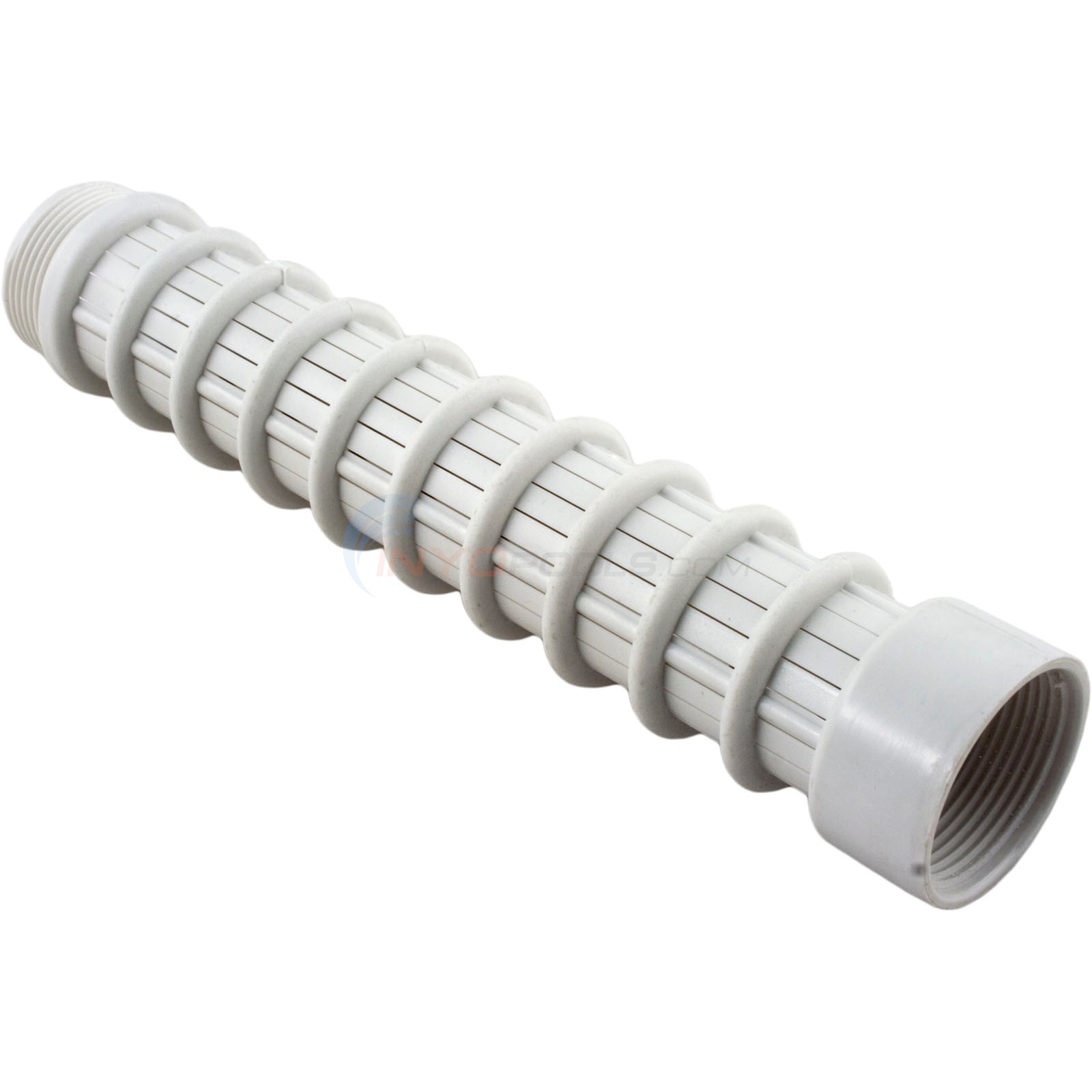

LATERAL, 200 MM

Part # 4697-005 Mfg # W02114

LATERAL, 200 MM

$14.49 IN STOCK

Qty:

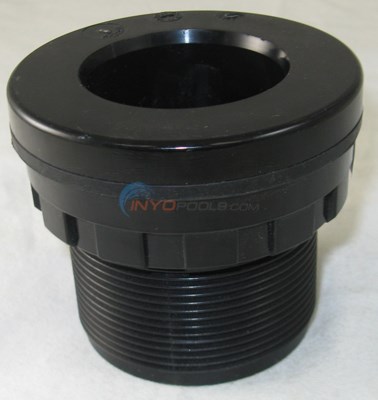

PORT ASSEMBLY, 1-1/2

Part # 4697-011 Mfg # W12610

PORT ASSEMBLY, 1-1/2

$56.49 IN STOCK

Qty:

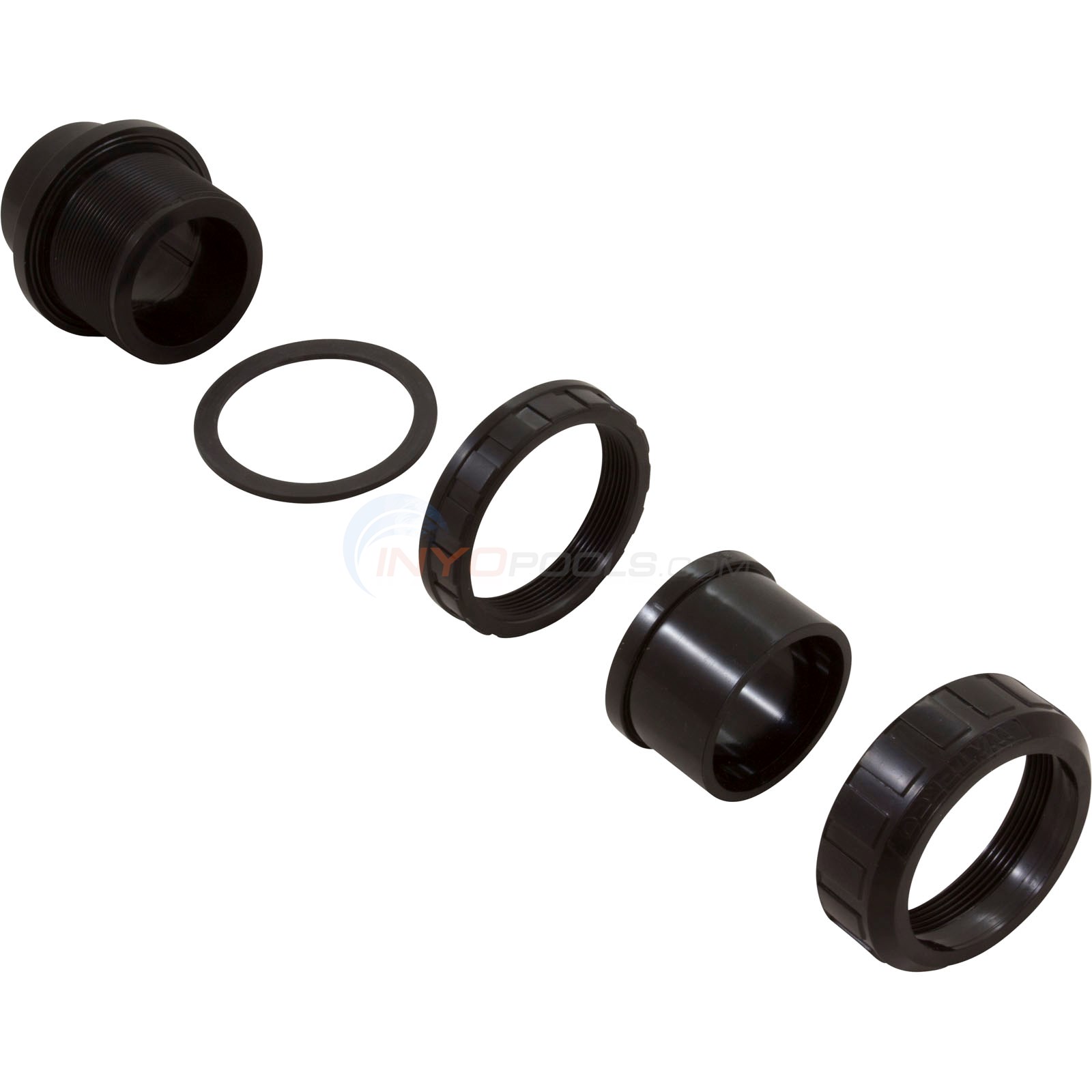

PORT ASSEMBLY, 2

Part # 4697-012 Mfg # W04006BLK

PORT ASSEMBLY, 2

$54.49 IN STOCK

Qty:

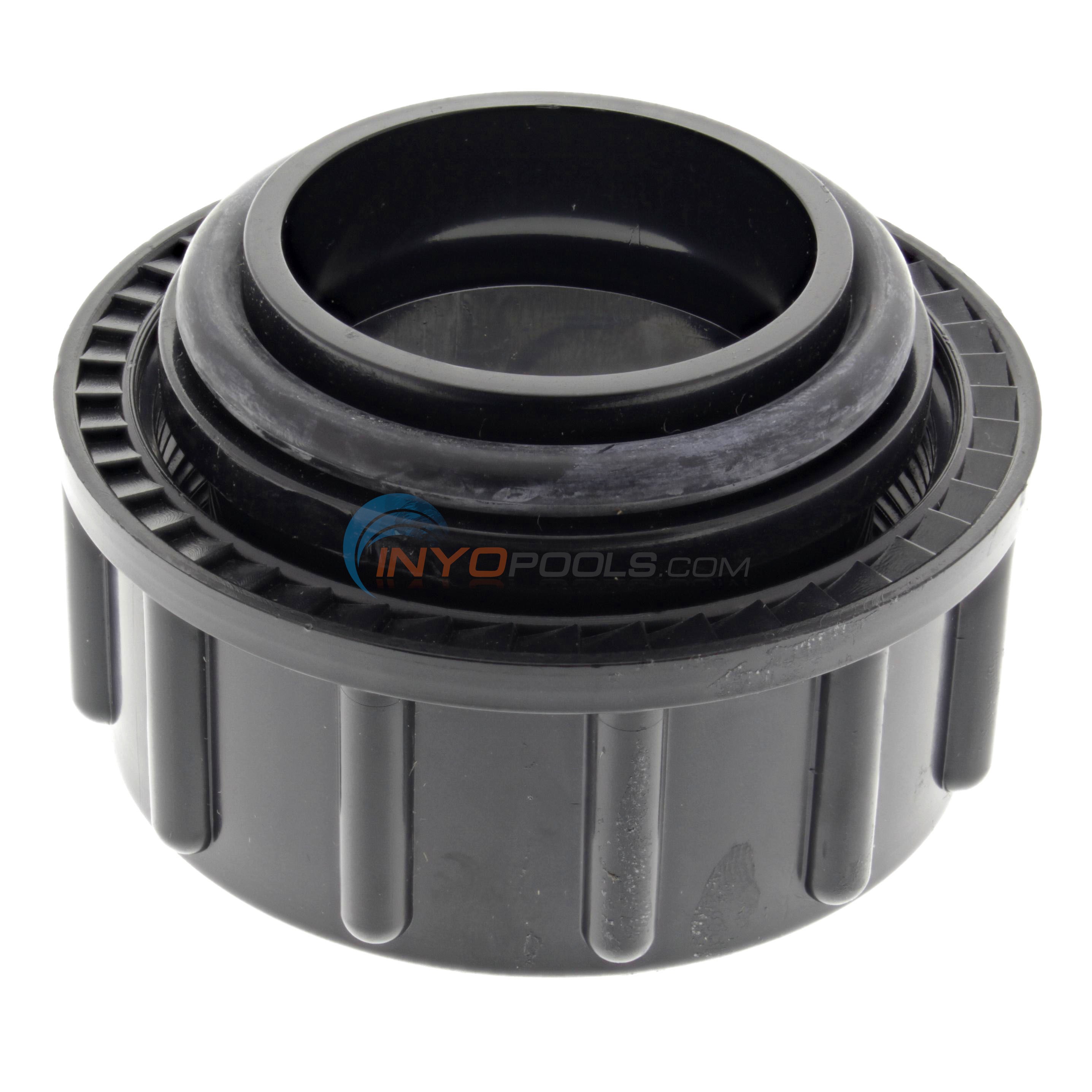

HALF BARREL UNION HYDRON (122243)

Part # 4590-25 Mfg # 122243B

HALF BARREL UNION HYDRON (122243)

$16.49 IN STOCK

Qty:

BLK HALF UNION & O-RING (634024)

Part # 4590-54 Mfg # 634024BLK

BLK HALF UNION & O-RING (634024)

$43.99 IN STOCK

Qty:

AIR RELIEF VALVE (NOT SHOWN)

Part # 4697-013 Mfg # 620221

AIR RELIEF VALVE (NOT SHOWN)

$29.99 IN STOCK

Qty:

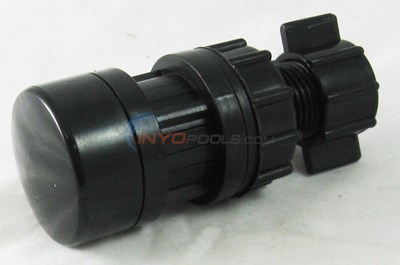

DRAIN ASSY

Part # 4697-014 Mfg # W02026BLK

DRAIN ASSY

$79.99 IN STOCK

Qty:

Side Mount Valve Package

Part # 4696-001 Mfg # WC229042A

Side Mount Valve Package

$254.99

1-1/2" Side Mount Valve Pkge (wc229042a)

Part # 4696-002 Mfg # 2290491P

1-1/2" Side Mount Valve Pkge (wc229042a)

$244.99

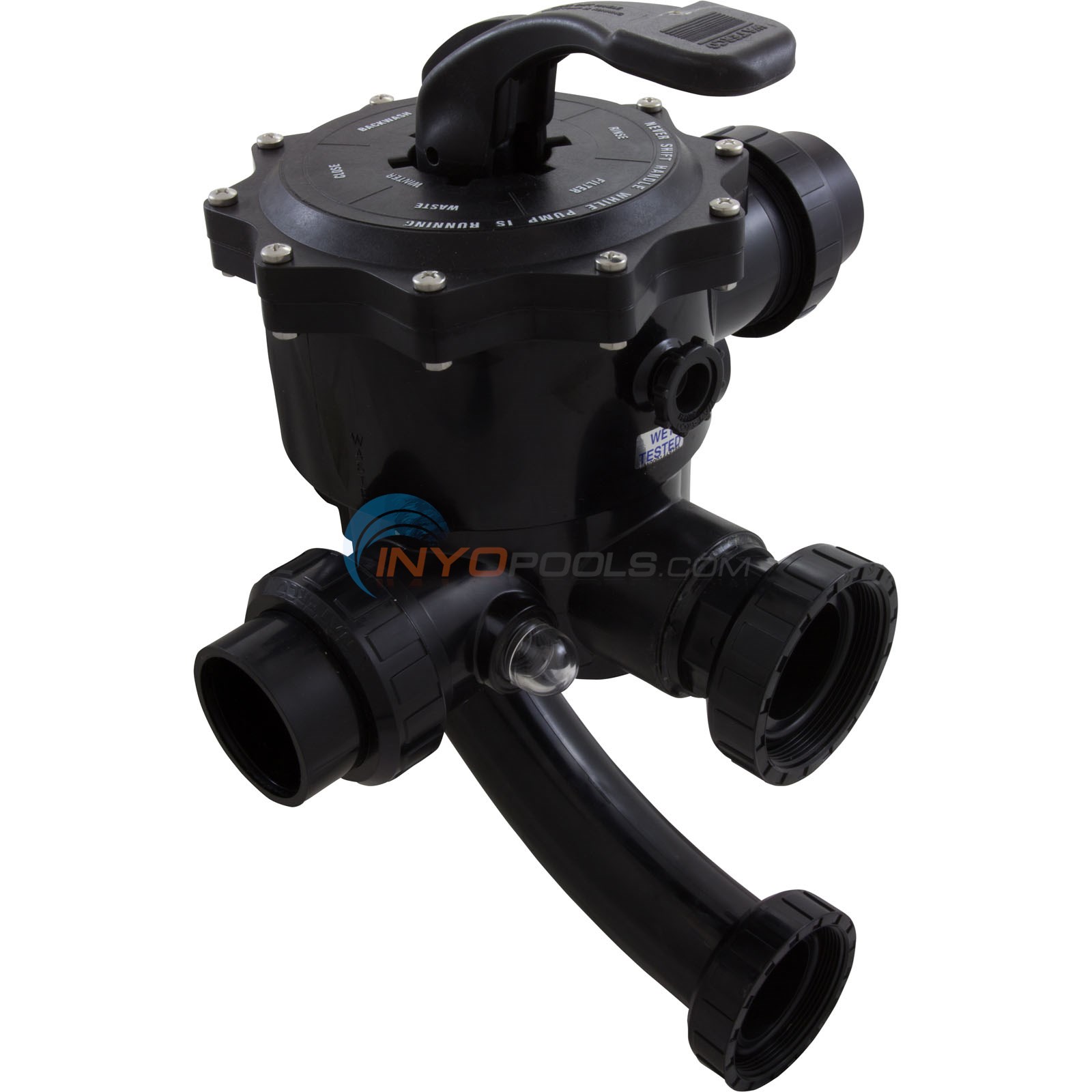

2" Side Mount Valve With Plumbing

Part # 4696-004 Mfg # 2290590

2" Side Mount Valve With Plumbing

$254.99 IN STOCK

Qty:

* NOT SHOWN

LATERAL CHART - LATERALS DO NOT INCLUDE CAP

SM500, 20” USES 8 - W02113
SM600, 24” USES 8 - W02111 & 8 - W02112
SM750, 30” USES 8 - W02111 & 8 - W02113
SM900, 36” USES 8 - W02111 & 8 - W02114
