Waterco Thermoplastic Series Top Mount Parts

T-400 16”, T450 18”, T500 20”, T-600 24”

Waterco Thermoplastic Series Top Mount Diagram

Click to zoom in

Diagram #	Part Title
2	CENTER TUBE w/ HUB 16"
3	DRAIN ASSY
4	LATERAL END CAP
5	LATERAL 3-1/2" (75MM)
6a	VALVE 6 POS. 1-1/2" FPT (THREADED FLANGE)
7	CLAMP RING ASSY.
8	ADAPTER 1-1/2" BARB X 1-1/2" UNION
9	TAILPIECE 1-1/2" BARB
10	HALF UNION 1-1/2" w/ O-RING
*	PRESSURE GAUGE, BOTTOM MOUNT 0-60 PSI 1/4" MPT

View Parts List

Diagram #	Part Title
2	CENTER TUBE w/ HUB 16"
3	DRAIN ASSY
4	LATERAL END CAP
5	LATERAL 3-1/2" (75MM)
6a	VALVE 6 POS. 1-1/2" FPT (THREADED FLANGE)
7	CLAMP RING ASSY.
8	ADAPTER 1-1/2" BARB X 1-1/2" UNION
9	TAILPIECE 1-1/2" BARB
10	HALF UNION 1-1/2" w/ O-RING
*	PRESSURE GAUGE, BOTTOM MOUNT 0-60 PSI 1/4" MPT

Available Parts:

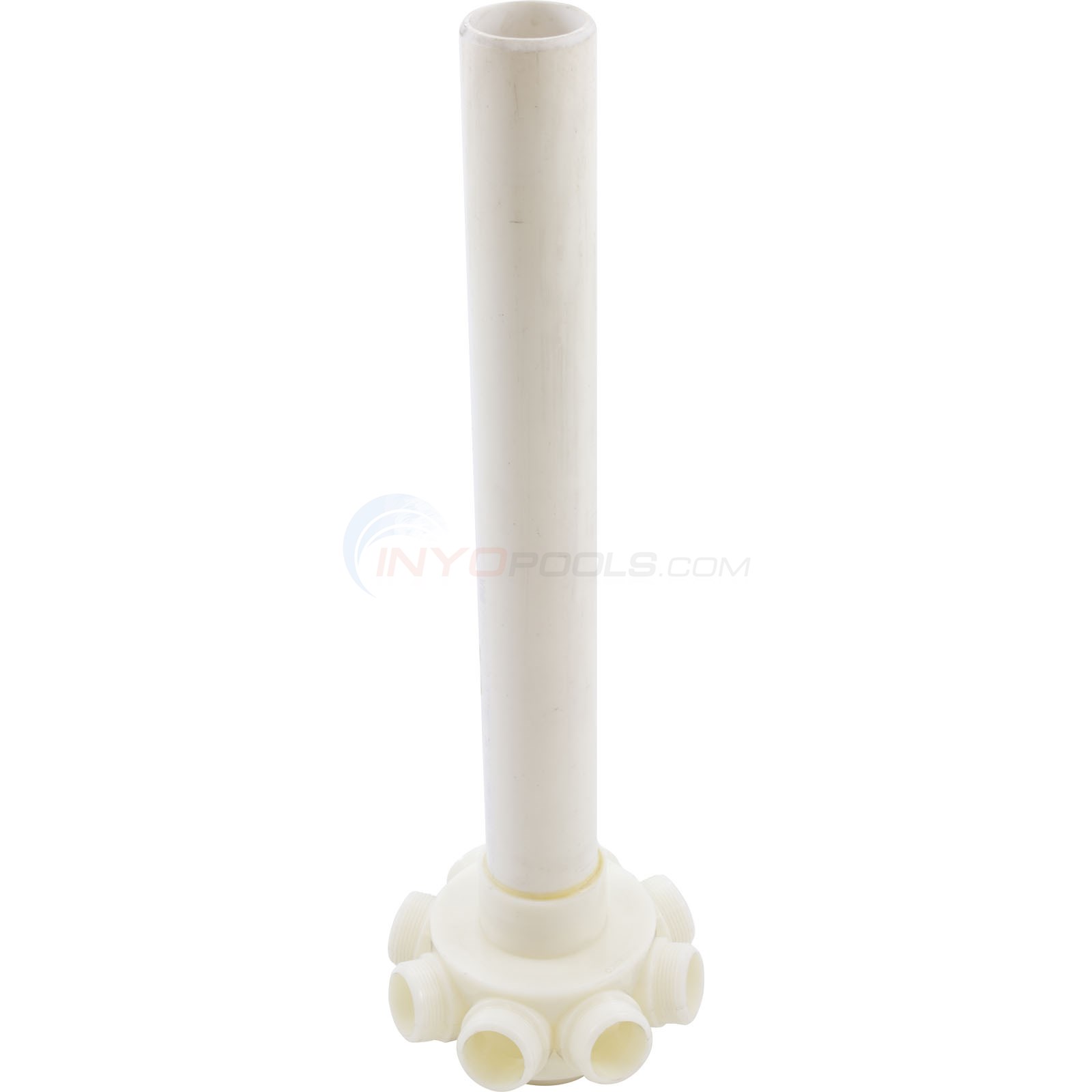

CENTER TUBE w/ HUB 16"

Part # 4777-020 Mfg # W0160

CENTER TUBE w/ HUB 16"

$174.99

Model T-400

Model T-400

CENTER TUBE w/ HUB 18"

Part # 4777-021 Mfg # W0159

CENTER TUBE w/ HUB 18"

$98.49

Model T-450

Model T-450

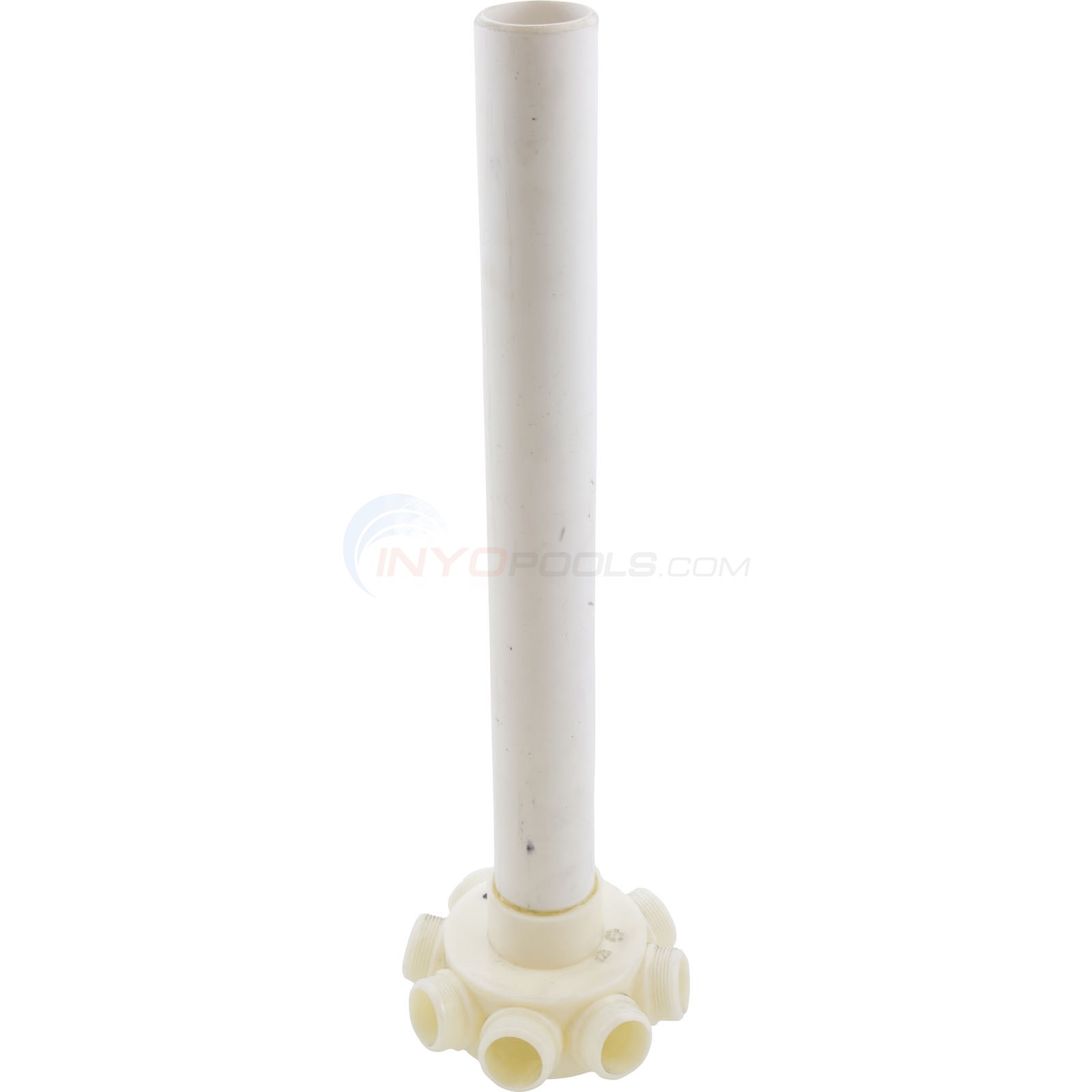

CENTER TUBE w/ HUB 20"

Part # 4777-022 Mfg # W0161

CENTER TUBE w/ HUB 20"

$100.99

Model T-500

Model T-500

CENTER TUBE w/ HUB 24"

Part # 4777-023 Mfg # W0162

CENTER TUBE w/ HUB 24"

$157.99

Model T-600

Model T-600

DRAIN ASSY

Part # 4697-014 Mfg # W02026BLK

DRAIN ASSY

$79.99 IN STOCK

Qty:

LATERAL END CAP

Part # 4697-015 Mfg # W02117

LATERAL END CAP

$29.49

LATERAL 3-1/2" (75MM)

Part # 4697-002 Mfg # W02111

LATERAL 3-1/2" (75MM)

$31.99 IN STOCK

Model T-400/T-600

Model T-400/T-600

Qty:

LATERAL 4-1/2" (110MM)

Part # 4697-003 Mfg # W02112

LATERAL 4-1/2" (110MM)

$34.99 IN STOCK

Model T-450/T-500

Model T-450/T-500

Qty:

VALVE 6 POS. 1-1/2" FPT (THREADED FLANGE)

Part # 4707P Mfg # TM-12-PB

VALVE 6 POS. 1-1/2" FPT (THREADED FLANGE)

$175.99 IN STOCK

Qty:

VALVE 6 POS. 1-1/2" FPT (CLAMP FLANGE)

Part # 26-252-1065 Mfg # 2280445

VALVE 6 POS. 1-1/2" FPT (CLAMP FLANGE)

$224.99 IN STOCK

Qty:

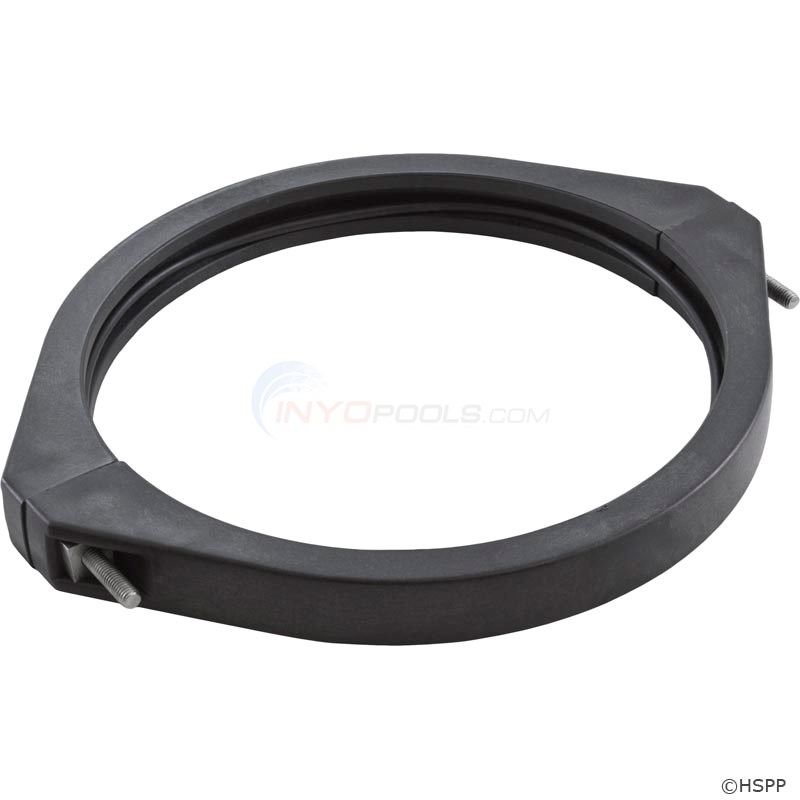

CLAMP RING ASSY.

Part # 6226010

CLAMP RING ASSY.

$60.99 IN STOCK

Qty:

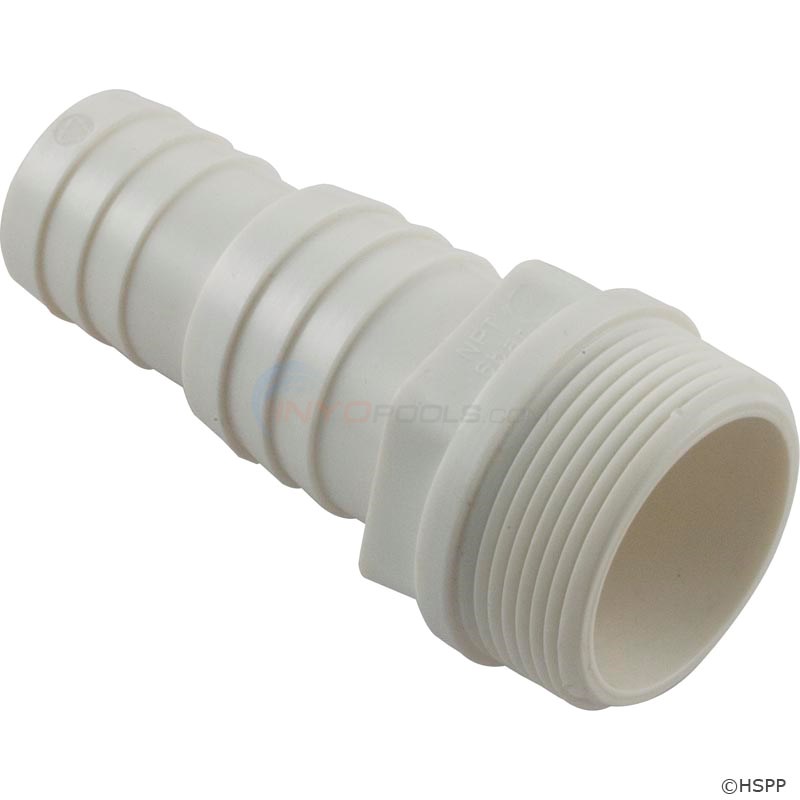

ADAPTER 1-1/2" BARB X 1-1/2" UNION

Part # WC122318P Mfg # WC122318P

ADAPTER 1-1/2" BARB X 1-1/2" UNION

$17.49 IN STOCK

Qty:

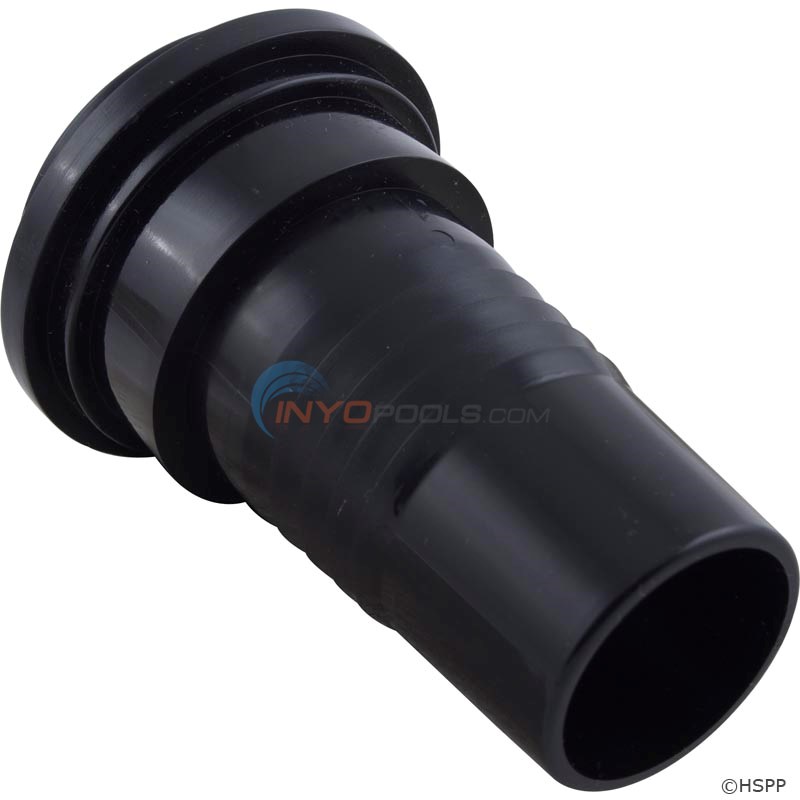

TAILPIECE 1-1/2" BARB

Part # WC122312

TAILPIECE 1-1/2" BARB

$18.99 IN STOCK

Qty:

HALF UNION 1-1/2" w/ O-RING

Part # 4590-25 Mfg # 122243B

HALF UNION 1-1/2" w/ O-RING

$16.49 IN STOCK

Qty:

PRESSURE GAUGE, BOTTOM MOUNT 0-60 PSI 1/4" MPT

Part # 4726-0 Mfg # 101D-204D/ 25501-000-800

PRESSURE GAUGE, BOTTOM MOUNT 0-60 PSI 1/4" MPT

$18.49 IN STOCK

Qty:

* Not Shown
