Waterway SmartClean Side Mount Model Parts

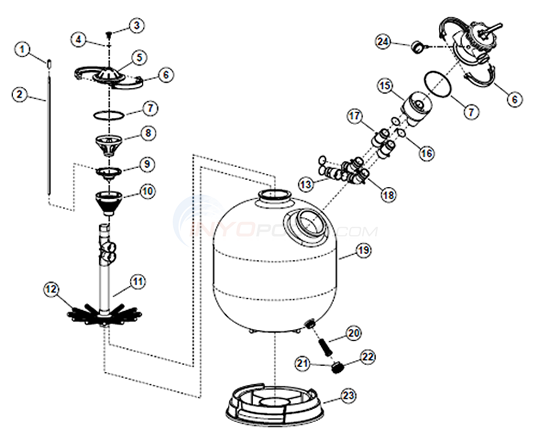

Waterway SmartClean Side Mount Model Diagram

Click to zoom in

Diagram #	Part Title
1	Filter Internal Screen (817-0001)
2	Bleeder Hose 3/8"" OD x 1/4"" ID
3	Plug, Air Bleed
4	O-Ring, O-288
5	Access Dome Cover
6	Clamp Kit, Mpv W/ Nuts & Bolts
7	O-ring, Mpv
8	Sand Fill Guide
9	Diffuser Disbursement Basket Cap
10	Diffuser Disbursement Basket
11	NO LONGER AVAILABLE
12	Smartclean Snap In Lateral
13	Twist-Lock Slip Seal Aligning Coupling
15	Lateral & Manifold Assembly-26"(Standpipe and Laterals Only)
16	O-ring 1 Per Pack
17	Slip Seal Aligning Coupling
18	Twist-Lock Slip Seal Aligning 45° Ell
19	32"" SmartClean Sand Filter Body, Side Mount
20	Drain Screen
21	Gasket, Drain Cap
22	Drain Screen Cap
23	Base, Smartclean Filter
24	Back Mount Pressure Gauge 0-60 1/4" NPT REAR/BACK

View Parts List

Diagram #	Part Title
1	Filter Internal Screen (817-0001)
2	Bleeder Hose 3/8"" OD x 1/4"" ID
3	Plug, Air Bleed
4	O-Ring, O-288
5	Access Dome Cover
6	Clamp Kit, Mpv W/ Nuts & Bolts
7	O-ring, Mpv
8	Sand Fill Guide
9	Diffuser Disbursement Basket Cap
10	Diffuser Disbursement Basket
11	NO LONGER AVAILABLE
12	Smartclean Snap In Lateral
13	Twist-Lock Slip Seal Aligning Coupling
15	Lateral & Manifold Assembly-26"(Standpipe and Laterals Only)
16	O-ring 1 Per Pack
17	Slip Seal Aligning Coupling
18	Twist-Lock Slip Seal Aligning 45° Ell
19	32"" SmartClean Sand Filter Body, Side Mount
20	Drain Screen
21	Gasket, Drain Cap
22	Drain Screen Cap
23	Base, Smartclean Filter
24	Back Mount Pressure Gauge 0-60 1/4" NPT REAR/BACK

Available Parts:

Filter Internal Screen (817-0001)

Part # 4741-06

Filter Internal Screen (817-0001)

$23.44 IN STOCK

Qty:

Bleeder Hose 3/8"" OD x 1/4"" ID

Part # 31-270-1261 Mfg # 872-2130D

Bleeder Hose 3/8"" OD x 1/4"" ID

$65.02

Plug, Air Bleed

Part # 4741-42 Mfg # 715-6011

Plug, Air Bleed

$22.37

O-Ring, O-288

Part # 90-423-1288

O-Ring, O-288

$19.18

Access Dome Cover

Part # 31-270-1262 Mfg # 519-5301

Access Dome Cover

$93.81

Clamp Kit, Mpv W/ Nuts & Bolts

Part # 4742-155 Mfg # 872-0046

Clamp Kit, Mpv W/ Nuts & Bolts

$46.91 IN STOCK

Qty:

O-ring, Mpv

Part # 4742-156 Mfg # 805-0442

O-ring, Mpv

$11.71 IN STOCK

Qty:

Sand Fill Guide

Part # 31-270-1263 Mfg # 519-5310

Sand Fill Guide

$21.31

Diffuser Disbursement Basket Cap

Part # 31-270-1264 Mfg # 519-5320

Diffuser Disbursement Basket Cap

$19.18 IN STOCK

Qty:

Diffuser Disbursement Basket

Part # 31-270-1265 Mfg # 519-5330

Diffuser Disbursement Basket

$23.44 IN STOCK

Qty:

11

NO LONGER AVAILABLE

Part # NLA Mfg # NOT AVAILABLE

NO LONGER AVAILABLE

NOT AVAILABLE

Smartclean Snap In Lateral

Part # 4745-001 Mfg # 519-5370

Smartclean Snap In Lateral

$22.37 IN STOCK

Qty:

Twist-Lock Slip Seal Aligning Coupling

Part # 31-270-1269

Twist-Lock Slip Seal Aligning Coupling

$18.11

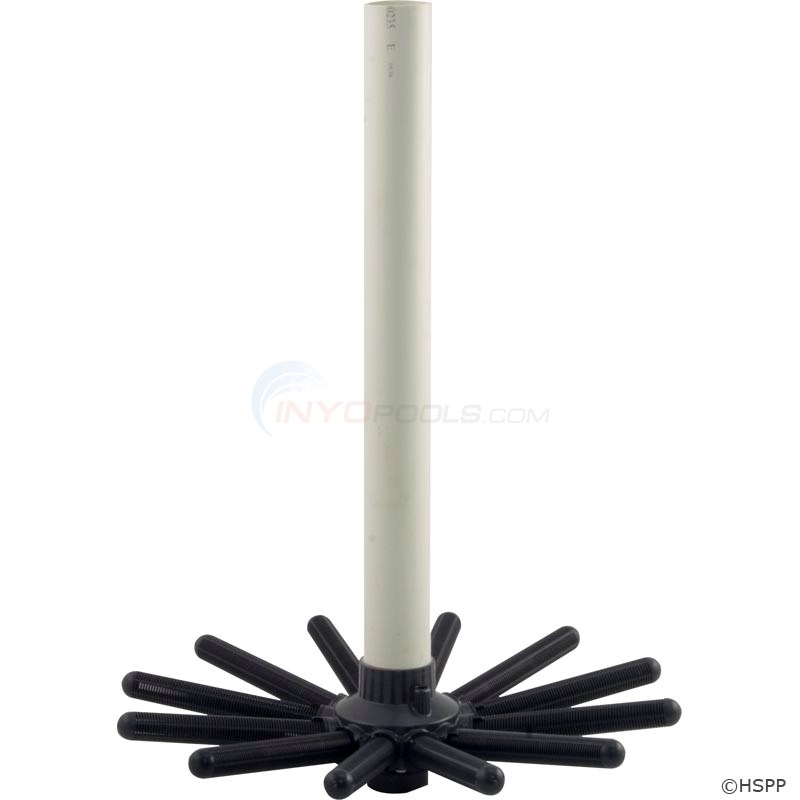

Lateral & Manifold Assembly-26"(Standpipe and Laterals Only)

Part # 31-270-1270 Mfg # 550-5360

Lateral & Manifold Assembly-26"(Standpipe and Laterals Only)

$158.85

O-ring 1 Per Pack

Part # 4742-117 Mfg # 805-0227

O-ring 1 Per Pack

$13.84 IN STOCK

Qty:

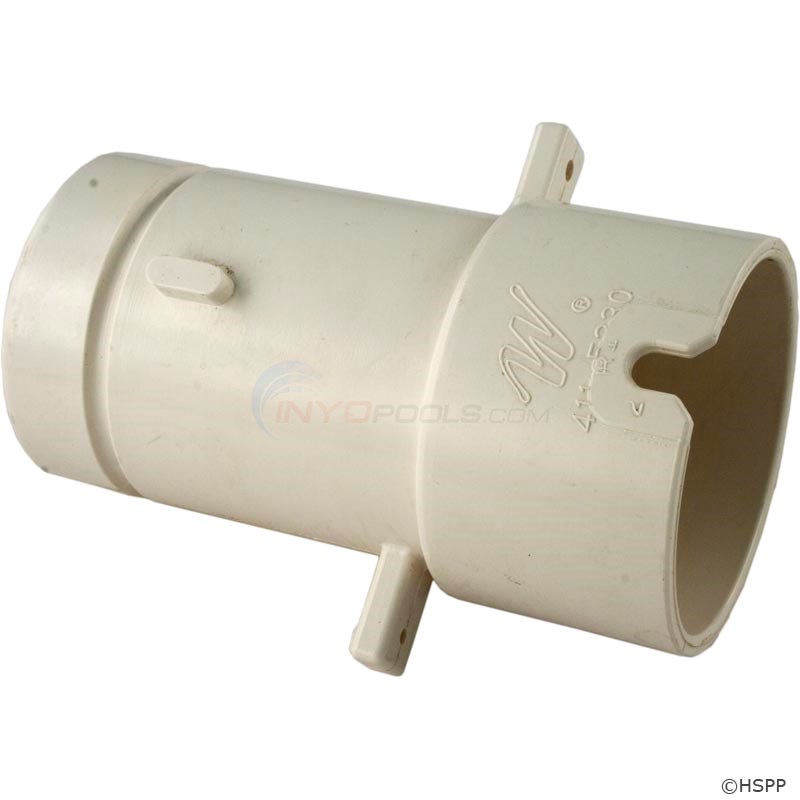

Slip Seal Aligning Coupling

Part # 31-270-1272

Slip Seal Aligning Coupling

$18.11

Twist-Lock Slip Seal Aligning 45° Ell

Part # 31-270-1273

Twist-Lock Slip Seal Aligning 45° Ell

$20.24

32"" SmartClean Sand Filter Body, Side Mount

Part # 31-270-1278 Mfg # 515-2051S

32"" SmartClean Sand Filter Body, Side Mount

$909.67

26"" SmartClean Sand Filter Body, Side Mount

Part # 31-270-1279 Mfg # 515-2041S

26"" SmartClean Sand Filter Body, Side Mount

$747.59

Drain Screen

Part # 4742-146 Mfg # 602-5310

Drain Screen

$15.98 IN STOCK

Qty:

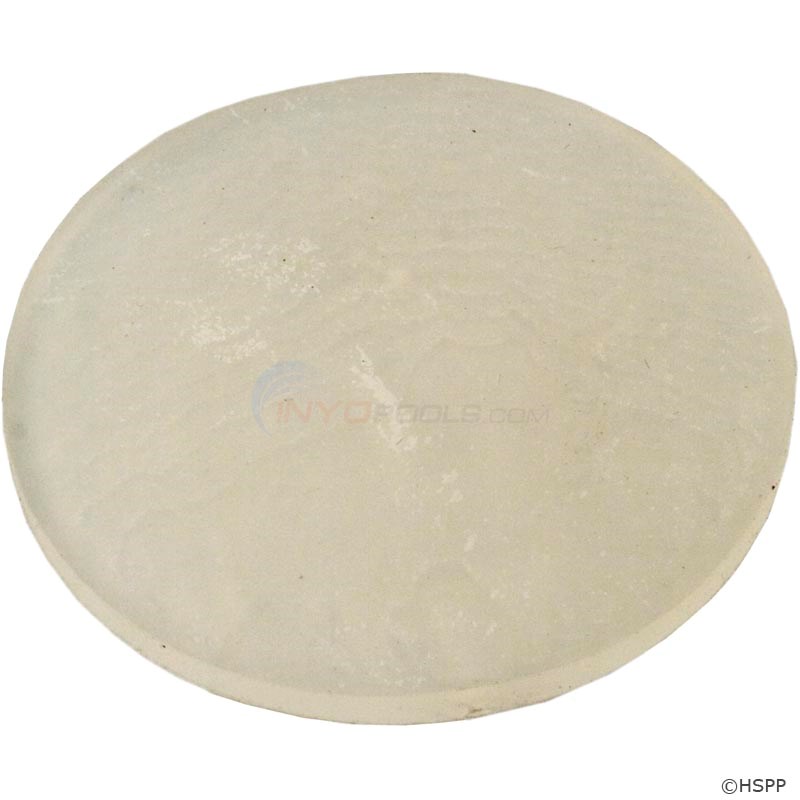

Gasket, Drain Cap
