Waterway UltraClean Pro Sand Filter Parts

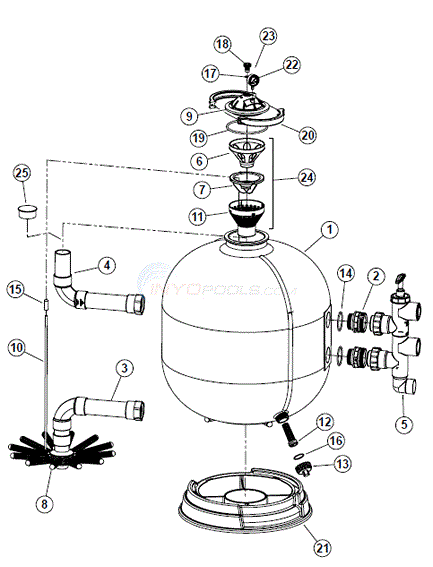

Waterway UltraClean Pro Sand Filter Diagram

Click to zoom in

Diagram #	Part Title
1	32"" SmartClean Sand Filter Body, Side Mount
2	Cpl, 2 1/2"
3	2-1/2"" Outlet Assembly
4	2-1/2"" Inlet Assembly
5	2-1/2"" Hi-Temp PVC Slide Valve Assy configured for UltraCle
6	Sand Fill Guide
7	Diffuser Disbursement Basket Cap
8	Smartclean Snap In Lateral
9	Access Dome Cover
10	Bleeder Hose 3/8"" OD x 1/4"" ID
11	Diffuser Disbursement Basket
12	Drain Screen, Self-threading
13	Drain Screen Cap
14	O-ring
15	Filter Internal Screen (817-0001)
16	O-ring, Fits Waterway Mpv
17	Adaptor O-ring
18	Plug, Air Bleed
19	O-ring, Mpv
20	Clamp Kit, Mpv W/ Nuts & Bolts
21	Base, Smartclean Filter
22	Pressure Gauge
23	Bezel Assembly - Pressure Gauge
24	Basket Assembly
25	Sand fill cap

View Parts List

Diagram #	Part Title
1	32"" SmartClean Sand Filter Body, Side Mount
2	Cpl, 2 1/2"
3	2-1/2"" Outlet Assembly
4	2-1/2"" Inlet Assembly
5	2-1/2"" Hi-Temp PVC Slide Valve Assy configured for UltraCle
6	Sand Fill Guide
7	Diffuser Disbursement Basket Cap
8	Smartclean Snap In Lateral
9	Access Dome Cover
10	Bleeder Hose 3/8"" OD x 1/4"" ID
11	Diffuser Disbursement Basket
12	Drain Screen, Self-threading
13	Drain Screen Cap
14	O-ring
15	Filter Internal Screen (817-0001)
16	O-ring, Fits Waterway Mpv
17	Adaptor O-ring
18	Plug, Air Bleed
19	O-ring, Mpv
20	Clamp Kit, Mpv W/ Nuts & Bolts
21	Base, Smartclean Filter
22	Pressure Gauge
23	Bezel Assembly - Pressure Gauge
24	Basket Assembly
25	Sand fill cap

Available Parts:

32"" SmartClean Sand Filter Body, Side Mount

Part # 31-270-1278 Mfg # 515-2051S

32"" SmartClean Sand Filter Body, Side Mount

$909.67

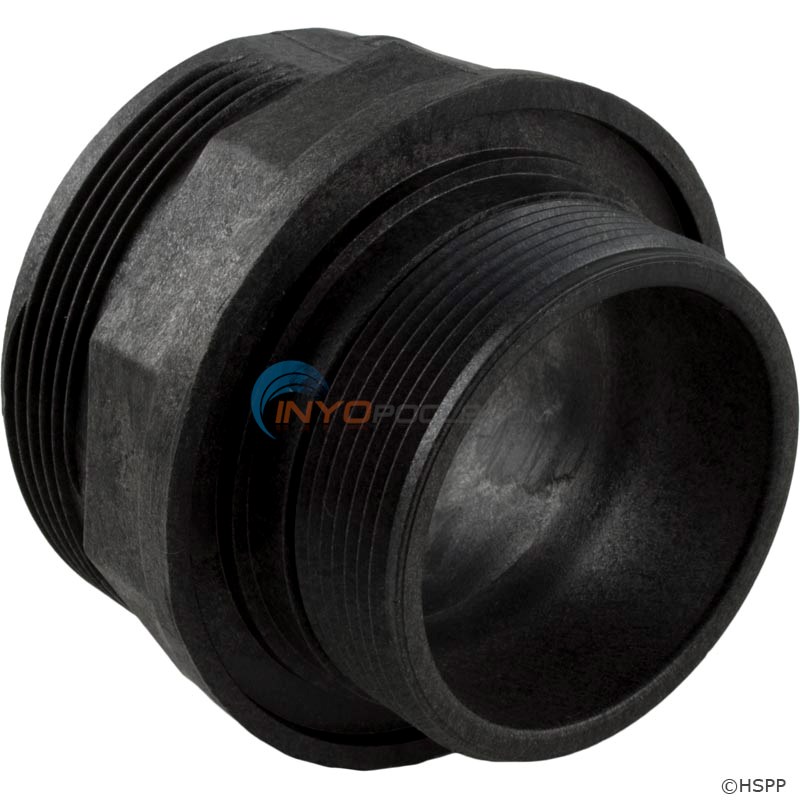

Cpl, 2 1/2"

Part # 4742-114 Mfg # 419-4201

Cpl, 2 1/2"

$47.83 IN STOCK

Qty:

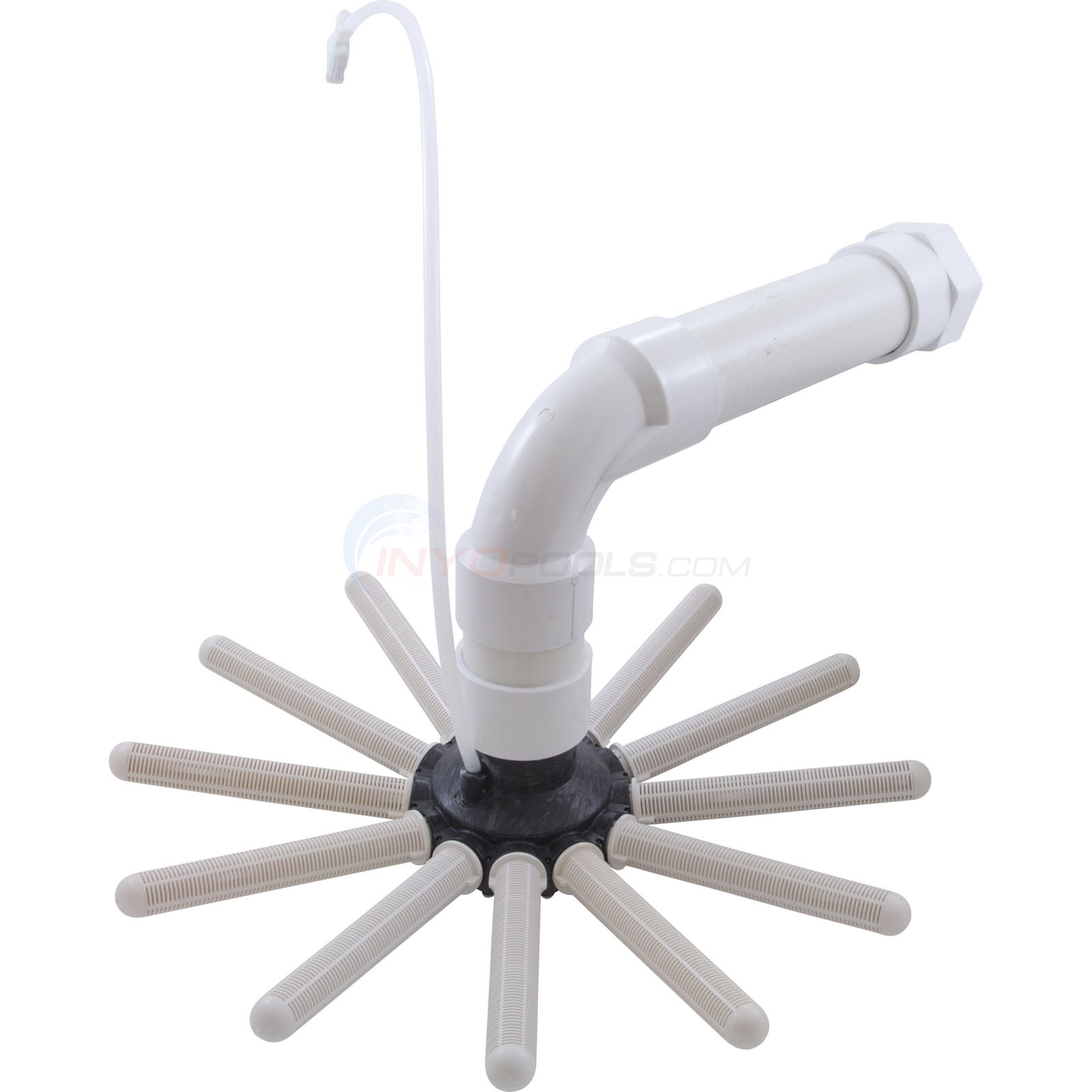

2-1/2"" Outlet Assembly

Part # 31-270-1292 Mfg # 550-5410

2-1/2"" Outlet Assembly

$200.44 IN STOCK

Qty:

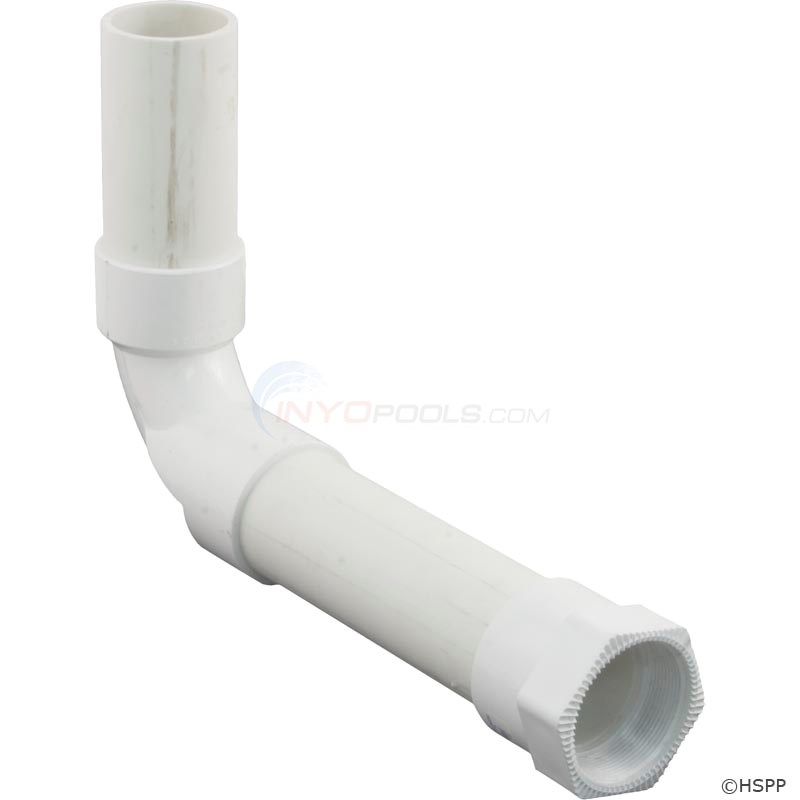

2-1/2"" Inlet Assembly

Part # 31-270-1293 Mfg # 550-5420

2-1/2"" Inlet Assembly

$167.38

2-1/2"" Hi-Temp PVC Slide Valve Assy configured for UltraCle

Part # 27-270-1222 Mfg # 600-1500UCP

2-1/2"" Hi-Temp PVC Slide Valve Assy configured for UltraCle

$231.35

Sand Fill Guide

Part # 31-270-1263 Mfg # 519-5310

Sand Fill Guide

$21.31

Diffuser Disbursement Basket Cap

Part # 31-270-1264 Mfg # 519-5320

Diffuser Disbursement Basket Cap

$19.18 IN STOCK

Qty:

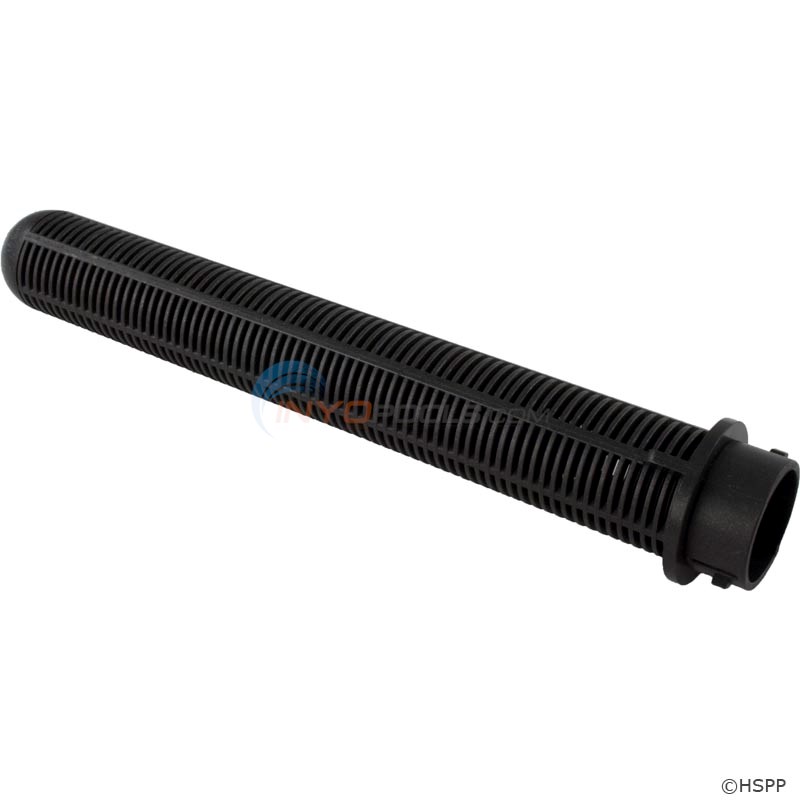

Smartclean Snap In Lateral

Part # 4745-001 Mfg # 519-5370

Smartclean Snap In Lateral

$22.37 IN STOCK

Qty:

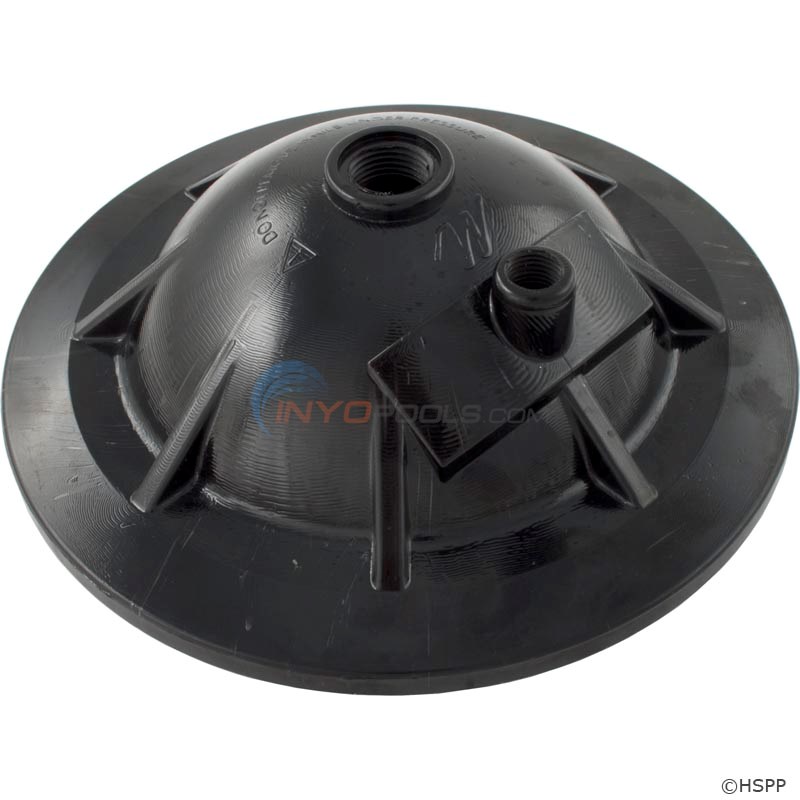

Access Dome Cover

Part # 31-270-1262 Mfg # 519-5301

Access Dome Cover

$93.81

Bleeder Hose 3/8"" OD x 1/4"" ID

Part # 31-270-1261 Mfg # 872-2130D

Bleeder Hose 3/8"" OD x 1/4"" ID

$65.02

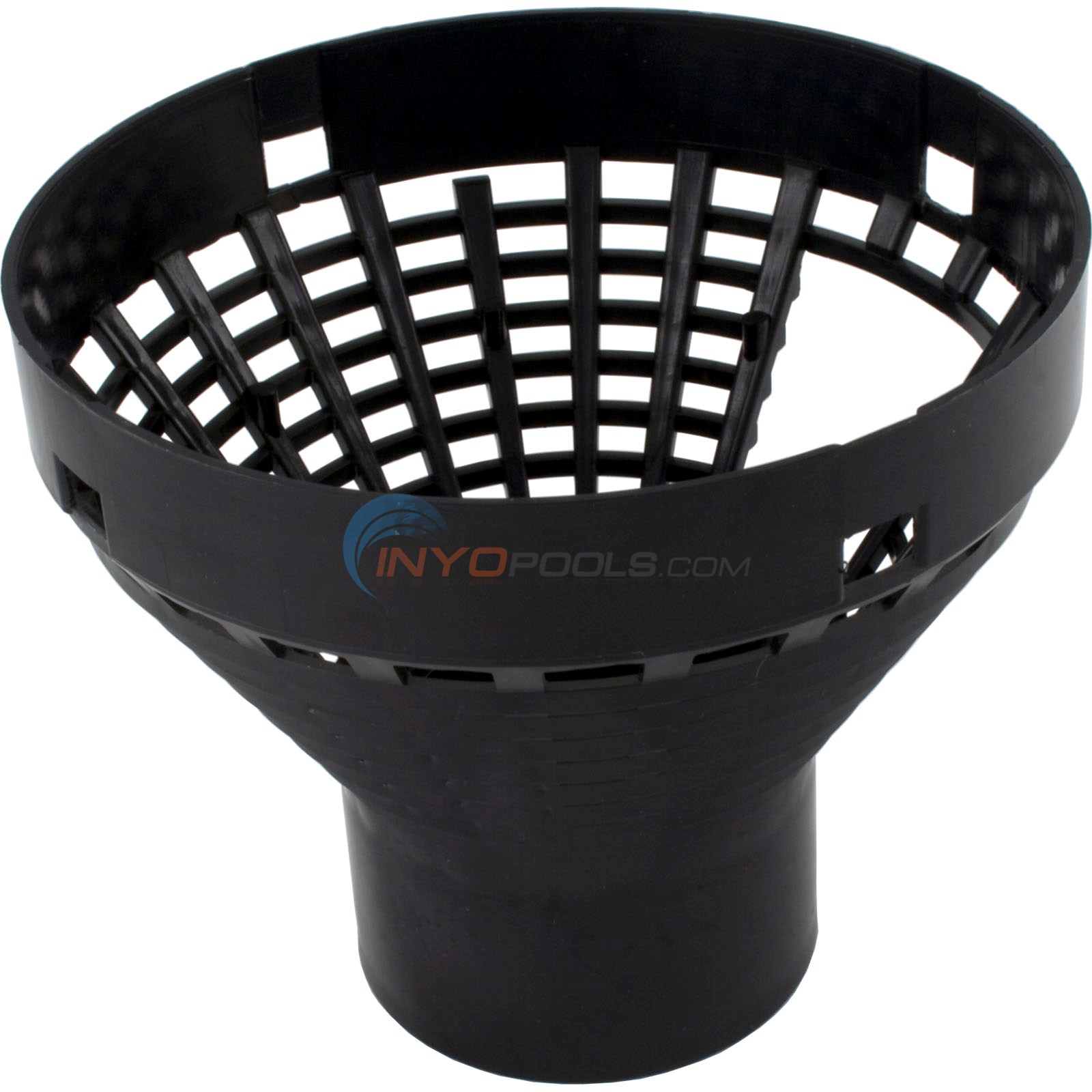

Diffuser Disbursement Basket

Part # 31-270-1296 Mfg # 519-5330SC

Diffuser Disbursement Basket

$35.16

Drain Screen, Self-threading

Part # 4742-146 Mfg # 602-5310

Drain Screen, Self-threading

$15.98 IN STOCK

Qty:

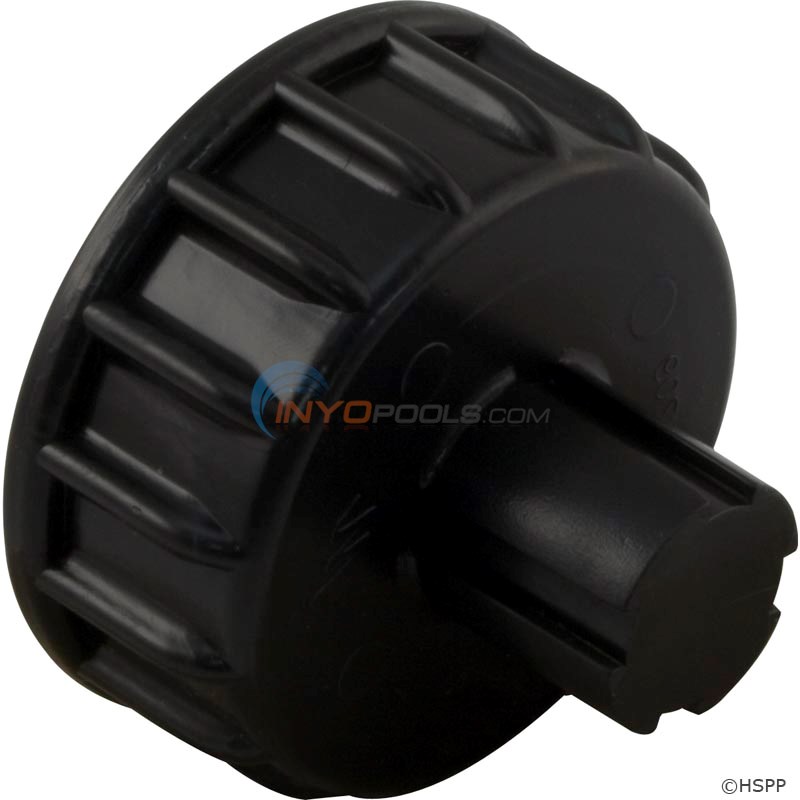

Drain Screen Cap

Part # 4742-147 Mfg # 602-5301

Drain Screen Cap

$19.18 IN STOCK

Qty:

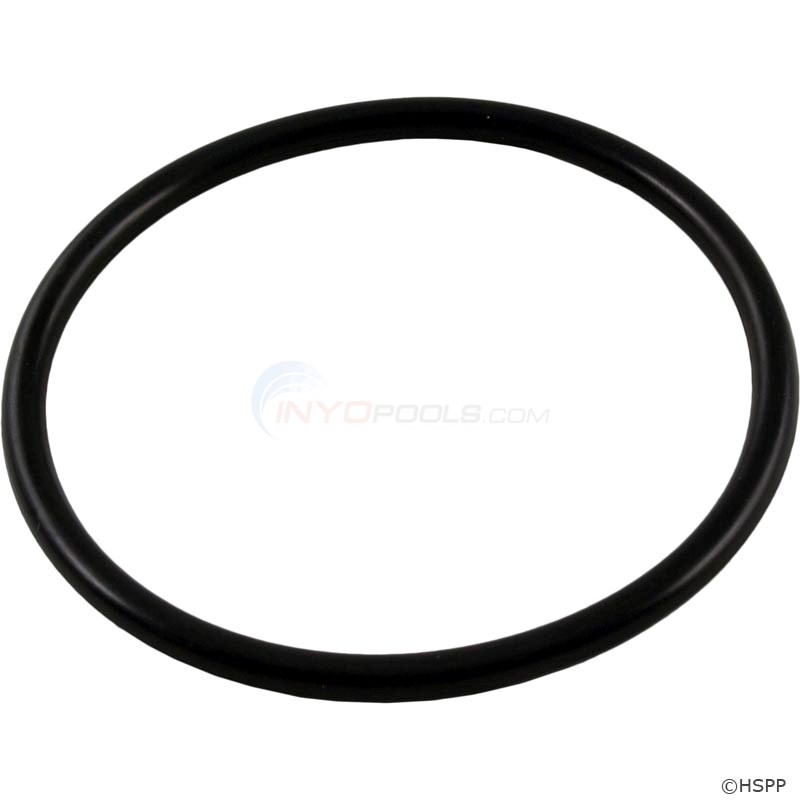

O-ring

Part # 4742-113 Mfg # 805-0339

O-ring

$14.91 IN STOCK

Qty:

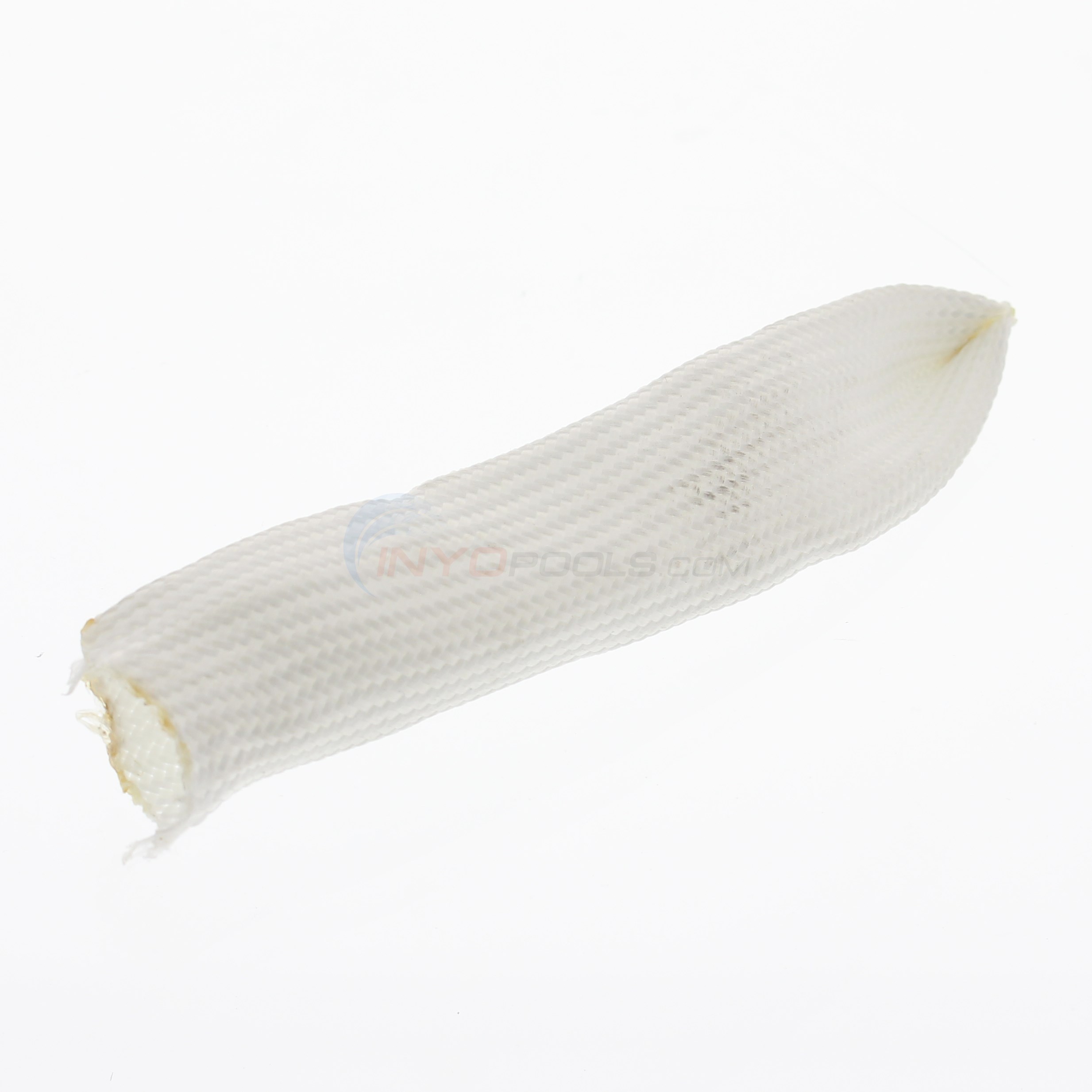

Filter Internal Screen (817-0001)

Part # 4741-06

Filter Internal Screen (817-0001)

$23.44 IN STOCK

Qty:

Generic Back Mount Pressure Gauge 0-60 1/4" NPT REAR/BACK

Part # 4727-0 Mfg # 102D-204D

Generic Back Mount Pressure Gauge 0-60 1/4" NPT REAR/BACK

$11.40 IN STOCK

Qty:

O-ring, Fits Waterway Mpv

Part # 4742-38 Mfg # 805-0224

O-ring, Fits Waterway Mpv

$11.43 IN STOCK

Qty:

Adaptor O-ring

Part # 4744-027 Mfg # 805-0116EP

Adaptor O-ring

$13.57 IN STOCK

Qty:

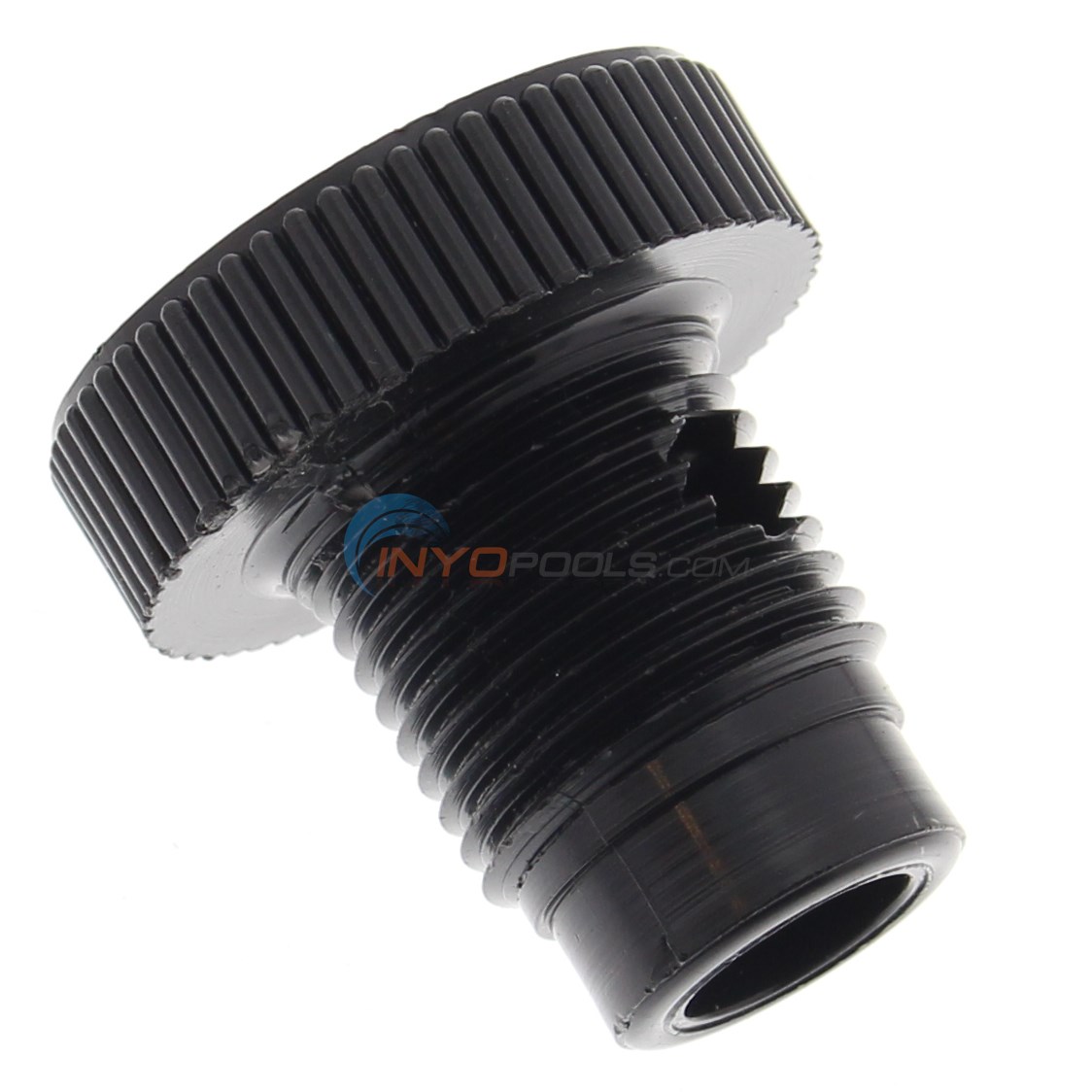

Plug, Air Bleed

Part # 4741-42 Mfg # 715-6011

Plug, Air Bleed

$22.37

O-ring, Mpv

Part # 4742-156 Mfg # 805-0442

O-ring, Mpv

$11.71 IN STOCK

Qty:

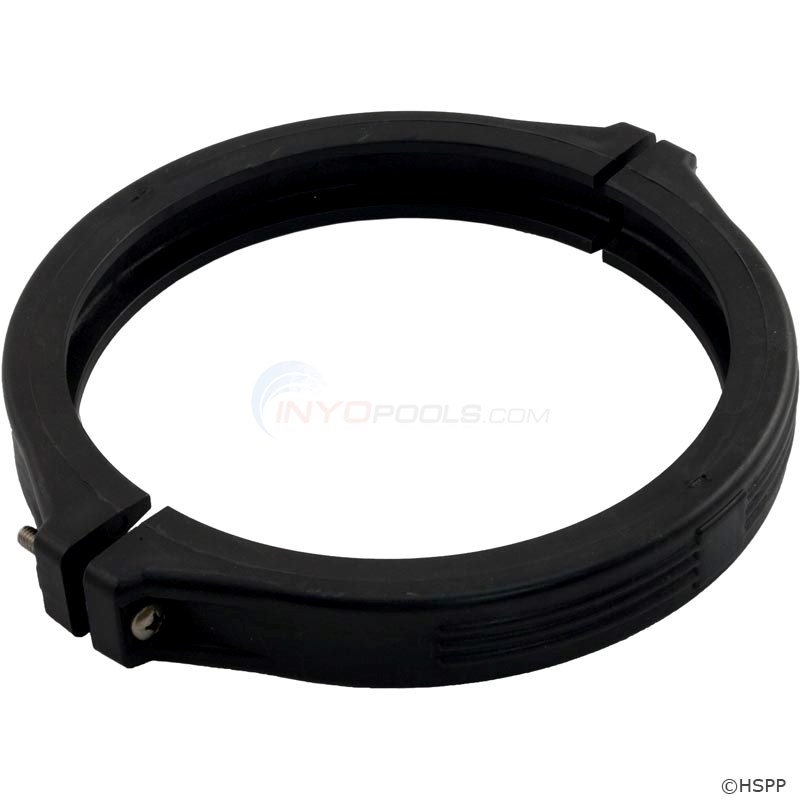

Clamp Kit, Mpv W/ Nuts & Bolts

Part # 4742-155 Mfg # 872-0046

Clamp Kit, Mpv W/ Nuts & Bolts

$46.91 IN STOCK

Qty:

Base, Smartclean Filter

Part # 4742-154 Mfg # 672-5301

Base, Smartclean Filter

$101.27 IN STOCK

Qty:

Pressure Gauge

Part # 31-270-1298 Mfg # 830-3000

Pressure Gauge

$41.57

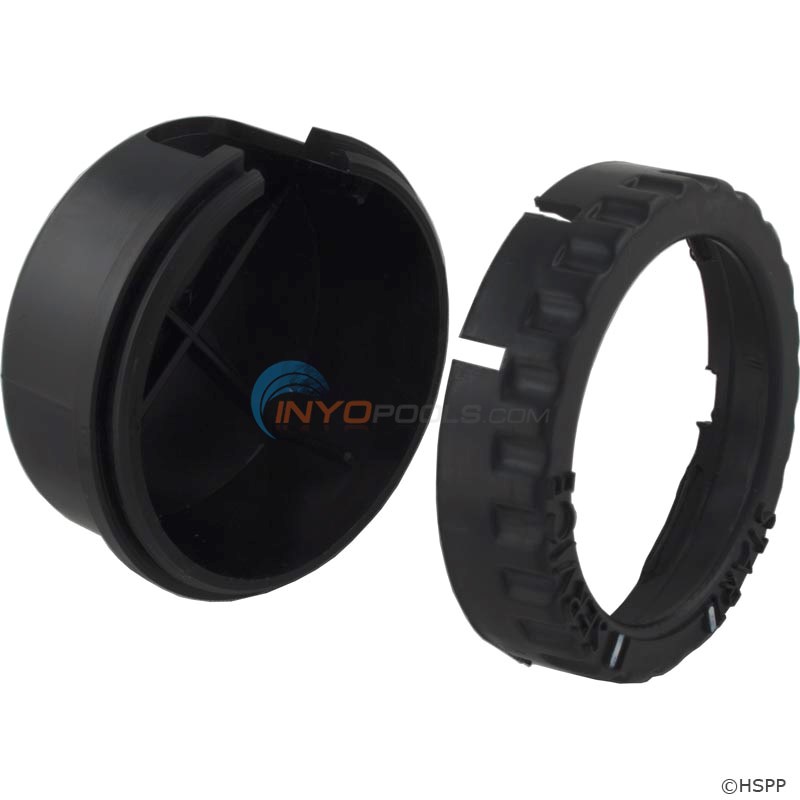

Bezel Assembly - Pressure Gauge

Part # 14-270-1111 Mfg # 600-4101

Bezel Assembly - Pressure Gauge

$28.77

Basket Assembly

Part # 31-270-1300 Mfg # 550-5430

Basket Assembly

$39.44 IN STOCK

Qty:

25

Sand fill cap

Part # DISCONTINUED Mfg # 519-5421

Sand fill cap

NOT AVAILABLE
