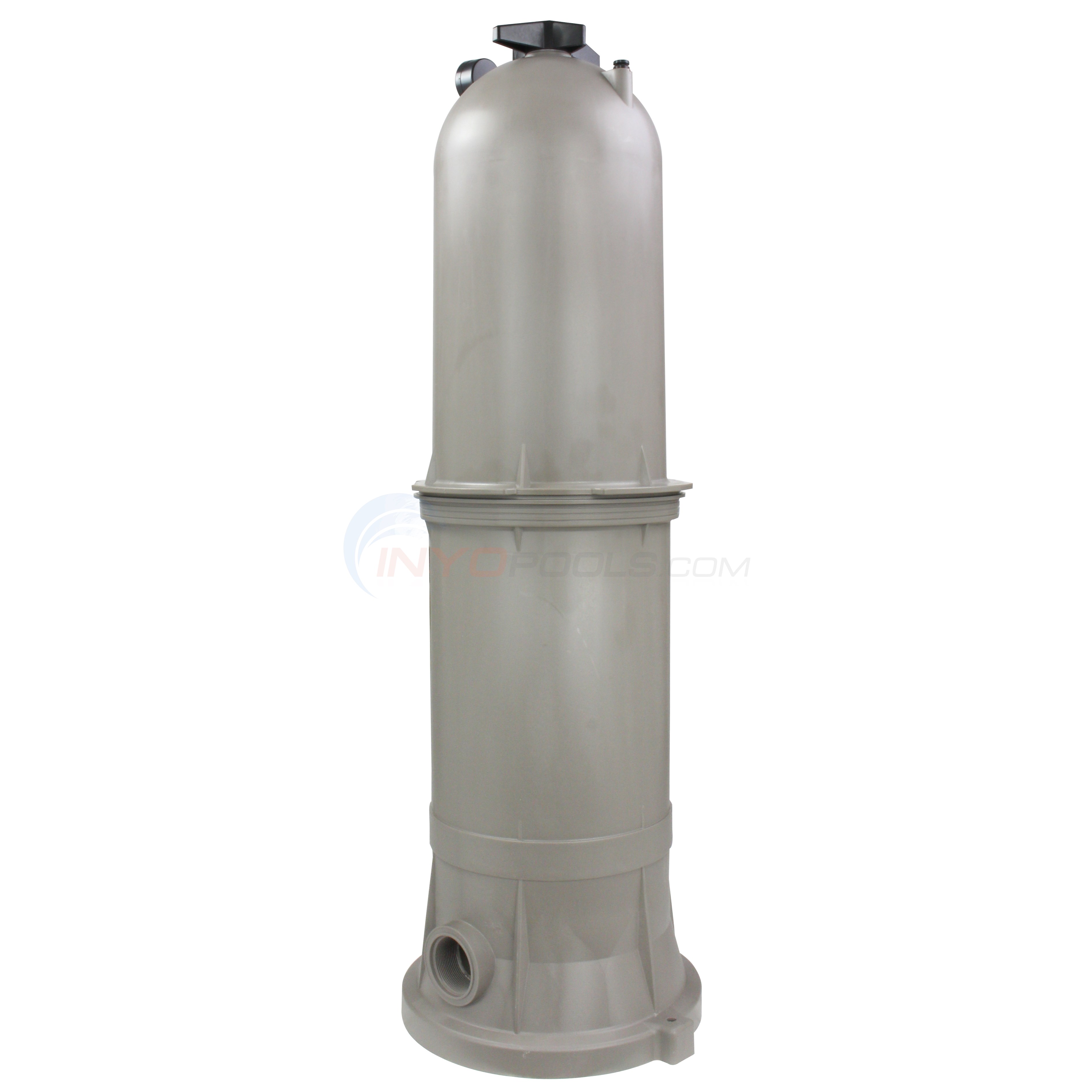

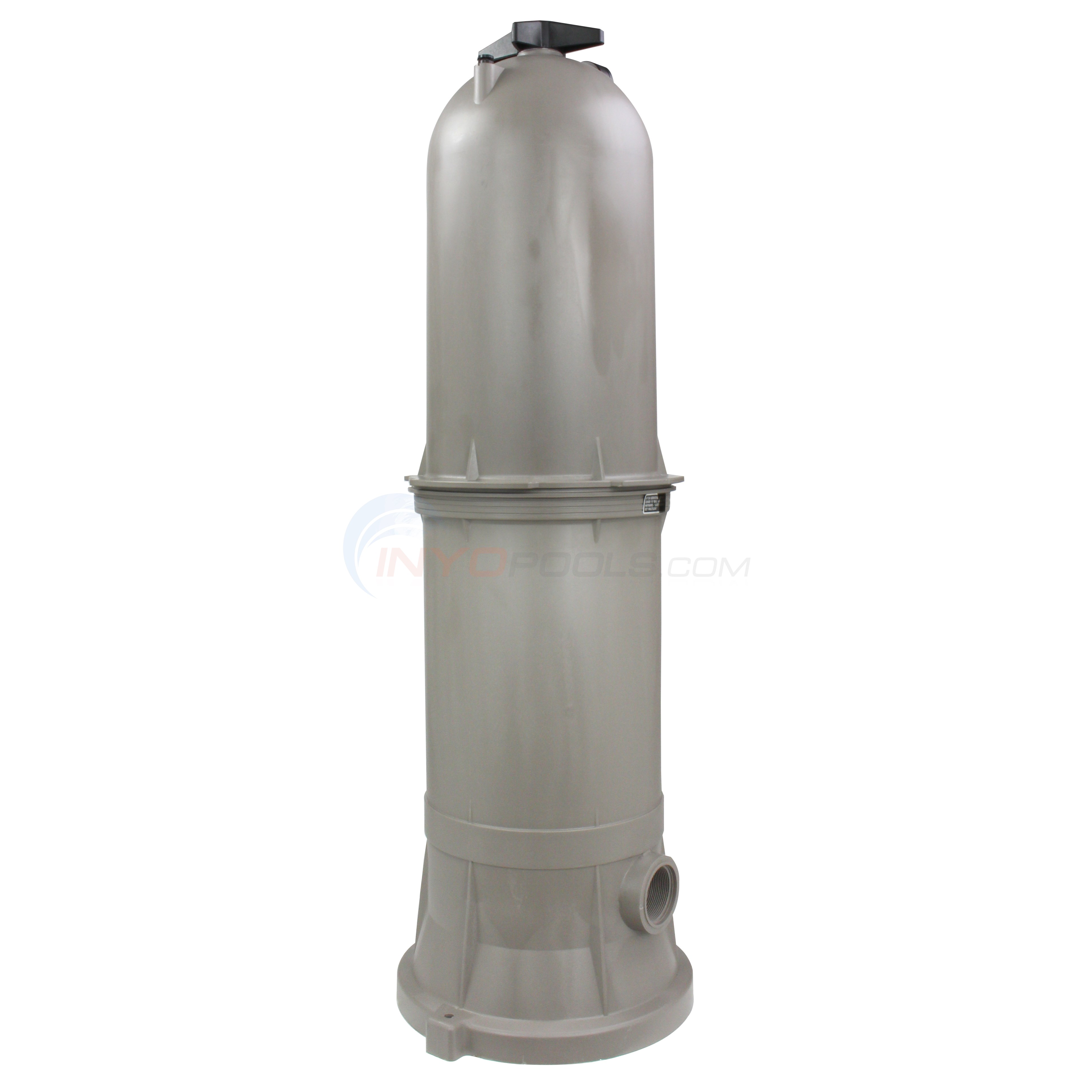

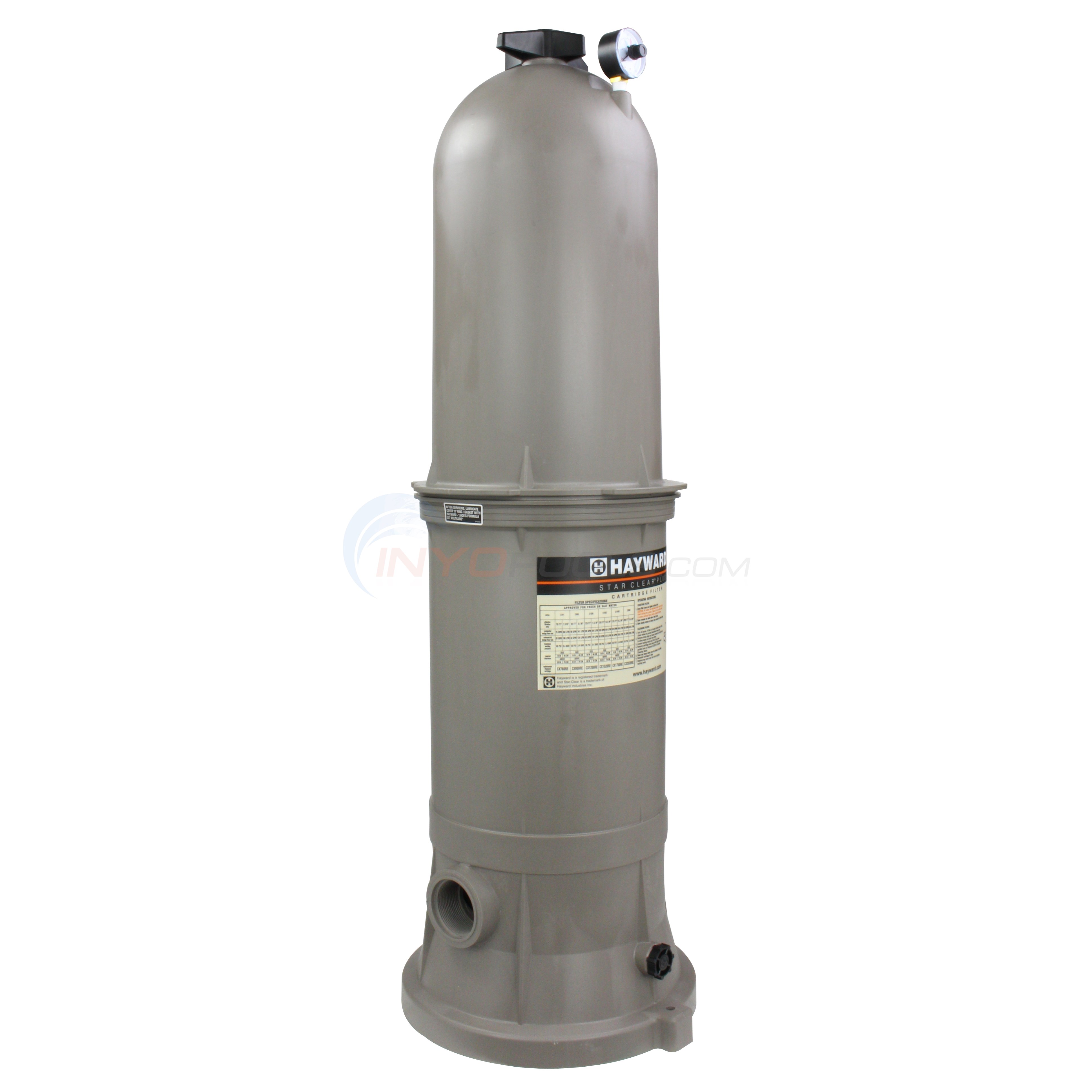

Star Clear Plus 175 Sq Ft. 2 Inch Ports

Owner's Manual

Parts Breakdown

Product Specifications
Part #: C17502
Manufacturer: Hayward Pool Products
		Back to Top

Product Description

Hayward star clear plus cartridge filter offer added quality, value and convenience in cartridge filtration. Featuring a precision-engineered extruded core design, they provide for maximum water flow and superior filtration, while reducing energy costs.

Constructed of high strength PermaGlass XL material they offer unparalleled performance and durability, and include a 10 year warranty.

Easy to clean cartridge filter element, with extra dirt holding capability. Engineered for durability and long life.

Applications:

In-ground pools
In-ground pool/spa combinations

Features:

New PermaGlass XL™ filter tanks made from extra durable glass reinforced copolymer material to meet the demands of the toughest applications and environmental conditions, including in-floor cleaning systems
Single piece injection-molded base and body provides added strength for reliable, corrosion-free performance
Single locking knob securely fastens head to filter tank, eliminating bolts or clamps
Attractive, durable filter head may be rotated to conveniently position pressure gauge and manual air relief

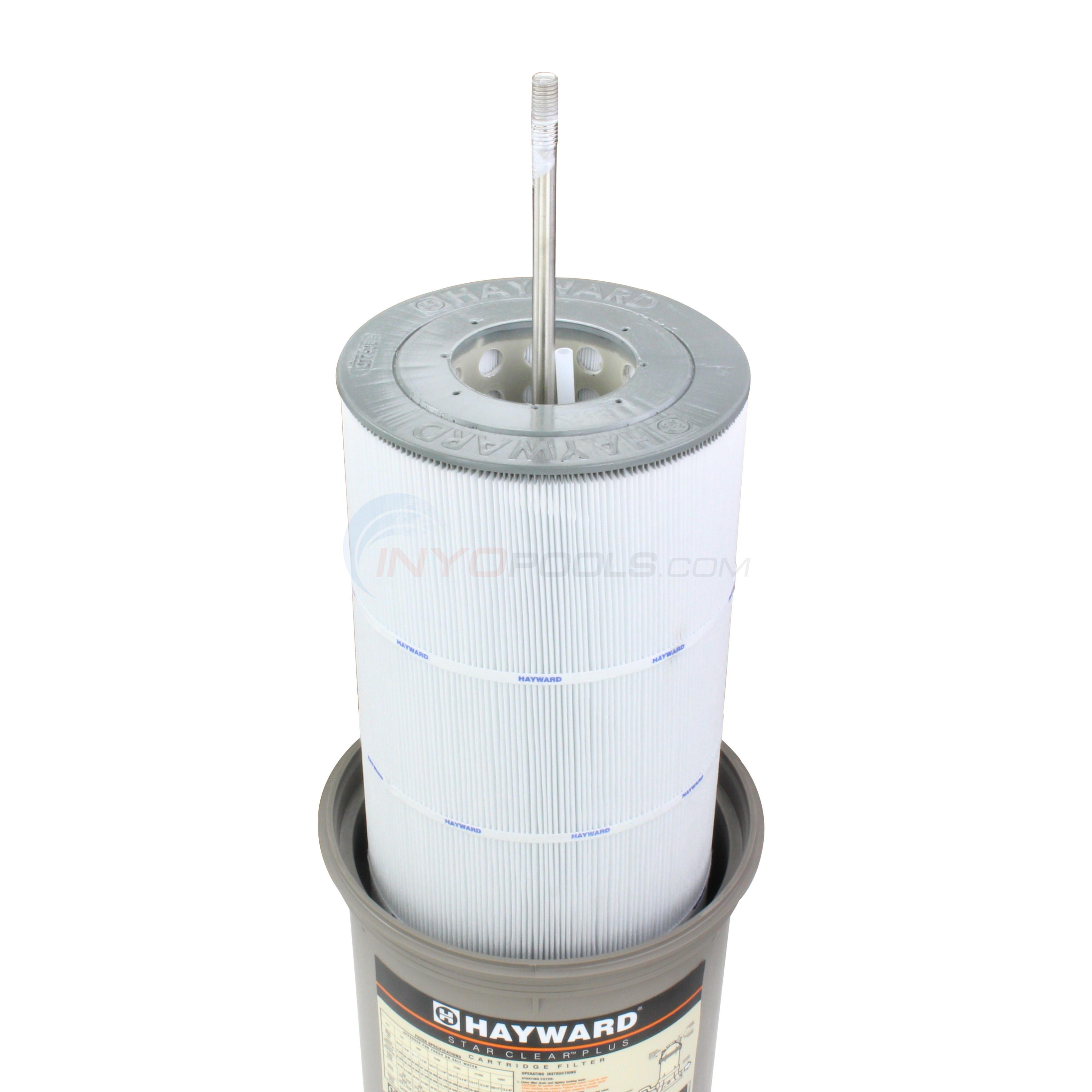

Extra-large cartridge element with new precision engineered extruded core provides extra strength and maximum flow
Elevated, filtered water collector and debris sump prevents accidental by-pass of heavy debris to pool when cartridge is removed for cleaning
1 1/2" or 2" FIP or 2" SKT connections for plumbing versatility
1/2" FIP filter drain for fast draining. Also accepts standard spigot valve

Performance Data--Residential

			Turnover (In Gallons)
Model Number	Effective Filtration Area	Design Flow Rate*	8 Hours	10 Hours
C7512	75 ft²	75 GPM	36,000	45,000
C9002	90 ft²	90 GPM	43,200	54,000
C12002	120 ft²	120 GPM	57,600	72,000
C17502	175 ft²	120 GPM	57,600	72,000

Performance Data--Public

			Turnover (In Gallons)
Model Number	Effective Filtration Area	Design Flow Rate*	8 Hours	10 Hours
C7512	75 ft²	28 GPM	13,500	16,875
C9002	90 ft²	34 GPM	16,200	20,250
C12002	120 ft²	45 GPM	21,600	27,000
C17502	175 ft²	45 GPM	21,600	27,000

Miscellaneous Notes

Public Design Flow Rate based on .375 GPM/ft2.
*Determined by pump size and piping system hydraulics. 2" piping is recommended for flows rates above 90 GPM.
10 Year Warranty On Filter Tank

1 Year Parts
PermaGlassXL™ Stronger Tank

Click here for more Hayward Filters

Customer Reviews

Product:	Star Clear Plus 175 Sq Ft. 2 Inch Ports
Average Rating:	(5 out of 5 stars)
Recommended:	(100%) 1 of 1 customer would recommend this product to a friend.

1 Review
5 star:		(1)
4 star:		(0)
3 star:		(0)
2 star:		(0)
1 star:		(0)

Read All Reviews
Write a Review

The Most Helpful Review

Be the first to say if this was helpful or not

(5 out of 5 Stars) Hayward Pool Filter Replacement

Reviewed By: mdvawter from Tamap, FL (8/15/2009)

Product: Star Clear Plus 175 Sq Ft. 2 Inch Ports

Pros: good construction; easy to install

Cons: poor documentation

I had to replace an older unit that began to leak. The new unit is very similar to the old deisign. Fortunately, the plumbing matched so installation was simplified. There is a new gauage and top cover design. There were no installation instructions or an explanation about the new gauage.
