I just purchased a GLXPCBMAIN for my Hayward Aqualogic system but noticed that it doesn't give me the option for the salt generator. Did I buy the wrong board?
Reply
The GLXPCBMAIN is the correct board for the Hayward Aqualogic (salt). The salt chlorine generator option is disabled by default. You will need to go into the configuration menu to enable it.
Reply
My old board has PN: 066008G-1. Is this the correct replacement? I purchased another board from Amazon, but none of my chlorine cell or Salt readings show up in the diagnostic menu.
Reply
Bryan, The GLXPCBMAIN is the main circuit board for the Goldline/Hayward AquaLogic. If you have a different system, this board will not work. We will need the model number of the system in order to confirm.
Reply
I have an older AQL-P-4 what replacement part will work to fix the "no cell power" for my salt chlorinator
Reply
Jimbo, Yes, the Hayward GLXPCBMAIN will resolve a "no cell power" issue.
Reply
Is this board compatible with Turbo Cell T-Cell-15 as well as AQL-P-4 which I bought in 2007.
Thank you
Mo
Reply
Mo, The GLXPCBMAIN is compatible with the AQL-P-4 controller using a T-Cell-15.
Reply
How hard is it to install circuit board
Reply
This is a pretty easy process especially if you follow our guide with Video on How to Replace an AquaRite PC Board. The board on this page is for the Aqualogic and not the Aquarite but the Aquarite video would be very similar to the replacement of this Aqualogic board.
Reply
I have replaced this board 3 times over the last 8 years..I came home today and there is a humming noise, but no power..any ideas?
Reply
Doug, You may want to check the breaker box, if the breaker box is not the issue you can follow the troubleshooting the unit following the step on page 10-11 in the ProLogic Diagnostic Manual.
Reply
I need to replace my board for my Aqua Logic salt system and I'm curious if I can do it myself is it fairly easy to do? Is there any soldering required to replace the board?
Reply
Hello Neil, yes this is a simple install following wires you take out and you can replace it with out soldering anything.
Reply
my display is reading chlorinator off/high amps. could the board be the problem. I try to super chlorinate and it will try to switch on but goes off after about 10 secs.
Reply
Usually this reading means that the salt level is too high in the pool. If the cell is reading the level incorrectly then that could be either the board needs to be recalibrated, the cell is going bad or the flow sensor/switch is. Also cleaning the cell and switch may help.
Reply

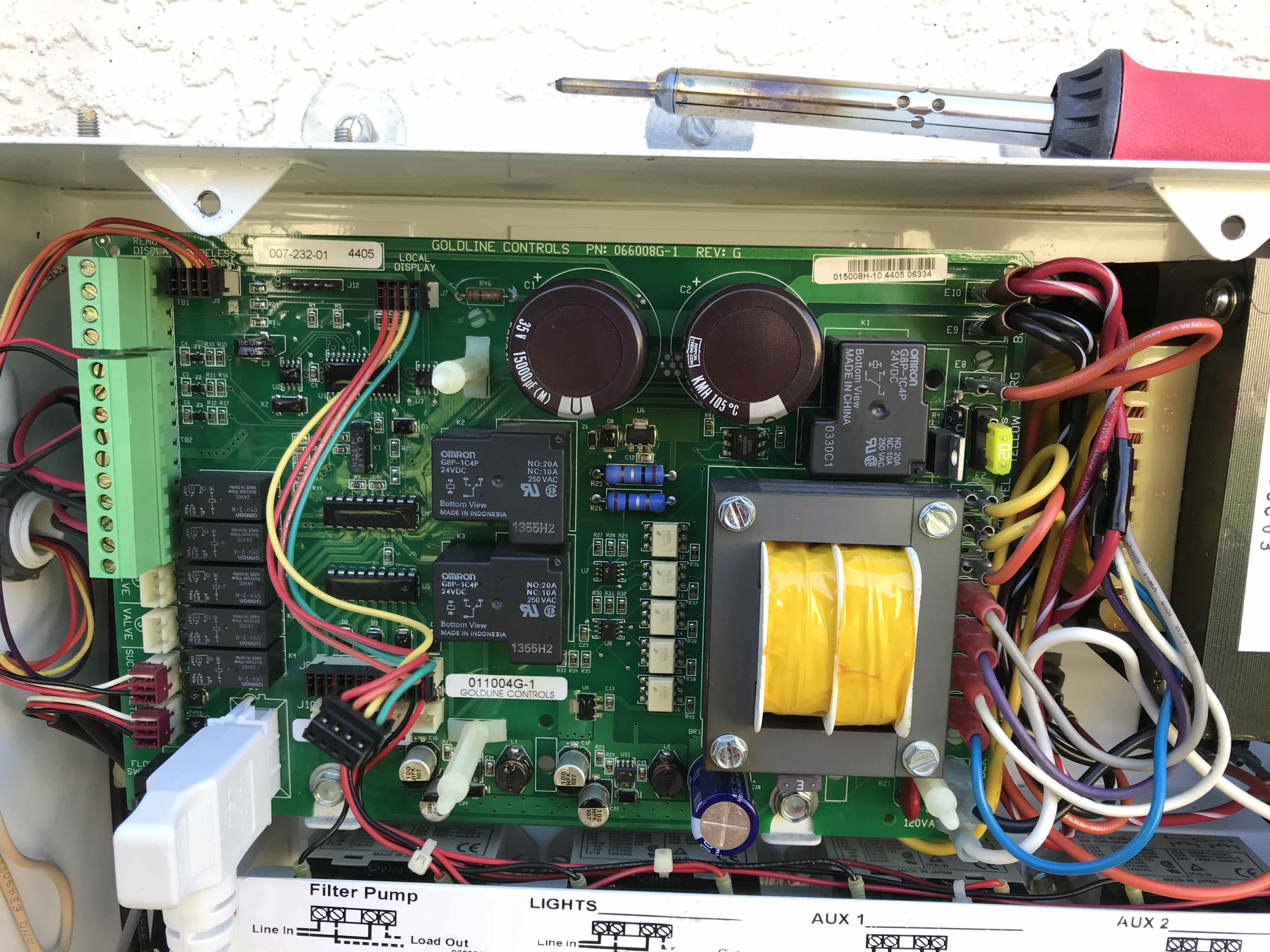

My Goldline Pro Logic main control board has a PN 066008G-1 REV G. Is the GLXPCBMAIN version 2.6 a direct replacement. Thank you.
Reply
Hi, The PCB Circuit Board AquaLogic Version 2.6 will be the correct replacement for your Pro Logic Control panel.
Reply
I have fixed (soldiered) the k1 on the board 3 times? Do you think the problem keeps coming back because of bad soldering or is it time to replace the board? Could it be a faulty wire?
Reply
Hi John, It's hard to say but if you have tried fixing the board 3 times already then I would recommend replacing the board.
Reply
Have just replaced T-cell 15 worked good for about a month, check system is back on, chlorinator off high salt amps. Hayward is recommending replacing the GLX PCB MAIN board. your price seems reasonable. My question is this a genuine Hayward part and is it under their warranty?
Reply
Hi Peter, The PCB Circuit Board AquaLogic Version 2.6 (GLXPCBMAIN) is a genuine Hayward part with a 1 year warranty.
Reply
I have a ten year old board Part # 066008G-1 (Goldline Controls Inc.) that I need to replace (soldered it three times). Which board replaces this one and is it returnable if the wrong one is sent? Thank you.
Reply
Hi Jack, The AquaLogic Version 2.6 PCB Circuit Board would be the correct board that will replace p/n 066008G-1.
Reply
Will this replacemnet board will for 4 relays, 4 valves, 2 actuators on a AQ-logic-ps-4?
Reply
Hi, The AquaLogic Version 2.6 PCB Circuit Board (GLXPCBMAIN) will be the correct board for the Aqualogic PS-4 controller.
Reply
My board shows Hayward P/N: G1-066008N-1. Is this the proper replacement for my board?
Reply
Hello Hal, The GLXPCBMAIN PCB Circuit Board AquaLogic Version 2.6 is for the Aqualogic Automation system. The correct board for your Aquarite salt system is GLXPCBRITE Aqua Rite Main PCB (GLX-PCB-RITE).
Reply
My swim pure inditares 3500 parts however the reading at the store and by strip read around 2950. The board is new. Re calibration does not help. How do I test the cell?
Reply
Hi, You will have to bring the cell to an authorize Hayward Dealer for testing. You can contact Hayward at 908.355.7995 for a center near you.
Reply
Which board fits a PL PS8 X288? Numbers on the board are
G1 01 1049 F-1
GLC 25210
Getting a cell power error message. Appears to be the board.
Reply
Hi Danny, The Pro Logic PCB (GLX-PCB-PRO) is what you will need for the PL-PS8 to resolve that error message.
Reply
I have an Aqua Logic AQL-PS-8 with a board number 066008G-1 Rev G
Is the GLX-PCB-Main version 2.6 the proper replacement board?
Is this the latest version?
Thanks
Reply
Yes the GLXPCBMAIN is the correct replacement board.
Reply
I have a Goldline Controls Board for an AquaLogic Salt System. PN G1-066008K-1. Just want to verify that this board is the correct replacement.
Thank you in advance.
Reply
Hi Joe S., This AquaLogic PCB is the correct replacement.
Reply
I have board that's bad pn 06608g-1 I am in need of a new board but with firmware compatible with the aqua connect module to allow me to control automation from phone/internet this required a version 4.20 or higher what do I need
Reply
Hi Jered, According to Hayward you will have to replace th entire Panel with one that is compatible with the AquaConnect. The AquaLogic is not compatible with AquaConnect.
Reply
I have a Goldline board PN G1-066008J-1 Could you please tell me what replacement boards are compatible? Is G1-066008N-1 compatible? Thanks very much
Reply
Hi Ward, The GLXPCBMAIN is compatible with p/n G1-066008J-1.
Reply
I can't get my configuration menu to unlock I have pushed the + and - at the same time replaced the board a few months ago any ideas why?
Reply
Hi Brenda, You can find the steps needed to unlock the "Configuration Menu" in the Aqualogic Operation Manual
Reply
Going to buy your main board for my Aqualogic PS-4. Does the ver. 2.6 board have any add'l options or benefits over the older ver 2.22 - or is it just a better/updated build? (Read something about later ver. providing compatabiilty/integration of non-Hayward components (e.g., Pentair Variable Speed Pump).
Reply
Hello, From the research I have conducted, the new version PCB board allows for compatibility with other T-Cell versions and communication with the EcoStar VS Pumps. It is a better version, but if you require additional information on the version updates, you may want to contact Hayward Pool Products directly.
Reply
I have a Goldline salt generator, circuit board no. 66012B. Are there still replacement parts available. If so what part no and price?
Reply
Hi John, We will need to know which Goldline/Hayward generator you have in order to locate the correct PCB. I was unable to cross reference no. 66012B to any Goldline/Hayward part.
Reply
How can I fix a problem with the timer on my Aqua Logic AQL-P-4 control panel? The timer will not keep the settings for the times set to start and stop the pump. I have to reset the timer every day. Is it a an easy fix with a replacement module? Thanks much.
Reply
John, I would recommend calling Hayward as they can walk you through troubleshooting the issue. You can reach them at 908-351-5400.
Reply
I have aql-ps-4 automation system will it control the sp3202vsp pump
Reply
Hi Jerry, The TriStar VS pump requires a software revision of 4.41 or higher, it's not compatible with the AquaLogic controller.
Reply
Had a new board installed April 2015. One year later, I have a problem. The system starts up in Pool mode, then auto switches to Spa mode without changing the pool/spa valve. Shuts down when it should. Then at 12 mid-night the pool starts all by itself and runs for 15 min. Also, can not get the pool/spa valve to change.
Reply
Although we can help with general technical support for this control panel, I would recommend contacting Hayward directly at 1-800-657-2287 to assist in resolving this specific issue.
Reply
Control board appears to be out according to goldline trouble shooters, the pool is approx. 8 years old and has the Aqua Logic - automation and chlorination system, the above PCB board looks like the correct one, where would I find the model number on the system I have, looked on the door of control box - nothing want to make sure I get the right one to replace with. thanks
Reply
Hello, there are normally serial numbers or model numbers on the cell itself. A basic serial number can be run through Hayward 800-657-2287 to make sure you know what type you have.
Reply
how is a two speed motor wired up from the glx-pcb main board to the pump motor
Reply
Hi Mike, The pump does not get wired to this PCB, it's get wired to the replays which wiring instructions can be found on page 15 of the Aqua Logic Automation and Chlorination Installation Manual.
Reply
I have a Goldline Controls PN:066008G-1 circuit board where can i get another one. Also a Goldmine Controls 011004G-1 sticker on it too.
Reply
Hi, This GLXPCBMAIN board is the replacement based on the info provided which you can order through our company's website.
Reply
Is this the correct replacement PCB main board for the AQL-PS-4-X288 (or PS-8-X288)
Reply
Hello Lynda- Yes, the PCB Circuit Board AquaLogic Version 2.6 - GLXPCBMAIN is the correct replacement board for the AQLPS4.
Reply
In the description it states "Use this board to upgrade your 2.0 software and to upgrade to the AquaPalm". We have an Aqua Pod Remote control - is it compatible?
Reply
Yes, the AquaLogic PCB Circuit board is compatible with the AquaPod Remote.
Reply
I have an ecommand 4 hpc 4 with a board gone bad, c14 chip burnt out. I know the board is the same board as the hpc 4 but with salt cell ability. can I use it without the salt feature on my ecommand 4 base with rc rf?
Reply
The main board replacement for the HPC4 is part number GLX-PCB-HPC-4.
Reply
Is this the correct replacement PCB main board for G1-011049E-1 GLC24609 ?
Reply
Hi, John. The numbers provided is not a solid cross reference #, we will need to know if it's and AquaLogic, AquaPlus, AquaRite etc.
Reply
do you have a copy of the wiring diagram for the GLX-PCB-Main older version G1-066008J-1.
I have a newer panel that went bad and want to go back to using an old circuit board that I already have (G1-066008J-1).
Reply
Hi, Teresa. We do not have a wiring diagram at this time for the AquaLogic PCB.
Reply
My Aqua Logic board PN is G1-066008N-1 which replacement board do I need and will I have to reprogram it? Thank You
Reply
Hi, TommyB. This is the correct PCB for the AquaLogic controller, you do need to reprogram your system.
Reply
I just replaced my GLX-PCB-MAIN board on my Aqualogic system. One of the plastic stands/tabs that holds the display in place is missing. Do you know where I can find one of these?
Reply
I recommend giving Hayward a call, they might just ship you one for free. I cannot think of anyone that sells just that piece, usually sell the complete main board.
Reply
I have a Goldline Controls PN:G1-066009G-1 that has a tag: G1-011007D-1 (GLC 160111). Everytime I try to power on it reads "COMMUNICATION ERROR". The PCB has a tag of G1-011049F-1. What is causing this to happen?? Can it be fixed?? What are the options??
Thanks!
Reply
Hi, Chris. To better assist you we will need to know the model (AquaLogic, ProLogic etc.) of your controller and what device you have that is displaying "COMMUNICATION ERROR." Please reply with the following info.
Reply
I have an Aqua Logic system with a T-15 salt cell. The salt reading are showing 0000. I replaced the salt cell and have seen no change. Is this the control board that I would need to change to get the chlorinator to start working again.
Reply
Yes, sounds like the main board and the GLXPCBMAIN would be what you need to replace.
Reply
my board/system reads 3400 ppm salt but pool store and home test strips place indicate salt ~2700 ppm. can this system be effectively re-calibrated or do I need new board or system? thanks!
Reply
You can try resetting the board but if that does not bring the reading within 200ppm then you will most likely need a new pcb main board.
Reply
This question was asked and the answer from Scott was to call Hayward but the best answer is at the link below
http://www.inyopools.com/SearchResults.aspx?KeyWords=GLX-STDOFF
original question =
? Asked on 4/6/2017 by Victor deButts
I just replaced my GLX-PCB-MAIN board on my Aqualogic system. One of the plastic stands/tabs that holds the display in place is missing. Do you know where I can find one of these?
Reply
My apologizes Riley, I was not aware they sold those separately from the main board. I am glad you were able to find what you needed though.
Reply
I have the same problem with my salt reading after replacing the chlorinator. The number on my board is 011004G-1. Would this be the replacement board I need? You referred to a main board in a previous question what exactly is that? In looking at the pictures of what I have and with this board looks like it does not look the same is that normal?
Reply
It will depend on if you have the AquaLogic automation system or if you just have the AquaRite salt system. Let me know and I can tell you which main board you need.
Reply
Will this board replace a G1-066008J-1? The pool was built in 2008 and I'm concerned that a newer board revision won't work with my old devices.
Reply
Hi, Jack. Based on the info I found, GLX-PCB-MAIN is the correct replacement for p/n G1-066008J-1. However, we can't always use that number as a definite confirmation. Please let us know the model of the controller that you have whether if it's the AquaLogic or ProLogic controller.
Reply
I have not purchased from your company before and am unfamiliar with your policies.
If I purchase an Aqua Logic GLXPCBMAIN board and it turns out that the board isn't the source of the problem, can the product be returned for a refund? What are the terms of purchase?
Reply
Hi, Jon. Unfortunately, once this part is installed it can not be returned unless the manufacturer deems the part defective. You can review our entire Return Policy.
Reply
I have a AQUA RITE ELECTRINE CHLORINE GENERATOR WHAT CIRCUT BOARD WOULD I NEED
Reply
Hi, Rocky. The Aqua-Rite units uses the Main PCB - GLX-PCB-RITE (OEM) or PL7100 (Aftermarket).
Reply
Will this board replace 011004G-4, Aqua Logic PS-4? This circuit board is 10 years old and needs to be replaced. It's fried!!
Reply
Hi, Tammy. This AquaLogic Main PCB - GLXPCBMAIN is the correct replacement.
Reply
I have a Hayward Goldline PS-4 Aqualogic Saltwater Chlorinator, My System tells me low volts and the check system light is on.i have replaced the rectifier and still no chlorine. The cell is 3 years old. The goldline is about 12 years old. Trying to decide if I should replace the whole system or see if we can repair this one. Do you think if I replace the main this should solve the problem or should I cut my losses and get your Crystal Pure system for a few $ more? Any idea on its warranty?
Reply
Sandy, Before replacing the board, I would recommend having the cell tested. If the cell checks out, replacing the board should get you back up and running. The Aqua Logic is an automation system that has the salt system built into it. If you opt to purchase the PureLine salt system, you will not be able to control it from the AquaLogic system. The PureLine salt system has a 2 year warranty.
Reply
I purchased a new PCB (GLX-PCB-MAIN) to replace part number G1-066008M-1. The board that was delivered is part number G1-066008N-1. Is this board the same as GLX-PCB-MAIN?
Thanks
Reply
George, The part number on the board can change. As long as you have the Aqua Logic system and ordered the GLXPCBMAIN, the board will work.
Reply
I have an Aqua Logic AQL-PS-8, the numbers on the main board are PN: 066008G-1 AND 0011004G-1 what would the correct main board be for me to purchase also this unit has the wirelesss remote control
Reply
Hi, Todd. This AquaLogic Main PCB - GLXPCBMAIN is the correct part for the Aqua Logic AQL-PS-8 controller. It's also will allow to use your current wireless remote.
Reply
My aqua logic ps4 is saying "no cell power" and "no cell power 2". Last week is said Low volts. Could this be the main board or turbo cell? I had the main board replaced 5 years ago. It seems like it should last longer than that.
Reply
Hi, J.O. It sounds like the PCB is bad and will need to be replaced. It's hard to say how long these boards can last.
Reply
I have an Aqua Logic AQL-PS-8 and the timer no longer works. What do you recommend? Anyway to trouble shoot to determine cause? I have read that I may need to replace one of the boards, but is it PS-8 Display board or the Main board?
Reply
Hi, Tom. Replacing the Main PCB will resolve this issue.
Reply
The version on this board is 2.6. I have seen newer 2.9 versions available. What is the difference between the two versions?
Reply
Hi, Jim. The newer boards have an new software revision which will make it compatible with newer equipment and features.
Reply
HI, I have a Hayward PS-4 Aqualogic system and I would like to upgrade the board/firmware so that I can utilize the ALQ2 wireless features. I believe my system is Version 2.4 and I need according to the literature Version 2.6 or higher. Will this board allow for the most up to date wireless functionality?
Reply
Hi, Michael. Yes, this is the correct PCB that you will need. You will also need the AQL2BASERF and the ALQ2 Wireless Remote - AQL2TWRFPS4 or AQL2TBRFPS4.
Reply
I have an AQL P4 Aqua Logic. Reads cell power error with burnt spots on the back of the board. Board part # is Goldline controls PN: 066008G-1 Rev: G. What replacement board do I need.
Reply
Hi, Al.This AquaLogic Main PCB - GLXPCBMAIN is the correct part that you'd need to resolve your issue.
Reply
I’m running an AquaLogic AQ-LOGIC-PS-8 with Goldline Controls PN G1-066008K-1 circuit board and an AQL-WMW-RF-PS-8 wireless remote. Is this GLX PCB MAIN, vers. 2.6 the correct replacement and will I still be able to use the wireless remote ? And is this a new unused, not refurbished board ? Currently having a “No Cell Power” indication, so no chlorine generation, but all else including wireless remote appears to be working fine.
Reply
Hi, Mike S. You will still be able to use your existing Wireless Remote and RF-Base. This part is new, not used or refurbished.
Reply
I have an AQL-p-4. Will this board allow for the choosing of different salt cells, ie T-3 thru T-15? Currently the only choice is a percentage function.
Reply
Jeff, Yes, this software upgrade will allow you to change the cell size.
Reply
What are the differences between this board and the GLXPCB PRO MAIN board. Will the PRO also work in a AQL P 4 panel and is it worth doing? More features etc...?
Reply
Hi, Jeff. The difference is the controller compatibility. The GLX-PCB-MAIN is for the AquaLogic controller and GLX-PCB-PRO is for the ProLogic controller. The GLX-PCB-PRO can be used in the AquaLogic controller but not vice versa.
Reply
I have an Aqua Logic P4 purchased in 2003 and have not had any problems until now with the system other than replacing cells from time to time. When I run the diagnostic screen it shows no response as to the cell functioning or a salt readout and the back of the PCB shows a cracked or burned and cracked area. I need to replace the PCB and want to make sure that the GLX-PCB-MAIN is correct, The current PCB----- PN: 066008D-1. Thank you.
Reply
Hi, Jim. This AquaLogic Main PCB - GLX-PCB-MAIN is the correct part.
Reply
Good day
I have just replaced a bad board with PCB Circuit Board AquaLogic Version 2.6 GLXPCBMAIN for my Prologic PS-8.
I had my pool guy sell me a Aquaconnect but found out that it requires the 4.20+ version.
Is there a way to upgrade the firmware on these boards? and if so how is the process performed.
Reply
Hi, Richie. Unfortunately, the firmware cannot be upgraded, you will need to use the ProLogic Main PCB - GLX-PCB-PRO.
Reply
Have an aqua logic-
P-4 that has no cell power 2 msg. Could this be a fuse and if not does th PCP board have to be replace. If so what model?
Reply
Hi, Joe. The Main PCB - GLXPCBMAIN will have to be replace with the No Cell Power 2 message displayed.
Reply
Hi I have a PS-8 T-15 Cell number on Circuit Board is PN: G1-06608K-1 is this the correct replacement circuit board?
Reply
Hi, Pam. This is the correct replacement Main PCB for the PS-8 Controller.
Reply
Will I need to replace my local display if I install the new glxpcbmain into an older system replacing a G1-066008K-1 board numbered "0309"? Also, if I dont have any wireless units would there be any issue updating my existing system to a pro board, if I understand correctly it will allow me to use different salt cells?
Reply
Hi, DieselDude. You can re-use your existing Local Display with either Main PCB. The GLXPCBPRO will provided with additional feature including all cell type compatibility.
Reply
I have a AQL-P-4 (Aqualogic) system, with a salt cell. I replaced the board this summer, and everything worked fine. This past week i got the message 'Communication Error' on the display. I power cycled the whole system multiple times but i still get the same message. What are my options?
Reply
Hi, Keith. Your option are to replace the Local Display or the Main PCB. You can use the Troubleshooting Guide to diagnose the which part is is the causing that error message.
Reply
Hello:
I have and Aqua Logic AQL-PS-8-X295. There is no power going to my salt cell - so understand I need a new circuit board.
The Part number on the circuit board is G1-066008N
NF
Good Afternoon- You will need to replace your Aqua Logic AQL-PS-8-X295 board with the AquaRite Replacement Main PCB (GLX-PCB-RITE) - PL7100.
Reply
I have an AQL-PS-4 and the pump is stuck on. Pressing the filter button like normal to turn it on/off still registers as the display will switch to on/off, however the actual pump doesn't turn off. The only way to get the pump to turn off or on is the flip the breaker. Is replacing the board the only way to fix this and if so, is this the right part? Thanks for the help.
Reply
Hi. The OCB may not be the problem, I would also recommend that you check the pump relay. A bad Relay - GLX-RELAY can cause this issue. The AQL-PS-4 uses the GLXPCBMAIN
Reply
Piggybacking on his comment - but my pump isn't running, but shows on and off! What the heck is an OCB and where is the pump relay? But when we pulled the board the back looks like this!! - the one spot on the lower left was an inept, but efficient, contact repair. The one towards the middle, I don't remember seeing before. Is the board blown?
Pl8 system comes on in middle of night....filter and lights...cannot turn off by controllers..have to cycle power...new board?
Reply
Good day, Paul, yes if the unit is turning on and off randomly you would want to replace the PCB Circuit Board AquaLogic.
Reply
My board has been replaced on my aqua logic system with GLXPCBMAIN. Now i noticed my spa light was on this morning, the motor was off, and i could not turn off the light with the remote or inside the panel.
Reply
Good day, for a deeper troubleshooting guide or instruction to correct this issue. We would recommend contacting Hayward at 908-355-7995.
Reply
haywood aqualogic power module - what is the average life of a new module.
Reply
Hi, Linda. The average time before this PCB will need to be replaced is 5-7 years. Several factors can lead to premature failures.
Reply
I have a pro logic PL-PS-4 with salt system and wireless remote. The reading for volts is above 40 and amps above 10 so I'm told I need a new board. Original board is 10 years old (PN G1-066008k-1). Is this the right replacement? thanks
Reply
Hi, Javier. The replacement board you will need for the ProLogic controller is P/N GLX-PCB-PRO.
Reply
I have a Goldline 954001B and had a no power cell error. I replaced the T-Cell-15 and now I get a high salt/amps error. I suspect the control board needs to be replaced but want confirmation. If this is the case I need the part number and installation instructions.
Thanks!
Greg Gibbons
Reply
Hi, Gregory. The Main PCB of your unit will need to replaced base on the error message. However, we will need the name of your controller, since those numbers on the board changes.
Reply

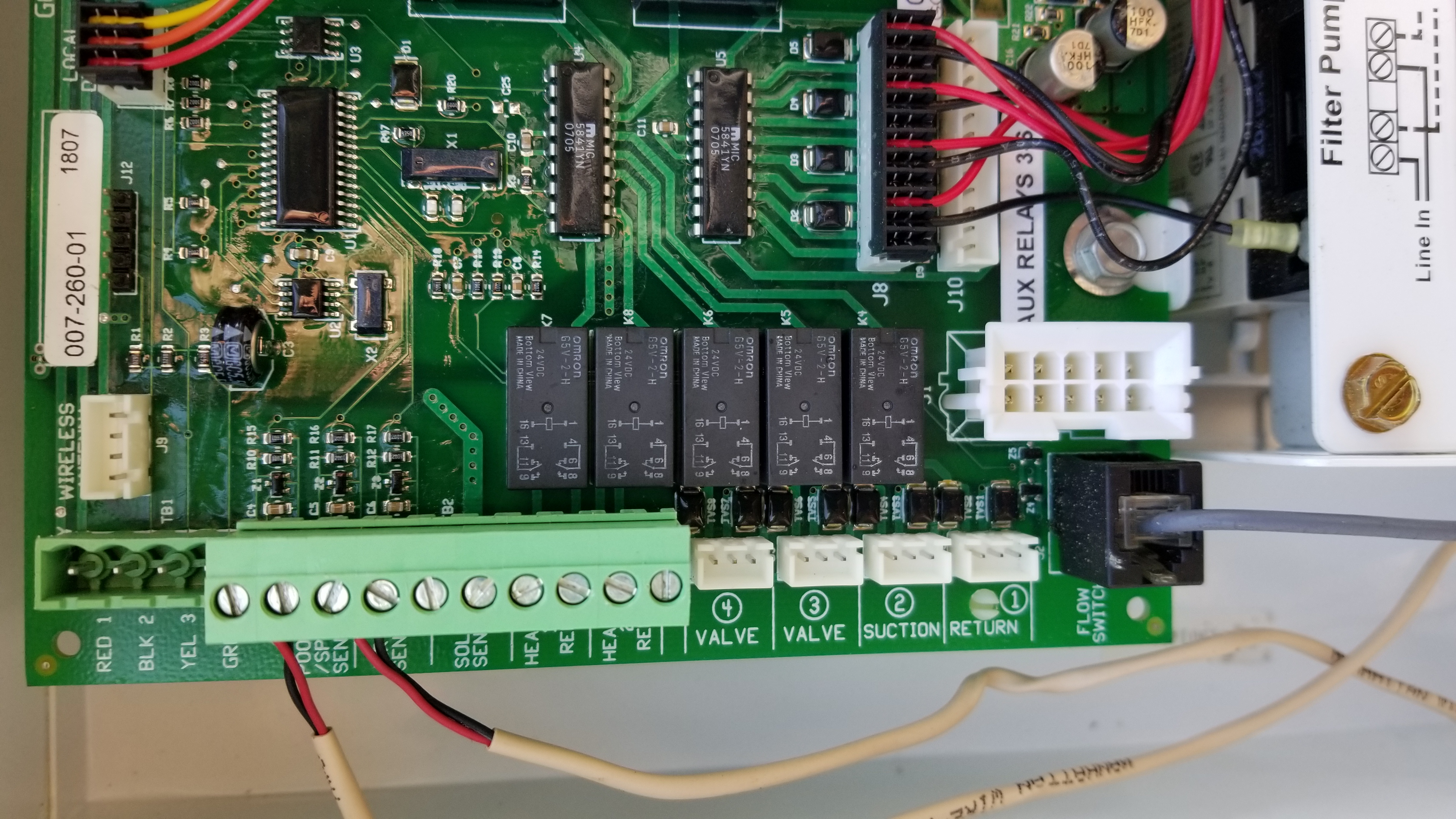

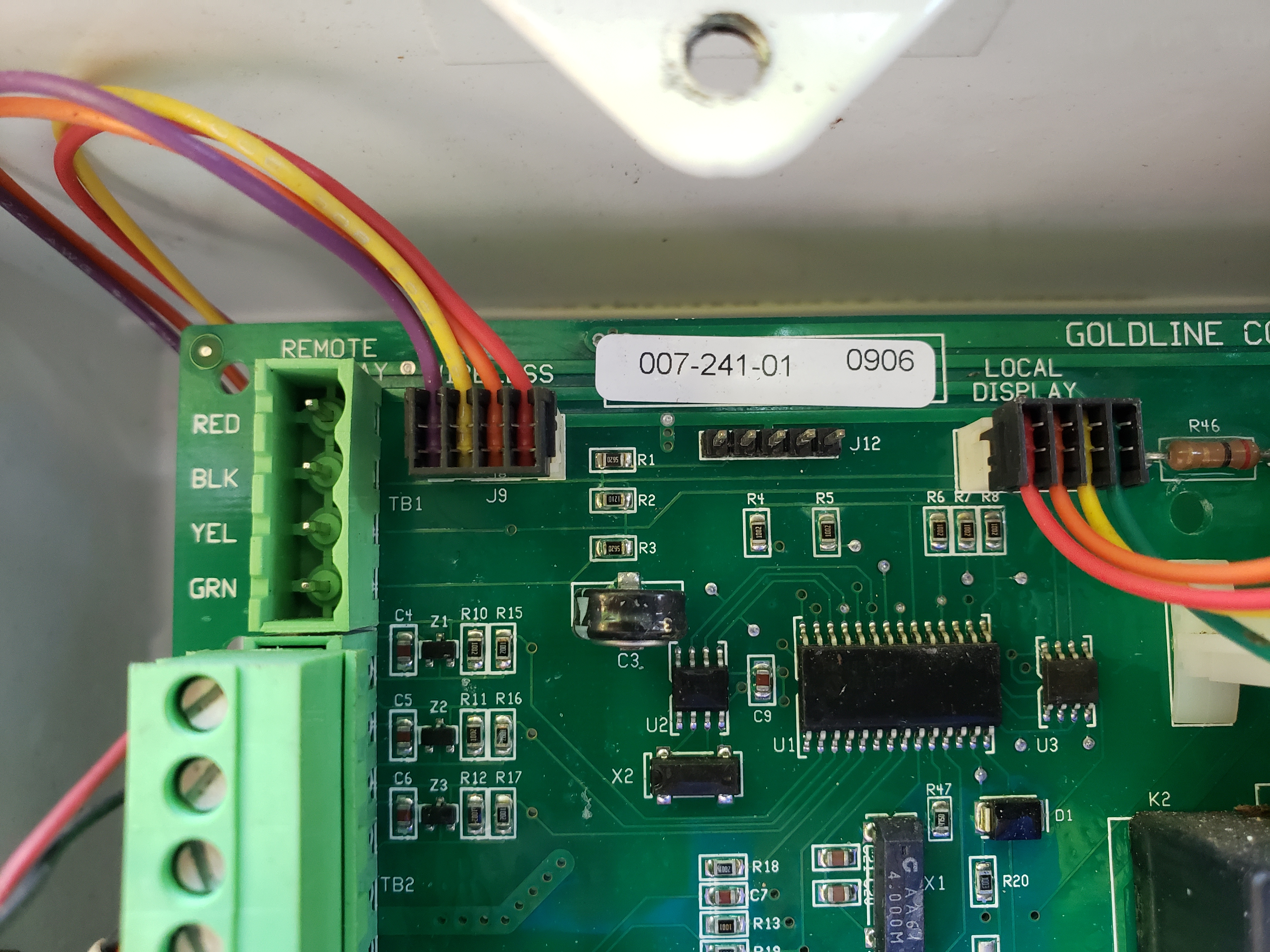

Added photos of the control board. Is this the info you were asking for?
Added photos of the control board. Is this the info you were asking for?
Reply
Gregory, This GLXPCBMAIN is the correct replacement PCB for your controller.
Reply
How or where can I find that information?
Reply
I have a problem with my Hayward Gold line .
I have power to my unit, but I can not get power to my panel to turn anything on. Panel will not lite up.
I can not see my model number, but the Pin number is ( G1-066008J-1 ) and another number that I can see is ( 0011004K-3 )
can you please help me!
Thanks
Reply
Good evening, you would want to first check the fuse on the control board. If that has been replaced the there still is an issue then you would need to replace the main PCB. Which would be the GLXPCBMAIN.
Reply
The clock is not holding the right time, the pump on/off is not responding to the key pad and, I'm not getting a correct salt reading on the panel. Anyone have any ideas?? Is the panel totally gone at this point?
Reply
Without testing there is no way for us to answer. It could just be the pc board opr you could have several different failures. Recommend a service call.
Reply
I have a Goldline Controls board that needs replacing. The PN is G1-066008K-1. Is this board compatible with my system?
The replacement board that you will need is the GLX-PCB-PRO.
Reply
Hello, we are getting the no cell power and no cell power 2 error. We believe we need a new board. Our P/N is: G1-066008N-1. We are confused about which board we need. Also, is there a way to get an upgrade to make this wireless since I am having to replace it?
The board should fix the no cell problem Hayward Goldline Controls Aqua Logic control system, all versions, all datecodes. This Board is the newest board for all Aqua Logic Systems made by Hayward and Goldline Controls. This board will upgrade so you will be able to run the T-CELL-3, T-CELL-9, TCELL-15 and the new Ecostar variable speed pumps.This will usually fix the no cell power problems. Will not work on the AquaLogic Pro Logic This will not make you wireless as that would require Aqua logic Pro
Reply
I have a Goldline Aqua Logic, the timers seem to work ok , but the clock does not change . Is this a board issue?
Reply
John, yes, the issue that you described sounds like a symptom commonly found on systems with a bad mainboard. We suggest the PCB Circuit Board AquaLogic - GLXPCBMAIN to replace the existing board.
Reply
Can circuit documentation / relay logic etc. of any kind be obtained for this board?
Reply
Hello, Unfortunately, we are not certified Hayward reps to accurately troubleshoot this for you. We recommend contacting the manufacturer with that question.
Reply
http://haywarddocs.info/wp-content/uploads/2017/10/2016-ProLogic-Troubble-Shooting-Guide.pdf
Reply
No, this information is not released by the manufacturer.
Reply
http://haywarddocs.info/wp-content/uploads/2017/10/2016-ProLogic-Troubble-Shooting-Guide.pdf
Reply
I need to replace the following board. Do you have one that is compatible?
Is this the correct board to replace Goldline Controls PN: 0066008G-1 Rev G ??? There is also a AQL2-Base-RF and AQL2-Pod remote connected to this board.
Good afternoon, Yes based on that information the PCB Circuit Board AquaLogic - GLXPCBMAIN would be the correct replacement board.
Reply
If I need to replace the main circuit board for my Hayword Goldline Aqualogic AQL-PS-4 system (Main PCB: 066008N-1. Main Software Revision 2.87. Display PN: 066015E-1. Display Software Local-04 r3.00. RF base, Software r1.20 ID:C06D), is there a way to upgrade the system to include wireless capability. Could I do this by combining the following: AquaPlus / ProLogic Main PCB - GLX-PCB-PRO plus Wireless Antenna Base - AQL2BASERF plus Aqua Connect Home Network - AQCOHOMENET.
Reply
Hi, Bob. Yes, to upgrade your AquaLogic system to use the Aqua Connect, you will need the ProLogic Main PCB - GLX-PCB-PRO, Base Receiver - AQL2BASERF, and Aqua Connect Home Network - AQCOHOMENET.
Reply
In order to upgrade to the Aqua Connect would I also need to upgrade the display to the Hayward GLX-PL-LOC-PS4 Local Display, or can I use the existing display (Display PN: 066015E-1. Display Software Local-04 r3.00)? Thanks for your help.
Reply
Bob, You can keep your existing Local Display.
Reply
my pool is showing no cell power and my salt level is showing 900 i have tested it with a strip and it is reading 3400 is this the right replacement board for my pool
Hello Keith, attached is the ProLogic/AquaLogic Troubleshooting Guide Residential.
Reply
Yes, this is the correct board.
Reply
My display module goes on and off and when it goes off you can hear a click. Is this a main board or display board issue? if main is the correct board GLX-PCB-MAIN, I have a T 15 unit. Also does this mean that no chlorine is being produced?
Reply
Good day, yes if the display is kicking on and off with a click that would be a bad PCB Circuit Board AquaLogic GLXPCBMAIN Goldline Control. If it is or is not producing it would be a different issue. We would need the diagnostics of the system to see if it is or is not producing.
Reply
Looking for the correct replacement for this circuit board.
Hi, Sharon. Yes, this GLX-PCB-MAIN is the correct replacement Main PCB.
Reply
Hi, I have an aqua logic PS-8 with no power to salt cell PN #06008N-1 which is the correct board ?
Thanks
Reply
Rick, the PCB Circuit Board AquaLogic - GLXPCBMAIN would be the replacement board on your Aqua Logic PS-8 PN #06008N-1.
Reply
My Pool tech just replaced my Spa heater. He was trying to program it to run off the control panel but was told the software version was to low. I am told I need to replace the board to bring the software version up. Is this correct?? The panel works fine and I just replaced the display\control unit. See pic below. Is this the right part to replace what I have?
Hi, Richard. You will need the GLX-PCB-PRO if you want any upgrades.
Reply
Looking for a replacement board for Goldline PN: 066008G-1 REV:G
Hi, Gary. This AquaLogic Main PCB - GLX-PCB-MAIN is the correct replacement.
Reply
I have a Goldline Aqua Logic Model AQ-LOGIC-PS-4 and PC Board Part No: 066008F-1 & would like to confirm that your Goldline GLXPCBMAIN Replacement Printed Circuit Board will work in my system. My board has a burned out circuit due to electrical short. Thank you
Reply
Hi, Robert. This is the correct replacement main board for an AquaLogic System.
Reply
Can you add the the Wireless Antenna Base - AQL2BASERF to the AQ-LOGIC-P-4?
Reply
This Base is needed to operate any combination of 4 wireless remotes for Aqua Logic and Pro Logic Controllers. This product is compatible with all Pro Logic controls and with Aqua Logic controls operating software revision r2.60 or higher http://www.inyopools.com/Products/02100002003705.htm
Reply
I have a pcb that shorted out from two frogs bumping uglies.
The system has a salt generator control but not used. Can I use this PCB.Also the system has the remote control by antenna can I upgrade to wireless
Hi, J. You can use this board as a replacement and use the Wireless Antenna Base - AQL2BASERF to make your system wireless.
Reply
I've only been in this house about a year and two days ago started getting a Communication Err 2 message. I currently have the Goldline Controls G1-066008N-1 PCB. My pool tech tested it out the antenna and said it wasn't the issue. Wil this board (PCB Circuit Board AquaLogic - GLXPCBMAIN) solve my problem and be compatible with my pool heater and remote?
Hi Toby, Yes from what you have described, this sounds like a bad PCB board and this is the proper PCB Board you will require for the system in your photos.
Reply
Thanks for your advice...I ordered this PCB. But wouldn't you know it, after multiple days of exhibiting this Communication Err 2 problem, it now stopped and my pool has been working perfectly for 4 days. Any thoughts on what could be happening and why its now working? I assume one of these days it will stop and never work again, but perhaps you have an alternative point of view. Curious of your thoughts...
Reply
The Error code 2 can be present from an abrupt power outage that has fried the PCB. You can check the breakers and reset if that does resolve. It may indicate a wiring problem in the temp sensor terminal block, a faulty connection to a wired remote, a faulty connection between the local display and the main circuit board, or the main PCB needs replaced.
Reply
Hi, will this replace the Goldline 011004G-1 board?
Hi Jimmy, Yes This AquaLogic Main PCB - GLXPCBMAIN is the correct replacement board for your Goldline 011004G-1 board
Reply
Hi, I think I need to replace this board in my controller, but not sure.....my clock no longer works, the salt generator reads salt way lower than it really is, and one of my valve actuators has now stopped working......and.....all the LEDs on the control panel are all illuminated all the time...does that sound like a bad PCB?
Goldline main PCB, part # G1-066008N-1
Attached some pics....
Based on the model number 066008N-1 the Hayward Pool Products AquaPlus / ProLogic Main PCB - All Date Code/Versions - GLX-PCB-PRO would be the correct replacement.
Reply
I have a Goldline G1-066008J-1. It is constantly reading low salt when the salt level is fine. The salt cell was bench tested and they said it is fine. Would this be the correct replacement PCB?
Kenn,The GLXPCBMAIN will work as a replacement for your G1-066008J-1 board.
Reply
Does this have heater and spa functions?
Reply
Hello. Yes, the GLX-PCB-MAIN has heater and spa capabilities. This Main PCB is a replacement for Hayward AquaLogic automation systems and is not compatible with other Hayward Automation Models. The AquaLogic system can be programmed for Pool/Spa modes and heater control - as On/Off function and/or temperature control with a wired communicable cable.
Reply
Hi, I have the AQL-PS-8 and want to upgrade the controller. I purchased the AQL2-POD2 and the base. The system says it needs to be Revision Firmware 2.6 and higher... If I replace the main board with this, will that work to upgrade the firmware?
Reply
Hello Alex. The GLX-PCB-MAIN is the newest version - 2.93 and will interface with the AQL2-POD2.
Reply
I have an Aqualogic PS8 control unit with a motherboard, p/n g1-066008n-1, of which the connection to the T-15 salt cell has burned. My software revision is 2.92. Will this board fit as a replacement?
Hi Eric, Thanks for the photos, yes this board will work as a replacement.
Reply
I have board G1-066008J-1 and this board is G1066008N-1. are they compatible ? they look identical
Reply
Hi Girard, Yes this GLXPCBMAIN will work as a replacement for your G1-066008J-1 board.
Reply
I currently have a Goldline Controls G1-066008G-1 board...and I need to replace with an updated board. What board do I need and do I need to update software at all?
Reply
Here is a link to the proper replacement for your Goldline G1-066008G-1 board.AquaRite Main PCB (OEM) - GLX-PCB-RITE
Reply
I have a Goldline G1-066008K-1. It is constantly reading low salt when the salt level is fine. The salt cell was replaced first, and is brand new. Would this be the correct replacement PCB?
Hello Mike. The Hayward Goldline GLXPCBMAIN is the correct replacement Main PCB for your G!-066008K-1. After replacing the chlorine generating cell was the Average Salt Reading Reset and was the cell type installed verified against the system configuration? If incorrectly set, salt readings and chlorinator operations will be unreliable.
Reply
I have a Goldline Controls Board PN: G1-066008N-1. Is this board a direct replacement?
Reply
Hello John. The Goldline Controls PCB Circuit Board Aqualogic GLX-PCB-MAIN is the direct replacement for the Goldline Controls part G1-066008N-1.
Reply
I have a Goldline Controls Board PN: G1-066008M-1. Is this board a direct replacement?
Reply
Hello. The Goldline Controls PCB Circuit Board AquaLogic GLX-PCB-MAIN is the direct replacement for the Goldline Board part G1-066008M-1.
Reply
Where can I find a wiring diagram for this board and system? Am replacing the board where the old one was taken out be another person and is gone. Thanks
Reply
Hello, here is our "How To Replace an Aqua Rite Main PCB" guide that we put together that should assist you with this process.
Reply
