Triclops 100 sq. ft. TC300 Cartridge Old Style Triangular (42-3640-10-R) - PL0162



Part # PL0162

By PureLine

  4.7 Average



Part # PL0162

Alternate Part #'s 42-3640-10-R, XLS-927

Product Description

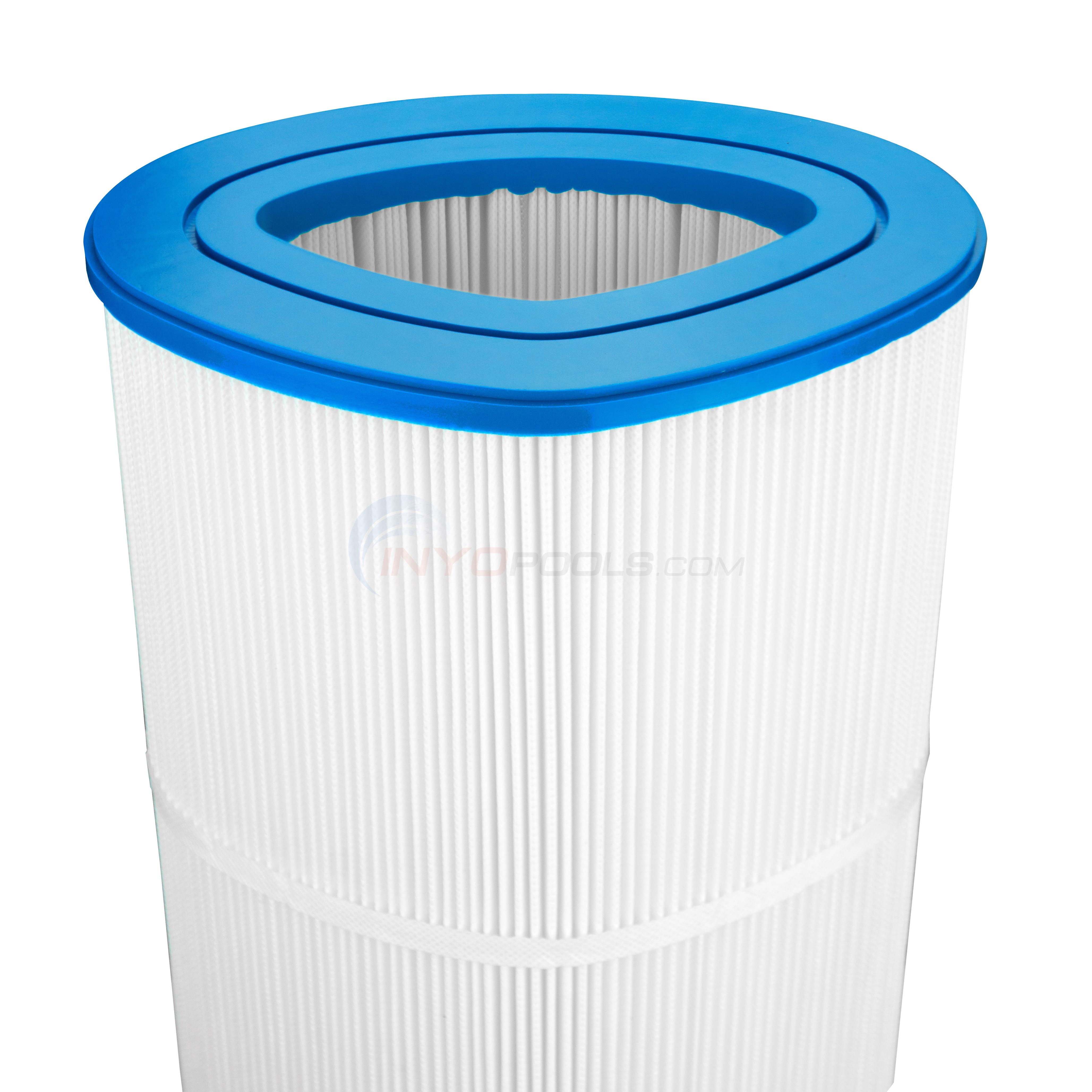

PureLine Aftermarket Replacement Cartridge for Triclops TC300 Cartridge Old Style Triangular Filters

Is your pool water starting to look a little dull? Is your pressure gauge reading a higher PSI than normal? Are your pool jets a little less powerful? These are all signs that it is time to replace your pool filter cartridge. Replace your pool filter cartridge today and regain that crystal clear pool water and extend the life of your pool pump.

Typically for single cartridge pool filters we suggest replacing your cartridge every 6-12 months and for filters which take multiple cartridges, we suggest replacing your cartridges every 3 years.

This Cartridge is Commonly Used In

PureLine Cartridge Benefits

  • Less expensive than the original manufacturer with the same high-quality standards
  • Designed for maximum water flow to extend cartridge life
  • Designed for even dirt distribution resulting in increased water flow
  • Increased flow rates results in less wear on pump & reduced energy usage
  • Banded Pleats reduce frequency of cartridge cleaning

Not Your Cartridge?

Is this not your Cartridge? Don't worry we carry thousands of Pool Filter Replacement Cartridges to replace all of the most popular OEM brands such as Sta-Rite, Pentair / Pac Fab, Hayward, Purex, American Products, Jacuzzi,  Hot Springs, Coleman, and more. Click here for more Pool Filter Replacement Cartridges

Top End Cap Top End Cap
Bottom End Cap Bottom End Cap

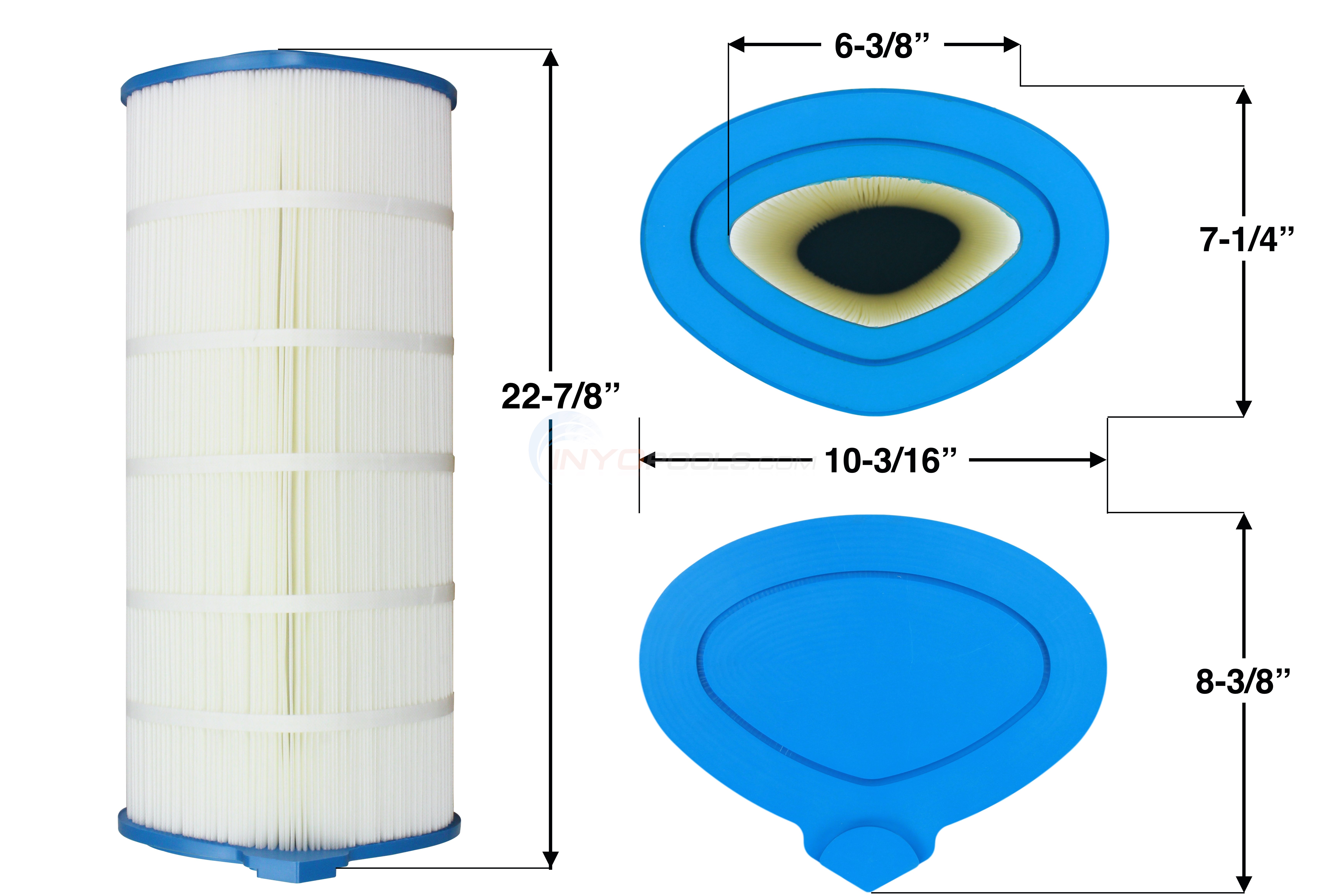

Product Specifications

Triclops TC300 (Triangular)
22-13/16 in.
Top Style:
Triangle Closed
Top Inside Diameter:
Triangle Closed
Bottom Style:
Triangle Open
Bottom Inside Diameter:
Triangle Open
Filtration Area:
110 sq. ft.
Media Weight:
4 oz.
OEM #:
100 sq. ft.

?     Asked on 7/1/2018 by Sambell in Gilbert AZ

I have a model TC-300 TRI-CLOPS by jacuzzi...will this fit? (100 sq. ft. TC300 Cartridge Old Style Triangular (42-3640-10-R)

A  Answered on 7/1/2018 by InyoPools Product Specialist Lennox H.

Hi, Sambell. Yes, this Triclops TC300 Cartridge Old Style Triangular - PL0162 will fit your model if you still have the old style cartridges.

?     Asked on 5/26/2016 by Robert Grebe

When I purchased your P/N XLS-927 before it cost $263.97 and came in 3 parts. Will this $99 version work? Thanks

A  Answered on 5/26/2016 by InyoPools Product Specialist Patrick P.

Hi Robert, Yes this would be the same cartridges as before and will work for you.

?     Asked on 6/11/2015 by Mark

I am looking to replace my Jacuzzi filters, which I know are discontinued, Part No. 42-3640-10. Do I need to purchase 3 of these cartridges, or do they come in a set? I look forward to hearing from you. Thank you very much.

A  Answered on 6/11/2015 by InyoPools Product Specialist Brian M.

There is a way to buy all 3, it would come in the New Style Internal Kit.  If you are just wanting the cartridges, they do just come individually - as in part number C7430 .

?     Asked on 7/23/2012 by Guest

Does this filter replace filter # 423640 10 without needing an adapter? I thought this filter was discontinued.

A  Answered on 7/23/2012 by InyoPools Product Specialist Patrick P.

Yes the XLS-927 does replace the old style triangular Jacuzzi Triclops cartridge 42-2930-01-R the XLS-927 will replace the triangular cartridge with no adapters needed. Jacuzzi did discontinue this cartridge but it has since been made available as a generic.


Est. Repair Time

Less than 1 hr

Tools Needed


1     0

needed the 100 type filters

Written on 6/20/2017 by Guest

I searched high and wide to find these filters and am so happy that you guys keep them in stock. it keeps me from having to change to a different type filtering system which cost 500-600 dollars.
