Part # 35-125-2066

Manufacturer Code SAW-60

Alternate Part #'s 601366, SAW-60

Product Description

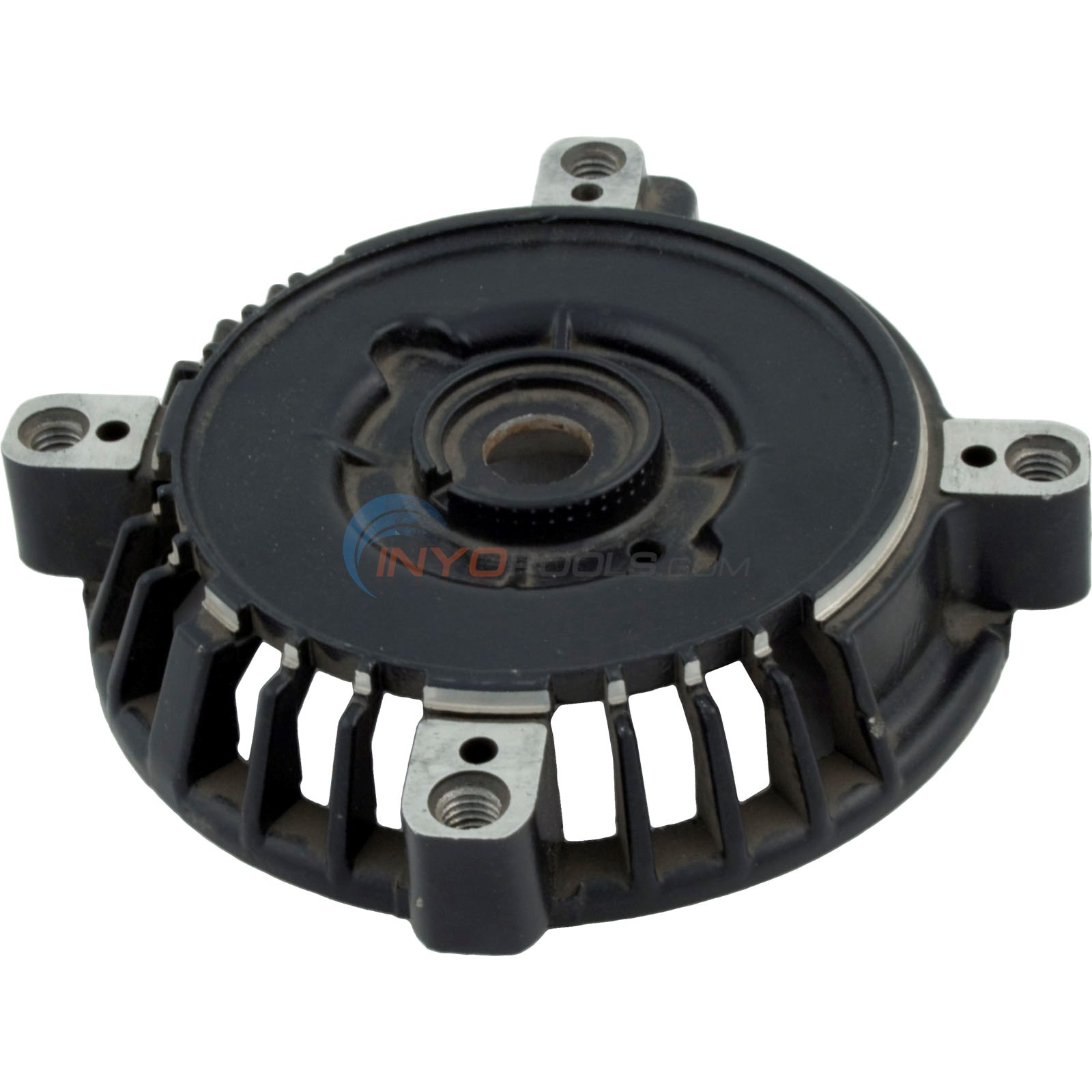

Shaft End Bell-Round BodyUse 203 bearing

Top
Ask A Question
?     Asked on 4/2/2015 by Laura

Will the 203 bearing work on an AO Smith Centurion pool pump motor, model B129?
 Reply

A  Answered on 4/3/2015 by InyoPools Product Specialist Robert M.

Hello Laura - The 203 bearing will work on the B129 motor. You will also need one 304 bearing.
 Reply


?     Asked on 5/16/2015 by Mc4

Will this shaft end bell fit my 1HP Hayward super pump motor sp1607z1m?
 Reply

A  Answered on 5/18/2015 by InyoPools Product Specialist Lennox H.

MC4, If you have the original A.O. Smith motor for the Hayward Super Pump, this Shaft End Bell will fit.
 Reply


?     Asked on 10/1/2017 by tom

Will this fit an A.O. smith ust1202 2hp motor?
 Reply

A  Answered on 10/3/2017 by InyoPools Product Specialist Stacey M.

Hello Tom, there is an OSE bearing is Bearing, 203 (62032rs) (Single) and SE Bearing, 204 Ntn 6204-ll (6204-2rs) for a UST1202 motor.
 Reply


?     Asked on 7/7/2019 by Patrick Scott Crumal

The shaft seal on our 4 yr-old Century UTS 1202 failed. As a result, the leak ended up in causing damage to the black material (not sure what it is) that is on shaft end bell. Further the leak caused the impeller to become almost impossible to remove. I finally did get the impeller off and will replace - and now am also looking at the shaft end of the motor that I had no choice but to clean down to bare metal. Wil this end bell fit the Century UTS 1202? See Photos.

 Reply

A  Answered on 7/18/2019 by InyoPools Product Specialist Lennox H.

Hi, Patrick. This is the correct End Bell for the UST1202 motor.
 Reply


?     Asked on 5/23/2020 by Nick

I have a Hayward super pump with a AO Smith Model C48L2N134B1, will this part work on it? I broke the bolt off changing the bearings.
 Reply

A  Answered on 12/3/2020 by InyoPools Product Specialist Hector F.

Hi Nick, yes this will be the correct shaft end bell for your motor model C48L2N134B1.
 Reply
