Part # NBP2132
Manufacturer Code 1460052

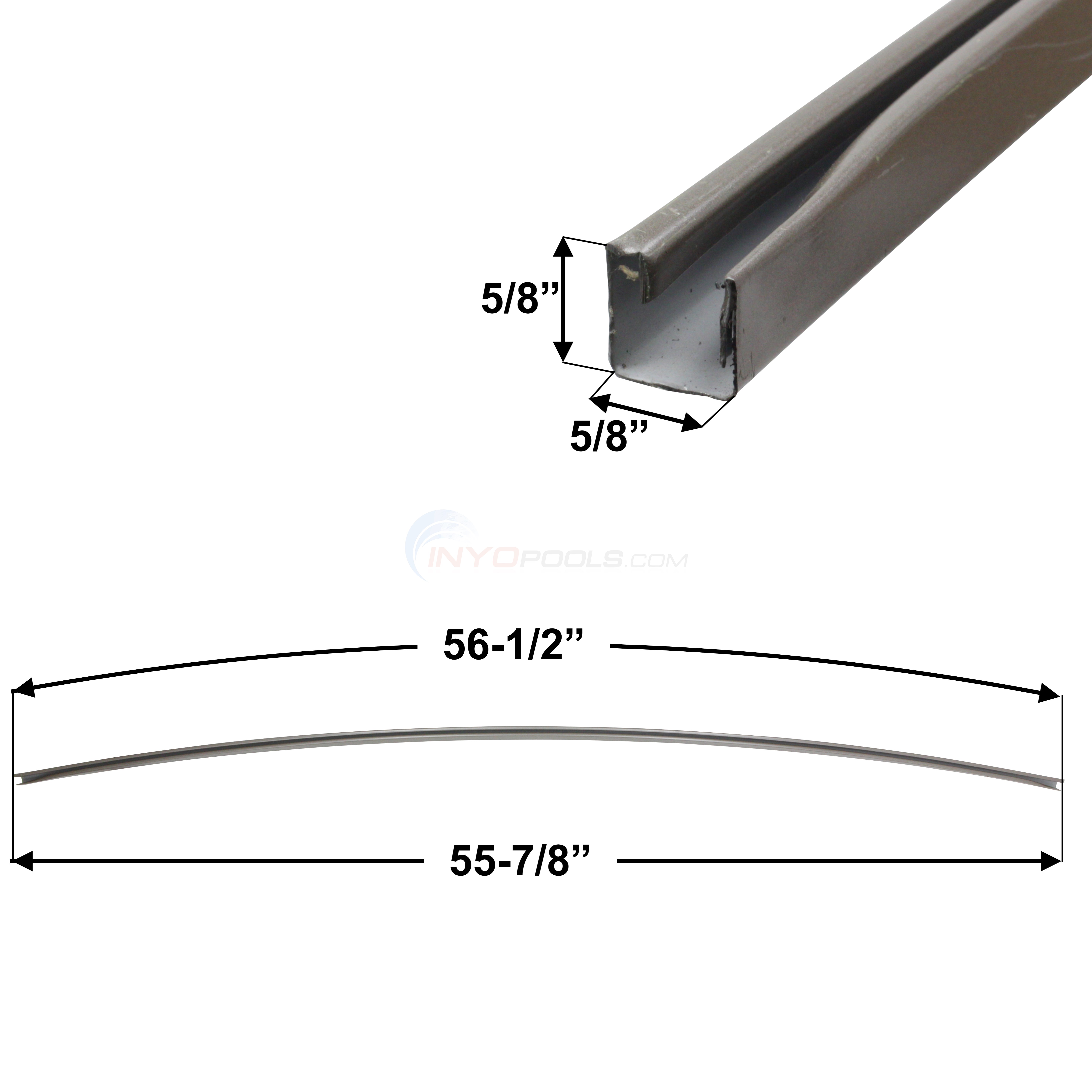

Dimensions 55-7/8" x 5/8"
Alternate Part #'s 1460052, 1460152
NEED MORE THAN 1 STEEL BOTTOM RAIL?

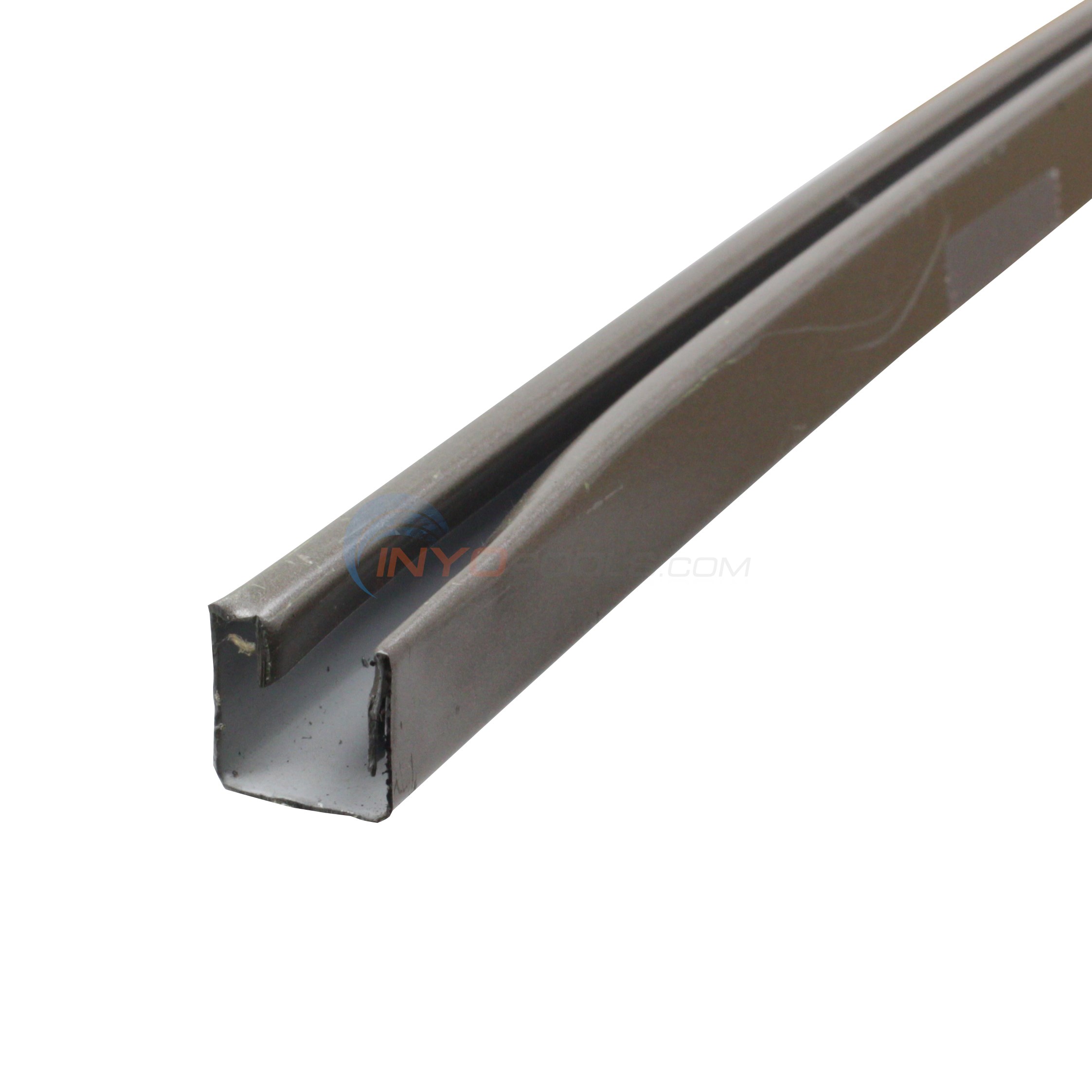

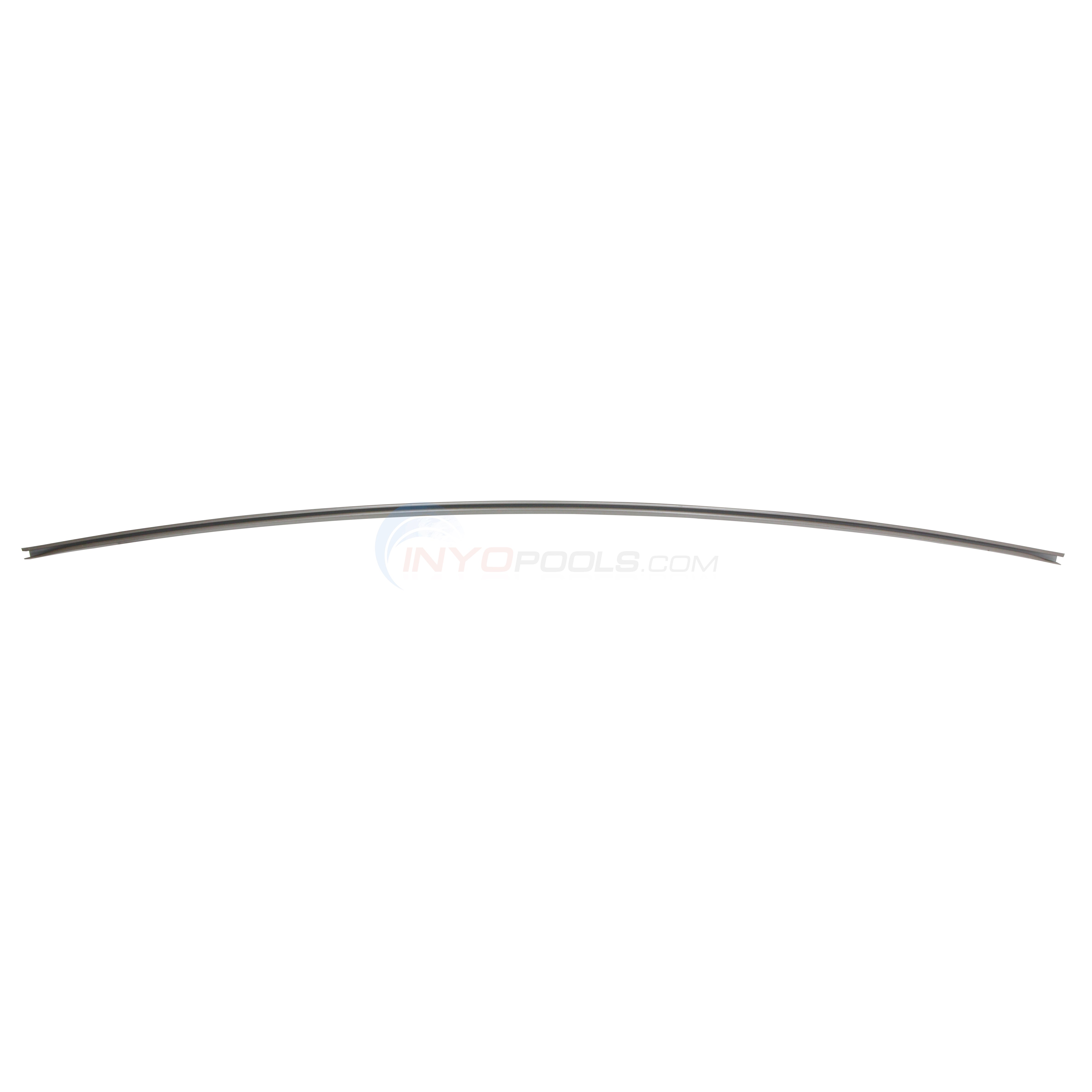

24' Bottom Rail 56-1/2" (Single) For The Atlantis
How to Measure the Length of a Bottom Rail
1) Use a flexible measuring tape. We found that a tailoring tape worked best.
2) Measure from one end, along the outside bend, to the opposite end.
Above ground pool parts are not universal and can be difficult to identify. Inyo wants to make every effort that your order meets your requirements. If you are not confident that you have chosen the right parts - Please send the following information that is requested below. Inyo will forward to the information provided to the manufacturer to see if they can determine if the pool is one of their models.
* Size of the pool & approximate age of the pool?
* Image of the pool wall.
* Image of the upright
* Image of the top rail connection to the upright.
* Name & age of the pool (if known)
Hi, I bought a used pool and wasn’t sure of the brand. I looked up a part number for the top rail and it shows to be a wilbar pool. Unfortunately it did not have a bottom track with it. Is the top track and bottom track the same. If not how can I figure out which bottom track I will need.
Unfortunately, not all pools are the same, some pools take the same top and bottom rails and others do not. We will need to identify the pool. Before we are able to recommend replacement parts, we'll need to identify the pool. Can you please send us the following images? Outside Pool Wall (Top to Bottom) Top Cap, Top Rail, and the Upright? Please send them to firstname.lastname@example.org or upload them here.
how many bottom rails do you need for a 24 foot pool and are they universal?
Hello Julie - Part number NBP2132 (1460052) is used on a 24' pool that has a total of 16 bottom rails. The bottom rails are not universal. If you want to identify the make and model of the pool, email pictures to email@example.com.
DO THE BOTTOM RAILS SLIDE INTO EACH OTHER OR DO THEY CONNECT TO EACH OTHER IN SOME OTHER FASHION ?
These bottom rails, 1460052, do not connect directly to each other. They are connected by the bottom plate.
We have a 24ft pool. It has 16 peices for the bottom ring. Measurement A is 56 3/8 and measurements B is 55 7/8 would this work for replacing some of them? If not can you send me a link for the correct size we need to purchase?
Hello Jenny- The rail that I found that will be the closest to what you listed is the Bottom Rail 56-3/8" (single) 1460102 For The Atlantis.
We bought a used 24 ft 48 in deep round above ground pool . It has a wood paneling design on one side of the wall and a decorative wood pattern on the other side. It also has a decorative wood color stripe of metal down the vertical supports. It has a honeycomb pattern on the top rails which are 9 in.wide. There are 16 metal tracks on the bottom measuring 55 5/8 x 55 1/4 x 3/4 x7/8. Anyway we are needing to buy the Barton track 'rims'. Any ideas on how to find them?
How many bottom rail tracks do I need for a 18x33 oval Lesslie Pool
Hello Judy, The amount needed can vary by model. Typically, you will need 1 per top rail. If you have 10 top rails, you will need 10 bottom rails.
I have a 24x48 round above ground pool will this work for that?
Unfortunately we would need more information to determine if these will fit. Above ground pool parts are not universal and can be difficult to identify. Inyo wants to make every effort that your order meets your requirements. If you are not confident that you have chosen the right parts - Please send the following information that is requested below. Inyo will forward to the information provided to the manufacturer to see if they can determine if the pool is one of their models.Click here to submit the information requested below.* Size of the pool & approximate age of the pool?* Image of the pool wall.* Image of the upright* Image of the top rail connection to the upright.* Name & age of the pool (if known)
my bottom track looks just like this my measurements are 56 1/2 length width is 5/8 height is 5/8 could I use this track?
Hello Avery, Yes this track would work for your pool as long as your measurements are correct.
I purchased a used pool and need to replace some of the parts. Will these parts fit any pool?
Before placing an order you will need to know the manufacturer and model of your pool. Pool parts are not universal and are not guaranteed to fit any model other than the one listed.
More than 8 hrs
Screwdriver, Nut Drivers, Pliers, Socket Set
Removed old pool. Installed bottom track rails and supports. Installed wall. Installed bolts to secure both ends of wall. Duct taped bolts. Put a cove around the bottom. Placed padding on floor. Installed liner.
4 to 8 hrs
Screwdriver, Nut Drivers, Pliers, Socket Set, Wrench Set, Adjustable Wrench, Pool company had own tools7.
1) I measured my original pool stabilizers.
2) I looked on line for the closest matching stabilizer.
3) I counted how many the pool had (16).
4) I counted how many were rusted (8).
5) I ordered 10.
6) The pool repair company removed the top rails.
7) They removed and replaced the rusty stabilizers after removing and replacing the pool liner.
8) The pool company adjusted the liner.
9) We filled the pool and 2 1/2 days later swam.
10) Remember to order the through the wall filter box and coping with a liner replacement.
