Atlantis/Esprit 15'x30'' Oval 52" Blue Wall Parts

THIS POOL HAS BEEN SOLD UNDER THE ESPRIT NAME AS WELL AS THE ATLANTIS BY BLUE WAVE. THE ESPRIT AND ATLANTIS POOLS PRIOR TO 2010 HAD A BLUE PATTERN ON THE WALL AND 2010 AND AFTER HAVE A GRAY PATTERN ON THE WALL.

**Note: The prices below are for each item. The "Quantity per Pool" is the quantity found on the entire pool.

We Do Not Accept Returns On Above Ground Pool Parts

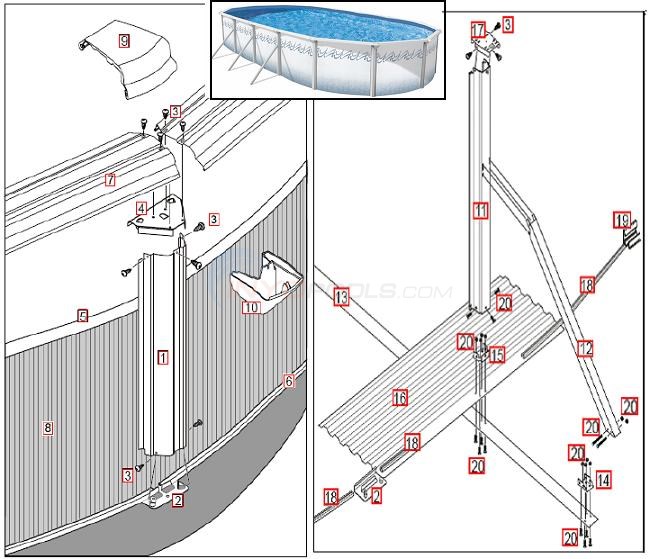

Atlantis/Esprit 15'x30'' Oval 52" Blue Wall Diagram
 Click to zoom in

Available Parts:

Part # NBP2119 Mfg # 1440296
52" Upright for Atlantis Pool
$56.69
Part # 1320101
Atlantis Base Plate (Single) For Atlantis Upright
$12.99 IN STOCK
Part # 1320101-PACK4
Atlantis Base Plate (4 Pack) For Atlantis Upright
$31.46
Part # NBP2108 Mfg # 1184017
77 PC HARDWARE PACK FOR ATLANTIS
$23.09
Part # 1320102
top plate (Single)
$10.99 IN STOCK
Part # 1320102-PACK4
1320102 top plate (4 Pack)
$43.96
Part # NL108
Liner Coping Strips (24 inch) 10 pack
$18.99 IN STOCK
Part # 1460050
15' Bottom Rail 56" (Single) For The Atlantis
$48.99 IN STOCK

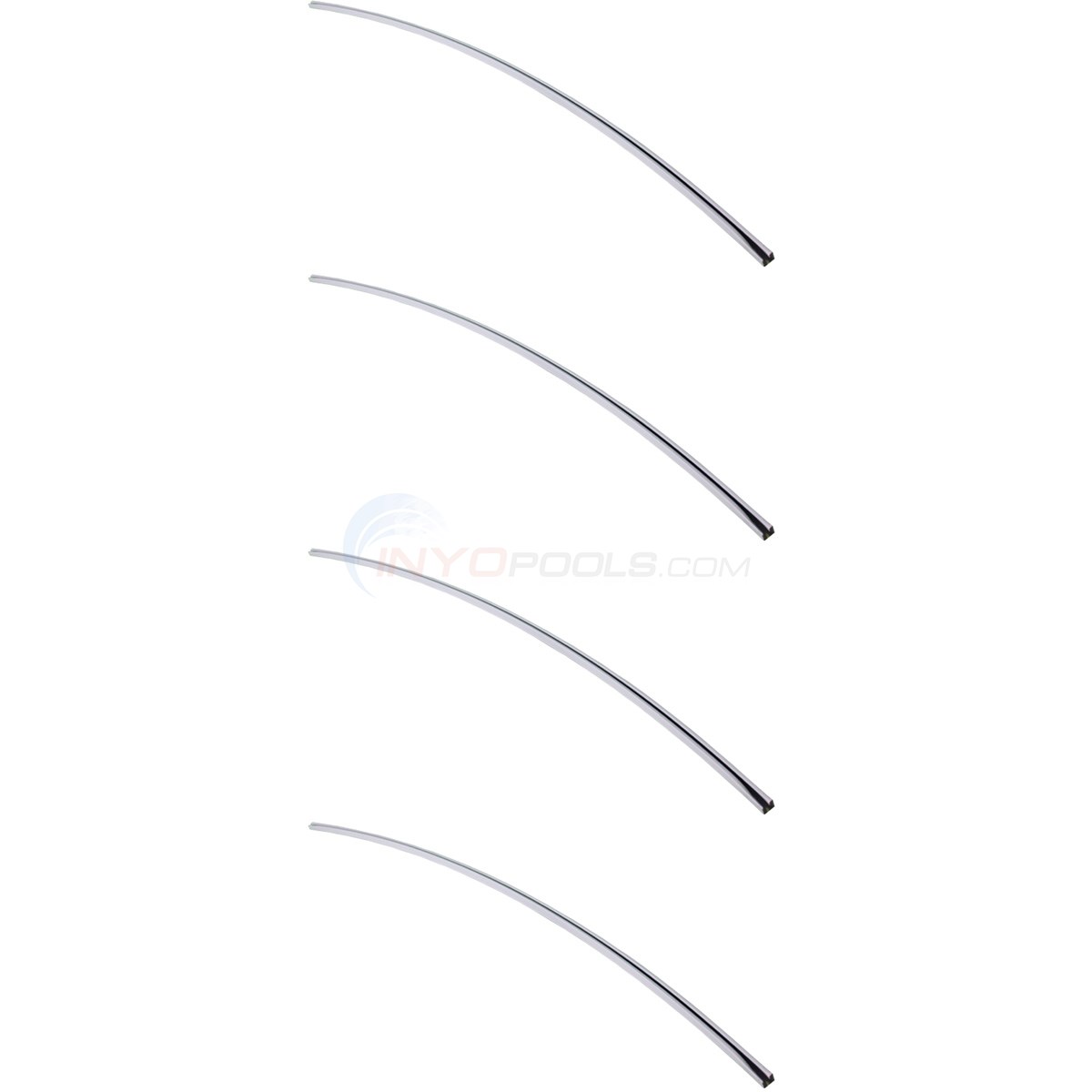

Part # 1460050-PACK4
15' Bottom Rail 56" (4 Pack) For The Atlantis
$156.77 IN STOCK
Part # 1460050-PACK8
15' Bottom Rail 56-1/4" (8 Pack) For The Atlantis
$391.92
Part # NBP2123 Mfg # 1450301
Common 1450301 common esprit top rails
$69.99 IN STOCK
8 52” Steel / Harmony Wall
Part # X Mfg # NOT AVAILABLE
52” Steel / Harmony Wall
NOT AVAILABLE
Part # NBP2136 Mfg # 1490148
part #1490148 Connectors
$8.39
Part # NBP2138 Mfg # 1490515
SIDE LOWER CONNECTOR FOR THE ATLANTIS
$29.39
Part # NBP2148 Mfg # 1440329
52' UPRIGHT
$95.54
Part # NBP2121 Mfg # 1440330
DIAGONAL FOR THE ATLANTIS
$69.29

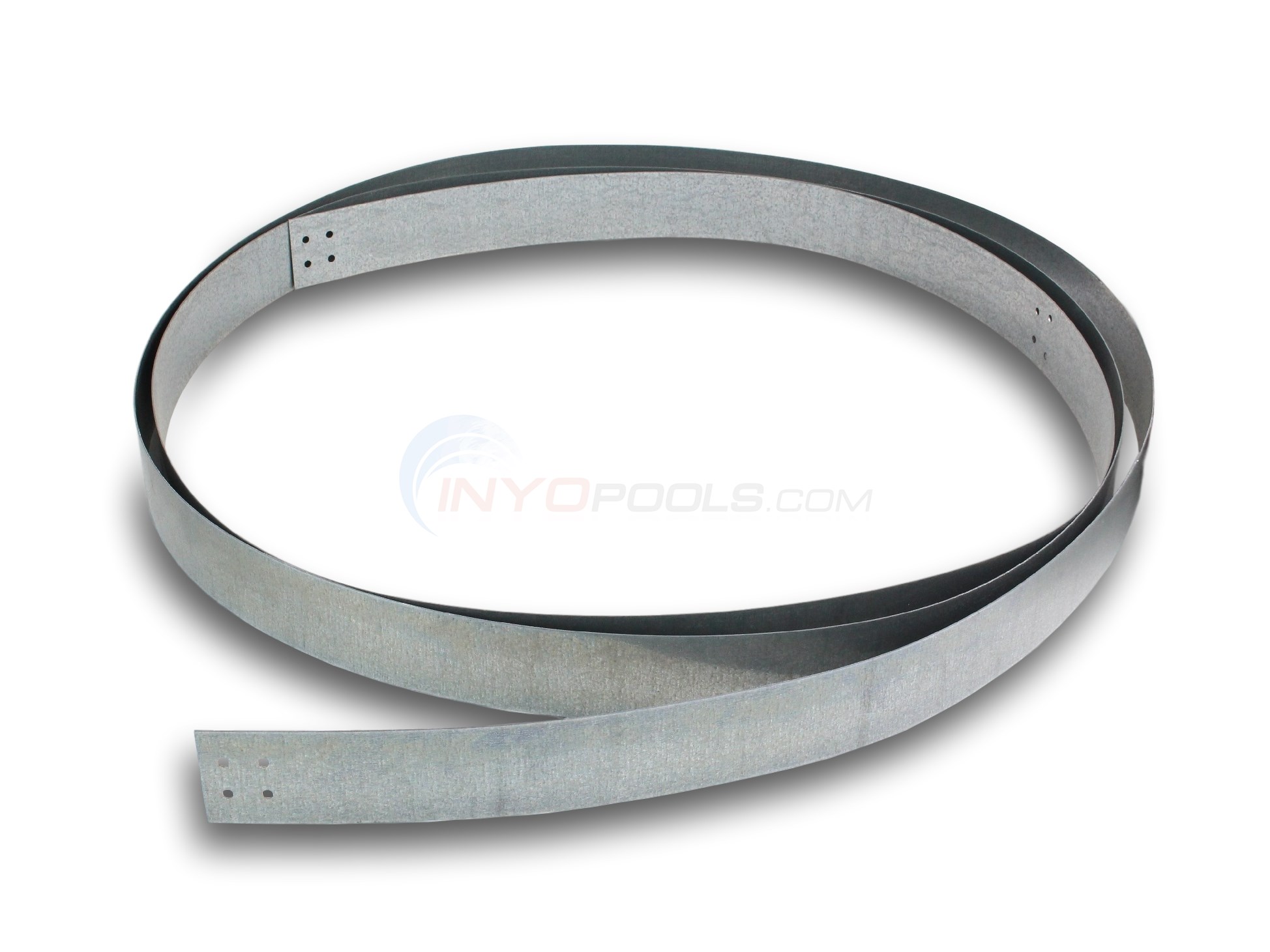

Part # NBP2141 Mfg # 1510133
15' STRAP X 251.55" FOR THE ATLANTIS
$78.74
Part # NBP2062 Mfg # 1320152
DIAGONAL BRACKET FOR THE AEGEAN AND ATLANTIS
$44.09
Part # NBP2020 Mfg # 1320154
OVAL BASE PLATE FOR ATLANTIS OVAL POOL
$5.24 IN STOCK
Part # NBP2117 Mfg # 1320162
HOLD DOWN PLATE FOR THE ATLANTIS
$123.89
Part # NBP2116 Mfg # 1320160
SIDE TOP PLATE FOR THE ATLANTIS
$6.29 IN STOCK
Part # NBP2129 Mfg # 1460049
15' BOTTOM RAIL 56" FOR THE ATLANTIS
$48.99 IN STOCK
Part # NBP2132 Mfg # 1460052
24' BOTTOM RAIL 56-1/4" FOR THE ATLANTIS
$39.99
Part # 1460033
Bottom Rail 56-1/4" - steel Belize, J2000 (single)
$44.99 IN STOCK
Part # NBP2132-PACK4
24' Bottom Rail 56-1/2" (4-PACK) For The Atlantis 1460052
$127.96
Part # NBP2132-PACK8
24' Bottom Rail 56-1/2" (8-PACK) For The Atlantis 1460052
$319.92
Part # NBP2129-PACK4
15' Bottom Rail (4-PACK) For The Atlantis 1460049
$195.96 IN STOCK
Part # NBP2129-PACK8
15' Bottom Rail (8-PACK) For The Atlantis 1460049
$391.92
Part # 1460033-PACK4
Bottom Rail 56-1/2" - Steel Belize, J2000 (4-PACK) REPLACED BY LA1255624!!!
$143.97 IN STOCK
Part # 1460033-PACK8
Bottom Rail 56-1/2" - Steel Belize, J2000 (8-PACK) REPLACED BY LA1255624!!!
$359.92
Part # NBP2137 Mfg # 1490494
RAIL SUPPORT FOR THE ATLANTIS
$83.99
Part # NBP2113 Mfg # 1184292
OVAL HARDWARE PACK FOR ATLANTIS
$30.40 IN STOCK
Part # NBP2003 Mfg # 1470096
12' SLOTTED TUBE FOR ATLANTIC POOLS
$15.13 IN STOCK
Part # 1470108
6" slotted tube (Single)
$14.99 IN STOCK
Part # NBP2061 Mfg # 1184282
52" WALL JOINER HARDWARE FOR AEGEAN, ATLANTIS AND ST CROIX
$25.19
