V-Green 270 User Interface - 2520652-001

$241.99

IN STOCK

Part # 2520652-001

By Century Motors

  3 Average

Details

Top

Part # 2520652-001

Warranty 1 Year

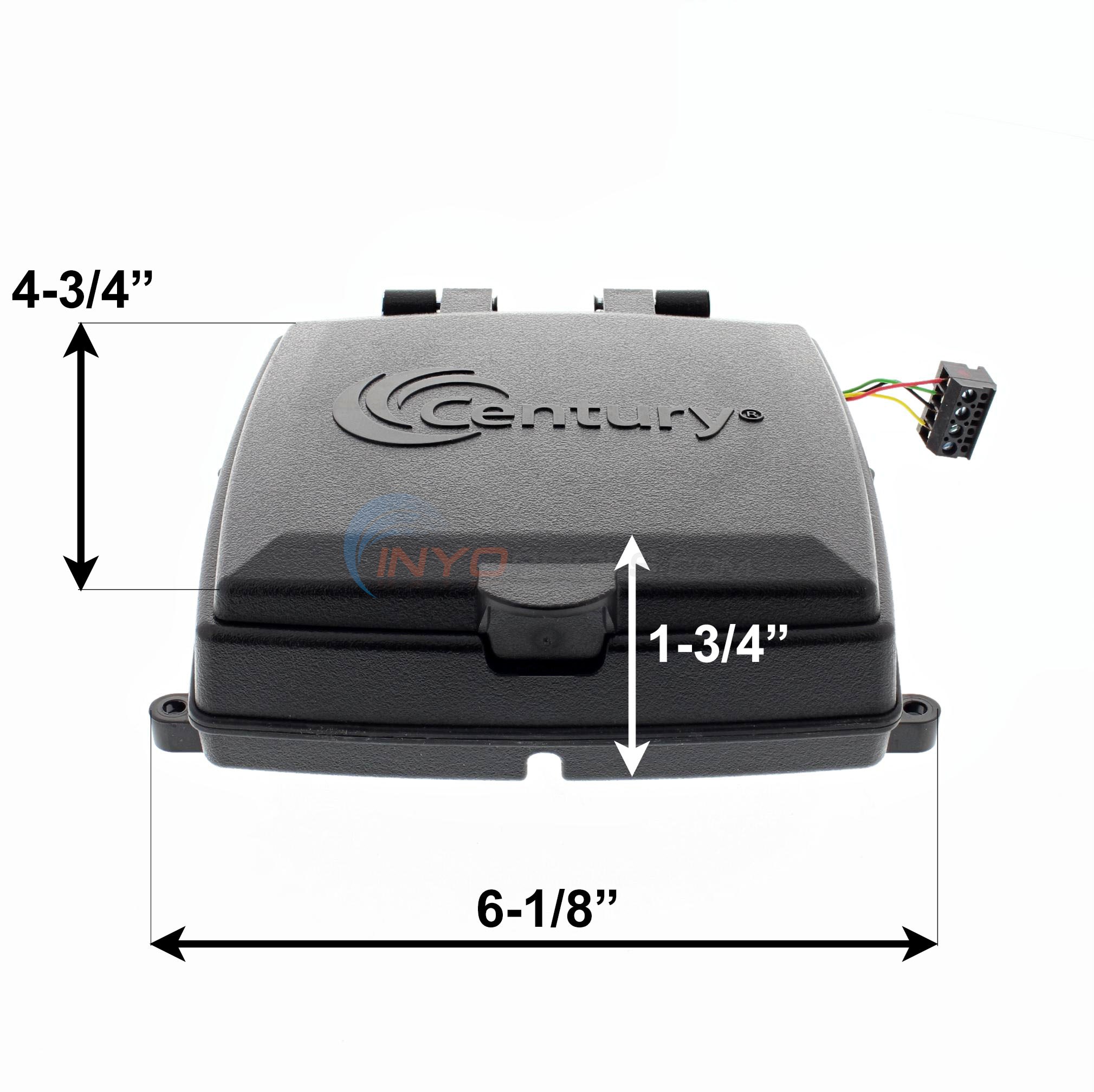

Dimensions 6-1/8" x 4-3/4"

Alternate Part #'s PS165VSP-RM, AOS2520652-001

Product Description

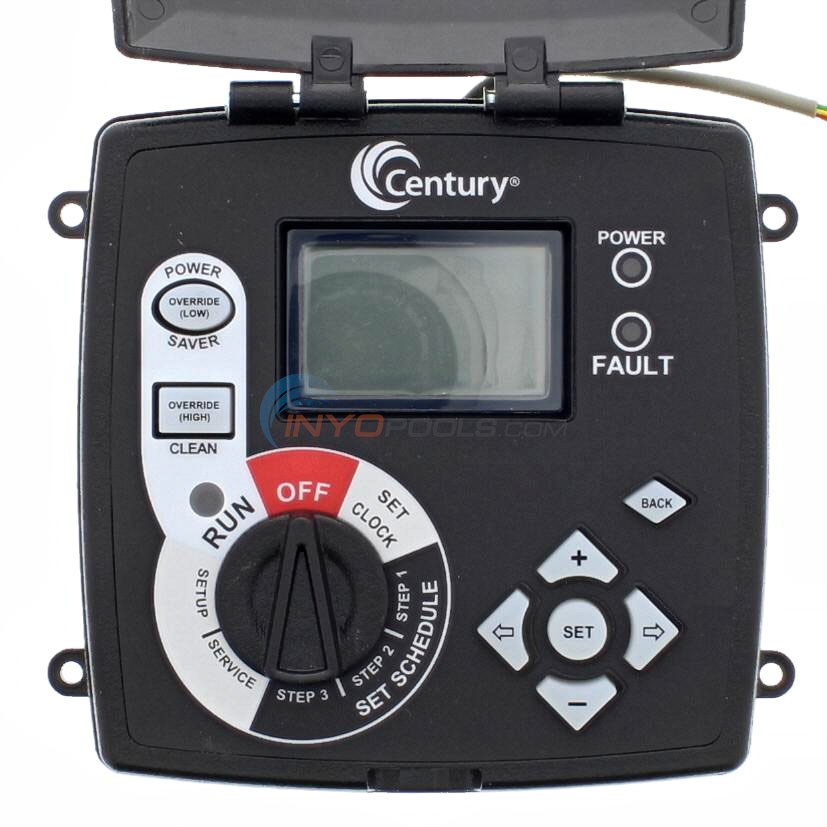

V-Green 270 User Interface - 2520652-001

Benefits of adding an optional V-Green 270 user interface with the V-Green 165 motor

  • Ability to conduct field troubleshooting (i.e., view FAULT codes and real time operating parameters).
  • Ability to set a pump running schedule based on a real clock setting (i.e., must input actual time which then determines pump start and stop times).
  • Ability to remotely mount the V-Green 270 user interface (provides easy access of user interface depending on pump location) using the User Interface Offboard Mounting Kit V-Green - 2512723-001.
  • Ability to configure prime speed and prime duration. If power is connected to the V-Green 165 motor, pressing any of the following buttons referred to in section 2 could result   in the motor starting. Failure to recognize this could result in personal injury or damage to equipment. v 5
  • Ability to configure freeze protection temperature.
  • Ability to view actual speed and power of the V-Green 165 in real time.
  • Ability to adjust the V-Green 165 motor speed in 25 RPM increments (to fine tune flow for certain pool installations).
  • Battery backup to store time setting
Top

?     Asked on 11/1/2020 by Cal

I have a Hayward Super Pump IS2600VSP. TCB on the controller was damaged by lightning and is not working. Will this controller replace the Hayward unit? If so will it bolt on the motor or does it have to wall mounted? Thanks.
 Reply

A  Answered on 11/9/2020 by InyoPools Product Specialist Hector F.

Hi Cal, this controller is unfortunately not compatible with the original Hayward variable speed motor on the Hayward Super pump variable speed pool pump model SP2600VSP. You would need to replace the motor with the ECM16CU
 Reply


?     Asked on 6/23/2020 by Walter Mcmullen

Does this unit have a replaceable backup battery? The one I have sometimes loses the date, time and programming
 Reply

A  Answered on 11/11/2020 by InyoPools Product Specialist Hector F.

Hi Walter, these motors do not have a replaceable backup battery and will only lose memory when there has been no power for 24 hours.
 Reply


?     Asked on 6/5/2020 by Maxwell E Kuker

The controller on my Jandy ePump 2.0 failed (2.67 HP). Is this compatible with that system?
 Reply

A  Answered on 6/9/2020 by InyoPools Product Specialist Hector F.

Unfortunately, no this would not be compatible and we, unfortunately, do not carry these Jandy parts. You would have to try a local brick and mortar retailer.
 Reply


?     Asked on 4/25/2020 by Uche

I have a 2 Green premium efficiency two-speed Motor but the lcd is dead. Are they compatible and will it replace it? Thank you

 Reply

A  Answered on 11/5/2020 by InyoPools Product Specialist Hector F.

Hi Uche, unfortunately, this interface is not compatible with the 2-speed green motor series so the motor would need to be replaced.
 Reply


?     Asked on 11/29/2019 by Rebecca Goodrich

My new V-Green 270 pump runs at least 8 hours per day compared to my old single horse pump only running 2 hours per day and doing an efficient job. My electric bill has increased and not not decreased after installing the ENERGY EFFICIENT pump. Why does the pump have to run so long?
 Reply

A  Answered on 12/2/2019 by InyoPools Product Specialist Megan C.

Hi, Rebecca. You can program the pump to run at whatever schedule you feel like. The pump run speed and duration will determine how much money you can save.
 Reply

  • Commented on 7/21/2020 by Product Owner

    Adding to her question how does this v green 165 know what time it is does it have a clock in it to set thanks
     Reply

    • Commented on 11/6/2020 by InyoPools Product Specialist Megan C.

      The VS motors must operate longer at set RPM Schedules, the lower the RPM the lower the cost to operate which means the water moves/circulates at a slower speed too. When the water is circulating at lower gallons per minute (GPM) the longer it will take to turn the total gallons over for a full filter cycle. If the motor/pump is a 3450RPM Single speed pump with a 10K gallons pool, you will need the pump to turn over 1,250 gallons in 8 hours to circulate/turn over 10K gallons. If you chose to operate at 1/2 the RPMs set to 1725 it will take 16 hours to turn over the 10K pool in this example.
       Reply

      • Commented on 11/6/2020 by InyoPools Product Specialist Megan C.

        The V-Green 165 ECM16CU and ECM16SQU motors do not have an integrated timer like the ECM27CU and ECM27SQU offer. The standard single-speed time clock for 208-230 volts can be used for the V-165 motors to wire to for the on/off feature. I prefer to have an external timer with the V-Green 165 motors, even though it is not required. It will allow for you to power on/off when preferred and if in cleaning/service mode it will allow the motor to start at the speed it stopped at vs. returning to the beginning program.
         Reply


?     Asked on 9/19/2019 by Richard Poole

How long is the wire that come with this?
 Reply

A  Answered on 9/19/2019 by InyoPools Product Specialist Lennox H.

Hi, Richard. The wire is 6 inches.
 Reply


?     Asked on 5/14/2019 by Clay Dingee

purchased in PCB FL, everything was working fine after Hayward installed ....My pre-settings to blank-out are working fine, I now have a blank screen after 6 months purchased??? I can no longer change the program even back to default? Difficult time getting Hayward representative on phone?
 Reply

A  Answered on 5/14/2019 by InyoPools Product Specialist Megan C.

If you did not purchase the item with us, our best suggestion for getting this repaired under warranty would be to call AO Smith. They are the manufacturer of the motor and have to process the warranty regardless. AO Smith can be reached by calling 937-667-2431.
 Reply


A  Answered on 6/10/2020 by Product Owner

Try doing a power cycle on the unit, turn off at the circuit breaker, wait 5 min and then power back on. These act like a PC's sometimes and they need a reboot to turn the screen back on. I have had many customers with this issue! good luck!
 Reply


?     Asked on 4/19/2019 by Les

I have a Waterway Power Defender 165. Can V-Green 270 user interface work with it? Where can I find installation and instructions guide?
 Reply

A  Answered on 4/19/2019 by InyoPools Product Specialist Lennox H.

Hi, Les. Yes, you can use this V-Green 270 User Interface - 2520652-001 with the Waterway Power Defender 165 pump. We do not have a PDF manual at this time, but one is included with the product.
 Reply


?     Asked on 2/9/2019 by Joe

I have a Tesla pool pump. It is a century v-green 165. The controller gets stuck on one speed, usually 3000. Can thecontoleer be replaced with a 270 controller? If not, will the 270 work with the 165 pump?
 Reply

A  Answered on 2/11/2019 by InyoPools Product Specialist Lennox H.

Hi, Joe. This V-Green 270 User Interface - 2520652-001 is compatible with the V-Green 165 motor.
 Reply


?     Asked on 10/25/2018 by Ty

Hi, Is the ECM16CU variable speed motor compatible with this interface? Is it ok to mount this interface outside, is it weather resistant? Thanks Ty
 Reply

A  Answered on 10/26/2018 by InyoPools Product Specialist Lennox H.

Hi, Ty. This V-Green 270 User Interface - 2520652-001 is compatible with the ECM16CU motor. Yes, it can be mounted outdoors.
 Reply


?     Asked on 10/15/2018 by Justin White

i have a v-165 that the buttons have stop working. the motor runs fine but it won't stop all the time. will this part replace the standard buttons and display?
 Reply

A  Answered on 10/16/2018 by InyoPools Product Specialist Lennox H.

Hi, Justin. Yes, you can use this V-Green 270 User Interface which will supersede the current interface that is not working.
 Reply


?     Asked on 7/31/2018 by

Can you get replacement LCD panels for this module?
 Reply

A  Answered on 7/31/2018 by InyoPools Product Specialist Hector F.

Unfortunately no. These LCD panels are not sold separately.
 Reply


?     Asked on 7/16/2018 by Tony

What is the warranty on this control unit/display. My display is blank but all functions work perfectly as does the pump.
 Reply

A  Answered on 7/16/2018 by InyoPools Product Specialist Lennox H.

Hi, Tony. This interface is warrantied for 1 year when sold as a separate part.
 Reply


?     Asked on 7/10/2018 by

My V-Green 270 interface clock sticks to one time at times. Is there a clock reset or does whole interface need replacing?
 Reply

A  Answered on 7/11/2018 by InyoPools Product Specialist Lennox H.

Hi, There is not a clock reset. You can try to reset the controller to the factory default settings. If that does not work, then you will have to replace the V-Green 270 User Interface - 2520652-001
 Reply


?     Asked on 5/25/2018 by Vic

The manual states this interface cannot be motor mounted and is designed for remote/ wall mounting contrary to previous answers. Can you confirm this. Also, I was hoping this interface would add ability to control an auxiliary load like the V270 can but manual says no. Can you also confirm this and is this the only interface kit available for the 165?...thanks, Vic.
 Reply

A  Answered on 5/25/2018 by InyoPools Product Specialist Robert M.

Hello Vic, There is no place to mount the interface on the motor, so it must go on the wall.  The 165 does not have the relay for external load, so the kit will not add this ability.  This is the only interface kit for the 165.
 Reply


?     Asked on 5/19/2018 by

Can I use the V-Green 270 interface on a Hayward EcoStar VS pump?
 Reply

A  Answered on 5/19/2018 by InyoPools Product Specialist Lennox H.

Hi. The V-Green 270 User Interface is not compatible with the EcoStar motor, only the V-Green Motor.
 Reply


?     Asked on 4/24/2018 by Steve

Will this interface work to also control a salt water chlorinator control unit that is set up to come on with the pump? Right now I have a mechanical/electrical time clock but would like to have a bit more control on the pump. Will this work to turn both on and off?
 Reply

A  Answered on 4/25/2018 by InyoPools Product Specialist Lennox H.

Hi, Steve. This 270 User Interface will not control a chlorine generator. The Chlorine generator will need its own timer.
 Reply


?     Asked on 4/24/2018 by Russell

My ECM16 seems to not be working. Only one led comes on and there is no power to the motor. Is there a replacement control unit I can get without purchasing the entire motor assy?
 Reply

A  Answered on 4/25/2018 by InyoPools Product Specialist Lennox H.

Hi, Russell. Unfortunately, there is not. The entire motor will need to be replaced.
 Reply


?     Asked on 2/22/2018 by John

I have a ECM270sq the pump still works but the display is dead..will this replace the deisplay for my pump?
 Reply

A  Answered on 2/23/2018 by InyoPools Product Specialist Lennox H.

Hi, John. Yes, this 270 User Interface will also work with the V-Green ECM27 Series motors.
 Reply


?     Asked on 12/21/2017 by johnc

Hello, Concerning the freeze point protection, when set temperature is reached, how long does it run once the set temperature is detected?
 Reply

A  Answered on 12/21/2017 by InyoPools Product Specialist Joe S.

Freeze Protection can be either enabled or disabled when the user turns the User Interface selector knob to Setup. If it is enabled, the user will be able to set the temperature at which the pump will turn on. The control is designed to run the pump for 8 hours at 2600 RPM if the temperature drops below the setpoint.
 Reply


?     Asked on 12/18/2017 by johnc

Hello, Does this item give me the same display as the v-green 270 pump motor? Can I set the days of the week?
 Reply

A  Answered on 12/19/2017 by InyoPools Product Specialist Lennox H.

Hi, John C. Yes, it does. You cannot set the days of the week, only a daily operating schedule.
 Reply


?     Asked on 7/28/2017 by

Is this the same thing that is on the ECM16sq motor?
 Reply

A  Answered on 7/29/2017 by InyoPools Product Specialist Lennox H.

Hi. This Interface can be added to the ECM16SQU motor but it's not included. It's only available with the ECM27SQU motor.
 Reply


?     Asked on 7/27/2017 by Don

Can this controller be wall mounted instead of motor mounted?
 Reply

A  Answered on 7/27/2017 by InyoPools Product Specialist Lennox H.

Hi, Don. Yes, you can by using the V-Green User Interface Offboard Mounting Kit  - 2512723-001
 Reply


?     Asked on 6/26/2017 by

How is the V270 installed and how does it connect to the V165? If I install the V165, can I add the V270 later easily without taking the newly installed motor apart? A
 Reply

A  Answered on 7/4/2017 by InyoPools Product Specialist Megan C.

Hi. The V-Green 270 User Interface can be installed on the V165 motor at a later date. It mounts to the motor with 4 screw and a cable connecting the interface to the V165 controller.
 Reply

  • Commented on 7/21/2020 by Product Owner

    Ok now I finally have my answer I have been searching but this review answers my long lost problem thanks
     Reply


?     Asked on 4/23/2017 by Marty

will this interface replace the one that came with my hayward sp2600vsp superpump
 Reply

A  Answered on 4/24/2017 by InyoPools Product Specialist Scott W.

It only works with the V-Green variable speed motors.
 Reply


?     Asked on 3/23/2017 by Oliver

Will this motor fit a Hayward super II dual speed model SP3015X202AZ & will the interface controller vfd work with Hayward pro logic software version 4.04?
 Reply

A  Answered on 3/23/2017 by InyoPools Product Specialist Scott W.

The v-green is the variable speed motor which is what the interface is for. If you are wanting to go to variable speed I recommend ECM27CU and the 2517501-001 which is the automation adapter kit that connects to the aqualogic.
 Reply


?     Asked on 2/20/2017 by wilfried bardet

if you use this along the Raypak Variable Speed Pool Pump 1.65 THP, will you be able to control a pool heater independently like the 2.78 THP model does? (pump always on programmed to run at higher speed when it activate the heater)
 Reply

A  Answered on 2/21/2017 by InyoPools Product Specialist Lennox H.

Hi Wilfried, Adding this interface to the Raypak VS Pump - PS165VSP will not allow you to control a pool heater independently.
 Reply


?     Asked on 2/19/2017 by

I have a Pentair SuperFlo 342000 -- which appears to be just a rebranded VGreen 165. Is there any reason to believe that this 270 User Interface would not work on that pump?
 Reply

A  Answered on 2/20/2017 by InyoPools Product Specialist Scott W.

Yes, so that interface screws onto the ECM16SQU variable speed motor.
 Reply


?     Asked on 10/7/2016 by Geo

I don't see a picture for this unit. I have an ECM16SQU. How does this fit or attach to it? I can't seem to find this unit separate from the ECM270 motor. Please advise. Thanks!
 Reply

A  Answered on 10/12/2016 by InyoPools Product Specialist Lennox H.

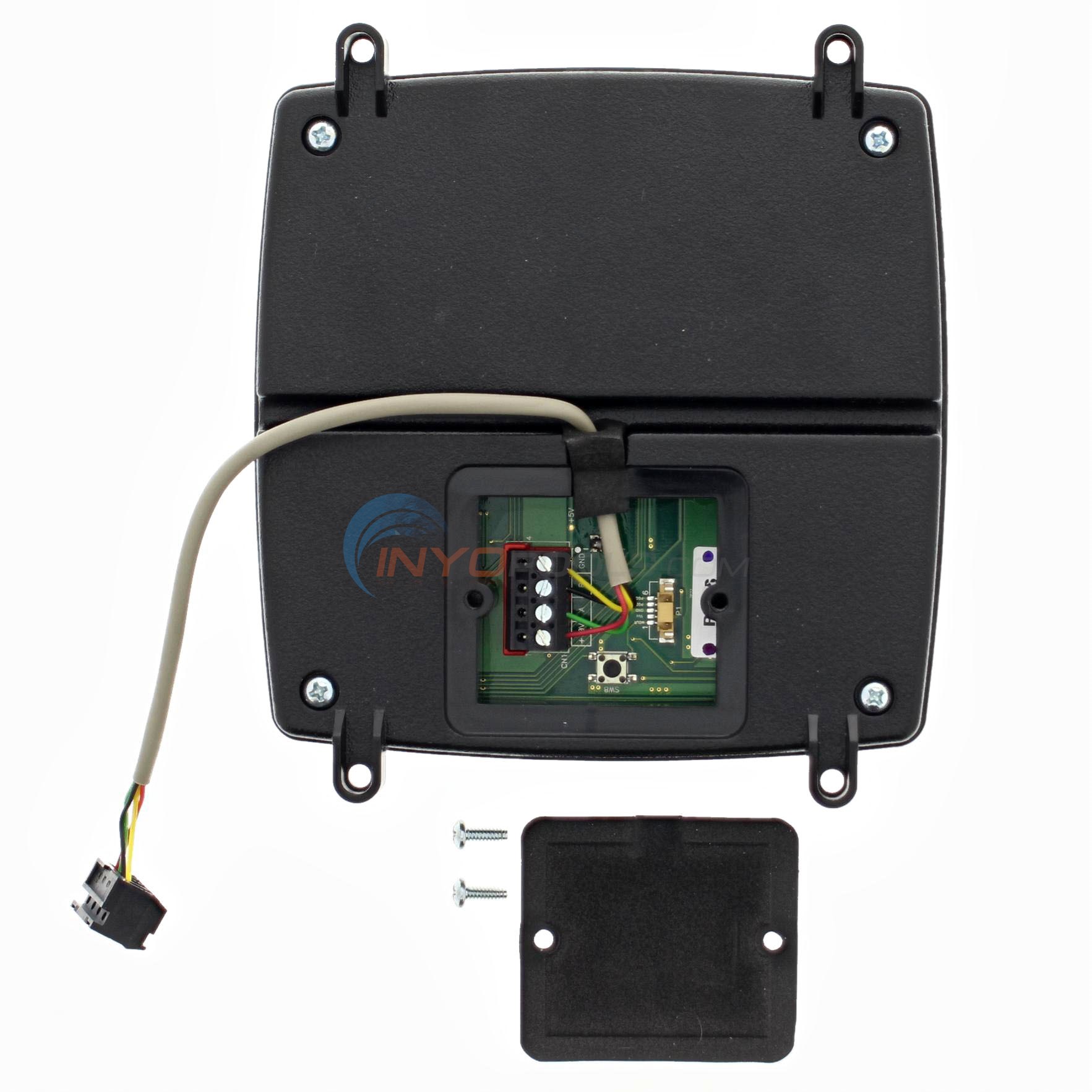

Hi Geo, This interface screws onto the 165 motor controller.
 Reply


?     Asked on 4/16/2016 by

I can't seem to find an on-line user/installation manual for this product. Would you please provide a link to a manual that describes it's detailed capabilities and installation instruction? Thanks
 Reply

A  Answered on 4/16/2016 by InyoPools Product Specialist Megan C.

Please refer to the V-Green Variable Speed User Manual, view page 29 of the manual, Remote Mounting User Interface. You may click here to view or click on the link file:///C:/Users/inyopools/Downloads/V-Green_User_Manual.pdf
 Reply


?     Asked on 3/7/2016 by Joe

I have a century V green 165 pump. I want to add a clock function. I understand that I need to add a V 270 interface. How difficult is it to hook up the V green 270? What is involved to adding this unit?
 Reply

A  Answered on 3/9/2016 by InyoPools Product Specialist Lennox H.

Hi Joe, You will need this interface. It's considered a DIY item so it's not hard to install, it will come with installation instruction.
 Reply


?     Asked on 11/6/2015 by Hogni

Dear Sir/Madam, I have a V-Green 165 motor that has freeze protection that comes on at 39 deg. I would like to adjust this setting to better fit our environment. Can this V-Green User Interface be used for this purpose. My user manual says it should work. Please confirm. Moreover, are there other options for adjusting the freeze temperature setting? Thank you in advance for your help. Sincerely, Hogni
 Reply

A  Answered on 11/12/2015 by InyoPools Product Specialist Lennox H.

Hi Hogni, The V-Green 270 User Interface (2520652-001) will allow you to configure freeze protection temperature. The User Interface does includes the instructions to configure the additional features it provides.
 Reply


Top
Difficulty

Est. Repair Time

Less than 1 hr

Tools Needed

Screwdriver, Pliers, Wire stripper

1     0

Remote mount interface

Written on 7/30/2021 by Guest

Do not need remote mounting kit.
1. Buy 22 gauge 4 conductor cable in length desired.
2. Remove 270 unit from motor.
3. Mount interface on 2 x 6 board. Use the existing rubber seal plate.
4. Cut wire and strip conductors. Use existing plugs.
5. Attach plug to wire.
6. Plug into motor and interface then replace covers.

Were these instructions helpful?


Difficulty

Est. Repair Time

Less than 1 hr

Tools Needed

Screwdriver

3     0

Watertight Controller was not so Watertight

Written on 5/31/2019 by Guest

After torrential rains original one on pump failed, full of water.

1. remove 4 screws holding original controller
2. remove single screw/plate with controller connector
3. remove plug/wire from original controller
4. reverse instructions to install, new

Very, very easy and worked first time.
