Part # DN2

Warranty 2 Years or 8000 Hours of Runtime

Alternate Part #'s APLDN2, AUTDN2

Product Description





Inyo Recommended Salt System





Pool Pilot® Digital Nano gives you Perfect crystal clear pool water everyday.... the Natural Way!

Benefits:

  • Maintains pools up to 22,000 gallons/82 m3
  • Produces 0.8 lbs. of chlorine per day - 15 g/H
  • Patented temperature compensation
  • 24 & 72 hour boost cycles
  • Operates at all salt levels - 2,000-35,000 ppm (2 to 35 g/L)
  • Operates in water up to 104ºF/40ºC
  • Push button controls
  • Operates at flow rates less than 15 gpm/3.3 m3/h

Digital Display Readout:

  • Salt level
  • Amount of salt to add
  • Water temperature
  • Diagnostics
  • Nano Features:
  • Never buy chlorine again
  • Soft, silky water
  • No more faded swimwear
  • Energy efficient
  • Environmentally friendly
  • Automatic cell cleaning
  • No more red eyes
  • No more itchy skin
  • No more green hair
  • No more vacation worries

Click here for more Auto Pilot Chlorine Generator

Product Specifications

Display Unit:
Digital
Max Pool Size:
22,000 gal.
Volts:
230 V
Power Source:
Digital Nano
Top

?     Asked on 12/19/2014by Peter

Does this system require scheduled maintainance ie: clean the salt cartridge etc.? Is this system suitable for pools ranging from 10,000 - 15,000 gallons?
 Reply

A  Answered on 12/19/2014 by InyoPools Product Specialist Robert M.

Hello Peter - The salt cell will require occasional maintenance. The digital display will present the following messages when the salt cell needs to be cleaned or inspected; "Low Flow; Purifier Off" or "Check Cell". This system is suitable for your pool and pools up to 22,000 gallons.
 Reply


?     Asked on 4/23/2016by Carl

I have heard that the larger the cell, the less running time (pump) is necessary to produce chlorine. I also heard this type of set up will increase the life of the cell because it wont be working as long. If true, what size should I look at for a 20K pool. Ps.... Are there any draw backs to this theory other than the initial cost?
 Reply

A  Answered on 4/25/2016 by InyoPools Product Specialist Lennox H.

Hi Carl, Over sizing the cell to your pool will allow the less to work less extending the life of the cell. The AutoPilot ST48 would be the recommended size for your pool, it can treat up to 40,000 gallons. The upfront cost is the only drawback, but it's worth it.
 Reply


?     Asked on 6/24/2019by Reem

Hi, is this both salt cell and control board?
 Reply

A  Answered on 6/24/2019 by InyoPools Product Specialist Matt S.

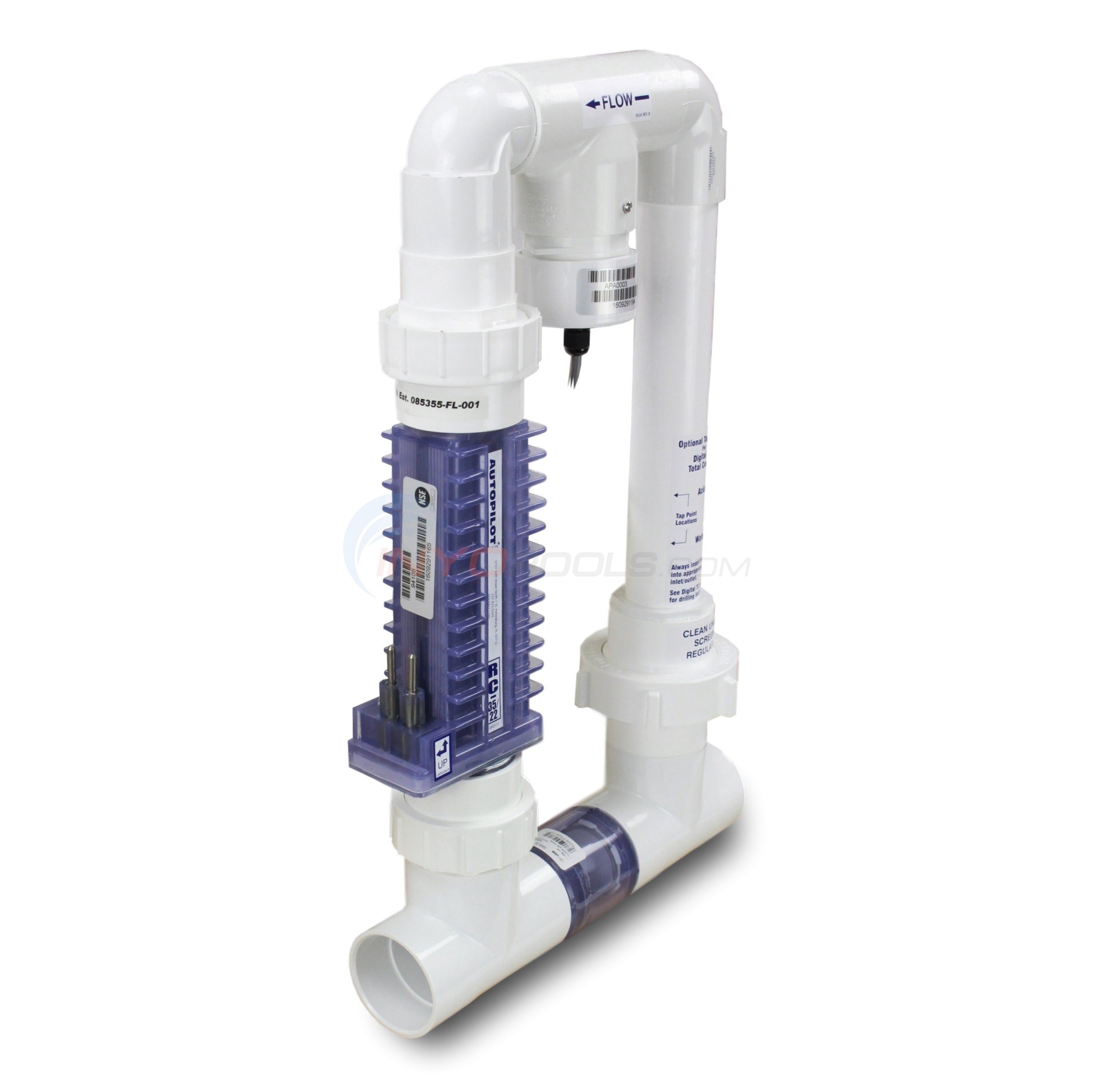

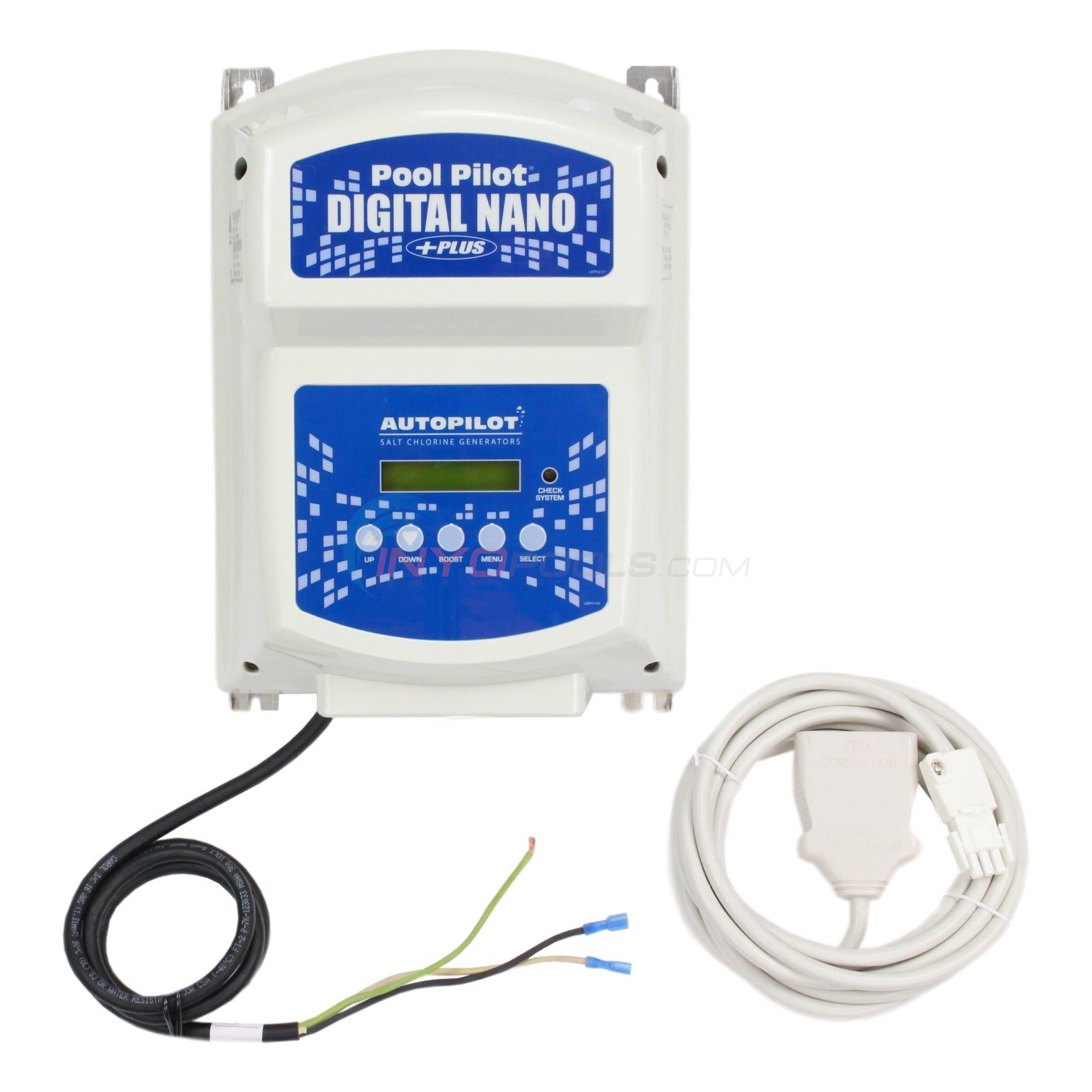

Yes, this product is a complete salt system, which includes: the control panel, salt cell, manifold, and flow switch.
 Reply


?     Asked on 7/22/2019by Clive E Bateman.

I am looking to renew my alto pilot. you quote a price including shipping does this mean shipping to KENT in ENGLAND. Kind Regards. Clive.
 Reply

A  Answered on 10/10/2019 by InyoPools Product Specialist Steve M.

Clive, we apologize for the inconvenience, however, the AutoPilot Digital Nano Salt Chlorine Generator 230V - DN2 has been discontinued and is no longer sold by our company.
 Reply


?     Asked on 9/17/2019by sean

Can I replace a nano digital with a nano digital +
 Reply

A  Answered on 9/17/2019 by Industry Professional

Yes, you can.
 Reply


Top
Difficulty

Est. Repair Time

1 to 2 hrs

Tools Needed

Screwdriver, Adjustable Wrench, pipe wrench

2     0

Had old unit not working, and converted back to chlorine

Written on 7/17/2019 by Guest

Went with Auto Pilot system because that is what was previously was installed. Removed old unit, took pic of how wires were hooked up at timer, also wrote them down on paper, mounted new unit on side of house (smaller box than old one) began running all new plumbing from pump to filter to heater then to salt cell plumbing hook up, and into return lines.

Once that was finished ran wiring to Salt chlorinator power box, then the wiring to salt cell, once completed double checked all my wiring to pics I took earlier, double checked all plumbing connections, after examining and everything appeared OK turned breaker back on, waited a minute then turned timer on which turns on pump and salt chlorinator.

Nano started displaying on screen, set my pool size in gallons into unit, it then told me how much salt to add to pool, set to 50% per instructions and it ran just fine. Super easy job to install, works like a dream and already saving us money by not needing any other chemicals to add when we get water tested weekly! Love it!
