Model # PE153PF

Alternate Part #'s _PE153PF, INT-30-815, INTPE153PF, ITMPE153PF

Product Description



New Mini-PE Series Digital Controls

Intermatic’s NEW MINI-PE Series Digital Controls couple the standard features of our compact T100 Series with the convenience of digital automation. The latest innovation from Intermatic, the P1353ME allows the ability to program up to three circuits. Beyond single and two-speed pump/booster pump applications, auxiliary modes can control pumps up to 3HP as well as underwater, garden and/or fountain lighting. Countdown and override features allow cycle interruptions when pool/spa service is required. All timing and protection associated with filter pump/booster pump combos and two-speed pumps has already been integrated into the digital software. The MINI-PE Series is available in both metal and plastic enclosures and with a wired remote command, freeze probe or both. See chart below for details.



Applications:

• Single Speed Pump/Booster Pump Combos • Two-Speed Pump/Booster Pump Combos
• Water Feature Applications • Garden & Fountain Applications
• Pool & Spa Lighting • Landscape Lighting

Modes:

Mode 1 – (Aux1, Aux2, Aux3) - The time switch is a 3-circuit switch with all three switches controlling auxiliary devices.

Mode 2 – (Pump High, Pump Low, Aux3) - The time switch is a 2-circuit switch with the 1st & 2nd switch controlling a 2-speed pump. The 3rd switch is controlling any auxiliary device. All protection associated with a two speed pump is preprogrammed into this mode.

Mode 3 – (Pump, Aux2, Cleaner Pump) - The time switch is a 3-circuit switch with the 1st switch controlling a single speed pump, the 2nd switch controls any auxiliary device, and the 3rd switch operates a booster/cleaner pump. All timing & protection associated with a filter pump/cleaner pump combination is preprogrammed into this mode.

Mode 4 – (Pump High, Pump Low, Cleaner Pump) - The time switch is a 2-circuit switch with the 1st & 2nd switch controlling a 2-speed pump. The 3rd switch is controlling a booster/cleaner pump. All protection associated with a 2-speed pump and booster/cleaner pump combination is preprogrammed into this mode.

Mode 5 – (Pump L1, Pump L2, Aux3) - The time switch is 2-circuit switch with the 1st & 2nd switch controlling a 240V pump, where both L1 & L2 are required to be disconnected when the pump is turned OFF. The 3rd switch is controlling any auxiliary device.

Click Here for PE153ME Digital Mechanism Brochure
Click Here for PE153 Digital Time Clock & Accessory Brochure

Specifications:

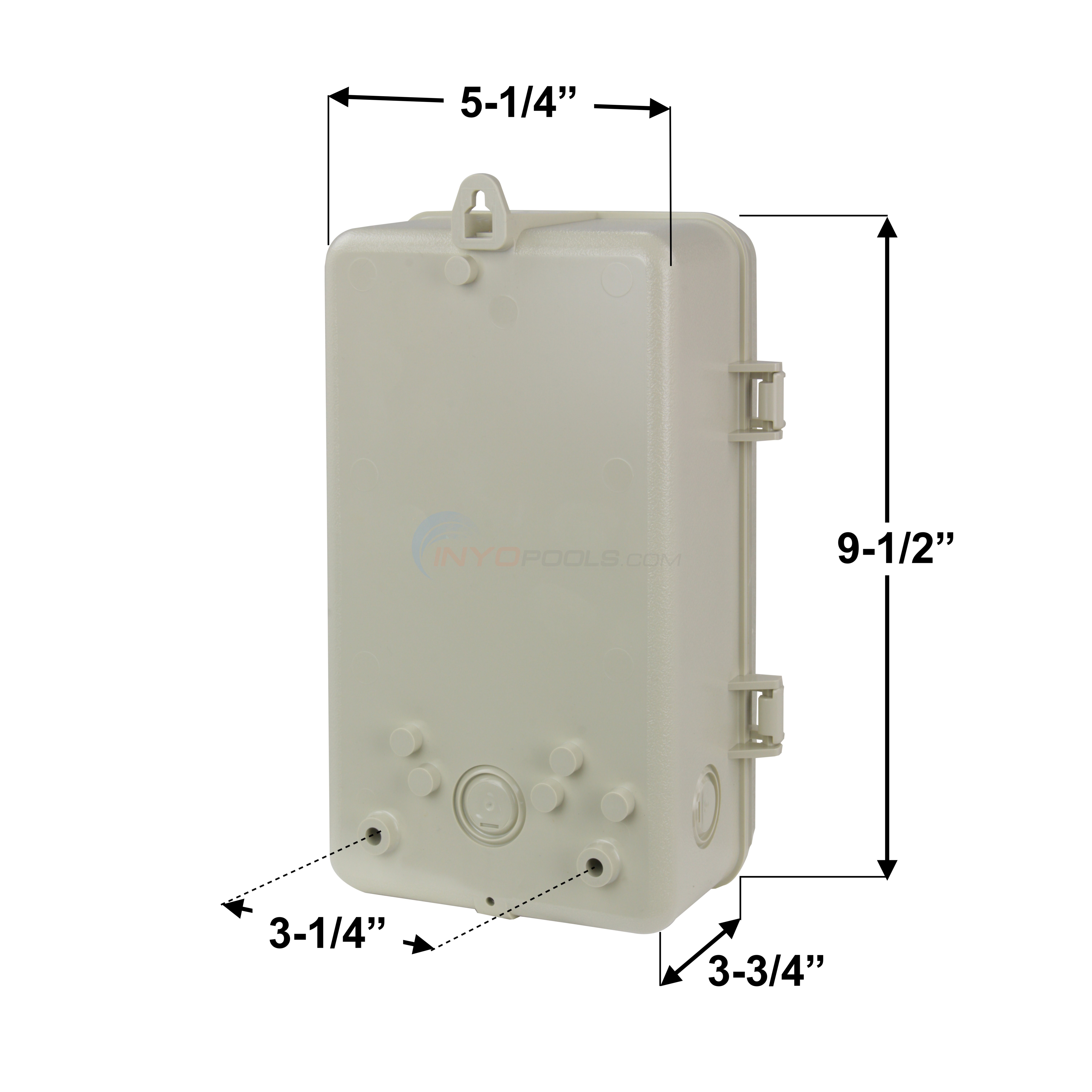

Case – NEMA 3R rated for indoor-outdoor installation. 9-3/8" (23.8 cm) high, 5-1/2" (14.0 cm) wide, 3-5/8" (9.2 cm) deep in
beige finish. “P” suffix models are same dimensions, except made from outdoor grade plastic.
Knockouts – Combination 1/2" – 3/4" nominal knockouts, one on back and each side of case and two on bottom.
Switch Rating (each circuit) – 20 Amp Resistive, 120/240 VAC, 50/60 Hz; 20 Amp FLA @ 120 VAC, 96 Amp LRA @ 120 VAC, 50/60 Hz; 17 Amp FLA @ 240 VAC,
80 Amp LRA @ 240 VAC, 50/60 Hz; 5 Amp Tungsten, 120/240 VAC, 50/60 Hz; 5 Amp Ballast, 120/240V VAC, 50/60 Hz
Shipping Weight – 3.75 lbs

Accessories:

  • PA121 Intermatic 35' Antenna Extension
  • PE650 Intermatic I-Wave Wireless Base Reciever
  • PE953 Hand-Held Transceiver
  • 21T156A   Intermatic Stand Off Mounting Devices (4)
  • 21T166A    Intermatic Stand Off Posts (2)
  • PA118      Antenna



Click here for more Intermatic Timers

Top

?     Asked on 7/17/2006by Guest

How many on off cycles can you time per day?
 Reply

A  Answered on 7/17/2006 by InyoPools Product Specialist Patrick P.

You can set the timer for 3 seperate on/off cycles per day.
 Reply


?     Asked on 3/30/2009by Guest

Can you set different times for each day?
 Reply

A  Answered on 3/30/2009 by InyoPools Product Specialist Patrick P.

No, this is a 24 hour timer. The pump will turn on and off at the same time every day.
 Reply


?     Asked on 5/12/2009by Guest

If there is a power outage will it retain the programmed cycles?
 Reply

A  Answered on 5/12/2009 by InyoPools Product Specialist Patrick P.

The PE153 does have a battery backup. The capacitor can hold a 4 hour charge. The programs stay locked in even if the power is out longer. You would just need to reset the time.
 Reply


?     Asked on 1/11/2012by Guest

Can we program each separate circuit to independently turn on/off at different times of the day and for different amounts of time?
 Reply

A  Answered on 1/11/2012 by InyoPools Product Specialist Patrick P.

Yes, the timer can be set to run the different circuits at different times.
 Reply


?     Asked on 1/19/2015by dino n

Does the battery backup need to b replaced at anytime? If power is lost for several hours, does the freeze protecting programming need to be reset?
 Reply

A  Answered on 1/20/2015 by InyoPools Product Specialist Robert M.

Hello Dino - The time is stored for about 80 hours by a capacitor that should never need replacement.  The freeze , when programmed, should never go away unless someone programs it out.
