$669.00

Qty:

By Pentair Pool Products


Details

Top

Model # EC-160316

Warranty Ecommerce (EC) products: Products purchased from an Authorized Pentair Online Reseller (products beginning with EC-) receive a one (1) year (parts only) warranty from the date of purchase. The exceptions are: IntelliChlor cells and IntelliFlo SVRS pumps which receive a two (2) year warranty. EC products are not eligible for the bundled three (3) year extended warranty.

Alternate Part #'s 16-0316, 160316, PAC-05-502, PEN160316, EC160316, PENEC160316

Product Description

Inyo Recommended Filters

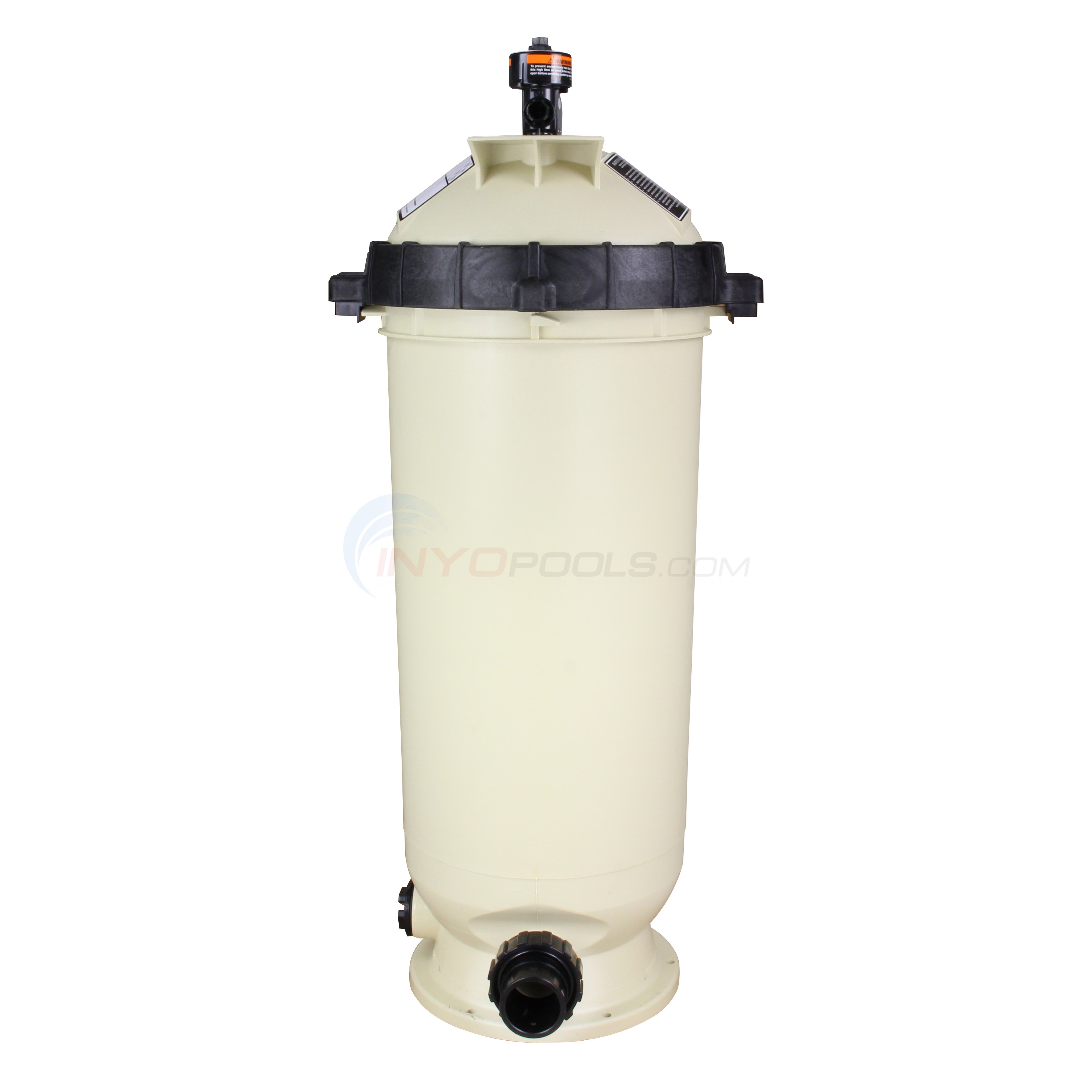

The CLEAN & CLEAR Cartridge Filter features a thermoplastic chemical resistant tank with no-tool servicing and a coreless cartridge for easier cleaning. All models are equipped with easy spin-on unions for plumbing hook-ups. These filters are NSF listed for commercial applications and are available in 50, 75, 100, 150, and 200 square foot sizes.

 Additional features include:

  • NSF listed
  • Unionized connections
  • Integrated continuous High Flow Internal air relief
  • Chemical resistant thermoplastic tank body
  • Lock ring cartridge for easy cleaning
  • High Flow manual air relief valve
  • 1 inch drain and wash out
  • Single piece base and body design
  • Purex-Triton Almond
  • Warranty1 Year. Parts

Dimensions:

Pentair Clean & Clear Dimensions

Click here for more Pentair Filter

Product Specifications

Port Size:
2 in.
Filtration Area:
100 sq. ft.
Flow Rating:
100 GPM
Turnover 8 Hrs.:
48000 gal.
Turnover 10 Hrs.:
60000 gal.
Turnover 12 Hrs.:
72000 gal.
Dimension A:
33 in.
Dimension B:
46 in.
Manufacturer:
Pentair
Filter Type:
Cartridge
Pool Type:
In Ground
Top

?     Asked on 9/21/2006by Guest

Does this come with the filter cartridge and gauges?
 Reply

A  Answered on 9/21/2006 by InyoPools Product Specialist Patrick P.

This filter comes direct from the manufacturer and includes the cartridge and gauges.
 Reply


?     Asked on 10/1/2014by Guest

Are there specs on how many microns this filter is rated at? Is there available another filter that won't allow finer particles to pass through?
 Reply

A  Answered on 10/1/2014 by InyoPools Product Specialist Patrick P.

As a rule, sand filters sift particles ranging from 20 to 40 microns in size.  Cartridge filters can sift particles as small as 10 to 20 microns in size.  DE filters can sift contaminants as small as 1 to 3 microns in size. This makes DE filtration at least five to six times more efficient than sand filtration systems.
 Reply


?     Asked on 2/3/2015by SHARON

Can you please tell me what, if any, benefits there would be to using this one over the 75 sq/ft unit for my pool size?
 Reply

A  Answered on 2/3/2015 by InyoPools Product Specialist Robert M.

Hello Sharon - The benefit would be that you would not have to clean out the 100 square foot filter as often as the 75 square foot filter.
 Reply


?     Asked on 3/1/2015by Don

What size cartridge do i need for a 26,000 gallon pool?
 Reply

A  Answered on 3/2/2015 by InyoPools Product Specialist Robert M.

Hello Don - The 100 square foot Clean & Clear would be sufficient for a 26,000 gallon pool. This filter can handle up to 100 gallons per minute.
 Reply


?     Asked on 7/14/2015by Donnie

I have a Pentair Model # CC125 Replacement Element # 173200 Where can I find a replacement cartage element and how much will it cost?
 Reply

A  Answered on 7/15/2015 by InyoPools Product Specialist Hector F.

The C-9412 is the replacement generic cartridge that we carry for the Pentair Model # CC125.
 Reply


Top
Difficulty

Est. Repair Time

Less than 1 hr

Tools Needed

Screwdriver, Blow torch

Control water flow from air relief valve

Written on 3/14/2023 by Guest

Love my C&C filter unit but not the bath from bleeding the air from the filter cavity in a closed pool equipment room.

Home Depot vinyl tubing 3/4 OD by 5/8 ID 10' cut to size.
Blow torch to heat tubing
Hose clamp to secure it
And a bucket

Water flows neatly into the bucket insuring cavity is free of air and everything is dry. Makes taking the lid off a little challenging because of the hose connection but my clean up is less.

Be nice to have a hose that would attach and detach every time but the connection is tapered so I preferred a permanent attachment...

Happy cleaning!

Were these instructions helpful?


Difficulty

Est. Repair Time

2 to 4 hrs

Tools Needed

Sawsall

1     0

My DE filter and vari-flo valve were from the 80s. They were leaking sun beaten and super difficult to find parts for.

Written on 4/8/2020 by Guest

I drew on paper exactly what I felt the system of pipes should look like. With the drawing I could factoring in all connections (pump to filter, filter to heater, heater to pool Spa supply valves).

I counted all the 90 degree turns and measured how much PVC pipe I would need. With drawing and numbers in hand I went to the giant hardware store (Lowe's) and spent 45 minutes looking at plumbing with the employee. Side note Lowe's does not carry the pipe you need for your pool.

I went to my local pool supply store and got ALL the parts I needed. 4 90s and 10" of pipe in addition to the glue and primer. I cut the pipe just downstream from my pump then cut the pipe just upstream from the valve.

Made all my connections dry (no glue) laid the system in place then proceeded to prime and glue all parts into system.

Once everything was dry and holding pressure I mounted the heater and filter to the slab(its code I live in Fl).

The only thing I wish I'd done different was roll the plumbing so none of the pipe lettering was visible when it was all done.

Were these instructions helpful?
