By Halco Lighting



Part # 3530-09

Manufacturer Code MR16EYC

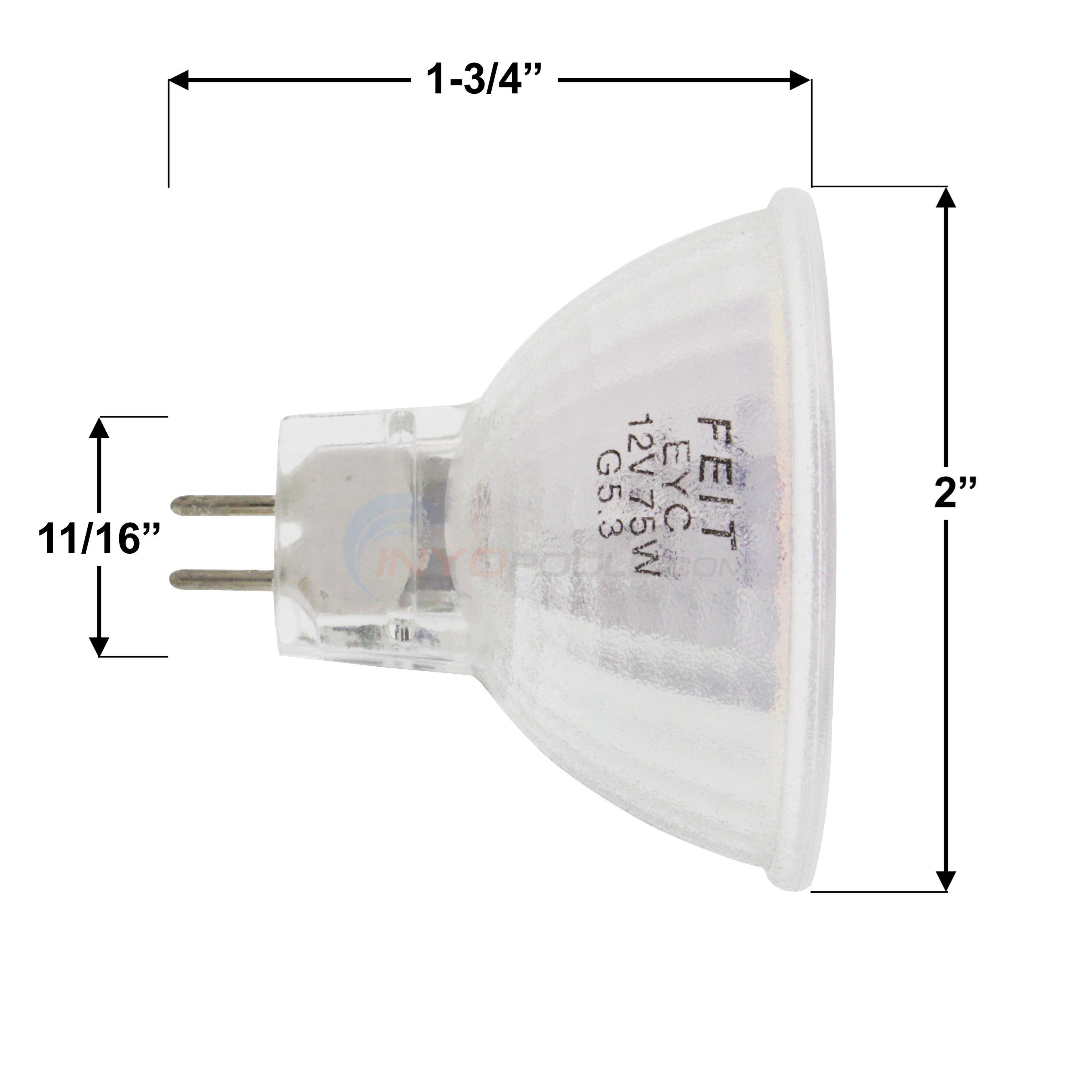

Dimensions 1.75" X 2"

Alternate Part #'s 070516, 107130, 346000009, 651120, 7017, 70516, 791124, 79112400, G440029, P03305, Q75/MR16, SPP-1351, SPX0590H, 57-150-1118

Product Description



?     Asked on 5/2/2015by Bill

My original in ground pool lights went out after 12 years. I have the Pentair Spectrum Amerilite (SAM) unit in both my pool and connecting spa. The nomenclature on my unit says: No. T-826048 light fixture with bulb type MR16, 75 W, bulb series 600015, 600016, 600017 and 600022. Can I replace my SAM light bulbs with an upgraded bulb (ie an LED bulb)? If so, which should I replace with? Thank you.

A  Answered on 5/3/2015 by InyoPools Product Specialist Patrick P.

Hi Bill, Unfortunately there is not an LED bulb replacement for the SAM lights. If you wanted to upgrade to LED then you would require replacing your entire pool and spa light fixtures. The Pentair Intellibrite LED Pool & Spa Lights would be the direct LED replacement for the SAM lights. Here we have a great Guide With Video on How to Replace a Pool Light Fixture. If you would just like to replace your current SAM light MR16 bulbs then we carry the Pentair SAM Light Bulbs as well as all of The Replacement Parts For The Pentair SAM Light.

?     Asked on 7/9/2016by Dave Riley

I have 2 JANDY COLOR LIGHTs in my pool and a small one in the spa. The Number on the housing says JPL120100 165 watt 120v 2 75watt. Are all the lamps in each light (8ea.)MR16 eyc 120 volt bi pinI\. I need all 16 lamps

A  Answered on 7/17/2016 by InyoPools Product Specialist Lennox H.

Hi Dave, These are the correct replacement bulbs for the Jandy WaterColors JPL120100 which requires 8 bulbs. You may want to look into replacing the complete light fixture, the cost of the bulb and the lens gasket is no longer available.

?     Asked on 8/3/2016by LARRY JERINA


A  Answered on 8/4/2016 by InyoPools Product Specialist Alan M.

Hello, The correct replacement bulb for your light is the Elite Replacement Halogen Lamp W/reflector 12v 50w (spx0565z1).

?     Asked on 7/17/2017by Inyo Visitor

I have a Jandy Colors light in my pool that went out. Do I need to get all 8 bulbs to replace?

A  Answered on 7/17/2017 by InyoPools Product Specialist Lennox H.

Hi. If all the bulbs are blown then you'll need to replace them all or make sure that the fixture isn't bad.

?     Asked on 8/5/2019by Tom Hand

I have to Jandy Colors model JPL12050 in my pool now that are not working. Can you tell me is there a replacement that can be substituted without replacing the Niche. If there is do you carry them?

A  Answered on 8/7/2019 by InyoPools Product Specialist Lennox H.

Hi, Tom. We will need to know the model of your niche in order to locate a suitable replacement. However, can use the Hayward ColorLogic Universal LED Fixture or the Color Splash Pool LED Fixtures.
