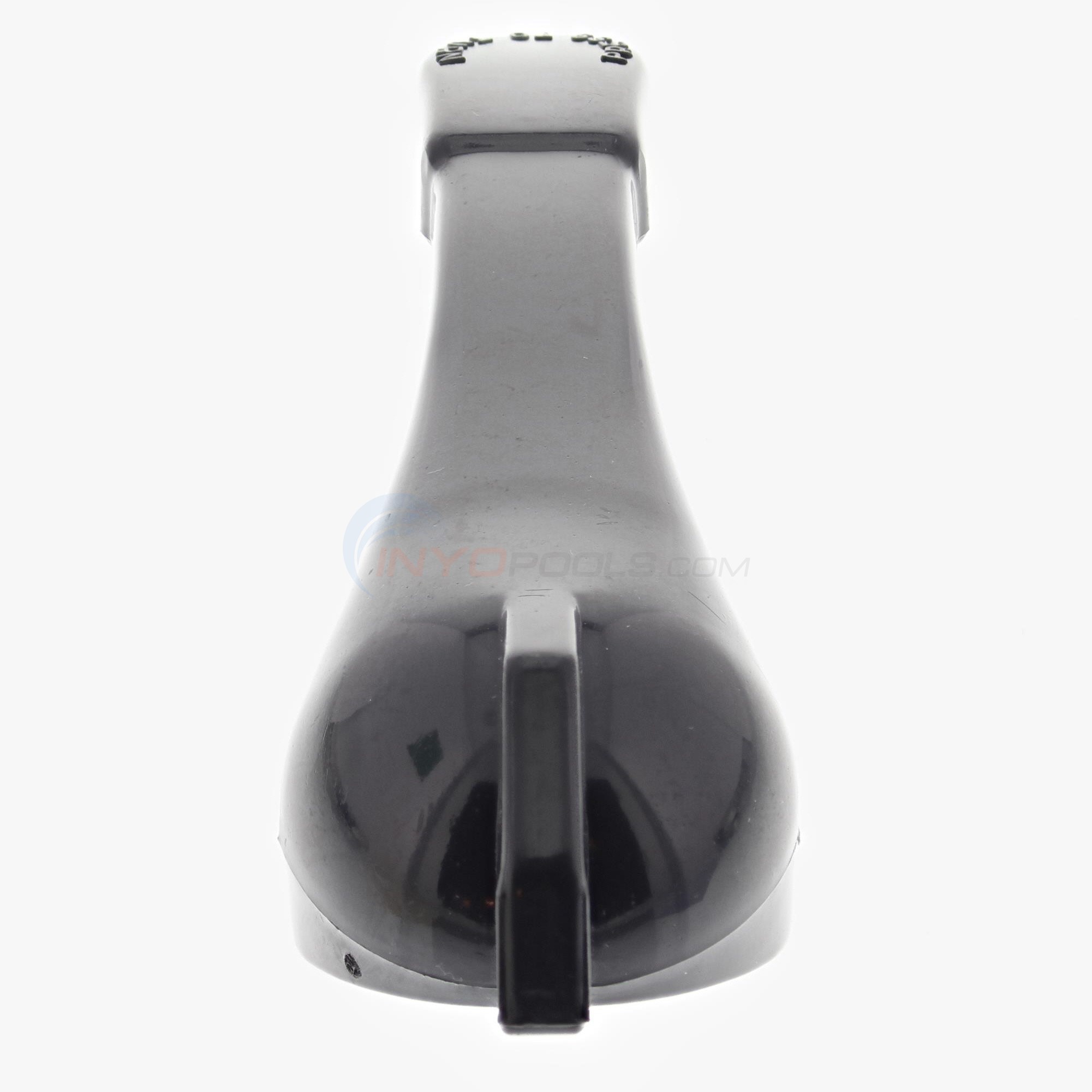

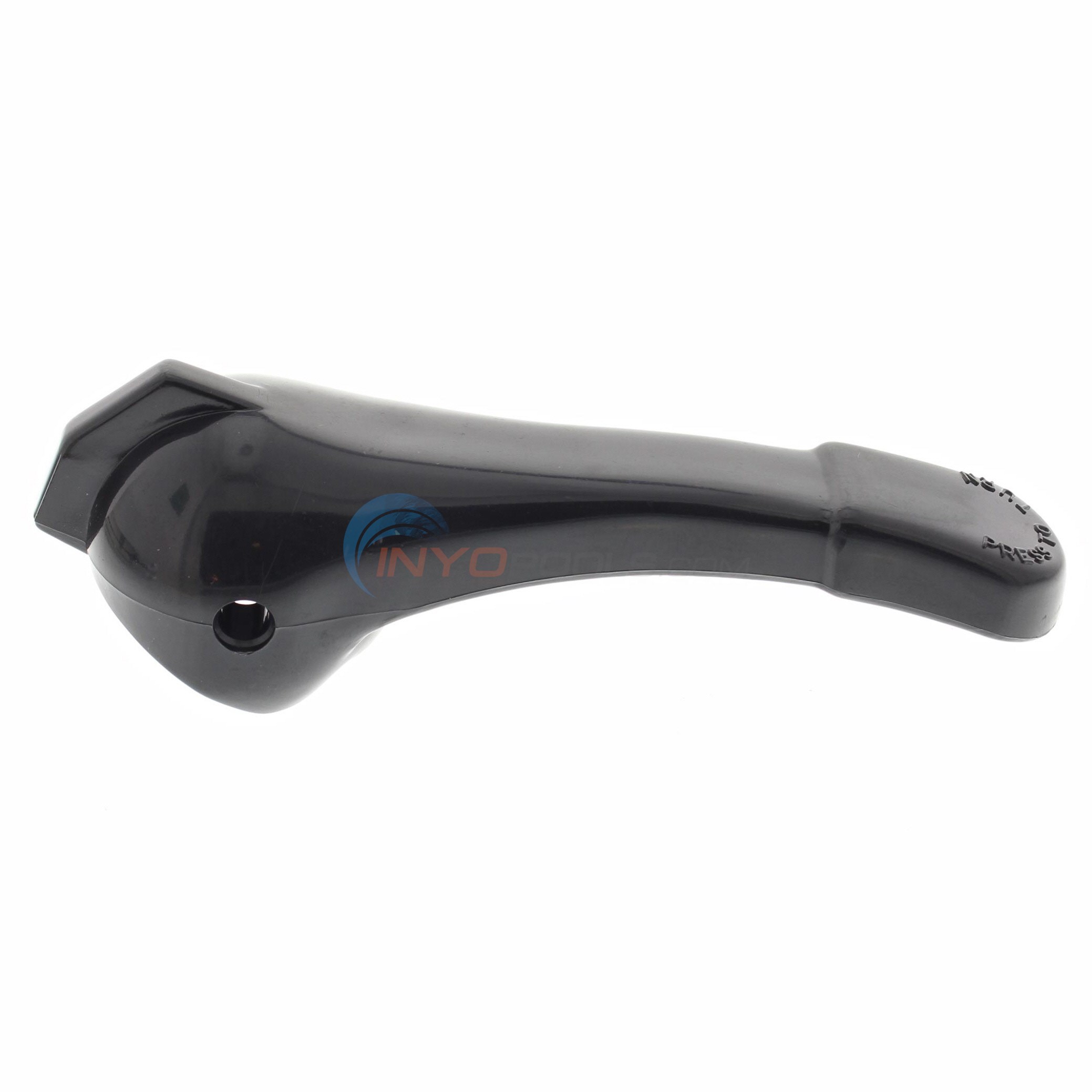

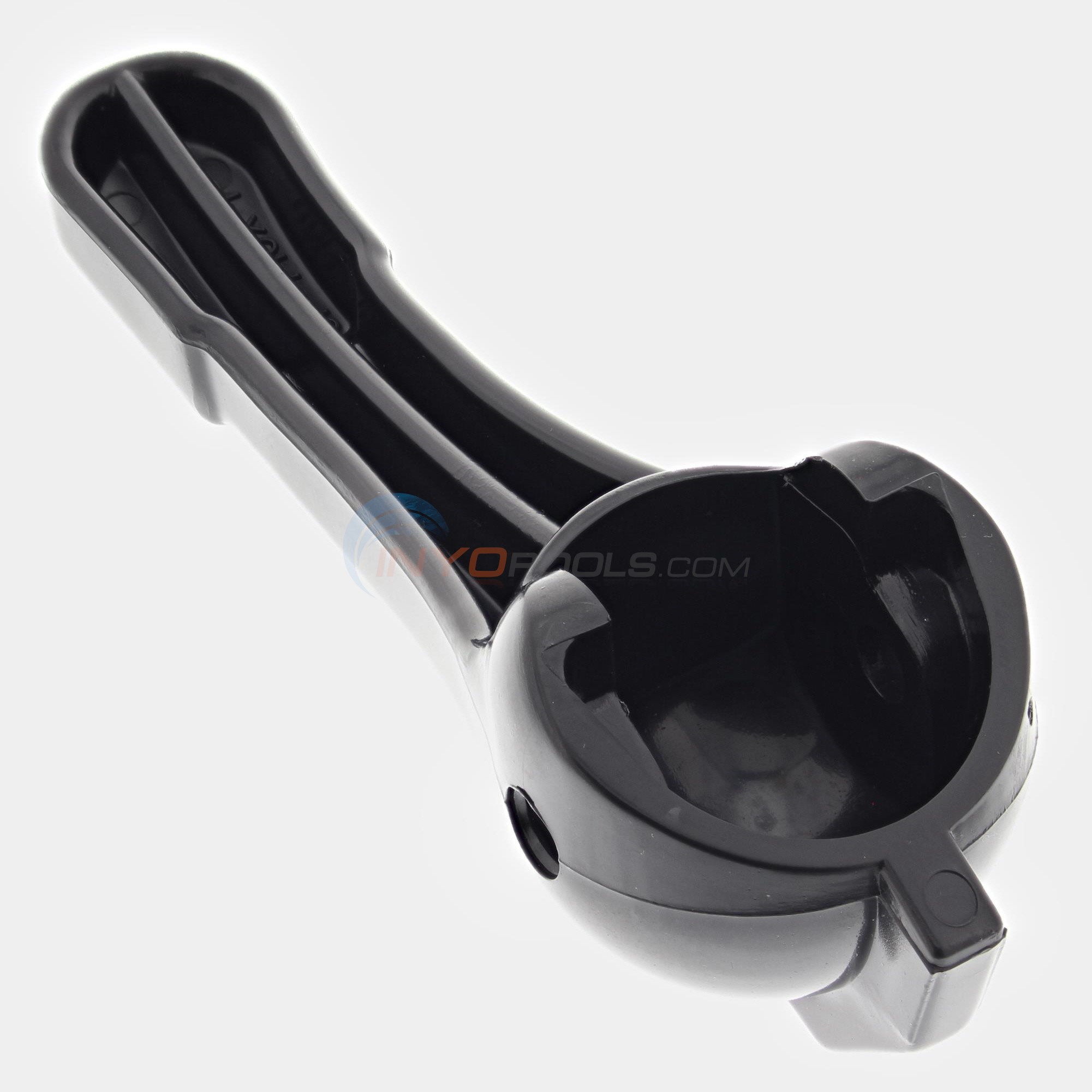

Replacement Handle for Hayward SP0714T (SPX0710F) - SPX0710XF

$17.99

IN STOCK

Part # 4700-01X

  5 Average

Details

Top

Part # 4700-01X

Manufacturer Code SPX0710XF

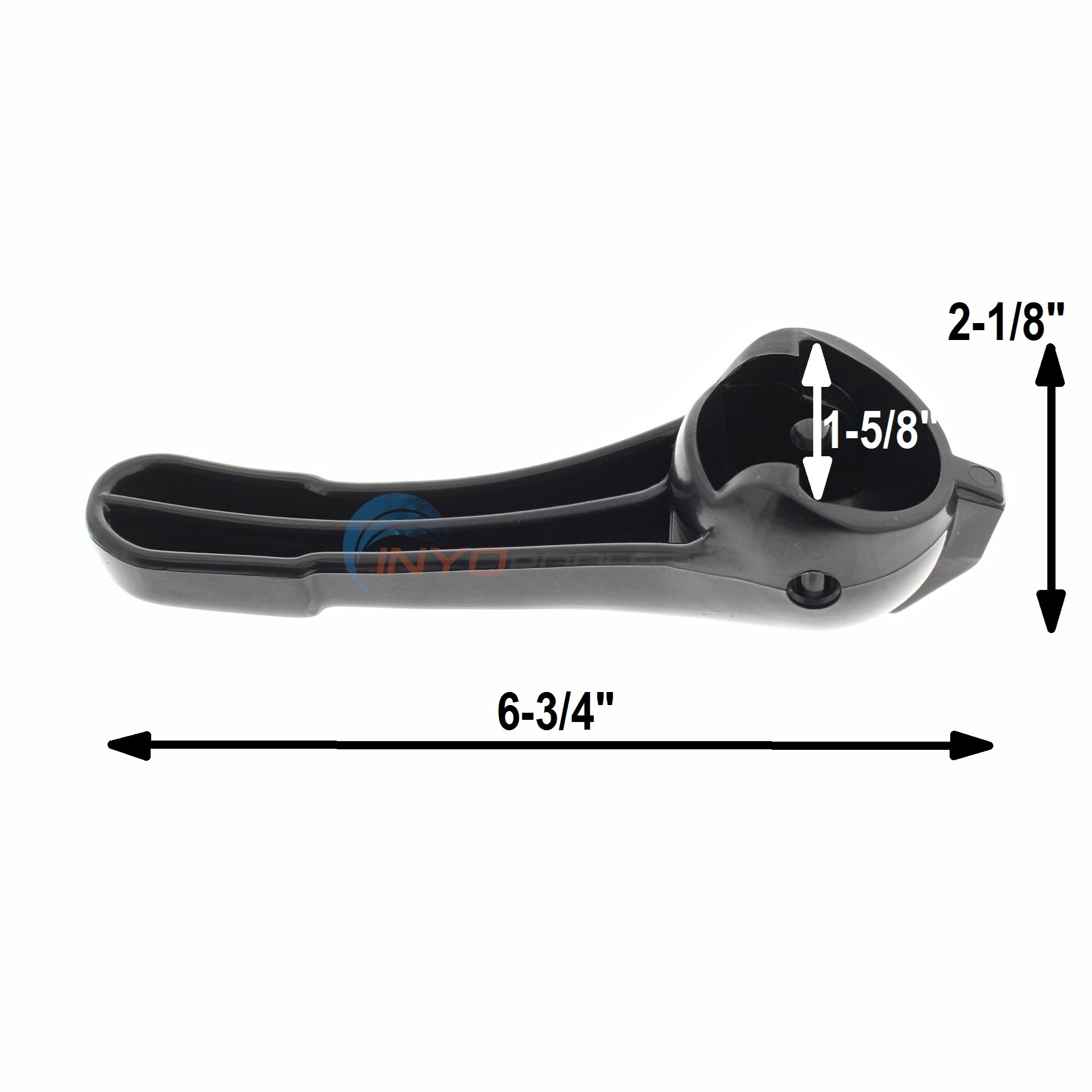

Dimensions 7" L x 2" W x 2" D

Alternate Part #'s 27-150-2040, HAY-061-3193, HAY0613193, HAYSPX0710XF, PL0720, SP-710X-F, SP710XF, SPX0710XF, SPX710XF

Product Description

Replacement Valve Handle for Hayward SP0714T Valve

This is the replacement valve handle for the Hayward SP0714T Valve. After years of use, your valve handle may crack or break and this is the item needed for this simple fix.

Easy Homeowner Installation

View our Guide on How to Replace a Hayward Backwash Valve Handle

Commonly Use On

  • SP0714T
  • Hayward Pro Series Sand Filters
  • Hayward Top Mount Sand Filters
  • Hayward S166T
  • Hayward S180T
  • Hayward S190T
  • Hayward S210T
  • Hayward S220T
  • Hayward S230T
  • Hayward S244T
  • Hayward S270T



Top

?     Asked on 5/20/2020by Brandon Branciforte

Which product number for the whole key cover assembly for a dream line s190tscp? A link would be helpful. Thank you
 Reply

A  Answered on 12/4/2020 by InyoPools Product Specialist Hector F.

Hi Brandon, could you provide the top multiport model number or send us a few photos? One of the complete valve and one of the very top of it looking down at it? To supply photos simply click the reply link below and upload your photos. Once we get those photos we can make the proper recommendation.
 Reply


?     Asked on 5/20/2020by Brandon

Will this handle work for the dream line s190tscp? Also which gasket would I need. Thanks
 Reply

A  Answered on 5/20/2020 by InyoPools Product Specialist Hector F.

Yes, if your current multiport valve is the original that came with the filter then that would be the correct handle and the spider gasket will be part number 4703-23 that you can view by clicking here. It is glued into this diverter.
 Reply

  • Commented on 5/20/2020 by Product Owner

    Thanks for the reply hector. Im actually asking about the non metallic bearing that is right below the handle. Also will the pin from my existing broken handle work or would I need a new one of those? Thanks
     Reply

    • Commented on 10/19/2020 by InyoPools Product Specialist Hector F.

      Hello Brandon, the non-metallic bearing is part number 4700-03X and if you have the original handle and the pin is still in good condition with no corrosion then it will okay to use again.
       Reply


?     Asked on 5/2/2018by Barry

how do I compress the spring in order to change the handle out on the multiport valve?
 Reply

A  Answered on 5/2/2018 by InyoPools Product Specialist Lennox H.

Hi, Barry. You can follow the steps in our How To Replace a Pool Multiport Valve Handle guide.
 Reply


?     Asked on 5/1/2018by John K McPherson

Which is the correct handle for model dev48?
 Reply

A  Answered on 5/1/2018 by InyoPools Product Specialist Charlie R.

John, The handle assy for the DEV Series filter is part # 4580-001. It includes both the handles and two sets of screws.
 Reply


?     Asked on 6/20/2017by Diana

I went to backwash my pool and broke handle off. What do part do i need to order...MODEL SW-166T, SW-190T SERIES
 Reply

A  Answered on 6/21/2017 by InyoPools Product Specialist Patrick P.

This handle is the correct replacement valve handle for the Hayward SW-166T and SW-190T Series filters.
 Reply


?     Asked on 4/21/2017by Angie

Which handle do I need to replace on my Hayward SP1510Z1XBC pump?
 Reply

A  Answered on 4/21/2017 by InyoPools Product Specialist Charlie R.

Angie,If you're referring to the handle that is on top of the pump lid, the part number is 5111-17A
 Reply


?     Asked on 5/11/2016by michael m

What handle will fit my sp714tx haywood valve? thanks
 Reply

A  Answered on 5/11/2016 by InyoPools Product Specialist Andy O.

Michael- The handle to fit on your SP0714T is the 4700-01x Handle, Cycolac (spx0710xf).
 Reply


?     Asked on 9/17/2015by Jeff

The handle on our Hayward Pro Series S220T broke. I believe the valve is a 2P0714T will the SPX0710XF handle work on this filter?
 Reply

A  Answered on 9/21/2015 by InyoPools Product Specialist Lennox H.

Hi, The Cycolac Handle (SPX0710XF) will work with the SP0714T valve used on the Hayward Pro Series S220T Sand Filter.
 Reply


?     Asked on 7/23/2015by Inyo Visitor

The handle on my pump broke. The only model number I can see is s190tscp will this handle work, or what do i need?
 Reply

A  Answered on 7/24/2015 by InyoPools Product Specialist Lennox H.

Hi, The Valve Handle (SPX0710XF) will work with the valve for your S190TSCP model filter. You can follow our How To Replace a Pool Multiport Valve Handle guide.
 Reply


?     Asked on 6/21/2015by Jordan

While pressing down on the handle, it broke where it is threaded inside. The handle, pin and washer seem to be ok. What needs to be replaced?
 Reply

A  Answered on 6/21/2015 by InyoPools Product Specialist Hector F.

In his case you would only need to replace the handle and the diverter it is attached to if that is broken as well.
 Reply


?     Asked on 5/26/2015by Paula Clark

I have a eco-kleer sand filter. My handle broke today and can't find a part number on just the handle. It is a 7 position multi port valve. My filter model number is EKS-101285. Can you please help me?
 Reply

A  Answered on 5/27/2015 by InyoPools Product Specialist Patrick P.

Hi Paula, The Waterway Eco-Kleer sand filter uses the WVS003 Valve. If you need just the handle on the WVS003 valve then you would require the Waterway Eco-Kleer Valve Handle here.
 Reply


?     Asked on 5/5/2015by ted

My pump handle number is SP710FL . Will the handle with the number SP710XF replace my handle ?
 Reply

A  Answered on 5/5/2015 by InyoPools Product Specialist Robert M.

Hello Ted - Part number SPX0710FL (4702-01) is the correct replacement handle for the SP710FL.
 Reply
