Hayward Multiport Variflo XL 1 1/2" SP714T Parts

Replacement parts for Hayward Sand Filter Vari-Flo XL Valve. Models SP0714T, SP714, SP714T, SP0714G11M, SP714A

Hayward Multiport Variflo XL 1 1/2" SP714T Diagram

Click to zoom in

Diagram #	Part Title
*	SP0714T Valve Decal
A	Pureline Valve For Hayward Sand Filters: Replaces SP0714T
1	HANDLE, CYCOLAC
2	PIN FOR HANDLE
3	BEARING, NON-METALLIC
4	Pureline Replacement Upper Handle Assembly Compatible with Hayward SP0714T Valve
4	Hayward Lid Assembly for SP0714T Vari-Flo Valve, Includes Spider Gasket - SPX0714BA
5	COVER SCREW (SET OF 6)
6	COVER O-RING (5000-4053--)
7**	O-RING WITH TEFLON SEAL
8	WASHER FOR SPRING (SET OF TWO)
9	KEY/SEAL ASSEMBLY (DIFFUSER With GASKET GLUED IN IT)
10	VALVE BODY With GSKT & SIGHT GLASS
11	DIFFUSER
13	SPRING
*	SIGHT GLASS With GASKET
*	GASKET FOR SIGHT GLASS
*	Bottom Mount Pressure Gauge 0-60 1/4" NPT (101D-204D)
*	SP0714T Valve Decal

View Parts List

Diagram #	Part Title
*	SP0714T Valve Decal
A	Pureline Valve For Hayward Sand Filters: Replaces SP0714T
1	HANDLE, CYCOLAC
2	PIN FOR HANDLE
3	BEARING, NON-METALLIC
4	Pureline Replacement Upper Handle Assembly Compatible with Hayward SP0714T Valve
4	Hayward Lid Assembly for SP0714T Vari-Flo Valve, Includes Spider Gasket - SPX0714BA
5	COVER SCREW (SET OF 6)
6	COVER O-RING (5000-4053--)
7**	O-RING WITH TEFLON SEAL
8	WASHER FOR SPRING (SET OF TWO)
9	KEY/SEAL ASSEMBLY (DIFFUSER With GASKET GLUED IN IT)
10	VALVE BODY With GSKT & SIGHT GLASS
11	DIFFUSER
13	SPRING
*	SIGHT GLASS With GASKET
*	GASKET FOR SIGHT GLASS
*	Bottom Mount Pressure Gauge 0-60 1/4" NPT (101D-204D)
*	SP0714T Valve Decal

Available Parts:

SP0714T Valve Decal

Part # SPX0714G

SP0714T Valve Decal

$13.99 IN STOCK

Qty:

Pureline Valve For Hayward Sand Filters: Replaces SP0714T

Part # PL0714

Pureline Valve For Hayward Sand Filters: Replaces SP0714T

$104.99 IN STOCK

Qty:

Top Mount Valve Flange 1-1/2" FPT for Hayward Sand Filters SP0714T

Part # SP0714T

Top Mount Valve Flange 1-1/2" FPT for Hayward Sand Filters SP0714T

$181.99 IN STOCK

Qty:

HANDLE, CYCOLAC

Part # 4700-01X Mfg # SPX0710XF

HANDLE, CYCOLAC

$18.99 IN STOCK

Qty:

PIN FOR HANDLE

Part # 4700-02X Mfg # E-2-S1

PIN FOR HANDLE

$5.49 IN STOCK

Qty:

BEARING, NON-METALLIC

Part # 4700-03X Mfg # SPX0710Z16

BEARING, NON-METALLIC

$9.99 IN STOCK

Qty:

Pureline Replacement Upper Handle Assembly Compatible with Hayward SP0714T Valve

Part # 4703-20 Mfg # PL0734

Pureline Replacement Upper Handle Assembly Compatible with Hayward SP0714T Valve

$58.00 IN STOCK

Qty:

Hayward Lid Assembly for SP0714T Vari-Flo Valve, Includes Spider Gasket - SPX0714BA

Part # SPX0714BA

Hayward Lid Assembly for SP0714T Vari-Flo Valve, Includes Spider Gasket - SPX0714BA

$162.99 IN STOCK

Qty:

COVER SCREW (SET OF 6)

Part # 4703-21 Mfg # SPX0714Z1

COVER SCREW (SET OF 6)

$38.99 IN STOCK

Qty:

COVER O-RING (5000-4053--)

Part # 4703-22 Mfg # SPX0714L

COVER O-RING (5000-4053--)

$16.49 IN STOCK

Qty:

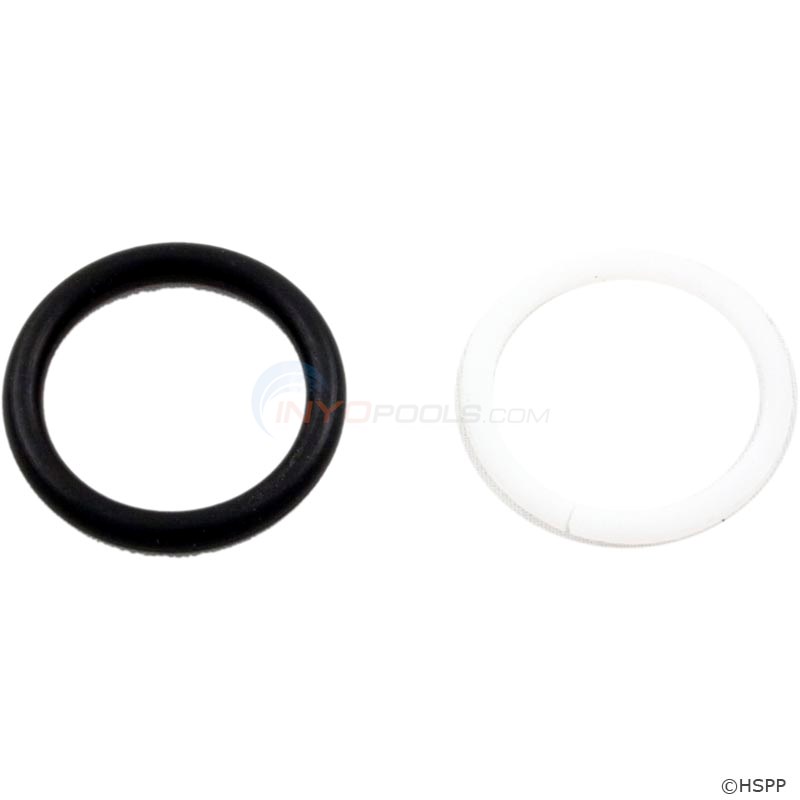

O-RING WITH TEFLON SEAL

Part # 4700-08X Mfg # O-418-KIT

O-RING WITH TEFLON SEAL

$11.99 IN STOCK

Qty:

WASHER FOR SPRING (SET OF TWO)

Part # 4700-06 Mfg # SPX0710Z62

WASHER FOR SPRING (SET OF TWO)

$22.49 IN STOCK

Qty:

KEY/SEAL ASSEMBLY (DIFFUSER With GASKET GLUED IN IT)

Part # 4703-23 Mfg # SPX714CA

KEY/SEAL ASSEMBLY (DIFFUSER With GASKET GLUED IN IT)

$25.75

VALVE BODY With GSKT & SIGHT GLASS

Part # 4703-25 Mfg # SPX0714A

VALVE BODY With GSKT & SIGHT GLASS

$224.99 IN STOCK

Qty:

DIFFUSER

Part # 4703-24 Mfg # SPX0714D

DIFFUSER

$70.49 IN STOCK

Qty:

SPRING

Part # 4700-07 Mfg # SPX0603S

SPRING

$20.99 IN STOCK

Qty:

SIGHT GLASS With GASKET

Part # 4700-12 Mfg # SPX0710MA

SIGHT GLASS With GASKET

$13.99 IN STOCK

Qty:

GASKET FOR SIGHT GLASS

Part # 4700-11 Mfg # G-160

GASKET FOR SIGHT GLASS

$4.49 IN STOCK

Qty:

Bottom Mount Pressure Gauge 0-60 1/4" NPT (101D-204D)

Part # 4726-0 Mfg # 101D-204D/ 25501-000-800

Bottom Mount Pressure Gauge 0-60 1/4" NPT (101D-204D)

$18.49 IN STOCK

Qty:

SP0714T Valve Decal

Part # SPX0714G

SP0714T Valve Decal

$13.99 IN STOCK

Qty:

The SP0714T valve fits the Hayward Pro Series, E-Series, Sand Master, Swim Pro, and Dream Line sand filter models. * NOT SHOWN
** TWO REQUIRED FOR EACH VALVE
