Part # 3250-F24
Manufacturer Code 012
Dimensions 0.5" X 0.08"
Alternate Part #'s 171961010, 171961015, 172221, 172224, 255750114, 27102, 3081152, 355050114, 9003009, AXF24, EC9611246, ECX9611246, F24, HAY0511864, O30, PL520G, R172221, R172224, RAI0513476, RAI0513479, 90-423-7012, APCO2454, PENR172221, RAI-051-3476

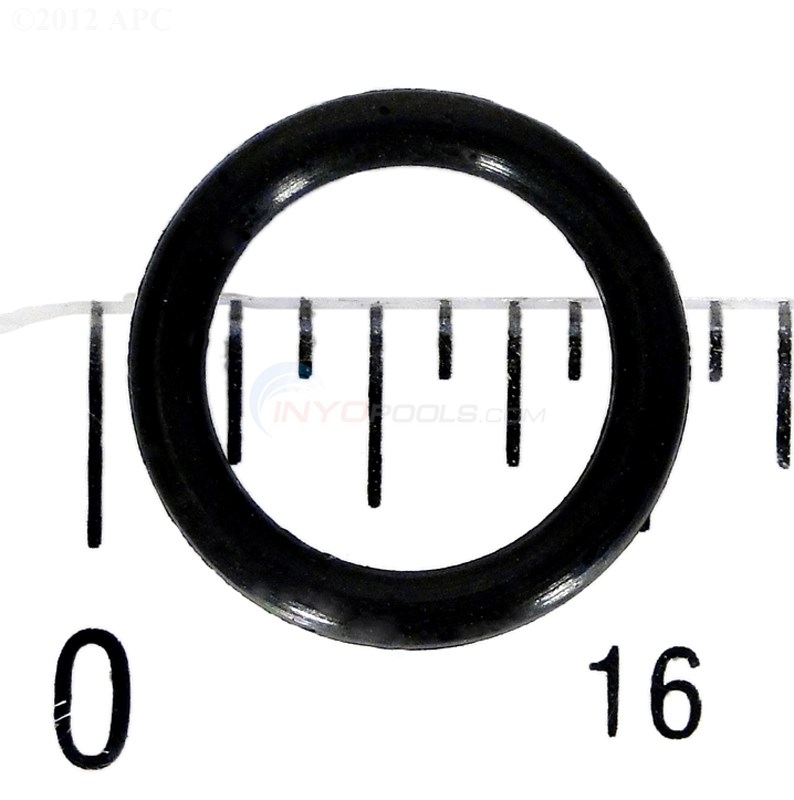

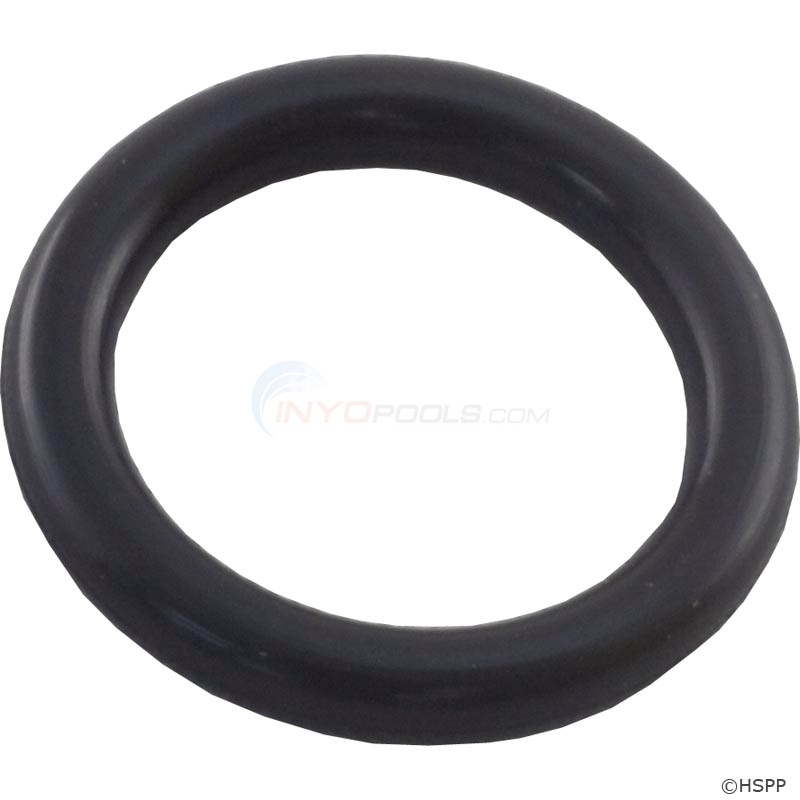

Small black rubber o-ring with multiple uses for pool equipment. Used for the following:
3/8" I.D., 1/2" O.D.: 1/2", 1/16" cord thickness
What do you have to take apart to get this o-ring installed?
Hi, Joey. This o-ring can be used on several different filtration system, please provide us with the model of your unit so that we can provide you with the answer to your question.
Where is this o-ring used? I have a Hayward Micro Clear DE 72 filter with this slide valve and have a small leak at the place the handle slides into the top of the slide valve. I have replaced the other three O-rings but still have a leak. thanks for your help
It will go on the piece right as you take the nut off of the top to pull the guts out of the valve.
I have a leak just below the arm pump where the rod goes into the top of the filter.
I'm assuming it needs an O-ring/gasket replaced. Can you confirm.
Any how do get at that location. I have the top off and the fingers still connected.
Hi Ed, I would suggest Key # 16, 17 & 18.
