Hayward Perflex D.E. FIlters EC-65, EC-65A, EC-75 & EC-75A

Hayward Perflex D.E. FIlters EC-65, EC-65A, EC-75 & EC-75A Diagram
MODELS EC-65 & EC-75

CLICK HERE FOR EC-30 & EC-40 PARTS

CLICK HERE FOR EC-50 & EC-50C PARTS
Key Part # Item Price

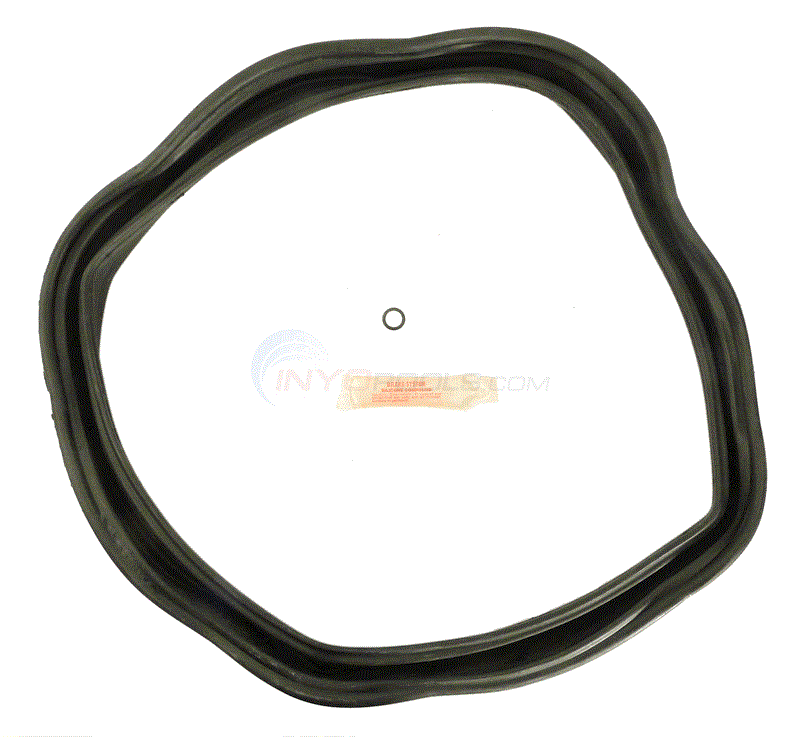

** APCK1150 Hayward EC65/EC75 O-ring Kit $63.99 Description

Key Part # Mfg Code Item Price

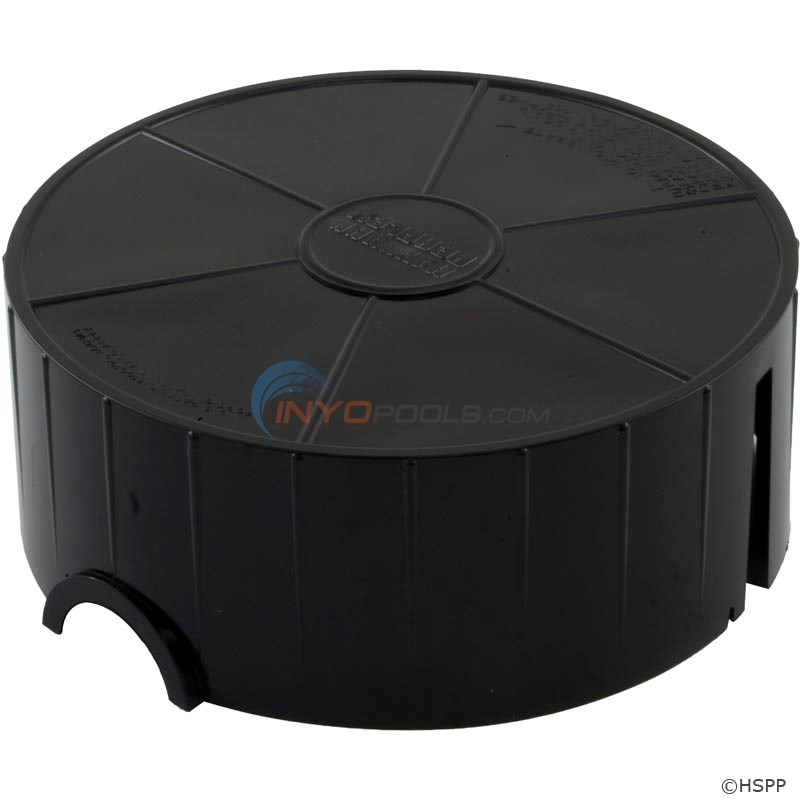

1 4810-01A ECX11206 COVER $86.99 Description

Key Part # Mfg Code Item Price

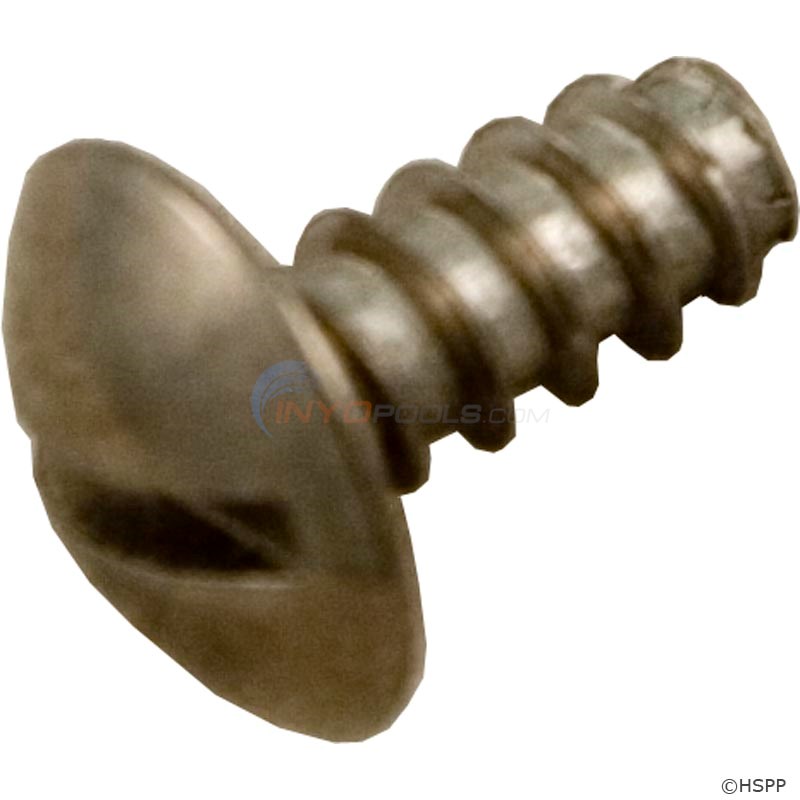

2 4810-02A ECX1019 SCREW $11.99 Description

Key Part # Mfg Code Item Price

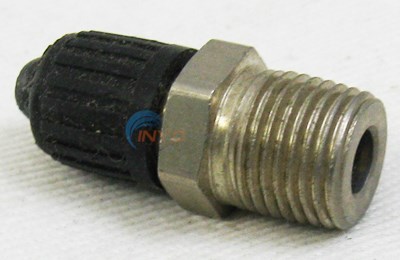

3 4810-03 LTD QTY VALVE, VENT (Before 1978) $35.99 Description
3A 4662-03B ECX1322A VALVE, AIR RELIEF (After 1978) $12.35 Description

Key Part # Mfg Code Item Price

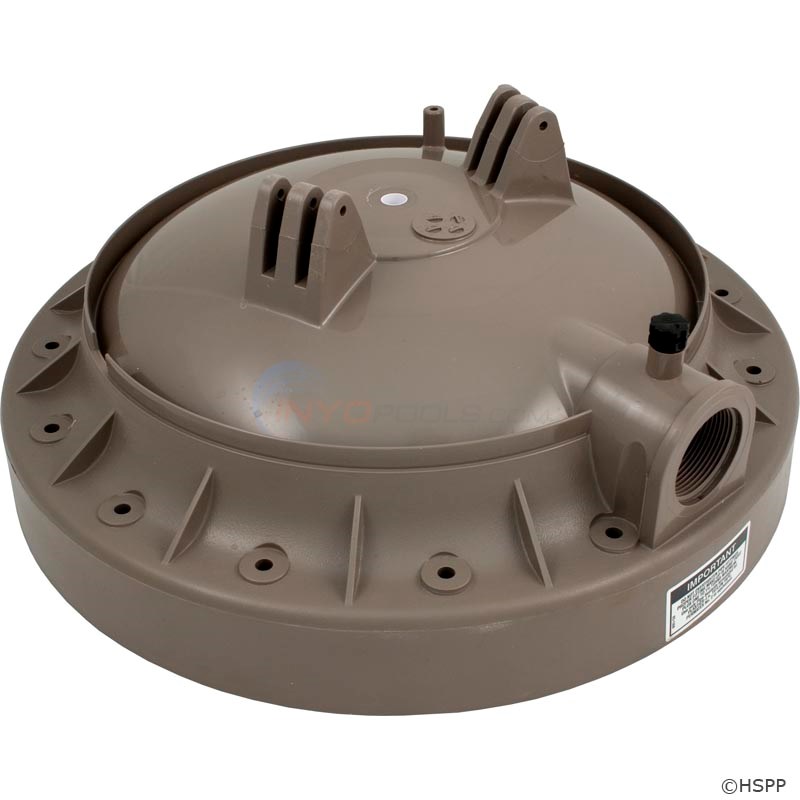

4 4810-044 ECX11194AT HEAD - TAUPE $257.49 Description

Key Part # Mfg Code Item Price
5 4820-05 ECX1105 GASKET, DIAPHRAGM $98.87 Description

Key Part # Mfg Code Item Price

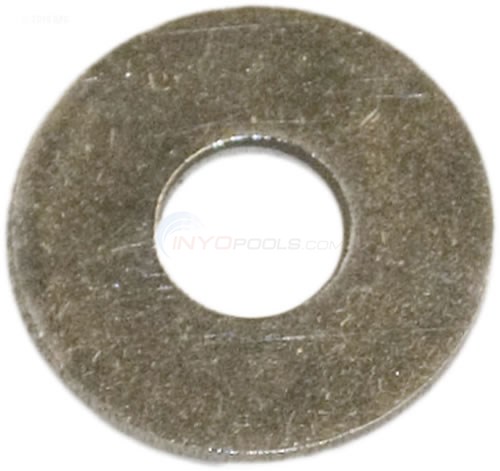

6 4810-14A ECX1077 WASHER $10.22 Description

Key Part # Mfg Code Item Price

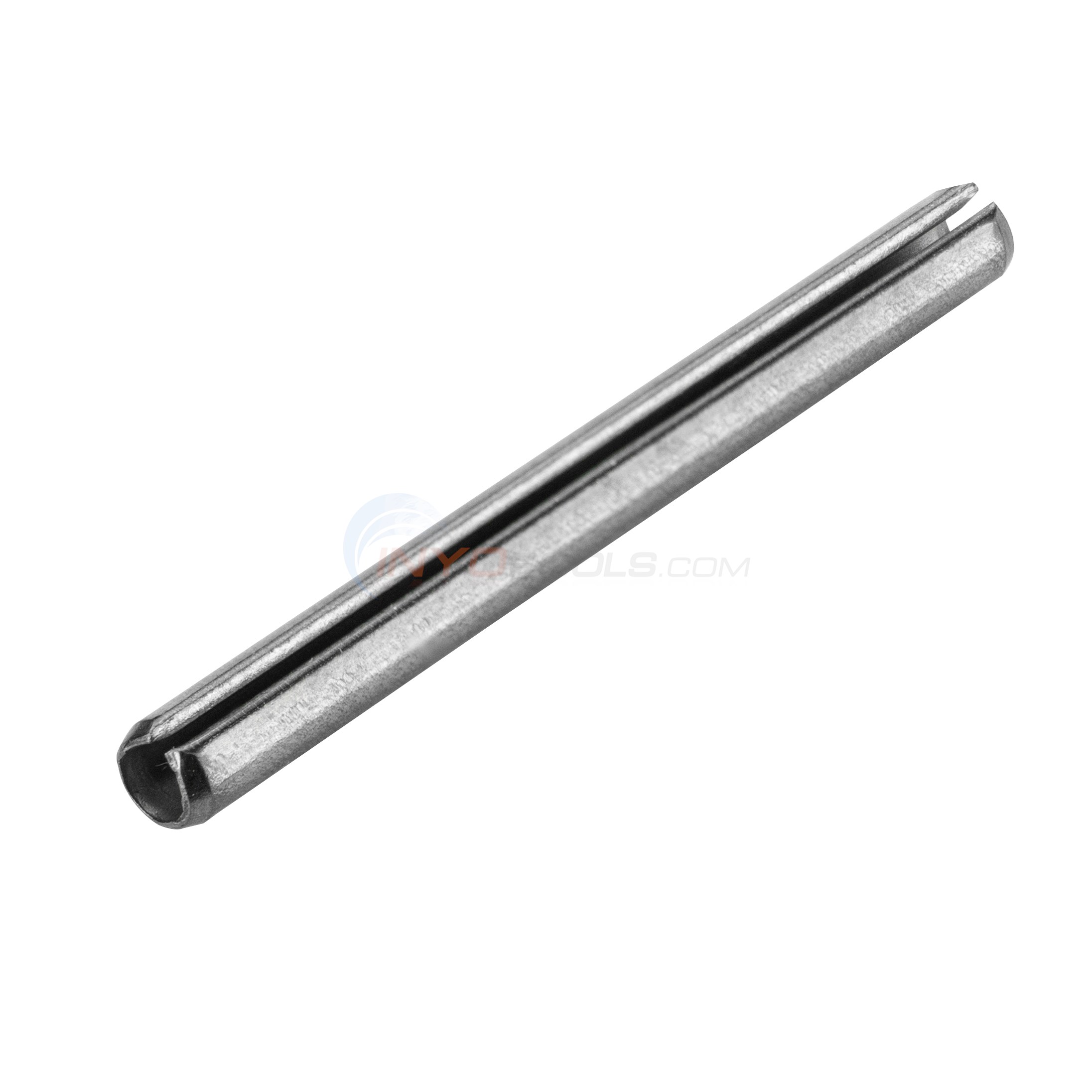

7 4810-07 ECX1013 PIN, PIVOT $9.99 Description

Key Part # Mfg Code Item Price

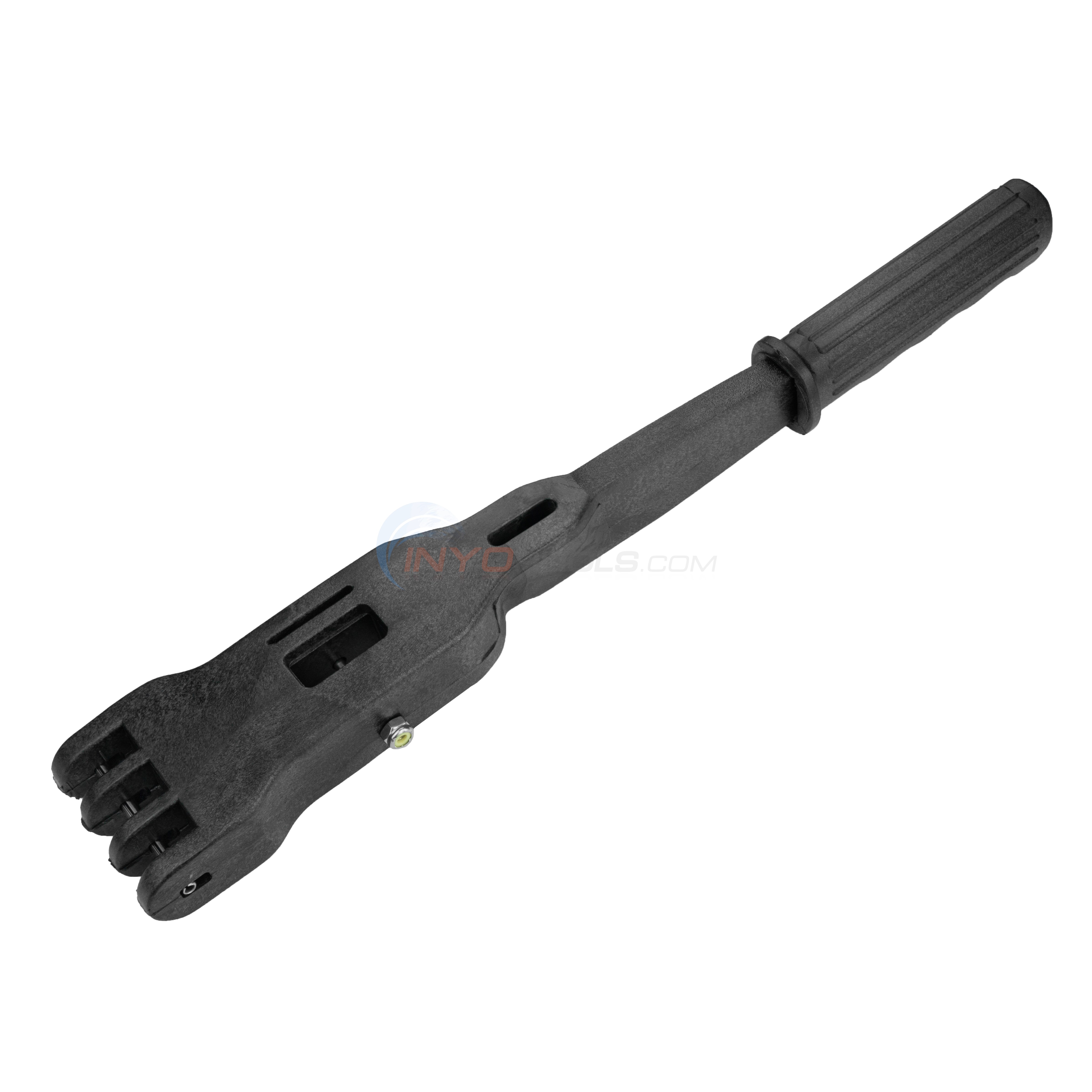

8 4810-08C ECX1040 HANDLE, BUMP ASSEMBLY - NORYL $56.64 Description

Key Part # Mfg Code Item Price
9 OBSOLETE ECX2706A OBSOLETE GRIP - -

Key Part # Mfg Code Item Price

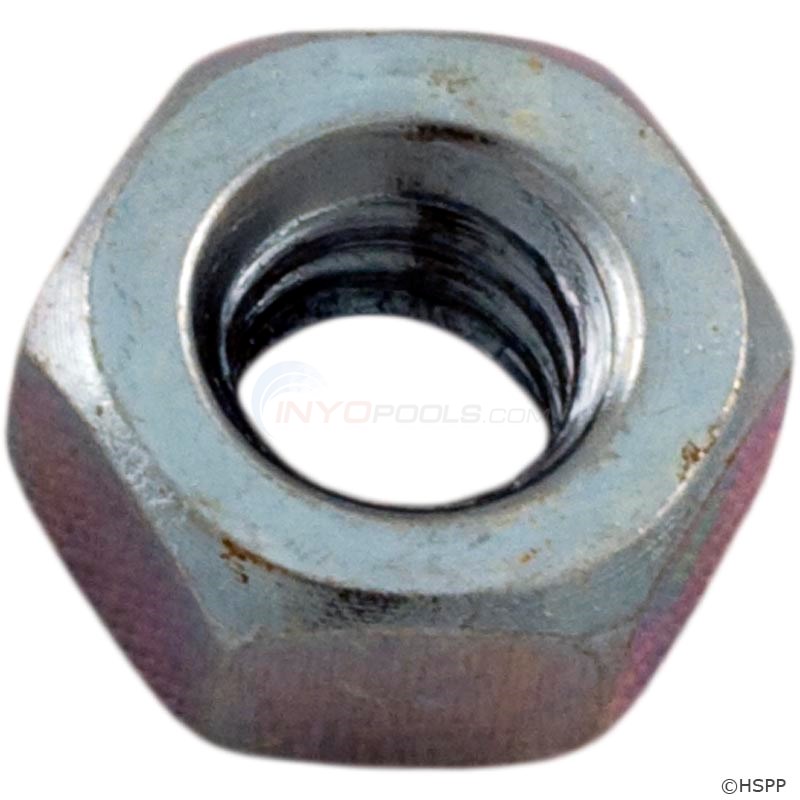

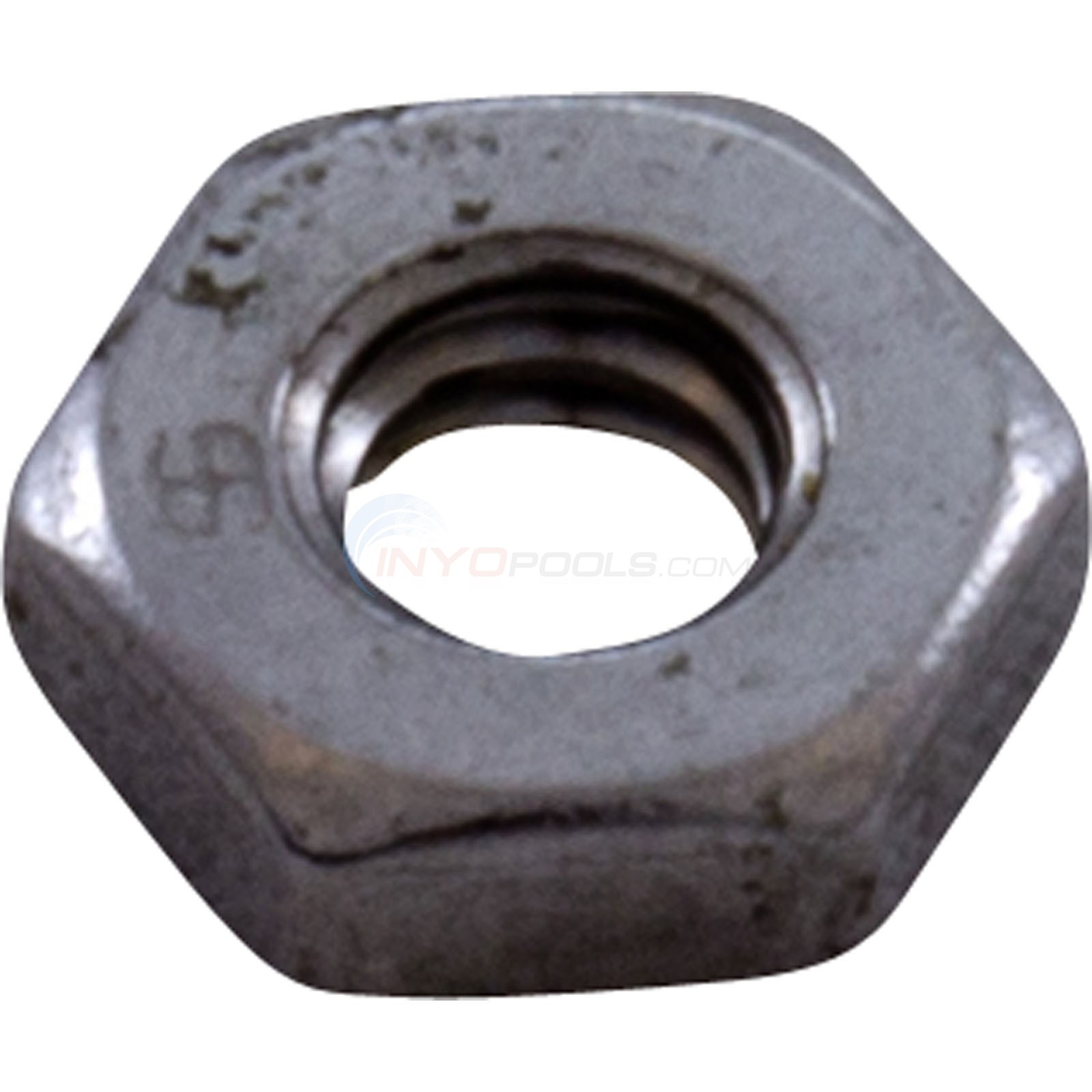

10 6930-0 14072508R NUT 1/4-20 S.S. $11.15 Description

Key Part # Mfg Code Item Price

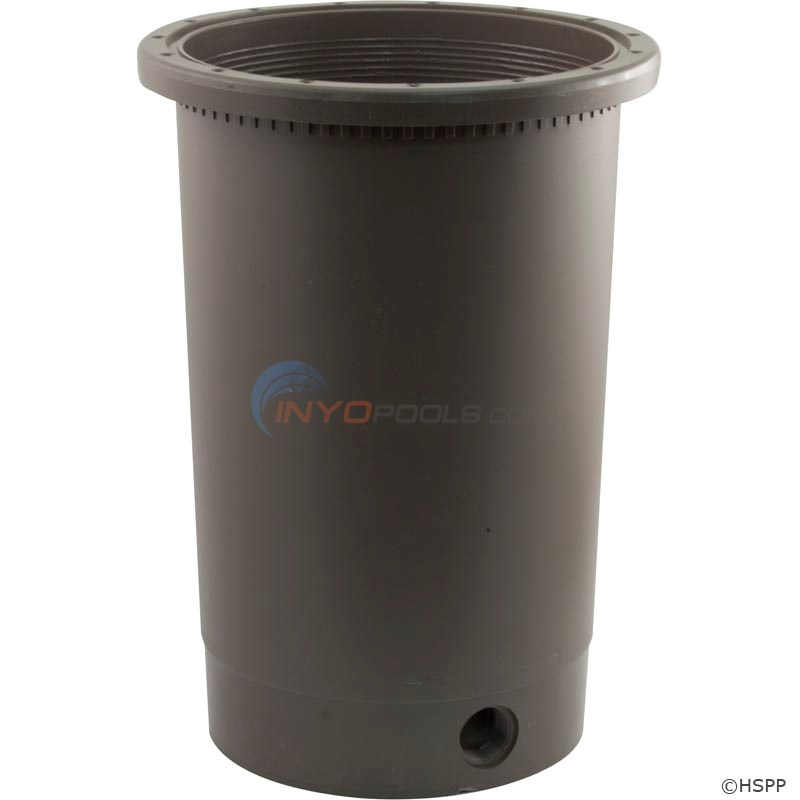

11 4820-10C ECX11184AT BODY, EC-65 AND EC-75 $560.99 Description

Key Part # Mfg Code Item Price

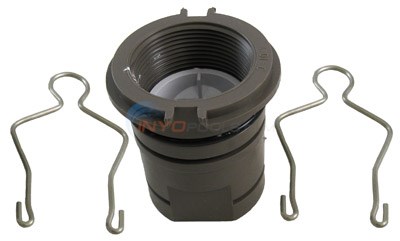

12 4810-12A ECX4201CA FITTING, INLET $88.73 Description

Key Part # Mfg Code Item Price

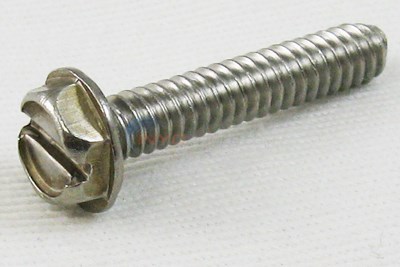

13 4810-13 SAMPLE S-12 SCREW $11.99 Description

Key Part # Mfg Code Item Price
14 4810-14 SAMPLE W-6 WASHER $10.99 Description

Key Part # Mfg Code Item Price
15 4810-15 ECX1110 SHAFT, BUMP $66.94 Description

Key Part # Mfg Code Item Price

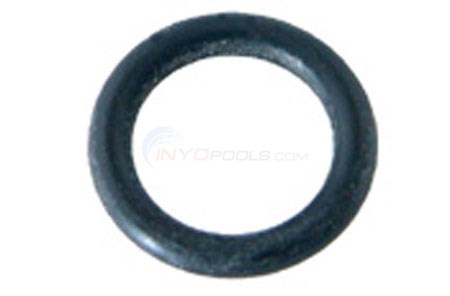

16 3250-F24 012 O-RING $10.22 Description

Key Part # Mfg Code Item Price
17 4810-17 ECX1014 RETAINER $5.34 Description

Key Part # Mfg Code Item Price
18 4810-18 SAMPLE W-1 WASHER $12.99 Description

Key Part # Mfg Code Item Price

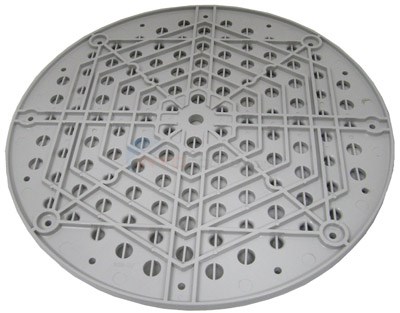

20 4810-31A ECX1230 DECAL $35.99 Description

Key Part # Mfg Code Item Price

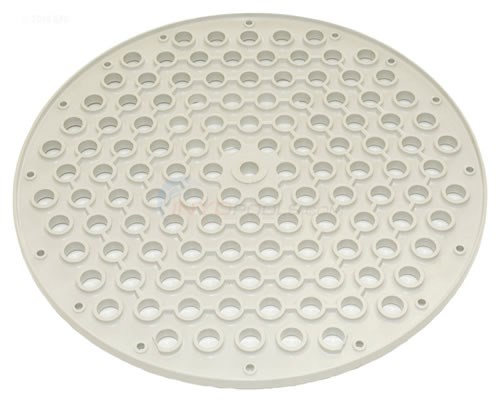

22 4810-22 SPX1500Y1 NUT $10.99 Description

Key Part # Mfg Code Item Price
23A 4810-23 ECX1031PAK5 TUBE, FLEX ASSY. (EC-65) 120 REQ. $33.98 Description

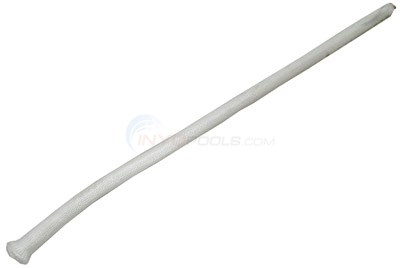

23B 4810-23A ECX1032 TUBE, FLEX ASSY. (EC-75) 120 REQ. $18.99 Description

Key Part # Mfg Code Item Price

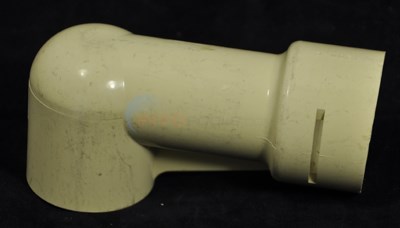

24A 4810-24 ECX4200C ELBOW, INLET $75.99 Description

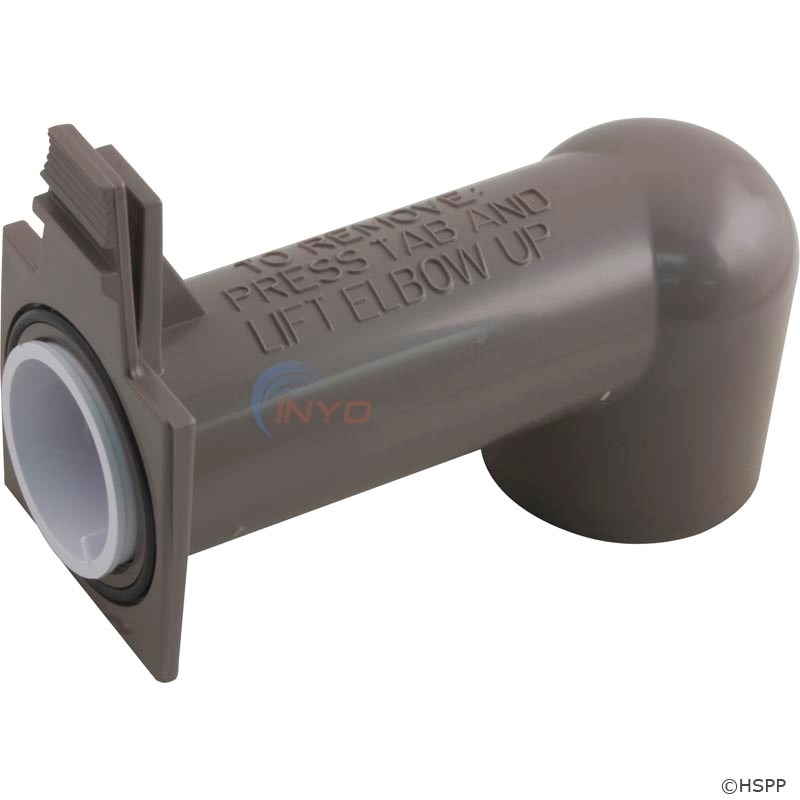

24B 4810-24A ECX4220A ELBOW, With CHECK VALVE $75.99 Description

Key Part # Mfg Code Item KEY #'s Price

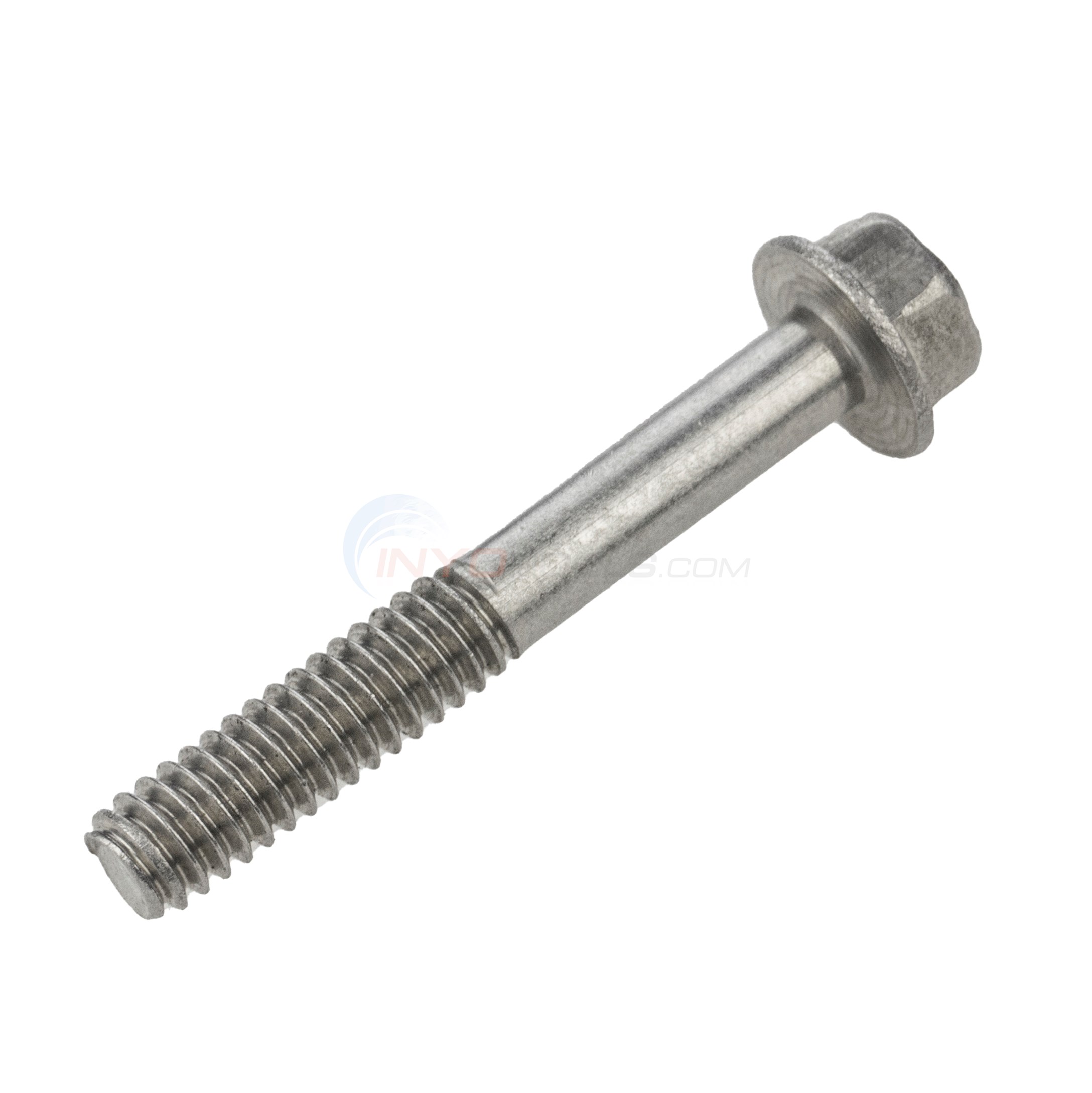

25 4800-08 ECX1642215 BOLT, HEX HEAD SS 1/4-20X 1.75 IN $9.29 Description
* ECX1642A ECX1642A BOLT SET 6, 10, & 25 $20.99 Description

Key Part # Mfg Code Item Price
26 4810-26 SP0723 VALVE, BALL $41.19 Description

Key Part # Mfg Code Item Price
27 4810-75 ECX2712B1 PRESSURE GAUGE With DIAL HAYWARD OEM BACK MOUNT $42.83 Description
27 4727-0 102D-204D Back Mount Pressure Gauge 0-60 1/4" NPT REAR/BACK $10.99 Description

Key Part # Mfg Code Item Price

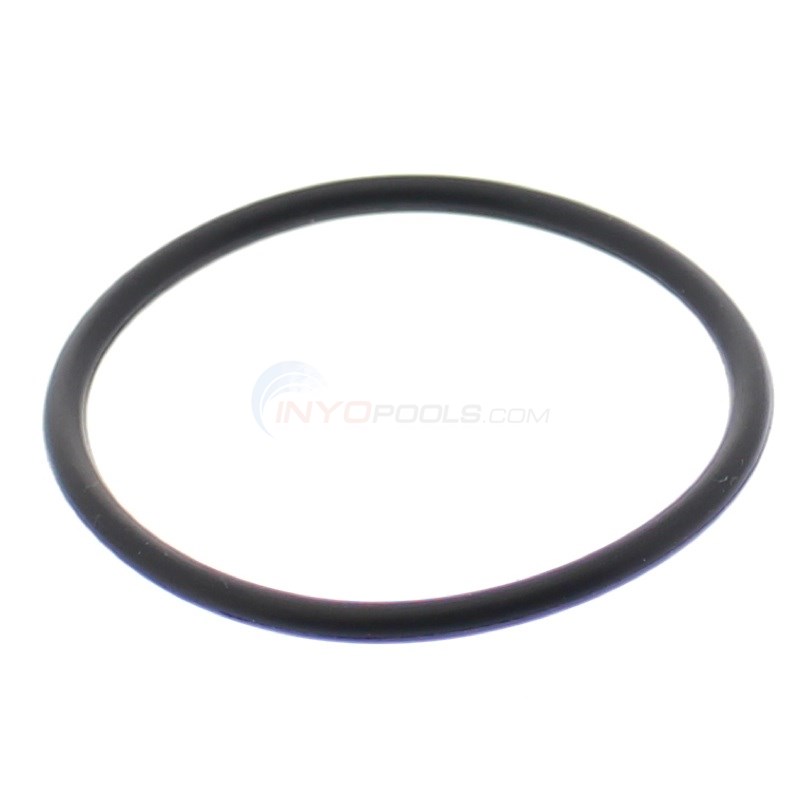

28A 5056-11 O-49 O-RING $8.36 Description

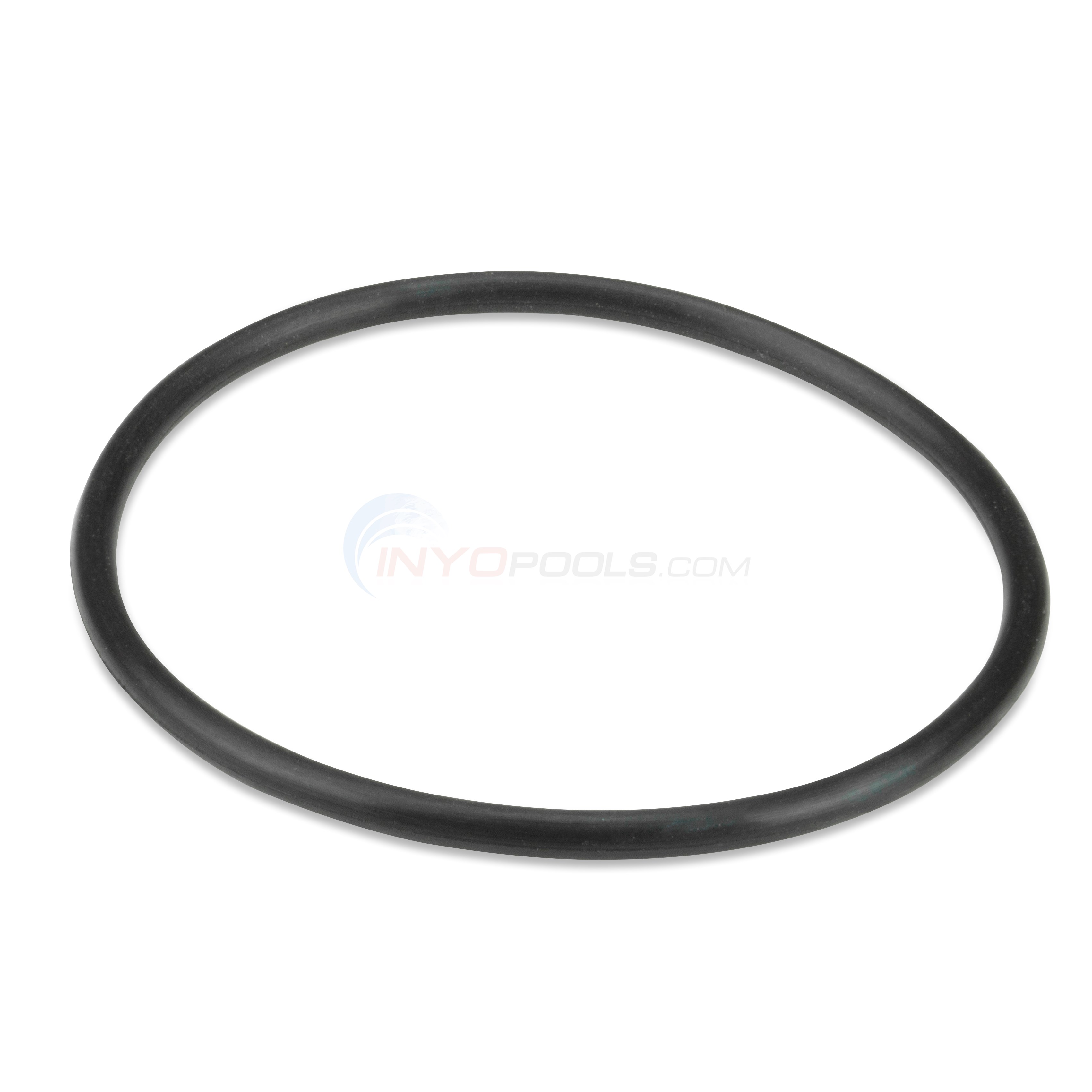

28B 5111-21 135 O-RING, STRAINER $10.22 Description

Key Part # Mfg Code Item Price
29 4662-16 ECX4077B1 Star-Clear Check Valve $27.53 Description

Key Part # Mfg Code Item Price
30 4810-30 ECX4212A RETAINER $10.99 Description

Key Part # Mfg Code Item Price
31 4727-0 102D-204D Back Mount Pressure Gauge 0-60 1/4" NPT REAR/BACK $10.99 Description

Key Part # Mfg Code Item Price

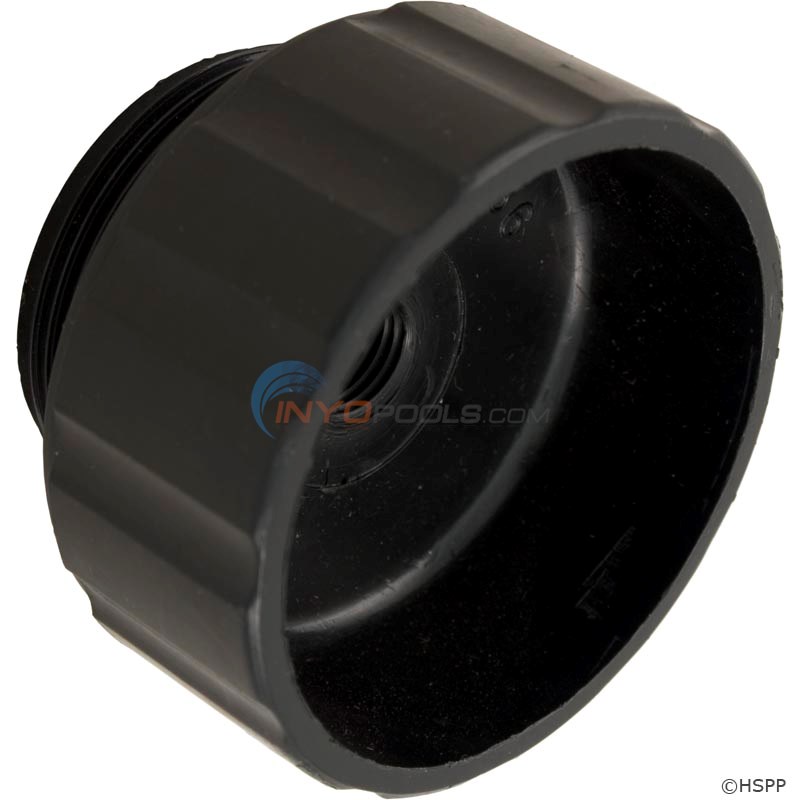

32 4810-32 ECX12866 ADAPTER $29.57 Description

Key Part # Mfg Code Item Price

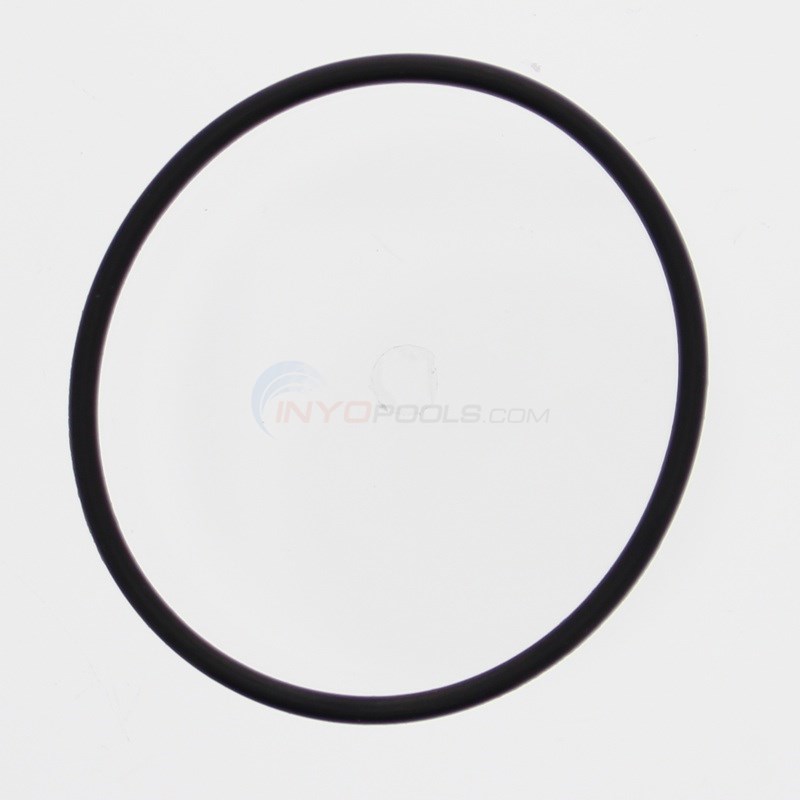

33 4657-26 O-24 O-RING $5.57 Description

Key Part # Mfg Code Item Price

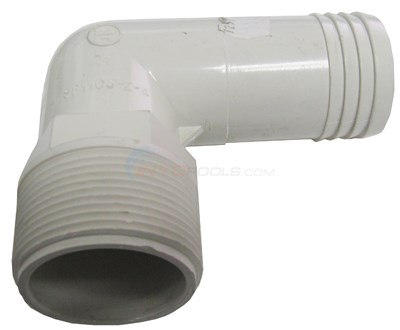

34 7251-0 SPX1105Z4 ELBOW ADAPTOR, 1 1/2" BARB X 1 1/2" MPT $11.21 Description

Key Part # Mfg Code Item Price
35 6660-0 276-28 CLAMP,S.S.HOSE 1 5/16 TO 2IN $5.57 Description

Key Part # Mfg Code Item Price
36 OBSOLETE ECX30442D OBSOLETE PUMP BASE - -

Key Part # Mfg Code Item Price

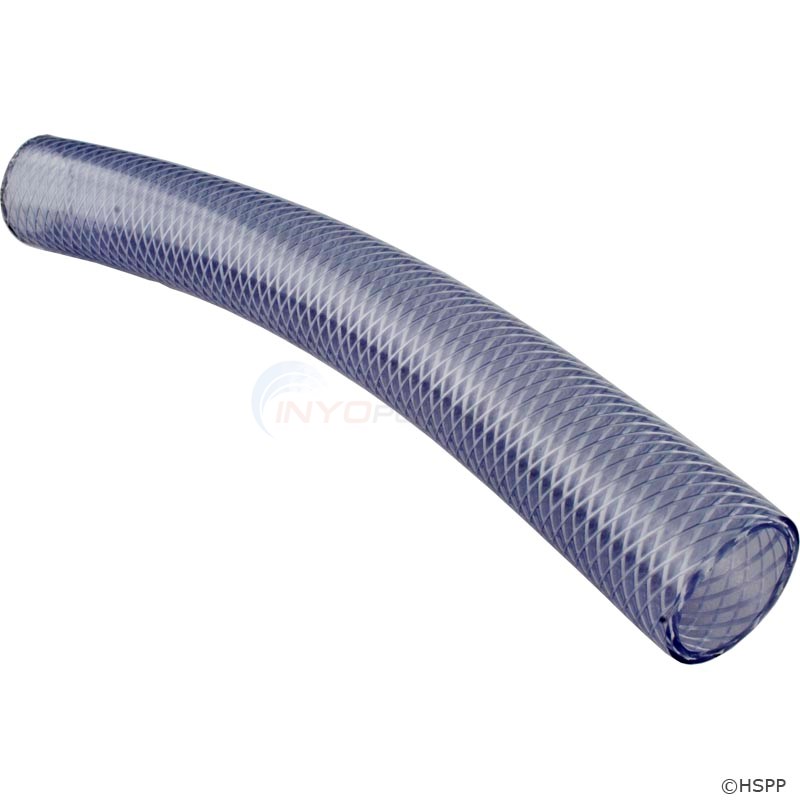

37 4824-57 ECX27071 HOSE, CLEAR, 1-9/16" ID $56.99 Description

Key Part # Mfg Code Item Price
38 4800-37 SPX1480C NUT, UNION $31.99 Description

Key Part # Mfg Code Item Price

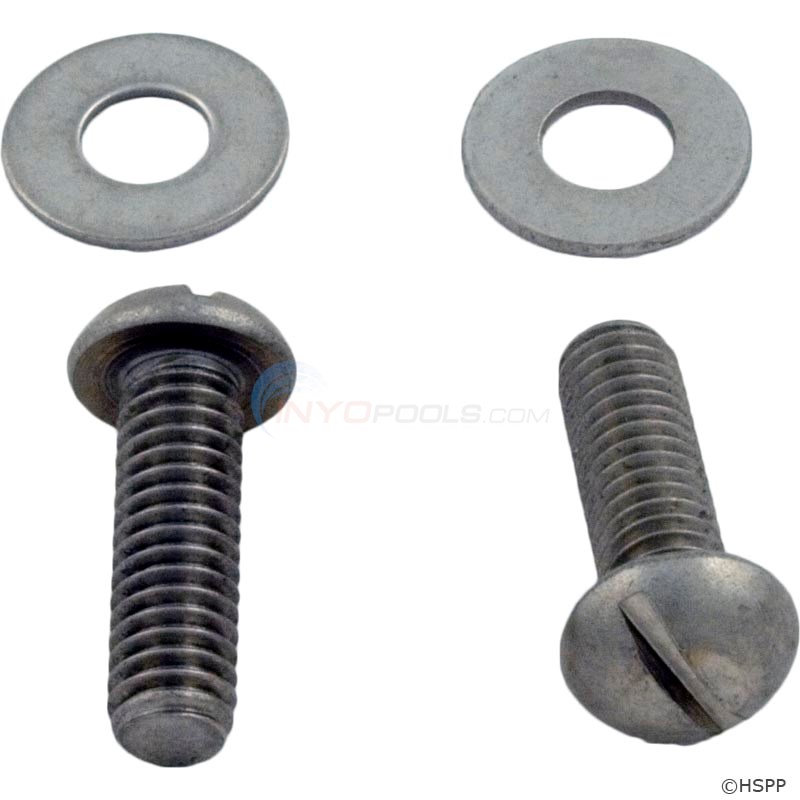

39 4800-90 ECX1161Z2 MOUNTING SCREW SET $22.99 Description

Key Part # Mfg Code Item Price

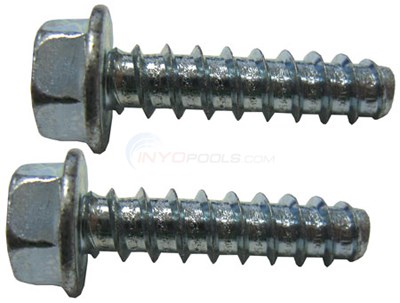

40 5112-015 SPX1600Z52 MOUNTING FOOT CAP SCREW (SET OF 2) $17.99 Description

Key Part # Mfg Code Item Price
41 4810-61 SPX1485A UNION BALL END $39.99 Description

Key Part # Mfg Code Item Price
42 5056-11 O-49 O-RING $8.36 Description

Key Part # Mfg Code Item Price
43 4800-40 O-341 GASKET, ELBOW $11.99 Description

Key Model # Mfg Code Item Price

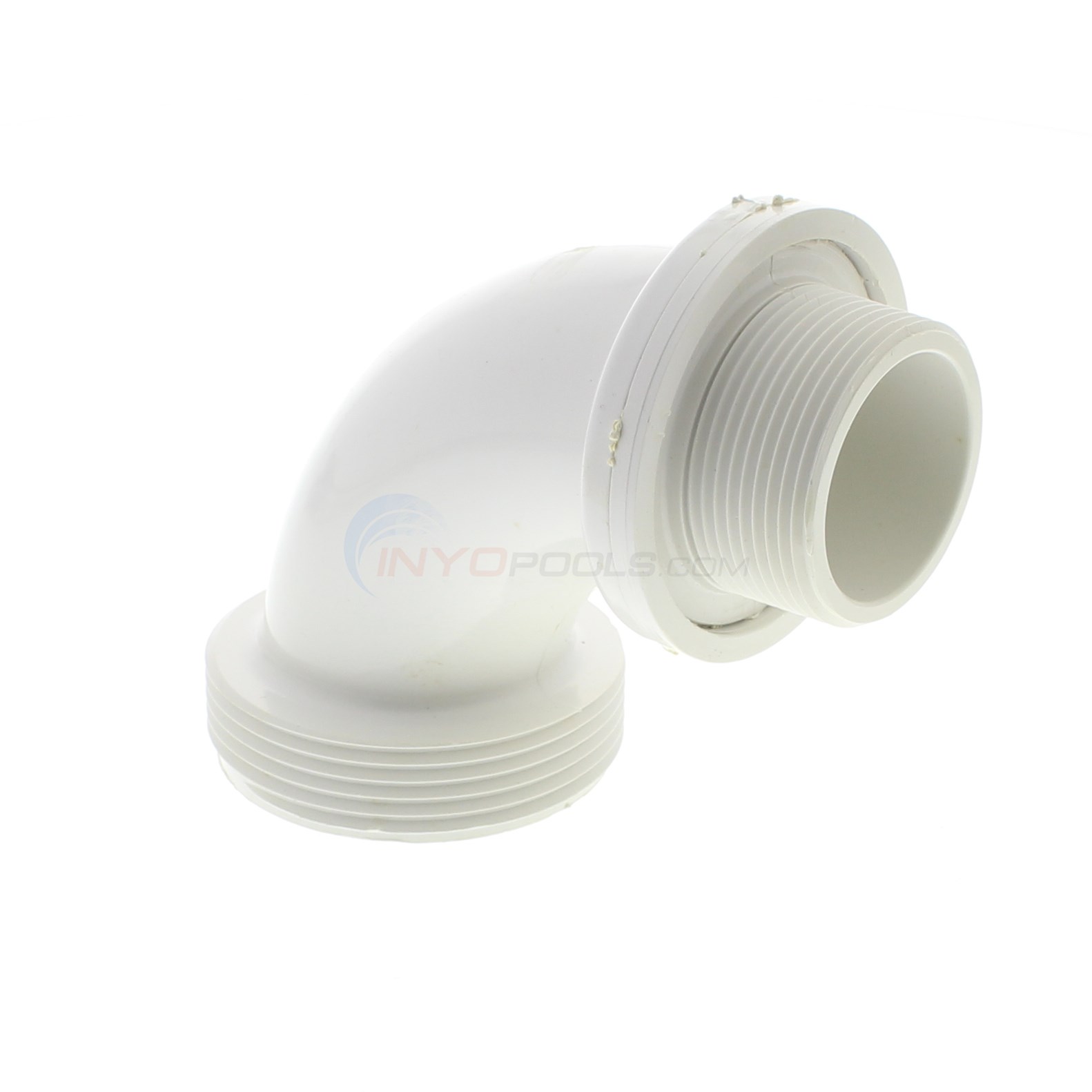

44 4820-65 SPX1485B ELBOW, PUMP DISCHARGE $82.99 Description

Key Part # Mfg Code Item Price

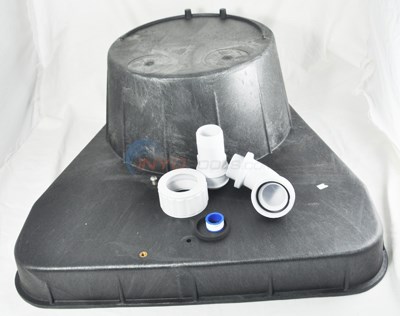

45 4810-90 EC65BLP SYSTEM III BASE KIT- BASE NOT AVAILABLE SEPARATELY $199.99 Description

Key Part # Mfg Code Item Price
* 4820-21 ECX1251 FLEX TUBE NEST (EC-65) $734.99 Description
* 4820-20 ECX125175 FLEX-TUBE NEST (EC-75) $958.92 Description

* Includes Keys 5 & 13-23
** O-RING/GASKET REPAIR KIT
