Cover O-ring (spx1500p) - 354

$10.22

IN STOCK

Part # 5111-18B

By Parco

  5 Average

Details

Top

Part # 5111-18B

Manufacturer Code 354

Dimensions 5.5" X 0.2"

Alternate Part #'s 351501210, 47035407, HAY1012004, O231, SP1500P, SPX1500P, XLSCOR, 90-423-5354, APCO2422, HAYSPX1500P, SPG-601-1126

Product Description

Strainer lid o-ring used on the Hayward Power-Flo, Power-Flo LX, Turbo-Flo, and Leslie's Hydramax pumps.

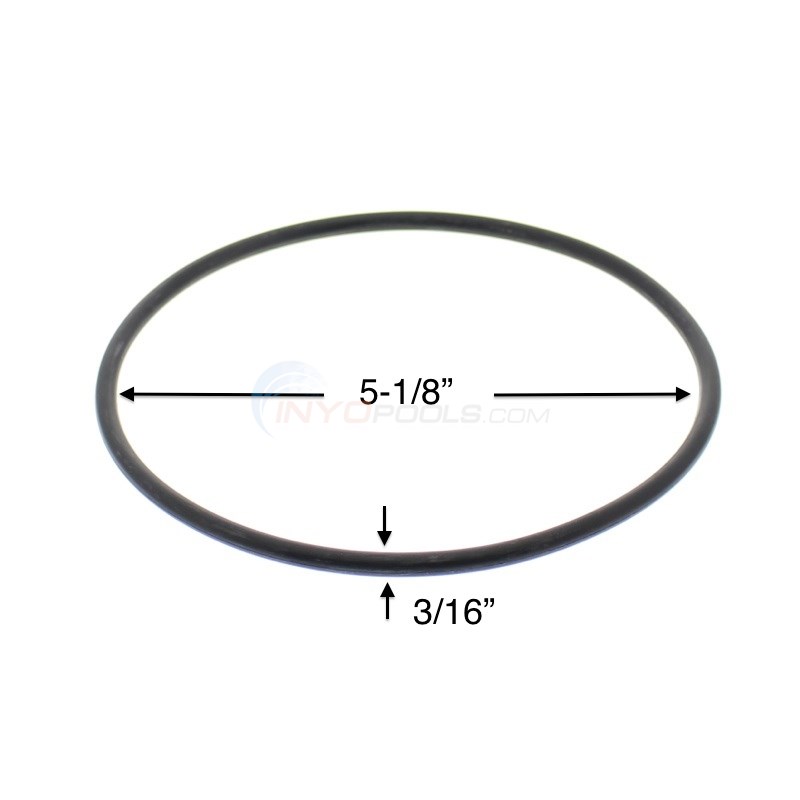

5-1/8" I.D.; 5-1/2" O.D.; 3/16" thick

Top

?     Asked on 3/15/2022by Tommy Coble

will this O ring fit Power - Flo 11 pump-Picture attached Also, what do you offer for a lower price that works with Hayward Aqua Rite system 15,000 gallons- Has T-cell 9 now

 Reply

A  Answered on 3/15/2022 by InyoPools Product Specialist Craig C.

Hello Tommy.  The Cover O-ring 5111-18B is a compatible pump lid o-ring for the Hayward Power Flo II Pump.  Cover O-ring (spx1500p) - 354   Attached please find an exploded parts diagram for the Hayward Power Flo II Pool Pump for reference.  Hayward Power Flo II    Currently, the AquaRite 25K Replacement Cell W3T-CELL-9 is the only replacement SWG Cell for the T-Cell 9 available at INYO Pools.  If you wished to drop a cell size, the W3GLX-CELL-5 has a treatment capacity of 20,000 gallons.  AquaTrol & AquaRite 20K Replacement Cell Only - No Unions - W3GLX-CELL-5
 Reply


?     Asked on 7/29/2021by David Frey

Will this o ring fit this model

 Reply

A  Answered on 7/30/2021 by InyoPools Product Specialist Stephen B.

Thank you for contacting Inyo Pools. This should be the correct replacement  parts diagram and go to #2
 Reply


?     Asked on 4/27/2021by ALEX FAITH

Existing O ring for Hayward SP1520Z1ESC strainer cover is a fatter one than CMP which does not seal. Is the 5111-18B the fatter o-ring that I need.
 Reply

A  Answered on 4/28/2021 by InyoPools Product Specialist Matt S.

The SP1520Z1ESC is the motor number that does not identify the pump housing itself. DO you see a model number of the plastic housing? You can also try to find a part number on the pump lid or basket.
 Reply


?     Asked on 4/1/2020by Steve

Will this fit hayward model sp-1515?
 Reply

A  Answered on 11/11/2020 by InyoPools Product Specialist Megan C.

Yes, the Cover O-ring (spx1500p) - 354 We also offer the Tune Up Kit Power-Flo 1500 Series - GOKIT12 to revamp the pump seals to help protect the motor from possible water damage. How To Change The Shaft Seal On A Hayward PowerFlo Pump http://www.inyopools.com/HowToPage/how_to_change_the_shaft_seal_on_a_hayward_powerflo_pump.aspx
 Reply


?     Asked on 1/22/2019by Sandra Kindberg-Lopez

Would this o-ring work for AC1500SR model?
 Reply

A  Answered on 1/22/2019 by InyoPools Product Specialist Lennox H.

Hi, Sandra. This is not the correct O-ring, you will need Part # PO12728O1
 Reply


?     Asked on 5/28/2018by Inyo Visitor

Will this fit the hayward power flo-11 pump sp170072c? Thank you
 Reply

A  Answered on 5/29/2018 by InyoPools Product Specialist Lennox H.

Hi. Yes, it will.
 Reply


?     Asked on 5/25/2018by Shannon R Barr

Will this fit the Sp1520z1esc if not what will?
 Reply

A  Answered on 5/25/2018 by InyoPools Product Specialist Lennox H.

Hi, Shannon. The info provided if the motor model, I will need the pump housing model in order to confirm if this will work. You can email us pictures of the pump housing so that we can verify.
 Reply


?     Asked on 8/20/2017by Sergio Rosario

What is the correct replacement O ring and lid for the Hayward SP3020X2 pump fliter housing?
 Reply

A  Answered on 8/22/2017 by InyoPools Product Specialist Lennox H.

Hi, Sergio. The replacement lid and o-ring is listed on the Hayward Super II Pump Parts Diagram page.
 Reply


?     Asked on 6/10/2017by Fred

Does this ring fit in the slot in the cover or around the base.
 Reply

A  Answered on 6/10/2017 by InyoPools Product Specialist Lennox H.

Hi, Fred. Yes, this o-ring fit into the grove around the pump housing. You must apply lubricant first.
 Reply


?     Asked on 5/31/2016by Brenda Esbenshade

Model #SP1580x15 Hayward power flo lx. Will this be the correct O-ring?
 Reply

A  Answered on 5/31/2016 by InyoPools Product Specialist Patrick P.

Hi Brenda, Yes this is the correct o-ring for the SP1580x15  Hayward power flo lx.
 Reply


?     Asked on 9/30/2015by Ed Casey

Will this o-ring fit a Hayward MaxFlo SP2805X7 pump.strainer SP 18057?
 Reply

A  Answered on 10/2/2015 by InyoPools Product Specialist Lennox H.

Hi Ed, The Cover O-ring (SPX500P) will not fit on the Hayward MaxFlo SP2805X7 Pump. The Strainer Cover Gasket (SPX0125T) would be the correct strainer cover gasket.
 Reply


?     Asked on 8/1/2015by Joseph Coelho

Does this fit strainer basket cover for Hayward Powerflo LX with 1hp motor?
 Reply

A  Answered on 8/5/2015 by InyoPools Product Specialist Lennox H.

Hi Joseph, The Cover O-ring (SPX1500P) will fit the Strainer Housing for the Hayward PowerFlo LX.
 Reply


?     Asked on 7/2/2015by john

what is size
 Reply

A  Answered on 7/2/2015 by InyoPools Product Specialist Hector F.

The size of this o-ring is 5.5" by 0.2".
 Reply
