By Maytronics



Part # 9995853-ASSY

Alternate Part #'s MAY9995853-ASSY

Product Description

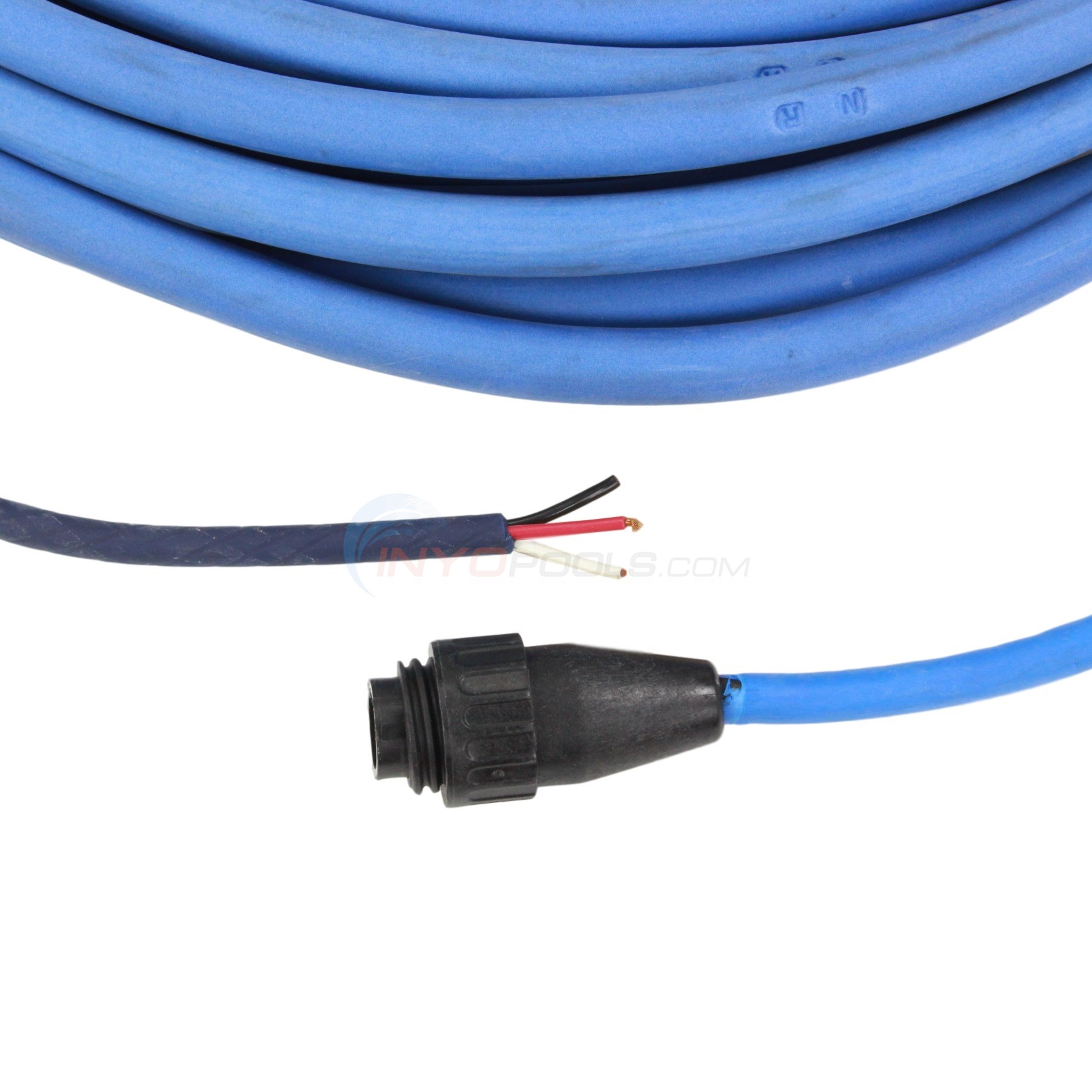

60' Cable, NO Swivel and 3 wires. You will need to order a 9991279 Retrofit Kit separately to build the motor plug on this ASSY Cable

Maytronics Robotic Cables are currently designated as ASSY (Assembly) or DIY (Do It Yourself) depending on the design of the plug on the motor end of the cable. For most of the older Robotic models, the cord was installed through the small hole in the SIDE panel of the cleaner. The opening on the side was too small for the cord to go through with the plug on the end, so the wires needed to be threaded through the opening first and then attached to a plug using a Retrofit Kit before being connected to the motor. These cables with “assembled” plugs are designated as “ASSY” at the end of the cable’s manufacturing code.

To improve the plug design, Maytronics created a molded plug that is permanently attached to the motor end of the cable. Instead of coming through the small hole in the side, the cable enters through the TOP of the cleaner and is simply plugged into the top of the motor. Because this cable design is much simpler to install, it is designated as “DIY” at the end of the cable’s manufacturing code.

Other differences between the Robotic cables include: the length of the cable; whether they have a swivel; their type of protective spring (DIY cables only); and whether they have 2 wires or three. For more information on these cables descriptions, see our guide on “How to Select the Right Maytronics Dolphin Cleaner Replacement Cable”.

Used on the following Maytronics Dolphin Robotic Pool Cleaners:


?     Asked on 6/2/2016by John Priddy

my dog chewed through the blue power cord of my Premier cleaner, which specific part in your list do I need to order?

A  Answered on 6/3/2016 by InyoPools Product Specialist Patrick P.

Hi John, Could you give us the model of your Pentair Cleaner it should say Prowler 710, 720, 810, 820 or 830.

?     Asked on 9/9/2016by Jim Woods

the plate and pins of my cord swivel joint corroded and burnt what parts do I need to order? we have a Maytronics Dolphin Advantage AD. Turquoise and Maroon with Light Blue Cord. Pins are not bad and could be cleaned up but the plate side is badly corroded. Thanks for the help!

A  Answered on 9/9/2016 by InyoPools Product Specialist Stacey M.

Hello Jim, I don't see that part on Maytronics Dolphin Advantage Parts, just to make sure you could check with Maytronics 888-365-7446 to double check correct part number on what you are looking for so we can better assist you.
